Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

17 part groups · 5 illustrations

Illustrations

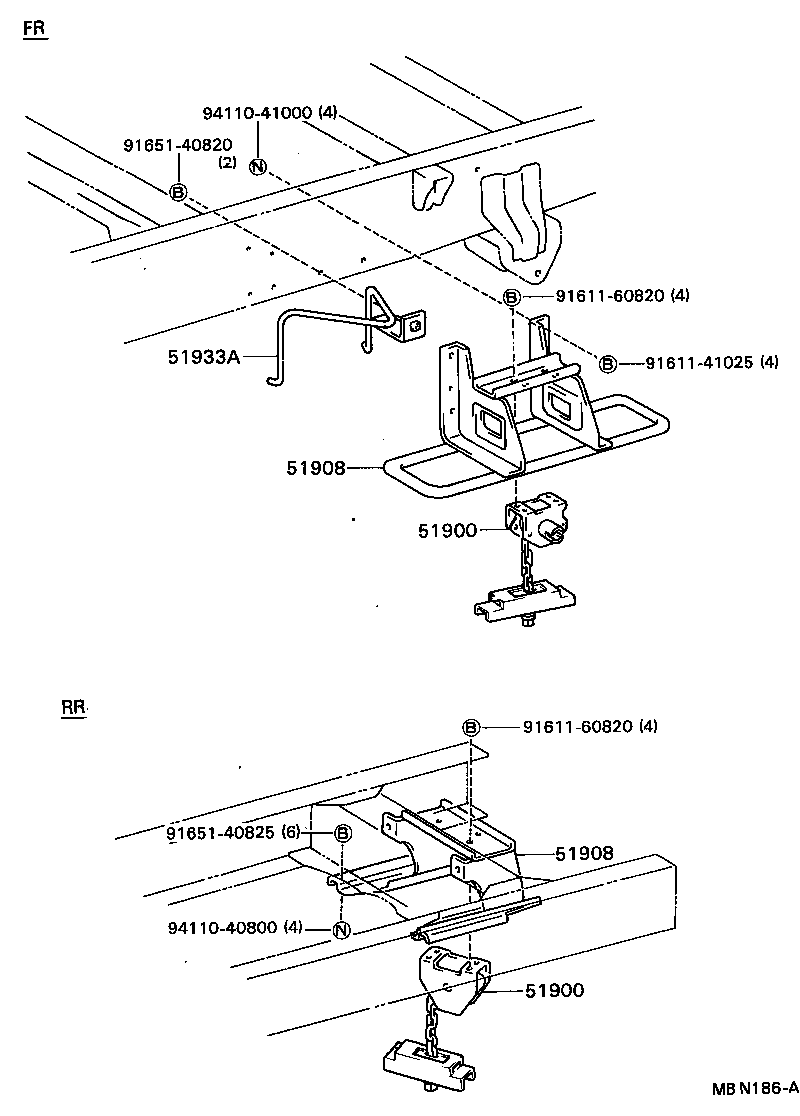

Figure MBN183A MBN183A 1987-08 → — Figure MBN186A MBN186A 1987-08 → — Figure MBN188A MBN188A 1987-08 → — Figure MBN194 MBN194 1987-08 → — Figure MBN196A MBN196A 1987-08 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51901 Rod Sub-assy, Spare Wheel Carrier
51905A Frame Sub-assy, Spare Tire Carrier
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51933 Bolt, Spare Wheel Carrier Eye
51933A Stopper, Spare Wheel, NO.1
51935 Nut, Spare Wheel Carrier Eye
51941 Stopper, Spare Wheel Carrier
51943 Bracket, Spare Wheel Carrier, NO.1
51944 Bracket, Spare Wheel Carrier, NO.2
51948 Stopper, Spare Wheel Carrier Auxiliary
51965B Hook, Spare Wheel Support
51966A Chain
57875 Plate, U-bolt
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
