Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

8 part groups · 3 illustrations

Illustrations

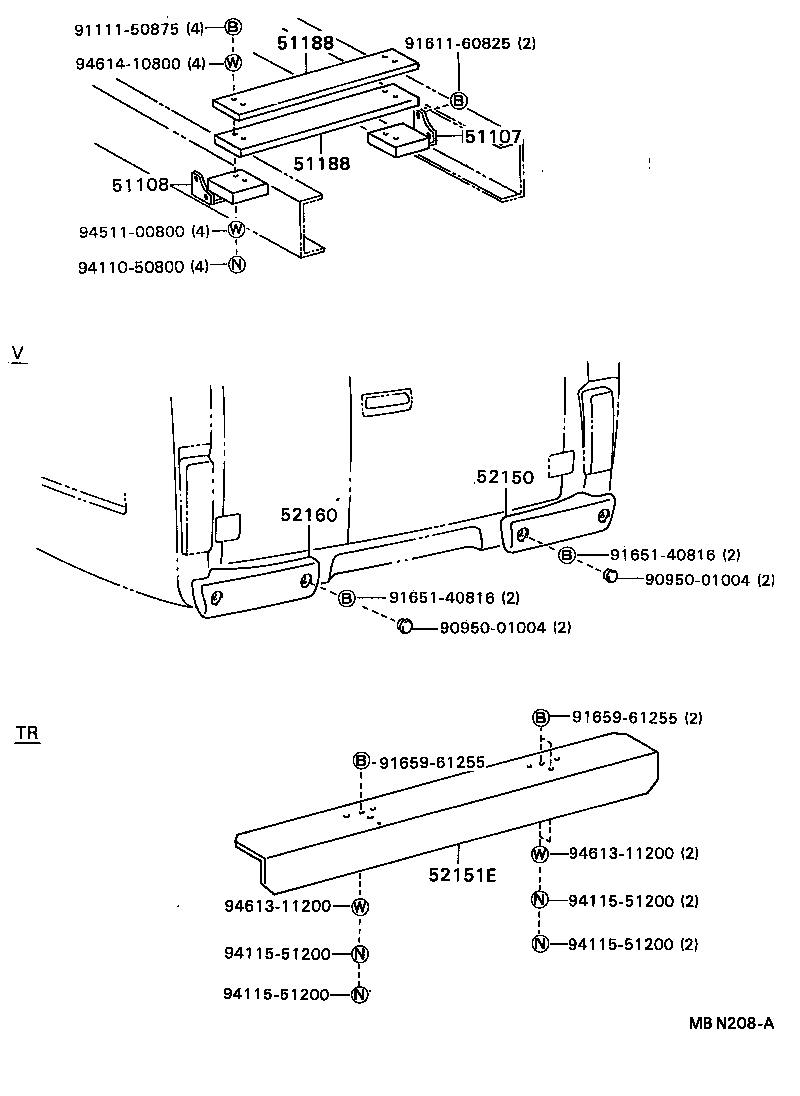

Figure MBN206B MBN206B 1987-08 → — Figure MBN208A MBN208A 1987-08 → — Figure MBN210A MBN210A 1987-08 → —

Part groups

PNCDescription
51107 Bracket Sub-assy, Frame Rear Weight, RH
51108 Bracket Sub-assy, Frame Rear Weight, LH
51188 Weight, Frame, Rear A
52087 Stay Sub-assy, Rear Bumper Side, RH
52088 Stay Sub-assy, Rear Bumper Side, LH
52150 Bumper Assy, Rear RH
52151E Bar, Rear Bumper
52160 Bumper Assy, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
