Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

19 part groups · 3 illustrations

Illustrations

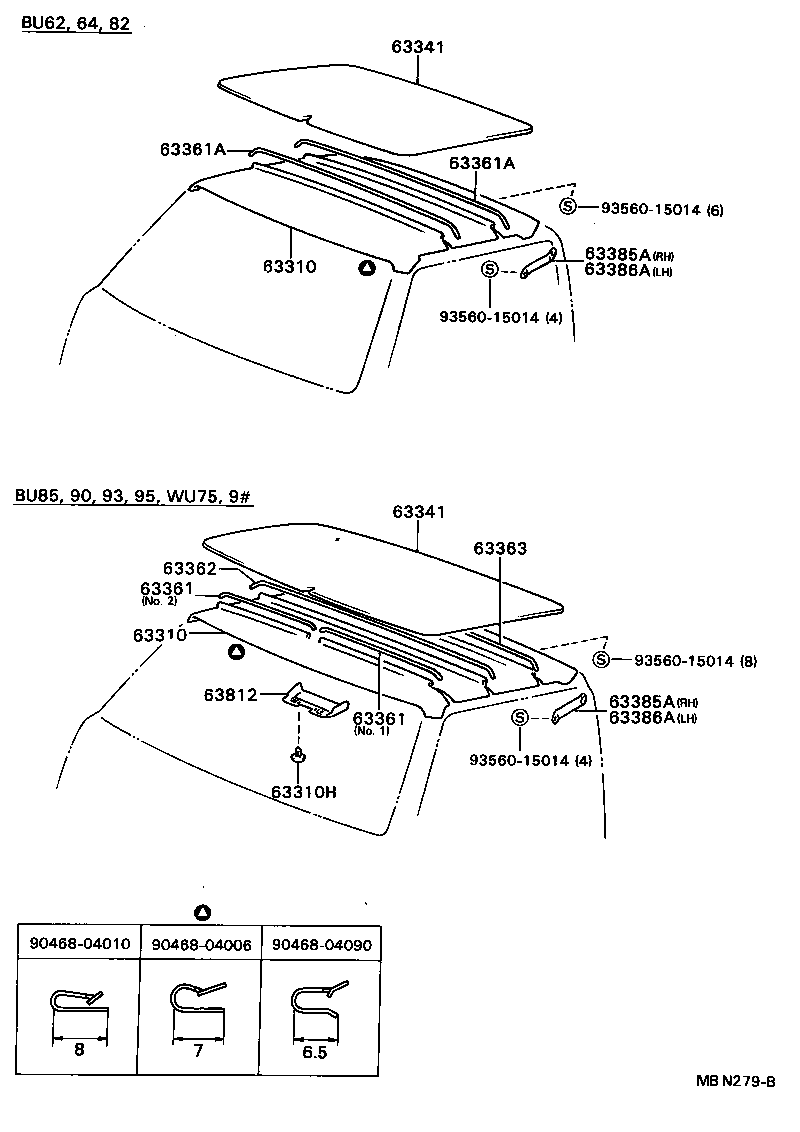

Figure MBN672 MBN672 1987-08 → — Figure MBN279B MBN279B 1987-08 → — Figure MBN276A MBN276A 1987-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63341A Silencer, Roof, NO.1
63342 Pad, Roof Silencer, NO.2
63342A Silencer, Roof, NO.2
63343 Pad, Roof Silencer, NO.3
63343A Silencer, Roof, NO.3
63344 Pad, Roof Silencer, NO.4
63344A Silencer, Roof, NO.4
63345 Pad, Roof Silencer, NO.5
63347B Pad, Roof Side Rail Silencer, RH
63348C Pad, Roof Side Rail Silencer, LH
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63385A Retainer, Roof Headlining Trim Side, RH
63386A Retainer, Roof Headlining Trim Side, LH
63812 Cover, Roof Ventilator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
