Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

11 part groups · 5 illustrations

Illustrations

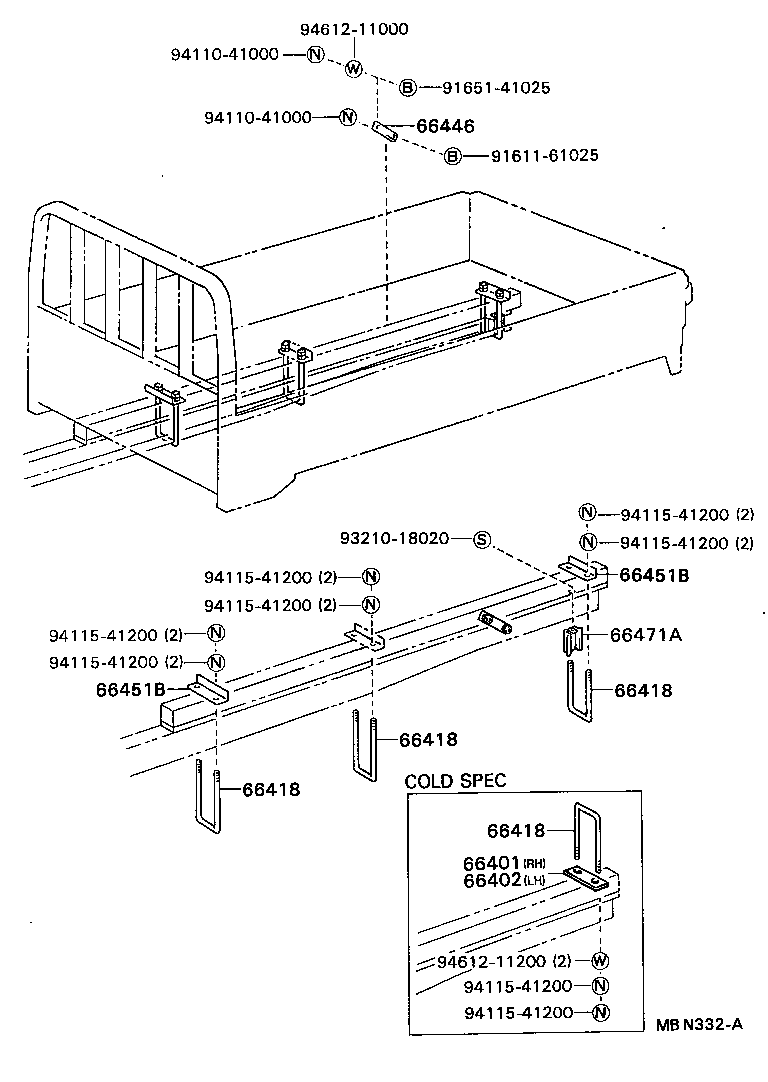

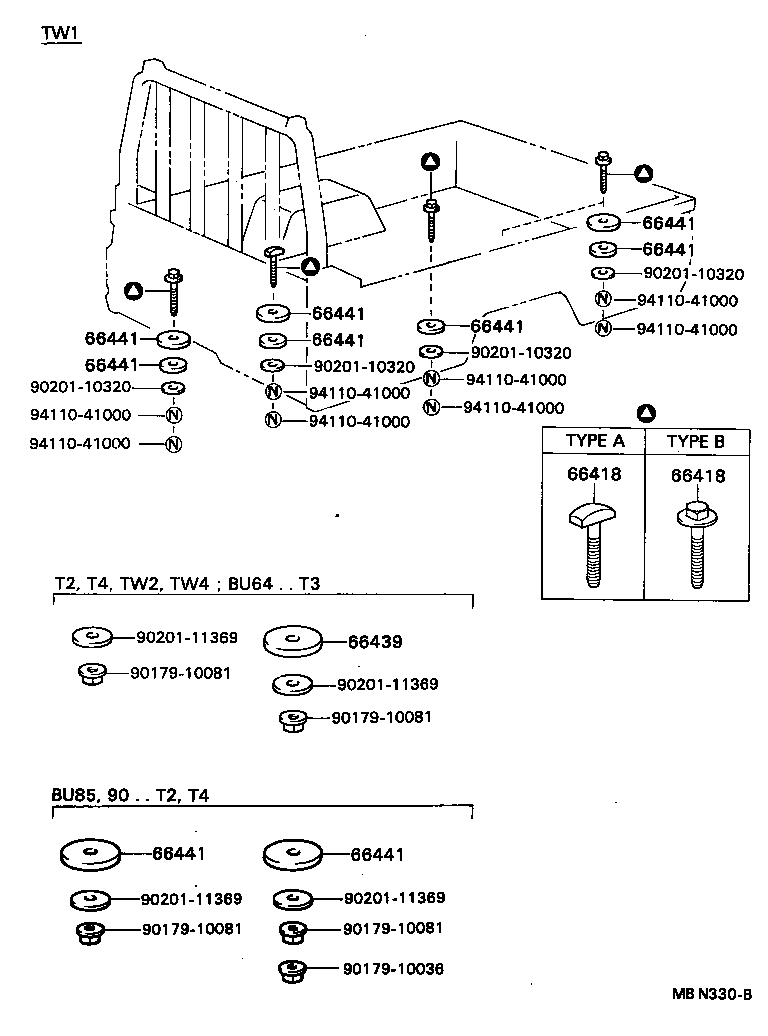

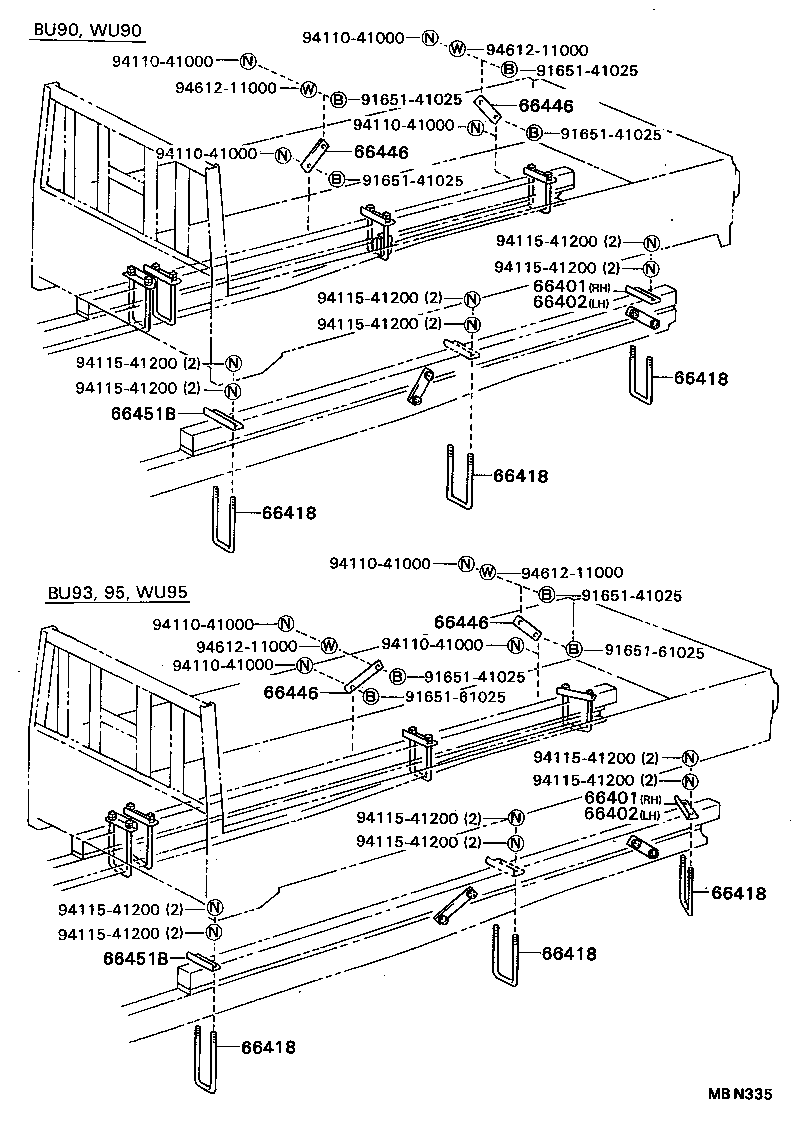

Figure MBN328A MBN328A 1987-08 → — Figure MBN330B MBN330B 1987-08 → — Figure MBN332A MBN332A 1987-08 → — Figure MBN335 MBN335 1987-08 → — Figure MBN336 MBN336 1987-08 → —

Part groups

PNCDescription
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66413A Spacer, Side Rail
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66463C Plate, Sub Frame Set
66466E Plate, Sub Frame Anchor
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
