Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

9 part groups · 2 illustrations

Illustrations

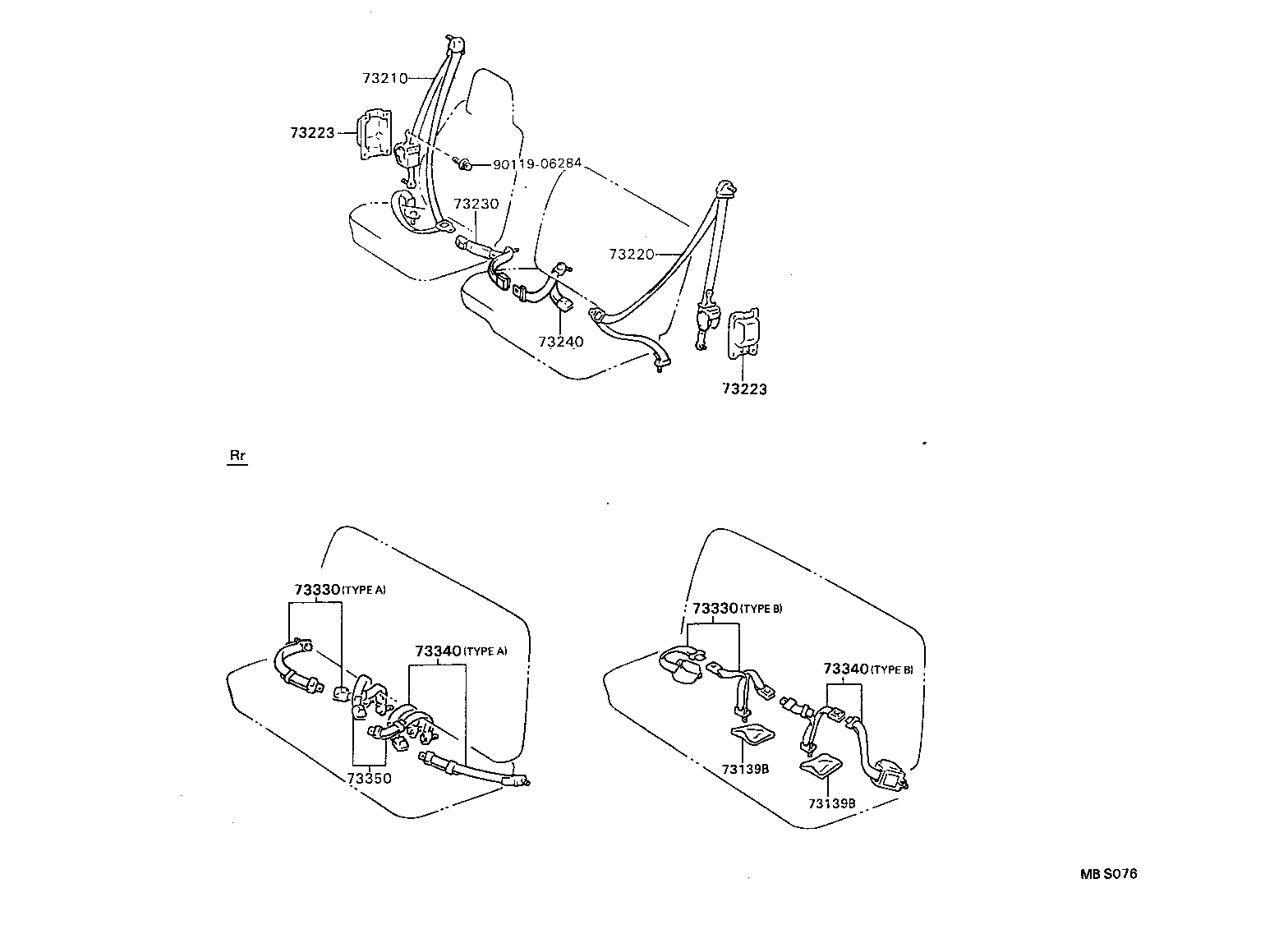

Figure MBN376B MBN376B 1987-08 → — Figure MBS076 MBS076 1987-08 → —

Part groups

PNCDescription
73139B Cover, Seat Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
