Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

11 part groups · 2 illustrations

Illustrations

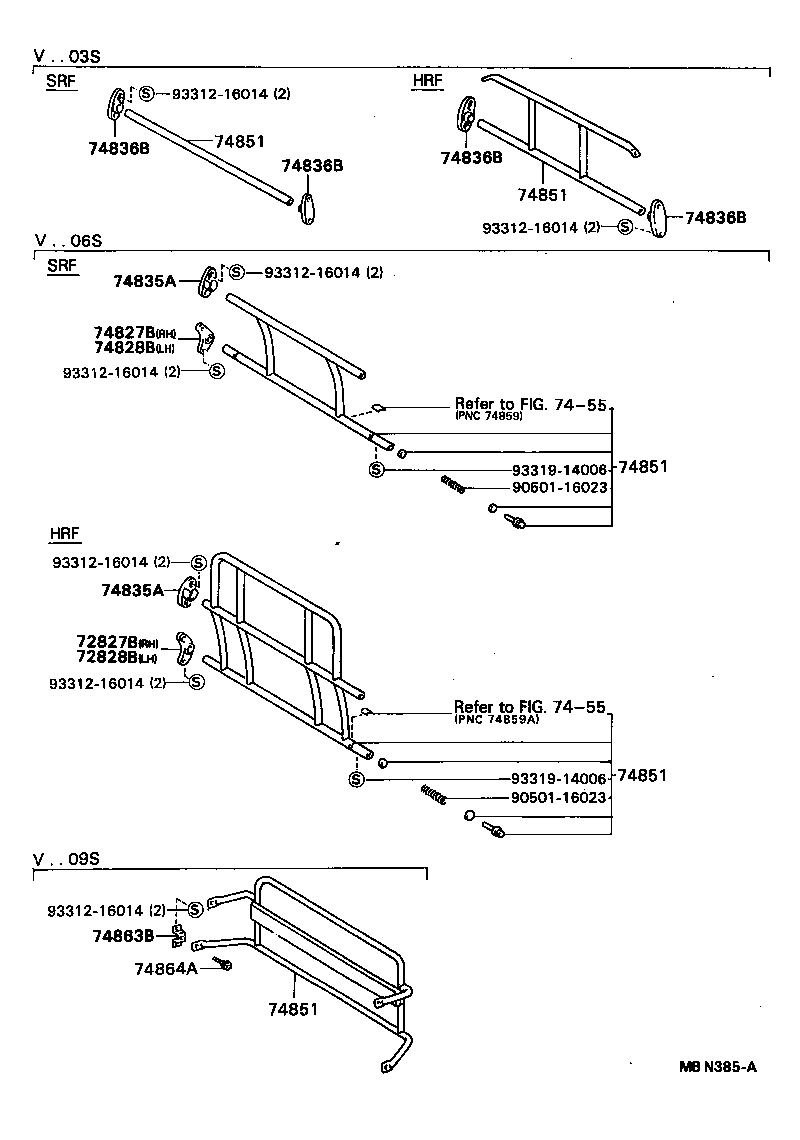

Figure MBN383A MBN383A 1987-08 → — Figure MBN385A MBN385A 1987-08 → —

Part groups

PNCDescription
62335C Cover, Separator Bar
65915A Bracket, Curtain Rail
74805 Separator Sub-assy
74827B Bracket, Separator Bar, RH
74828B Bracket, Separator Bar, LH
74835A Bracket, Separator
74836B Bracket, Separator Bar, NO.2
74845B Ornament, Front Seatback Panel, C
74851 Bar, Separator
74870A Curtain Assy, Separator
74881E Rail, Separator Curtain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
