Toyota Dyna/Toyoace
1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan
Discontinued model
Data version 1989-04

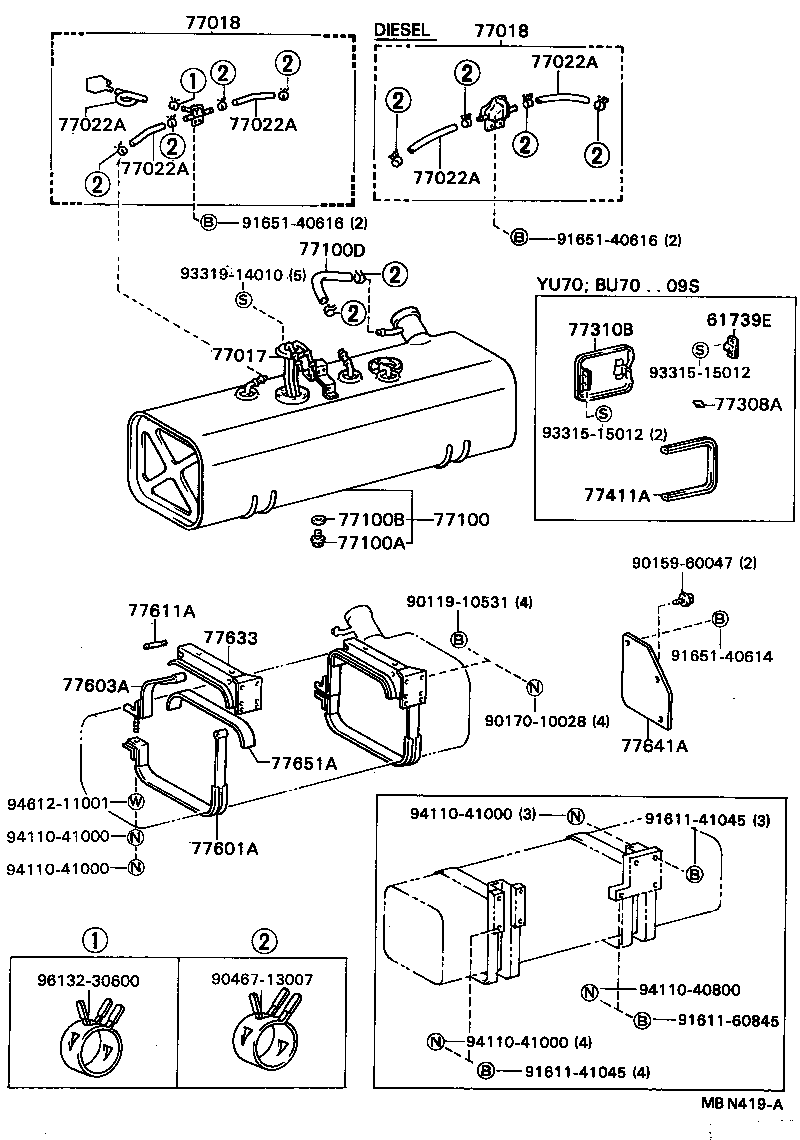

Fuel Tank & Tube
43 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58266A | Bracket, Fuel Tube Clamp |
| 61739E | Stopper, Fuel Inlet Cover |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100E | Hose, Fuel, NO.2(FOR FUEL TANK) |
| 77100T | Union(FOR FUEL SUB-TANK) |

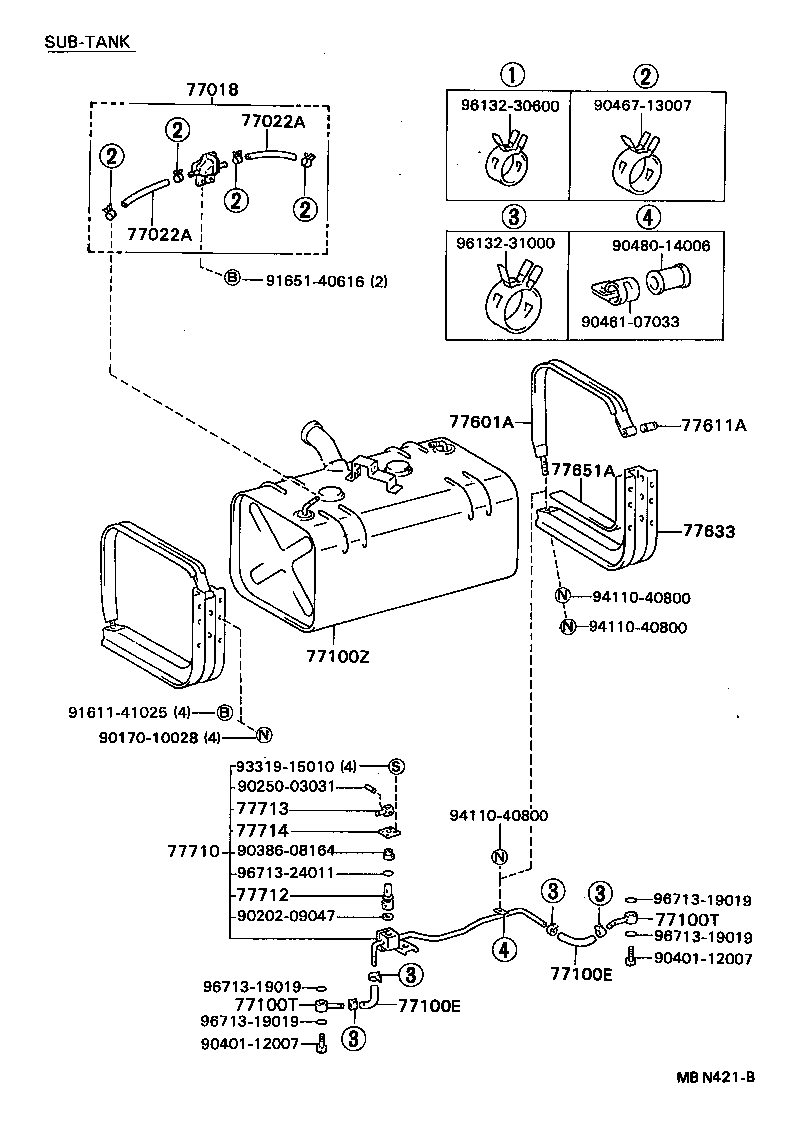

| 77100Z | Tank Sub-assy, Fuel Sub |

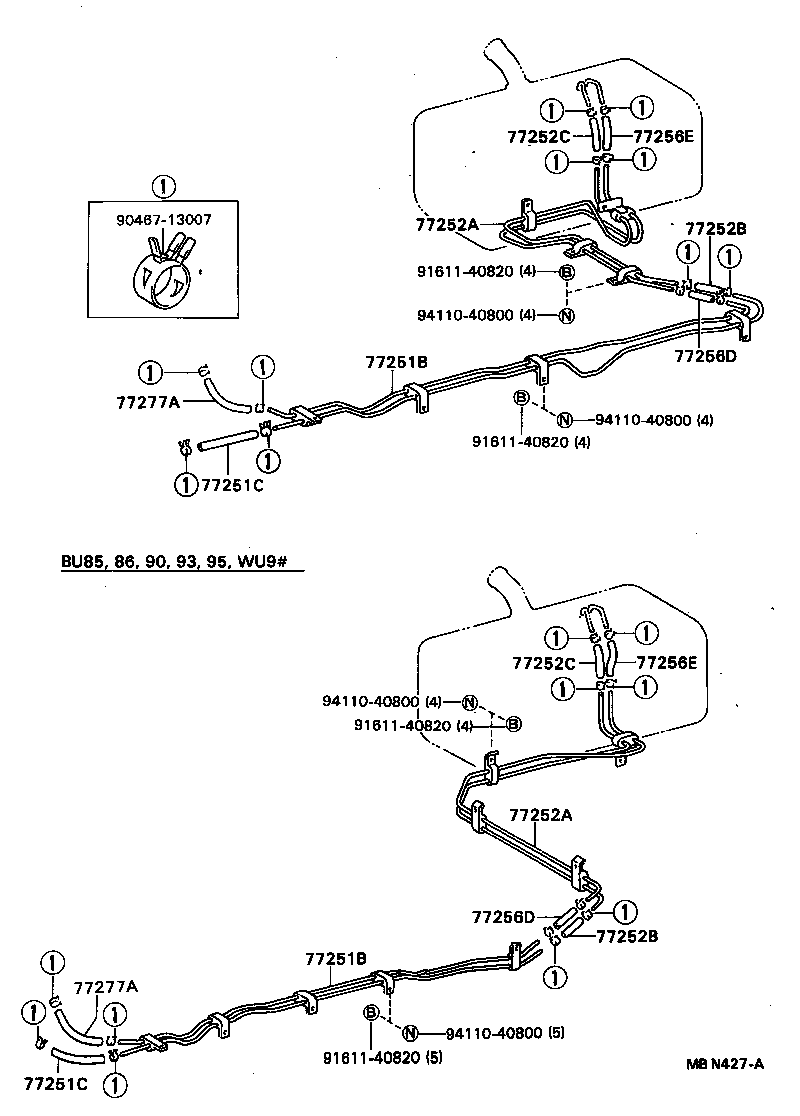

| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77252A | Tube, Fuel Main, NO.2 |
| 77252B | Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE) |
| 77252C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE) |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77256D | Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE) |
| 77256E | Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE) |

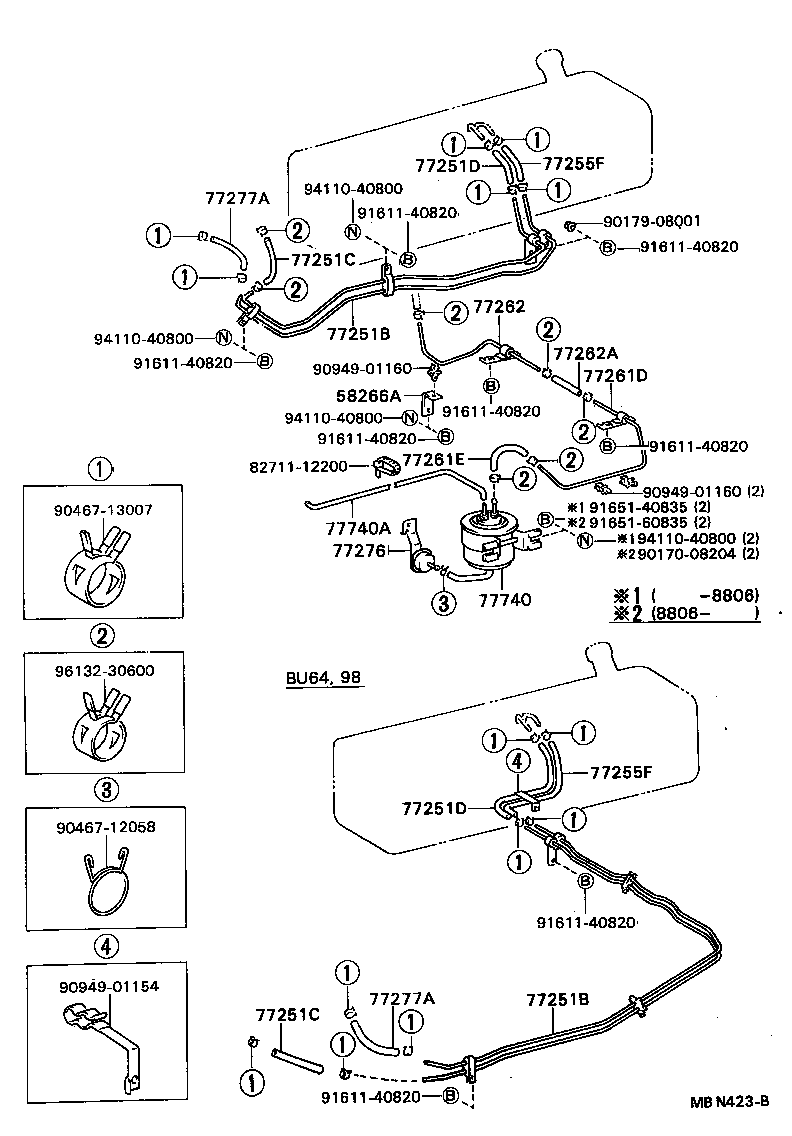

| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77262A | Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) |
| 77275B | Protector, Fuel Liquid Vapor Separator Valve |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310B | Door Assy, Fuel Inlet, RH |
| 77411A | Protector, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77633 | Stay, Fuel Tank |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77710 | Cock Assy, Fuel Change |
| 77712 | Valve, Fuel Change Cock |
| 77713 | Lever, Fuel Change Cock |
| 77714 | Cap, Fuel Change Cock |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
