Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 7 illustrations

Illustrations

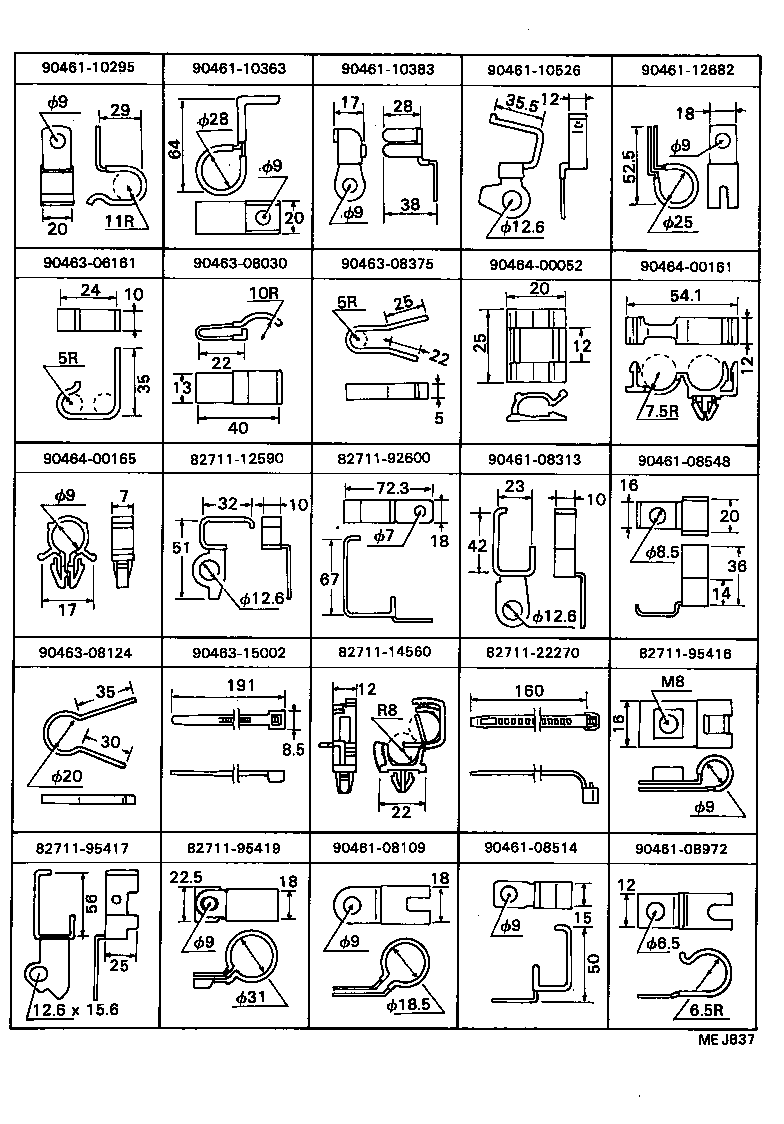

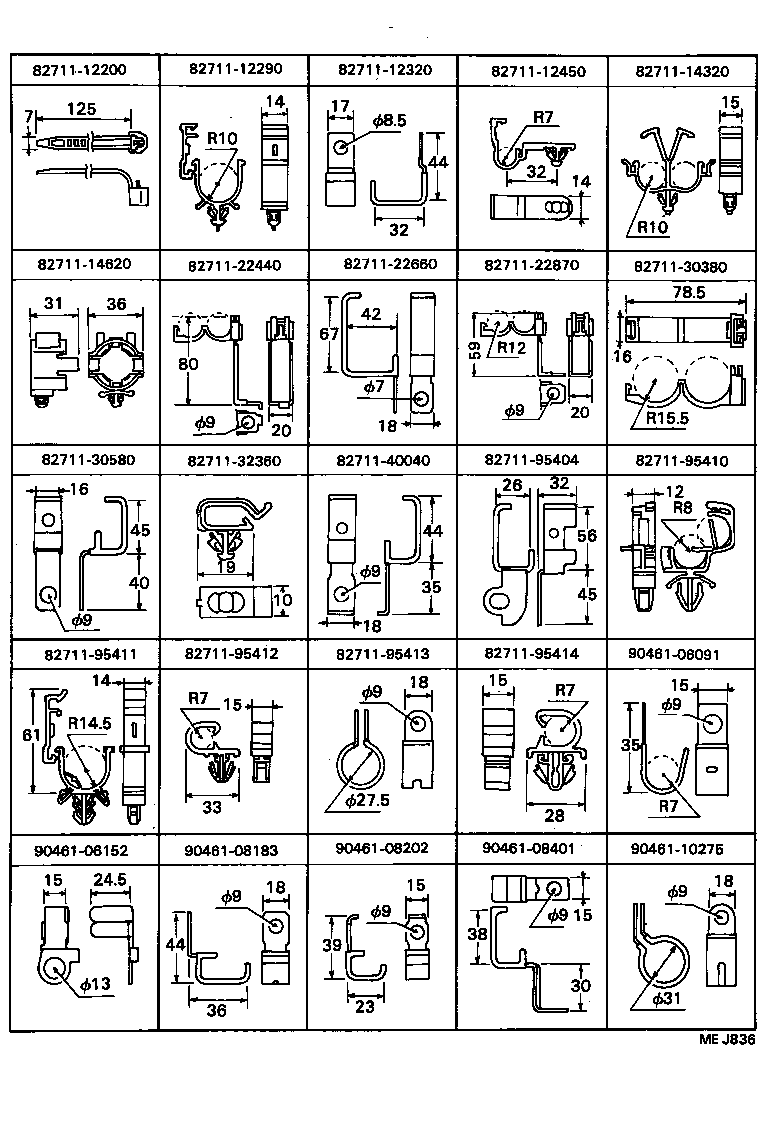

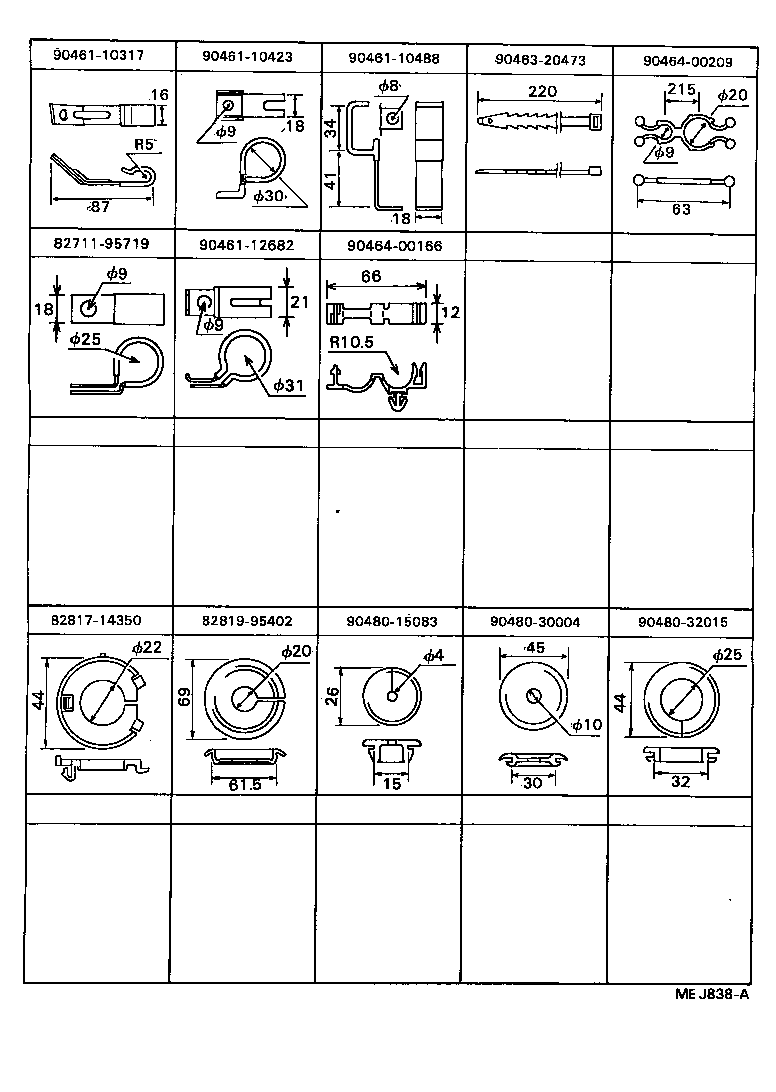

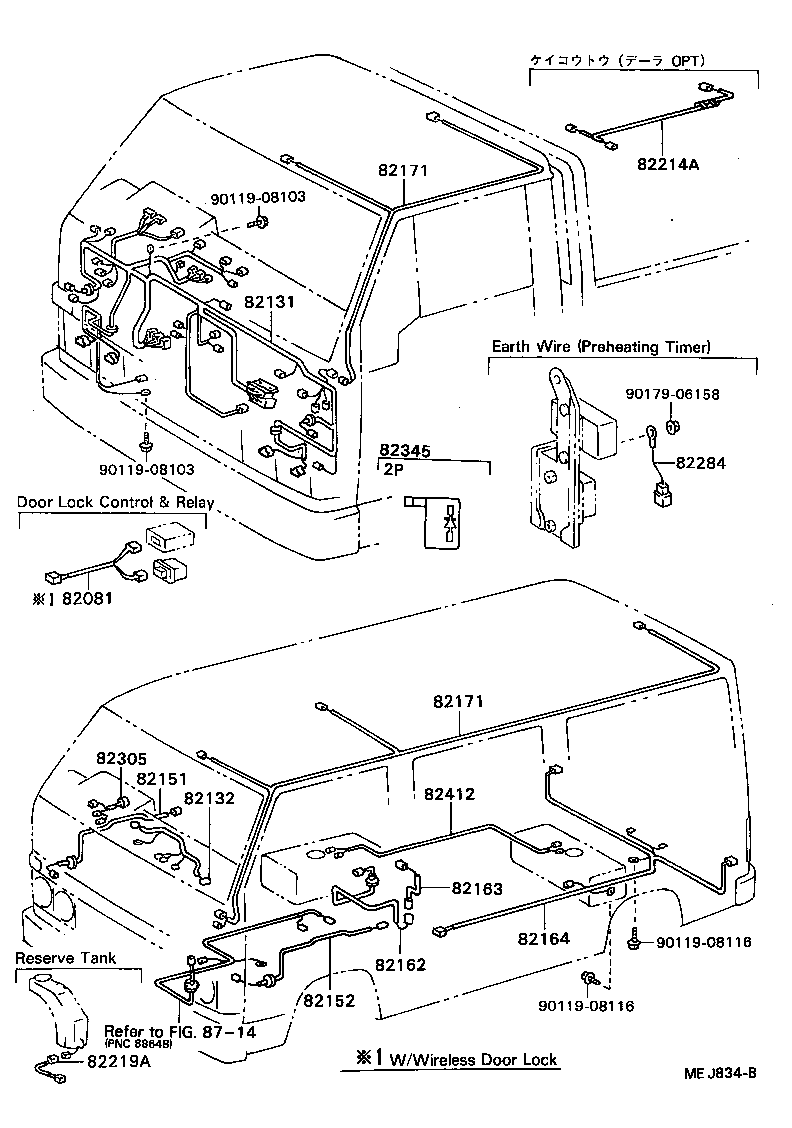

Figure MEJ833A MEJ833A 1987-08 → — Figure MEJ834B MEJ834B 1987-08 → — Figure MEH716 MEH716 1987-08 → — Figure MEJ835 MEJ835 1987-08 → — Figure MEJ836 MEJ836 1987-08 → — Figure MEJ837 MEJ837 1987-08 → — Figure MEJ838A MEJ838A 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82081 Wiring Assy, Door Lock
82121 Wire, Engine
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82284 Wire, Earth
82305 Wire Sub-assy, TO Tachograph
82345 Diode
82412 Wire, Fuel Gage
82431 Wire, Work Lamp Feed, NO.1
82620 Block Assy, Fusible Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
