Toyota Dyna/Toyoace
1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan
Discontinued model
Data version 1989-04

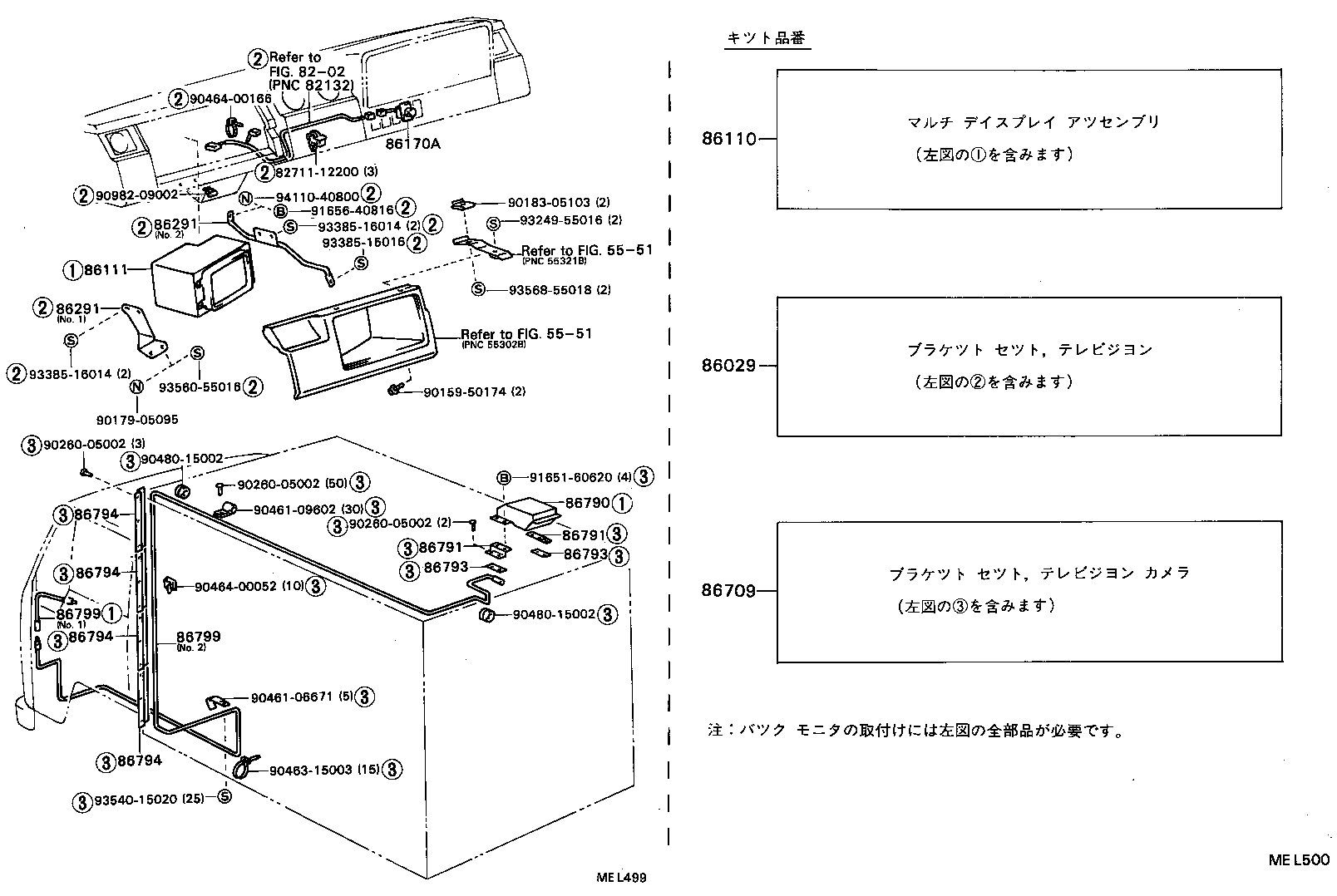

Camera & Rear Monitor Display
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86029 | Bracket Set, Television |
| 86110 | Multi-display Assy |
| 86111 | Multi-display |
| 86170A | Switch & Volume Assy |
| 86291 | Bracket, Television |
| 86709 | Bracket Set, Television Camera |
| 86790 | Camera Assy, Television |
| 86791 | Bracket, Television Camera |
| 86793 | Spacer, Camera Bracket |
| 86794 | Cover, Television Camera Wire |
| 86799 | Wire, Television Camera |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
