Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

5 part groups · 2 illustrations

Illustrations

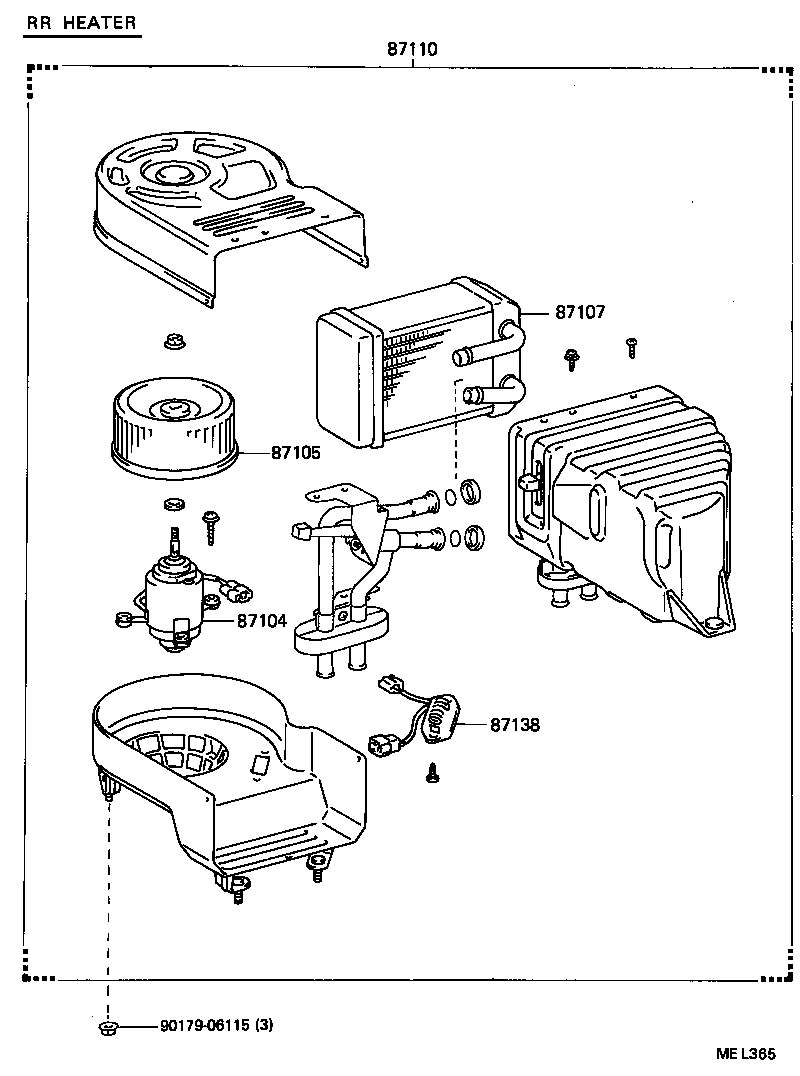

Figure MEK120 MEK120 1987-08 → — Figure MEL365 MEL365 1987-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87138 Resistor, Heater Blower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
