Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan
Discontinued model
Data version 1995-11

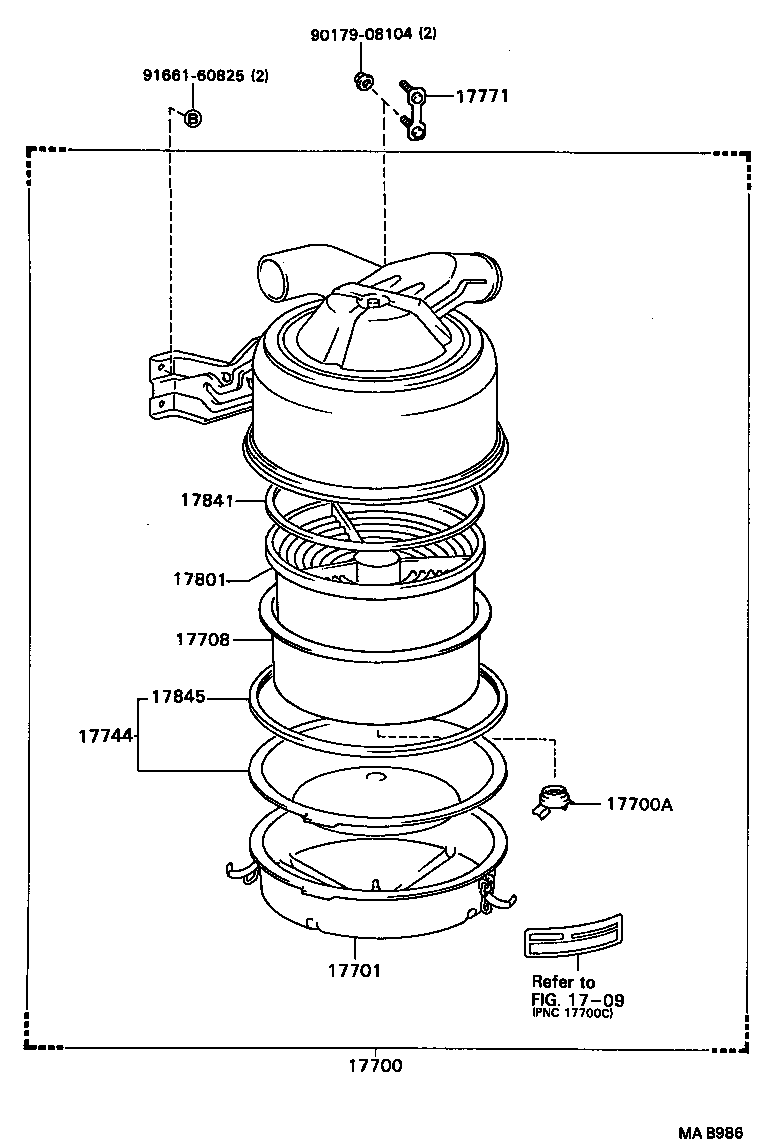

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-58251 |
Cleaner Assy, Air
1988-08 → 1995-05
ended
|
1W WU75,85,9# | ¥38,700 | |
| 17700-73101 |
Cleaner Assy, Air
1988-11 → 1993-10
ended
|
3YP YU60 | ¥31,400 | |
| 17700-73230 |
Cleaner Assy, Air
1988-08 → 1995-05
ended
|
3Y YU6#,70 | ¥38,800 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 note |
Nut, Wing(FOR AIR CLEANER)
1988-08 → 1995-05
ended
|
3Y YU6#,70 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1988-08 → 1995-05
ended
|
3YP YU60 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1988-08 → 1995-05
ended
|
1W WU75,85,9# | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
1988-08 → 1995-05
ended
|
3Y YU6#,70 | — | |
| 17701 — Case Sub-assy, Air Cleaner | ||||
| 17701-56130 |
Case Sub-assy, Air Cleaner
1988-11 → 1993-10
ended
|
3YP YU60 | — | |
| 17701-56170 |
Case Sub-assy, Air Cleaner
1988-08 → 1995-05
ended
|
3Y YU6#,70 | — | |
| 17701-58040 |
Case Sub-assy, Air Cleaner
1988-08 → 1995-05
ended
|
1W WU75,85,9# | — | |
| 17708 — Baffle Sub-assy, Air Cleaner | ||||
| 17708-56010 |
Baffle Sub-assy, Air Cleaner
1988-11 → 1993-10
ended
|
3YP YU60 | — | |
| 17744 — Cup, Precleaner | ||||
| 17744-56010 |
Cup, Precleaner
1988-11 → 1993-10
ended
|
3YP YU60 | — | |
| 17771 — Bracket, Air Cleaner Inlet Duct | ||||
| 17771-56020 |
Bracket, Air Cleaner Inlet Duct
1988-08 → 1995-05
ended
|
3Y# YU60,70 | ¥1,800 | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-56020 |
Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05
ended
|
3Y YU6#,70 | ¥4,100 | |
| 17801-56031 |
Element Sub-assy, Air Cleaner Filter
1988-11 → 1993-10
ended
|
3YP YU60 | ¥3,890 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05
ended
|
1W WU75,85,9# | ¥3,990 | |
| 17841 — Gasket, Filter Element | ||||
| 17841-44030 |
Gasket, Filter Element
1988-08 → 1995-05
ended
|
3Y YU6#,70 | — | |
| 17841-56031 |
Gasket, Filter Element
1988-11 → 1993-10
ended
|
3YP YU60 | — | |
| 17841-68010 |
Gasket, Filter Element
1988-08 → 1995-05
ended
|
1W WU75,85,9# | ¥0 | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-17010 |
Gasket, Air Cleaner Cap
1995-02 → 1995-05
ended
|
1W WU75,85,9# | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
1988-08 → 1995-05
ended
|
3Y YU6#,70 | — | |
| 17845-56050 |
Gasket, Air Cleaner Cap
1988-11 → 1993-10
ended
|
3YP YU60 | — | |
| 17845-68020 |
Gasket, Air Cleaner Cap
1988-08 → 1995-02
ended
|
1W WU75,85,9# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
