Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

35 part groups · 5 illustrations

Illustrations

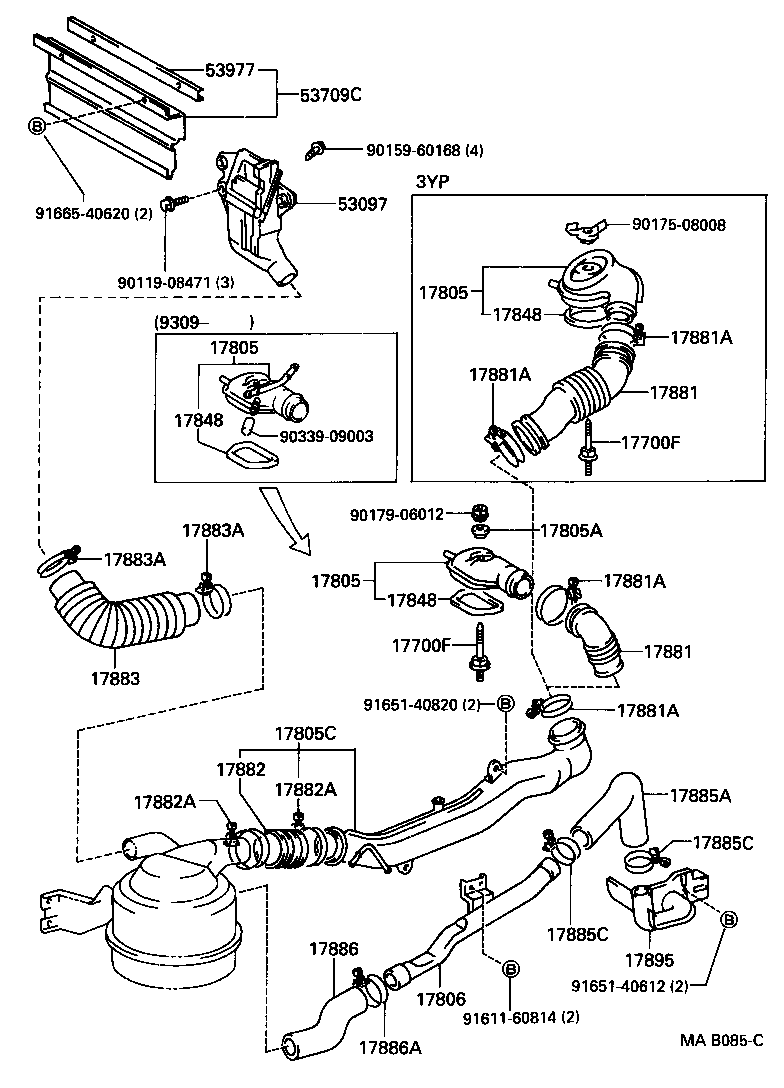

Figure MAA103F MAA103F 1988-08 → — Figure MAB618E MAB618E 1988-08 → — Figure MAB084A MAB084A 1988-08 → — Figure MAB986 MAB986 1988-11 → 1993-10 Figure MAB085C MAB085C 1988-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17708 Baffle Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17709K Bracket, Air Cleaner Inlet, NO.4
17744 Cup, Precleaner
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
17895 Shroud, Hot Air
53097 Inlet Sub-assy
53299B Duct, Cool Air Intake
53709C Cover Sub-assy, Air Cleaner Inlet
53788 Bracket, Air Cleaner Inlet, NO.6
53955A Cushion, Air Cleaner Inlet NO.1
53977 Plate, Air Cleaner Inlet Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
