Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

15 part groups · 9 illustrations

Illustrations

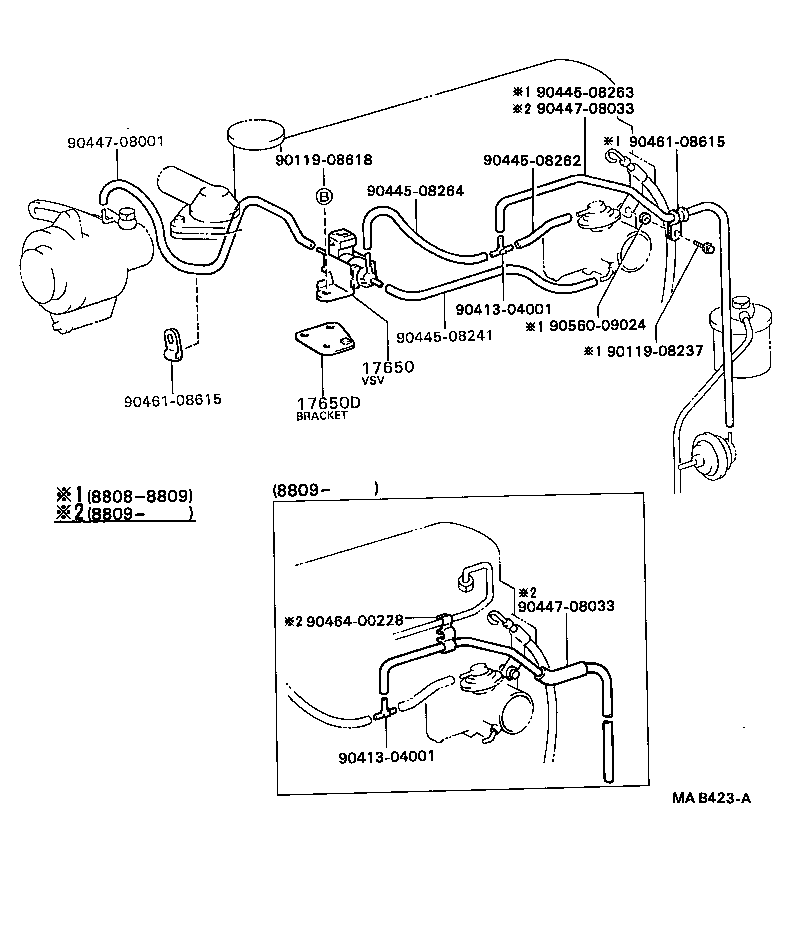

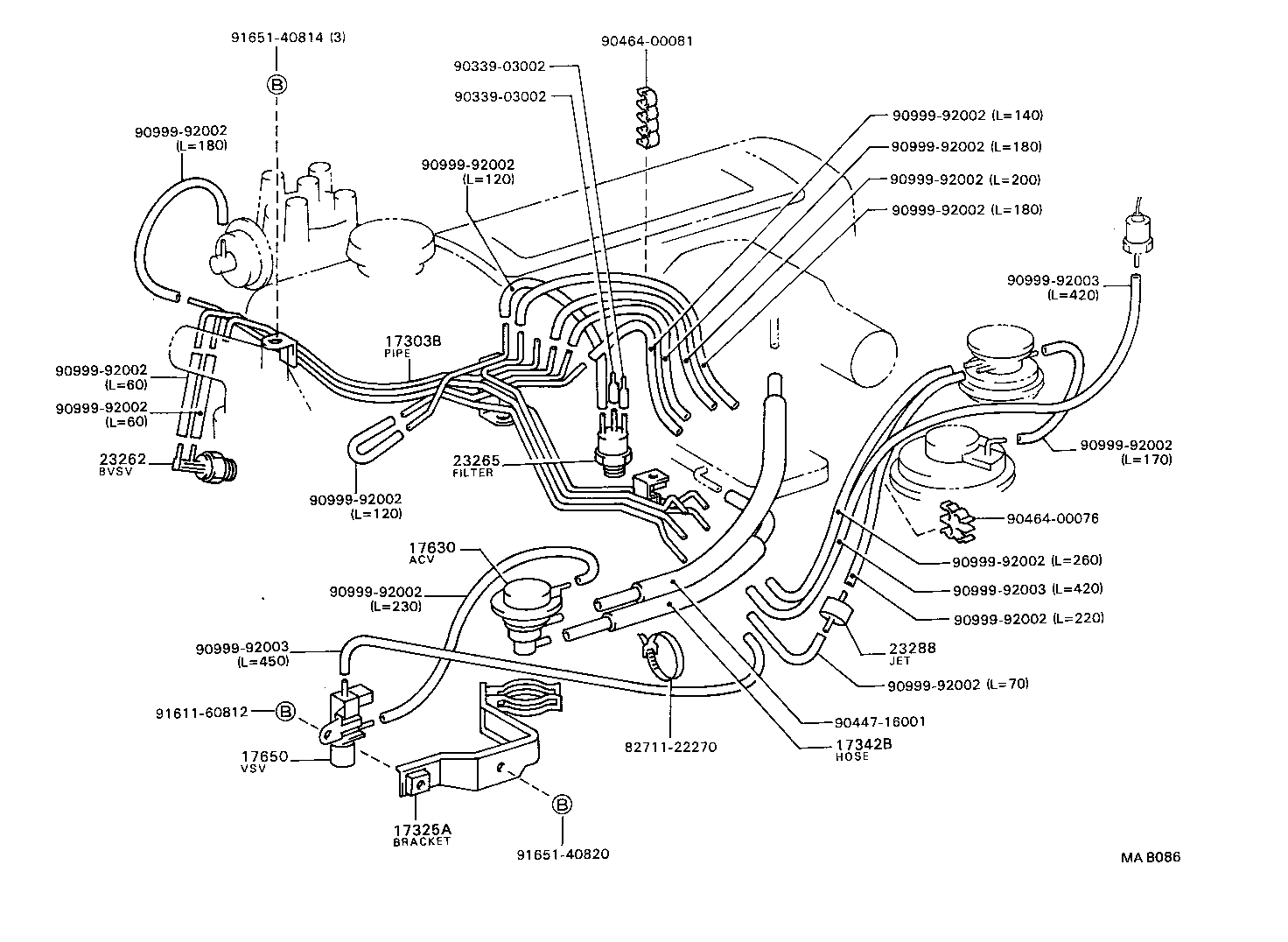

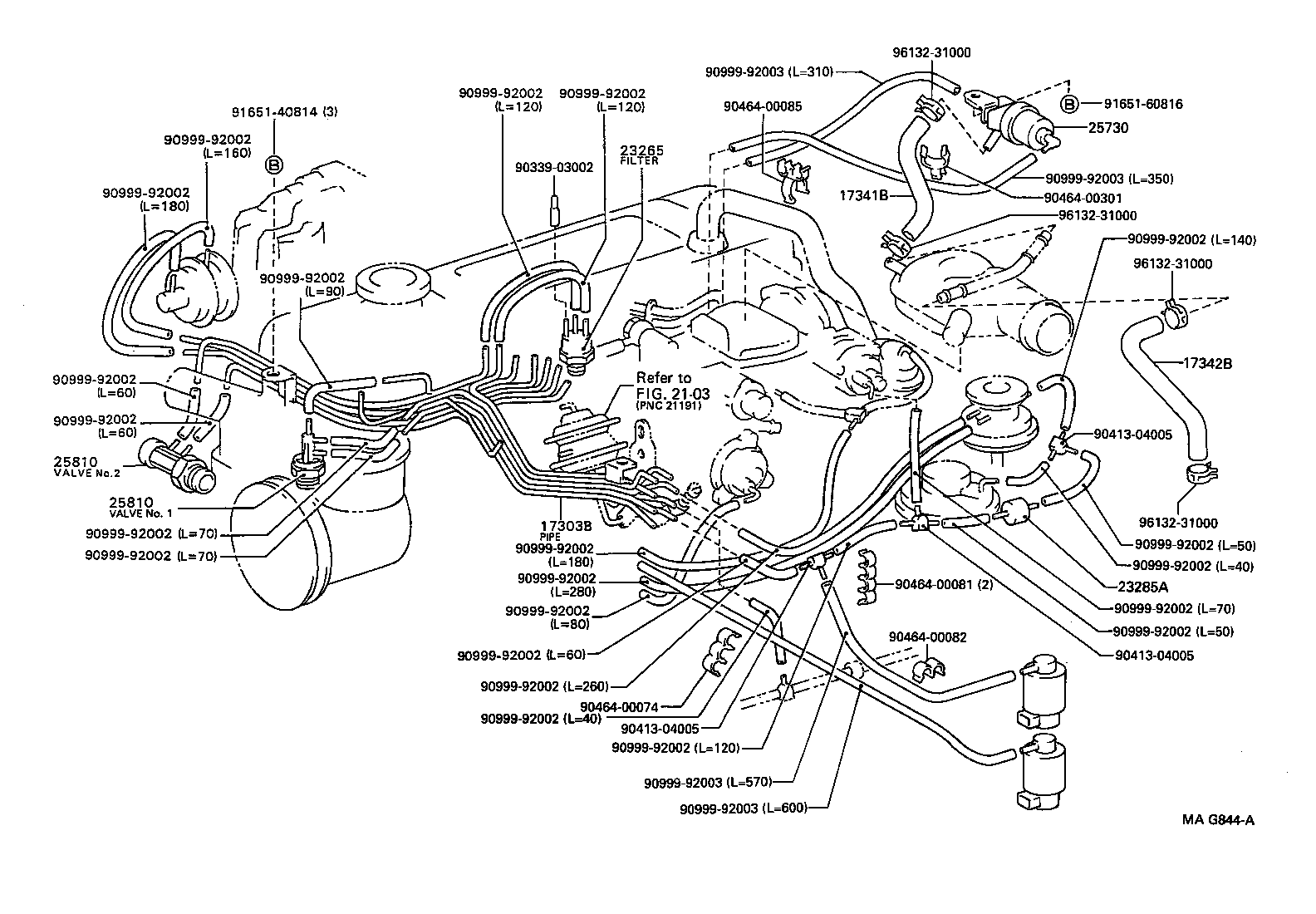

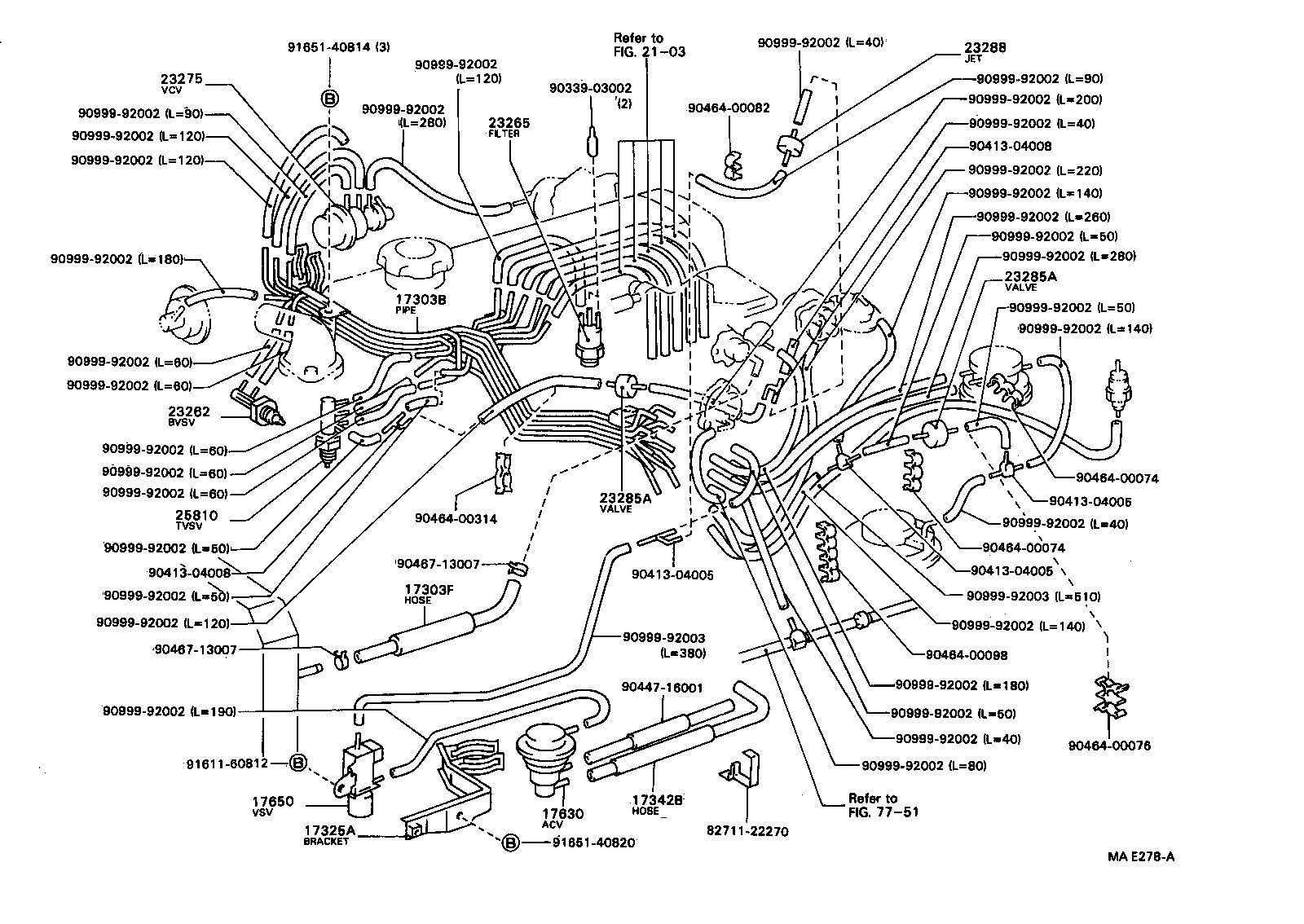

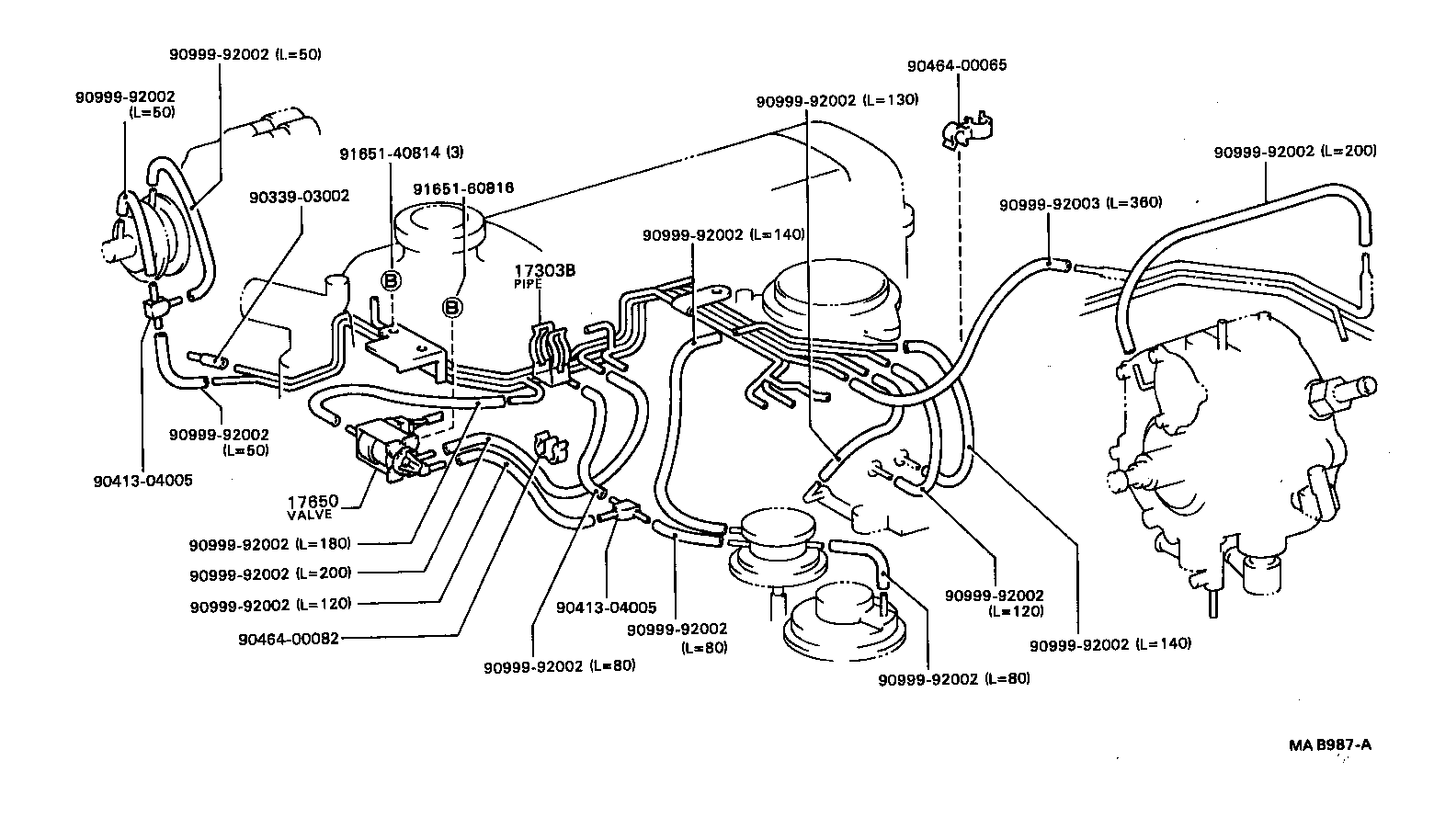

Figure MA9503A MA9503A 1988-08 → — Figure MAB423A MAB423A 1988-08 → 1989-10 Figure MAB423A MAB423A 1989-10 → — Figure MAD132B MAD132B 1989-10 → — Figure MA9503A MA9503A 1988-08 → — Figure MAB086 MAB086 1988-08 → 1990-08 Figure MAE278A MAE278A 1990-08 → 1993-09 Figure MAG844A MAG844A 1993-09 → — Figure MAB987A MAB987A 1988-11 → 1993-10

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303F Hose, NO.2(FOR AIR PIPE)
17325A Bracket, Air Valve
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
