Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Automatic Timer

16 part groups · 2 illustrations

Illustrations

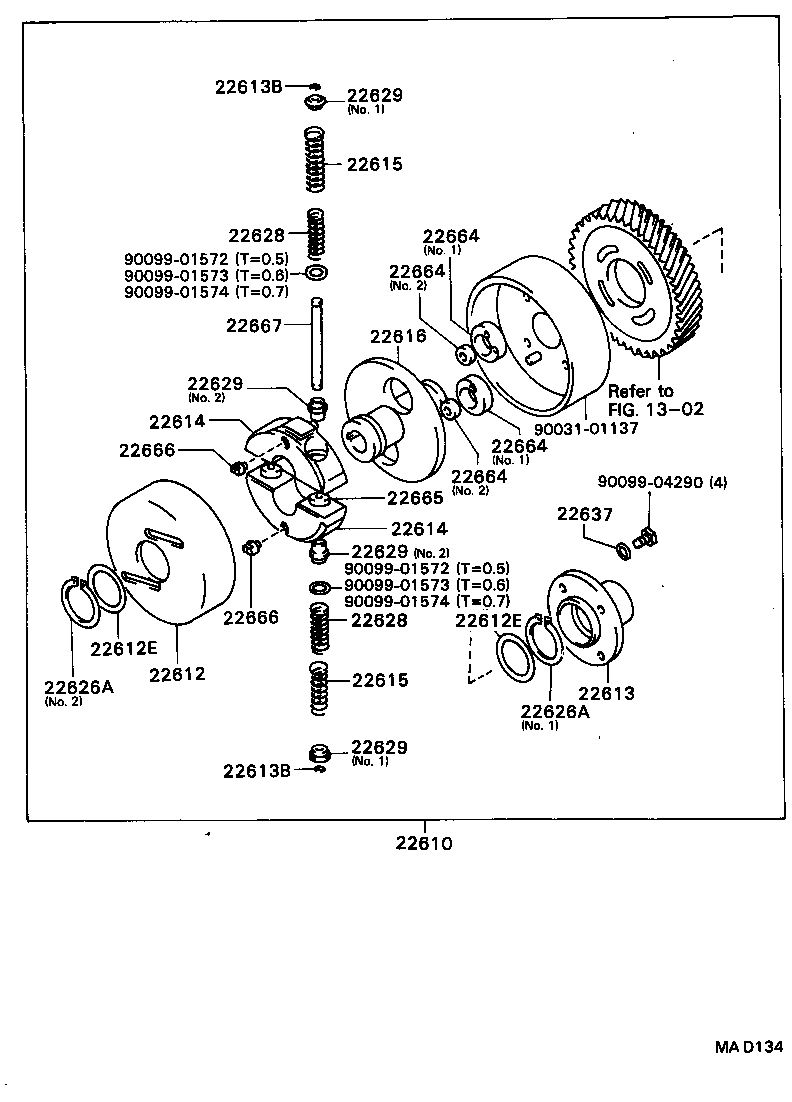

Figure MAB465 MAB465 1988-08 → 1989-10 Figure MAD134 MAD134 1989-10 → —

Part groups

PNCDescription
22610 Timer Assy, Automatic
22612 Cover, Timer
22612E Washer, Special
22613 Flange, Timer Driving
22613B Retainer, Timer Spring Seat
22614 Weight, Timer
22615 Spring, Timer
22616 Hub, Timer
22626A Ring, Clamp(FOR DRIVE GEAR)
22628 Spring, Timer Sub
22629 Seat, Spring(FOR TIMER SPRING)
22637 Washer, Coupling Set Bolt
22664 Cam, Timer
22665 Bush, Timer
22666 Roller, Timer
22667 Sleeve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
