Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11

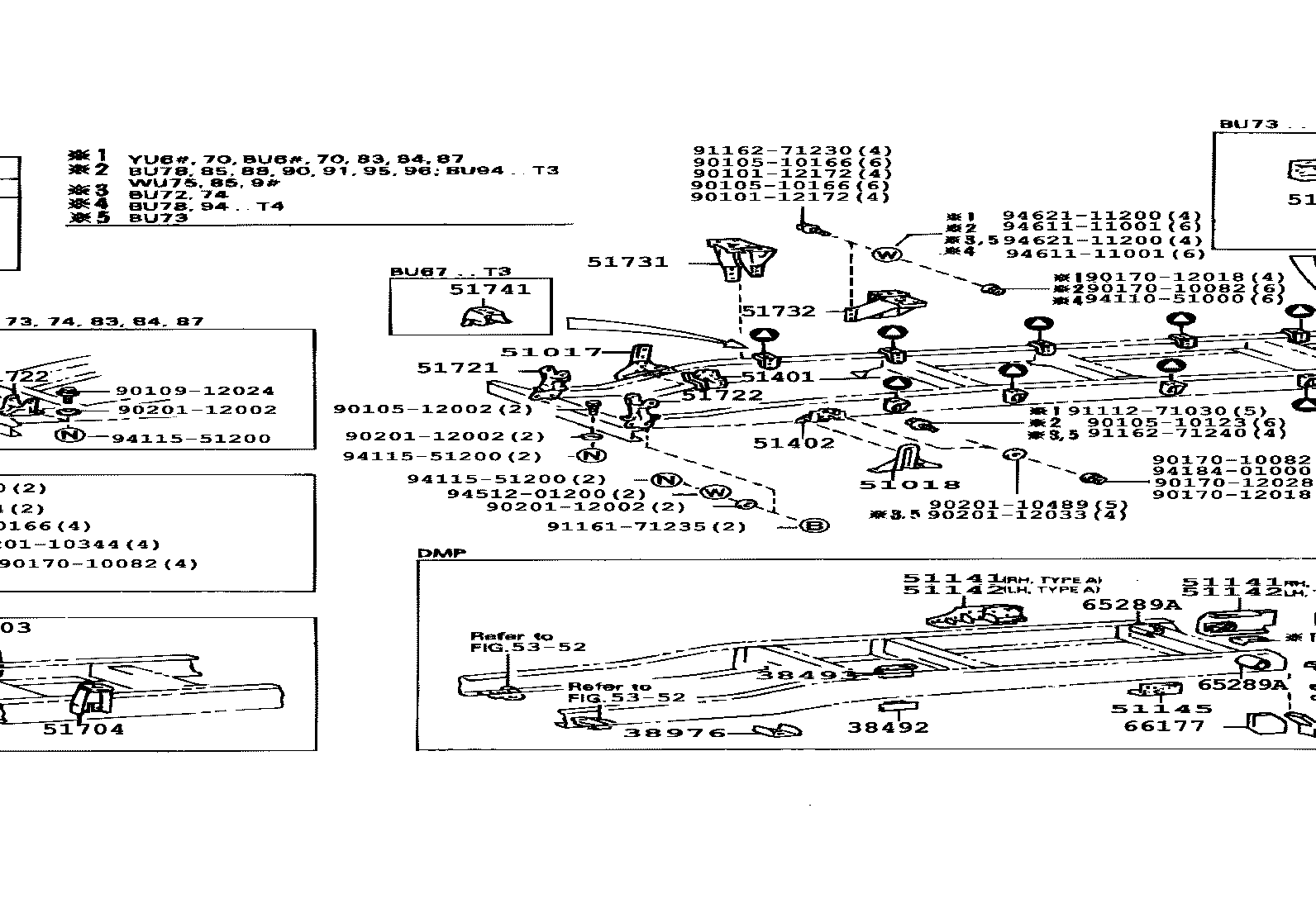

Frame

38 part groups · 4 illustrations

PNC	Description
38463A	Bracket, Power Oil Pump Hose Clamp
38465A	Bracket, Power Oil Pump Hose Clamp, NO.2
38491A	Bracket, Power Oil Pump, NO.1
38492	Bracket, Power Oil Pump, NO.2
51025	Member Sub-assy, Engine Front Mounting
51100F	Frame Sub-assy
51162	Reinforcement, Side Rail, Upper NO.1
51173	Reinforcement, Front Inner Channel, RH
51174	Reinforcement, Front Inner Channel, LH

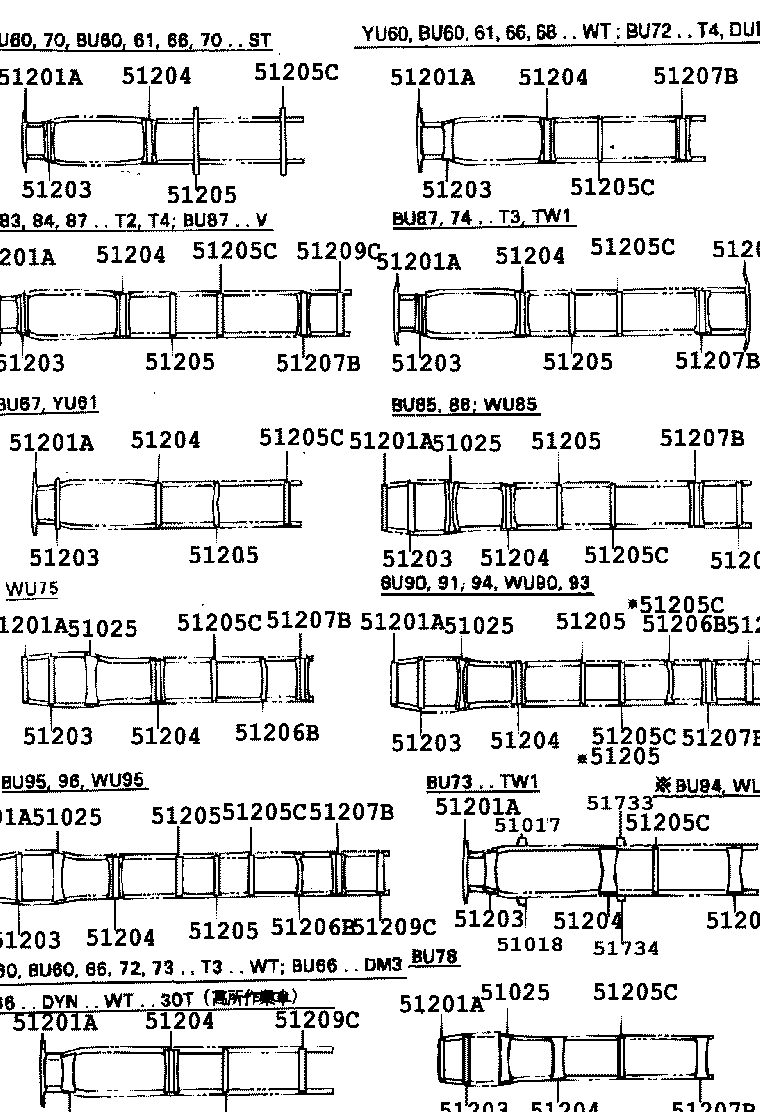

51201A	Crossmember Sub-assy, Frame, Front
51203	Crossmember Sub-assy, Frame, NO.2
51204	Crossmember Sub-assy, Frame, NO.3
51205	Crossmember Sub-assy, Frame, NO.4
51205C	Crossmember Sub-assy, Frame, NO.5
51206B	Crossmember Sub-assy, Frame, NO.6
51207B	Crossmember Sub-assy, Frame, NO.7
51209C	Crossmember Sub-assy, Frame, Rear
51401	Bracket Sub-assy, Engine Front Mounting, RH
51402	Bracket Sub-assy, Engine Front Mounting, LH
51701	Bracket Sub-assy, Cab Mounting, NO.1 RH
51702	Bracket Sub-assy, Cab Mounting, NO.1 LH
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51721	Bracket, Cab Front Mounting, RH
51722	Bracket, Cab Front Mounting, LH
51731	Bracket, Cab Rear Mounting, RH
51732	Bracket, Cab Rear Mounting, LH
51741	Bracket, Rear Body Mounting, NO.1
51751	Bracket, Body Support, NO.1
51767A	Bracket, Frame Body Mounting, NO.8 RH
51768A	Bracket, Frame Body Mounting, NO.8 LH
51769	Bracket, Body Rear End Mounting
65289A	Support, Vessel Hinge
66176	Patch, Chassis Rail
66177	Gusset, Chassis Rail
66358	Plate, Frame End
75133	Base, Combination Rear Lamp Bracket, RH
75134	Base, Combination Rear Lamp Bracket, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
