Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

10 part groups · 2 illustrations

Illustrations

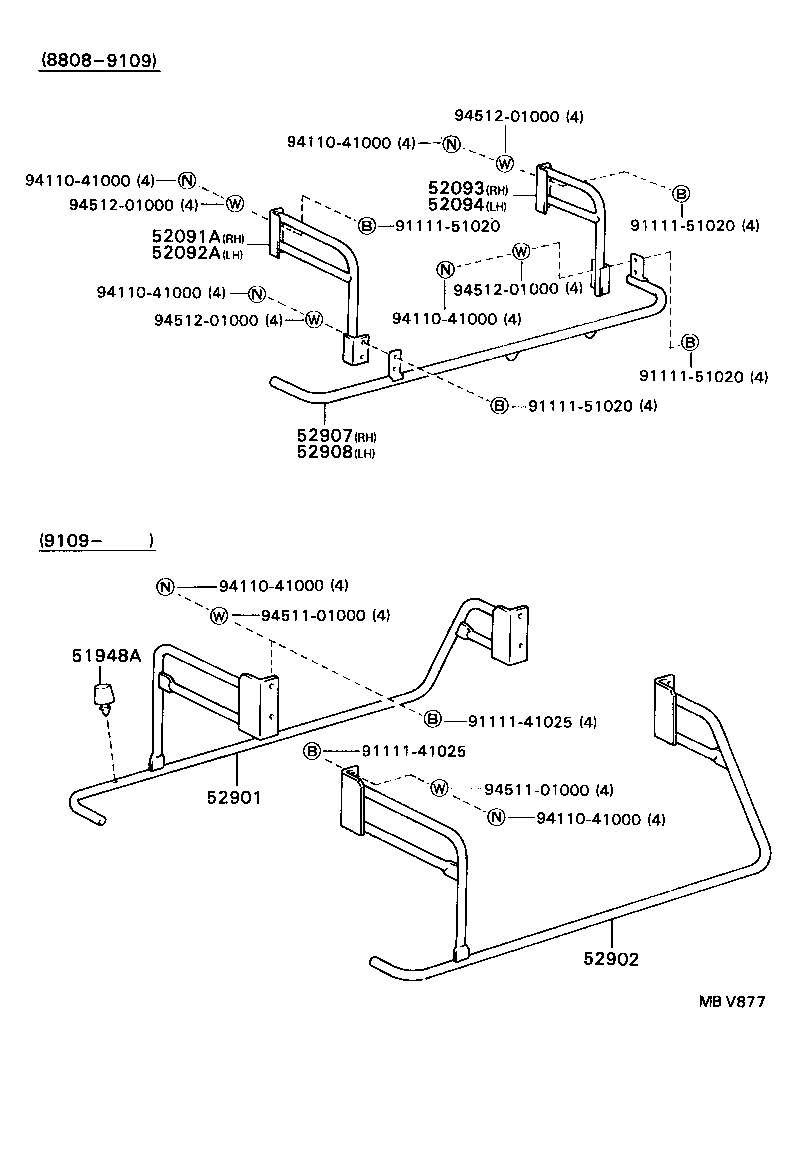

Figure MBR220F MBR220F 1988-08 → — Figure MBV877 MBV877 1988-08 → —

Part groups

PNCDescription
51948A Stopper, Spare Wheel
52091A Stay Sub-assy, Side Bumper, Front RH
52092A Stay Sub-assy, Side Bumper, Front LH
52093 Stay Sub-assy, Side Bumper, Rear RH
52094 Stay Sub-assy, Side Bumper, Rear LH
52901 Bumper Sub-assy, Side, RH NO.1
52902 Bumper Sub-assy, Side, LH NO.1
52907 Guard Sub-assy, Side Bumper, Lower RH
52908 Guard Sub-assy, Side Bumper, Lower LH
52911 Bar, Side Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
