Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

45 part groups · 7 illustrations

Illustrations

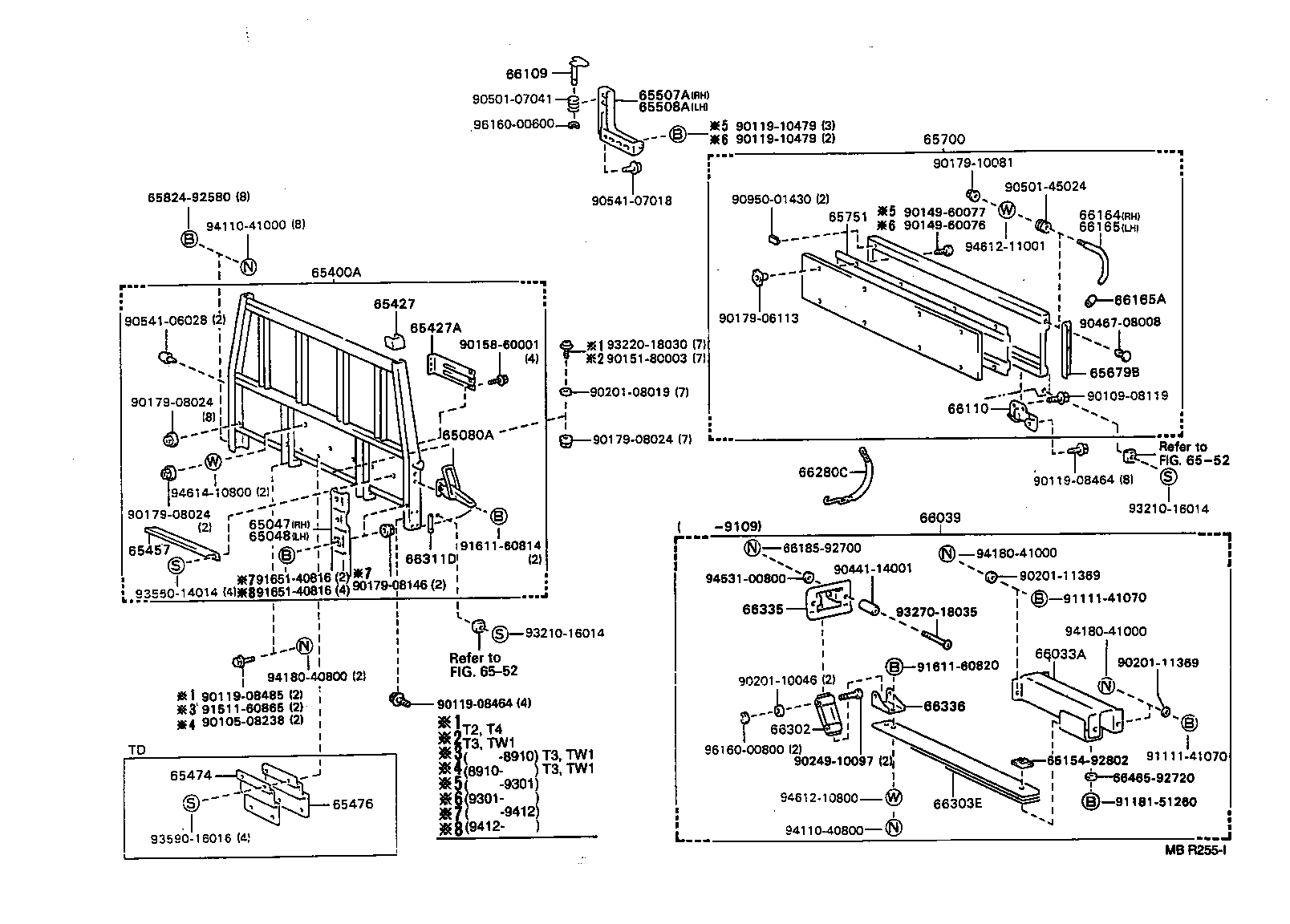

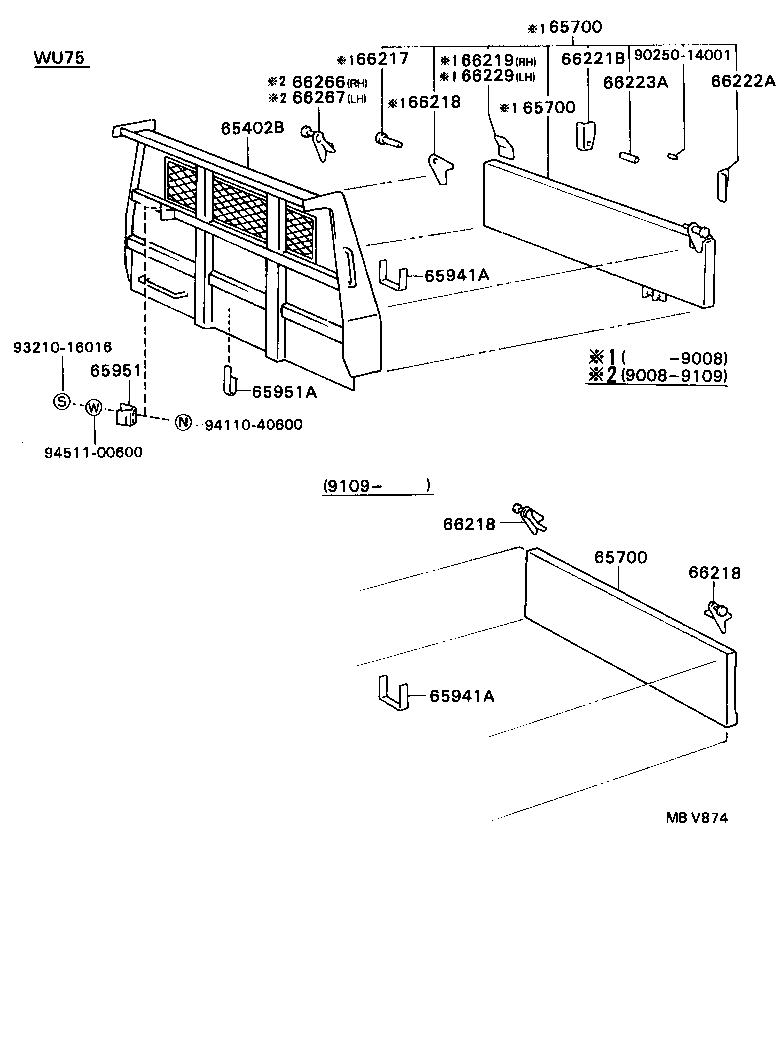

Figure MBR254E MBR254E 1988-08 → — Figure MBR255I MBR255I 1988-08 → — Figure MBR255I MBR255I 1989-10 → — Figure MBR256C MBR256C 1988-08 → — Figure MBR257E MBR257E 1988-08 → — Figure MBV874 MBV874 1988-08 → — Figure MBV743 MBV743 1991-09 → —

Part groups

PNCDescription
65047 Protector Sub-assy, Guard Frame, RH
65048 Protector Sub-assy, Guard Frame, LH
65080A Handle Assy, Side Gate Latch
65400A Guard Assy, Rear Body
65402B Frame Sub-assy, Rear Body
65413 Bracket, Guard Frame
65427 Cover, Guard Frame
65427A Plate, Rear Body Guard, LH
65457 Plate, Baffle Dust Rear Body
65474 Insulator, Header
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65679B Seal, Tail Gate
65700 Gate Assy, Rear Body Tail
65751 Panel, Tail Gate
65941 Stopper, Shovel
65941A Stopper, Shovel
65951 Clamp, Shovel
65951A Clamp, Shovel
66033A Bracket Sub-assy, Gate Helper, NO.3
66039 Gate Helper Set, Tail
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66121A Bolt, Tail Gate Male
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66217 Pin, Tail Gate Latch
66218 Bracket, Tail Gate Latch Pin
66219 Stay, Tail Gate Latch Pin Bracket
66221B Hinge, Tail Gate, RH
66222A Hinge, Tail Gate, LH
66223A Pin, Tail Gate Hinge
66229 Stay, Tail Gate Latch Pin Bracket, LH
66266 Shaft, Tail Gate Latch, RH
66267 Shaft, Tail Gate Latch, LH
66280C Chain Assy, Tail Gate
66302 Link Sub-assy, Gate Helper
66303E Spring Sub-assy, Gate Helper Set
66311D Hook, Rope
66335 Bracket, Gate Helper
66336 Bracket, Gate Helper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
