Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

52 part groups · 11 illustrations

Illustrations

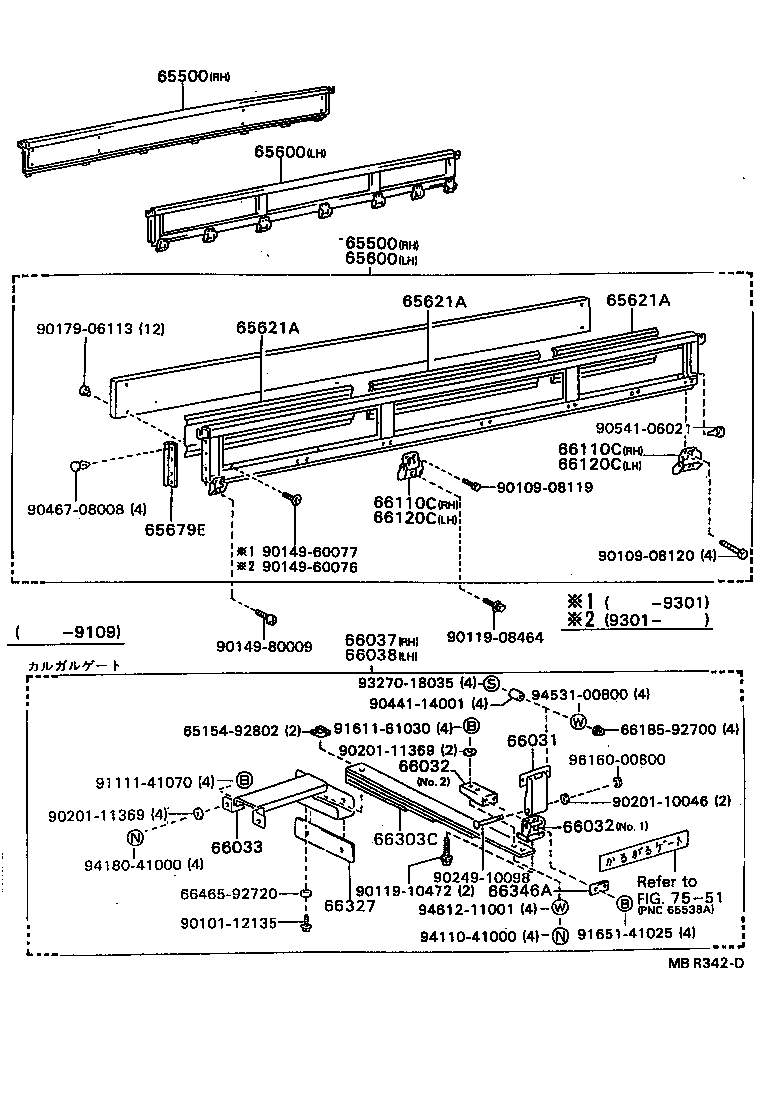

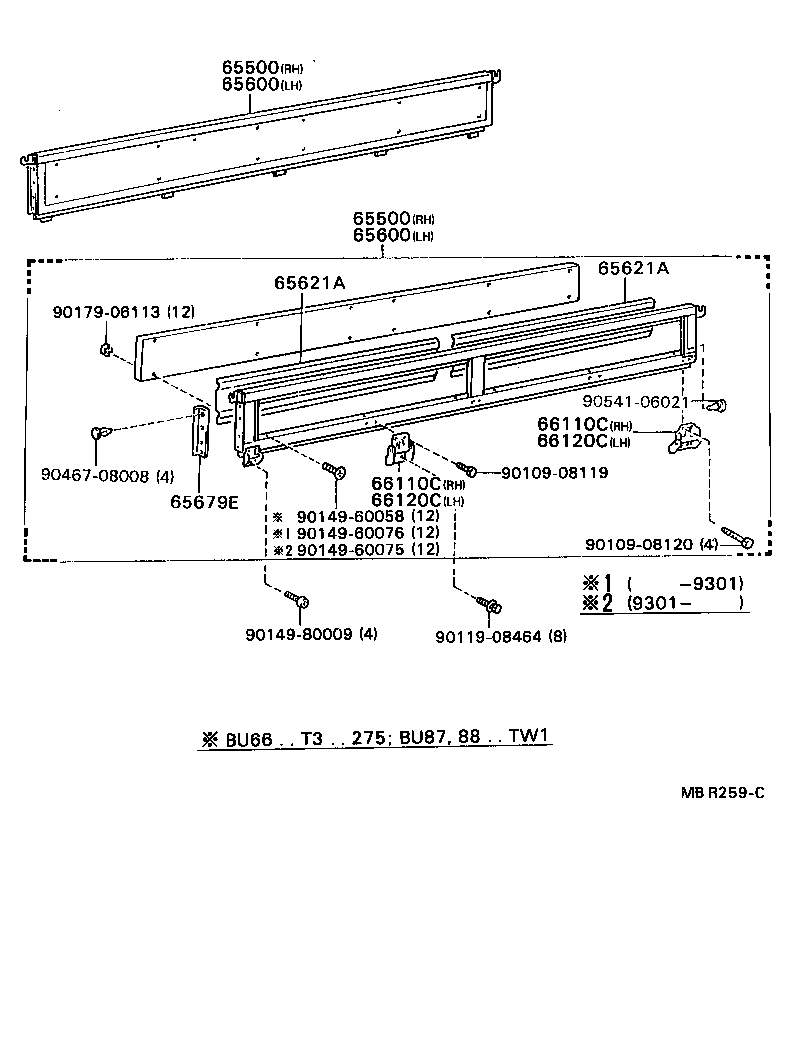

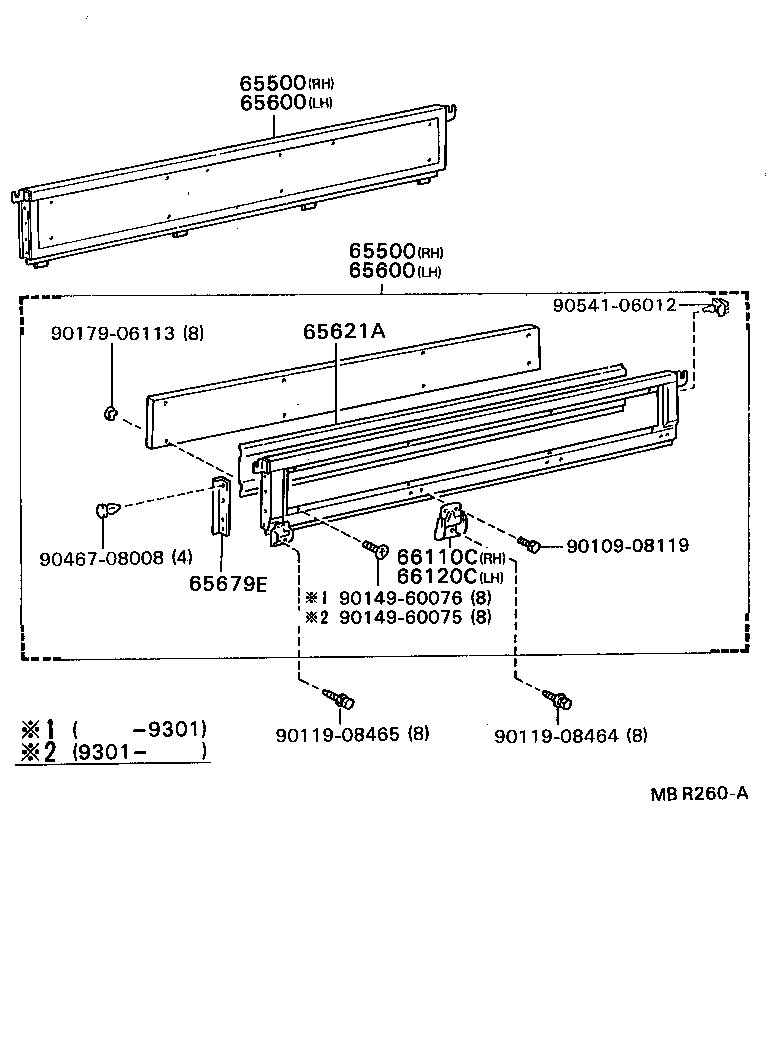

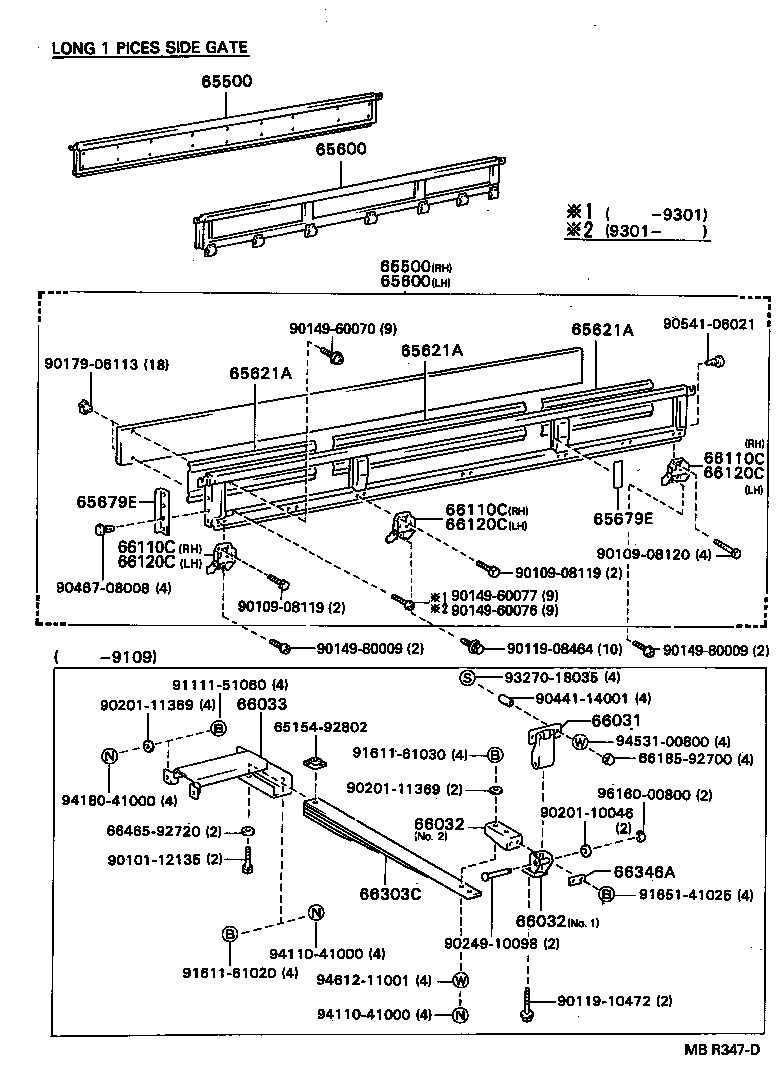

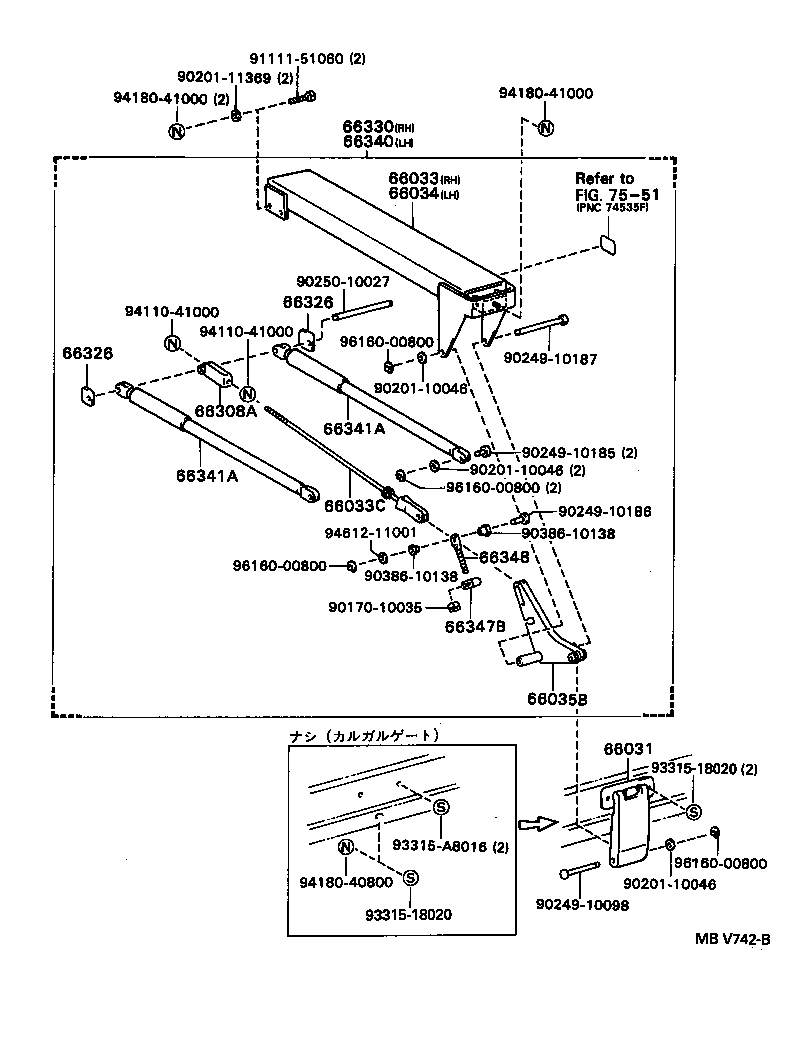

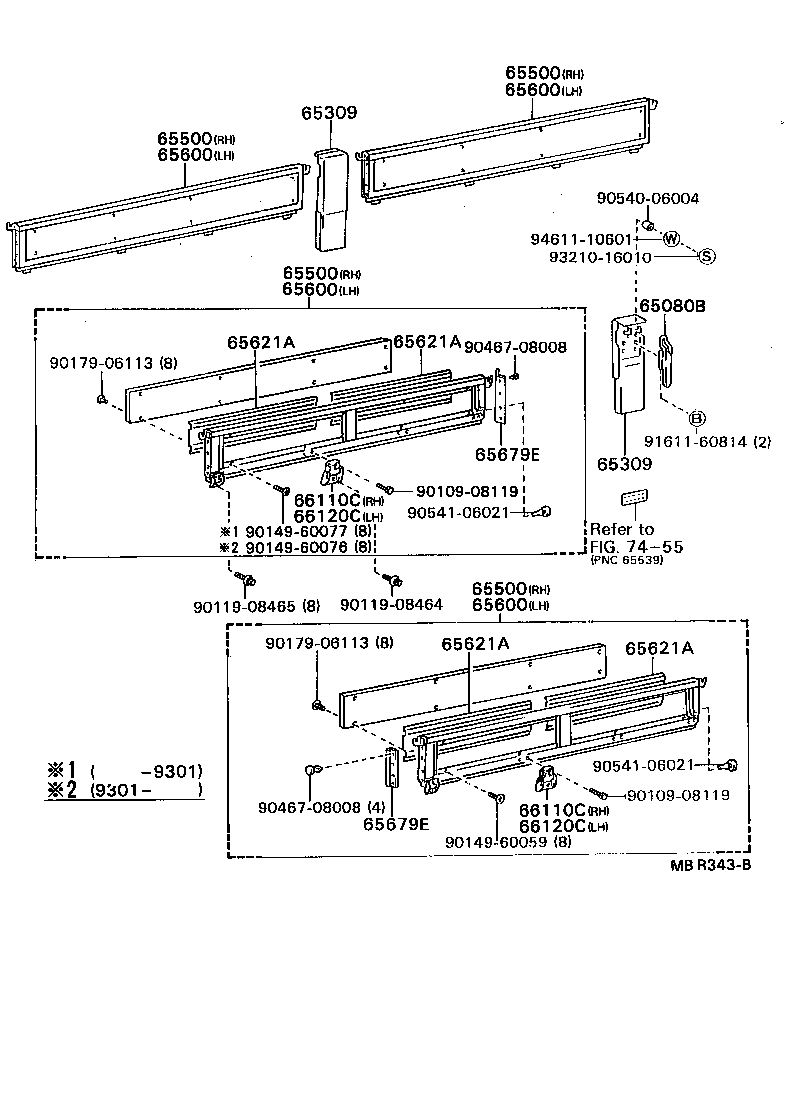

Figure MBR258A MBR258A 1988-08 → — Figure MBR259C MBR259C 1988-08 → — Figure MBR260A MBR260A 1988-08 → — Figure MBR342D MBR342D 1988-08 → — Figure MBR342D MBR342D 1989-10 → — Figure MBR343B MBR343B 1988-08 → — Figure MBR344B MBR344B 1988-08 → 1991-09 Figure MBV872 MBV872 1991-09 → — Figure MBR345B MBR345B 1988-08 → — Figure MBR347D MBR347D 1988-08 → — Figure MBV742B MBV742B 1991-09 → —

Part groups

PNCDescription
65040 Hinge Assy, Side Gate 1
65050A Hinge Assy, Side Gate 2
65080B Handle Assy, Side Gate Latch
65202 Post Sub-assy, Side Gate, Rear RH
65203A Post Sub-assy, Side Gate, Rear LH
65204A Post Sub-assy, Side Gate, RH
65205A Post Sub-assy, Side Gate, LH
65309 Post Sub-assy, Center
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65567 Support, Side Gate
65577 Retainer, Tail Gate Latch Female
65600 Panel Assy, Rear Body Side, LH
65621A Panel, Side Gate
65651 Panel, Wheel House
65675B Bracket, Roller Arm Stopper
65679E Seal, Side Gate
66031 Bracket Sub-assy, Gate Helper, NO.1
66032 Bracket Sub-assy, Gate Helper, NO.2
66033 Bracket Sub-assy, Gate Helper, NO.3
66033C Rod Sub-assy, Gate Helper Tension
66034 Bracket Sub-assy, Gate Helper, NO.3 LH
66035B Bellcrank Sub-assy, Gate Helper
66037 Gate Helper Set, Side, RH
66038 Gate Helper Set, Side, LH
66110C Hinge Assy, Side Gate, NO.1 RH
66120C Hinge Assy, Side Gate, NO.1 LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66171 Holder, Tail Gate
66201B Latch Sub-assy, Tail Gate, RH
66202A Latch Sub-assy, Tail Gate, LH
66232 Hinge, Side Gate, Lower NO.1
66233 Pin, Side Gate Hinge
66251 Lever, Side Gate Stopper, RH
66261 Lever, Side Gate Stopper, LH
66303C Spring Sub-assy, Gate Helper Set
66308A End Sub-assy, Gate Helper Rod, NO.2
66311E Hook, Rope
66321B Bumper, Gate Rubber
66326 Slider, Rod Control
66327 Plate, Gate Helper
66330 Helper Assy, Gate, RH
66332 Cushion, Rubber
66340 Helper Assy, Gate, LH
66341A Stay, Gate Helper
66346A Plate, Gate Helper Bracket, NO.2
66347B Bolt, Gate Helper Bellcrank Adjust
66348 Retainer, Gate Helper Bellcrank Adjust Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
