Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Gate Lock & Tail Gate Lock

25 part groups · 3 illustrations

Illustrations

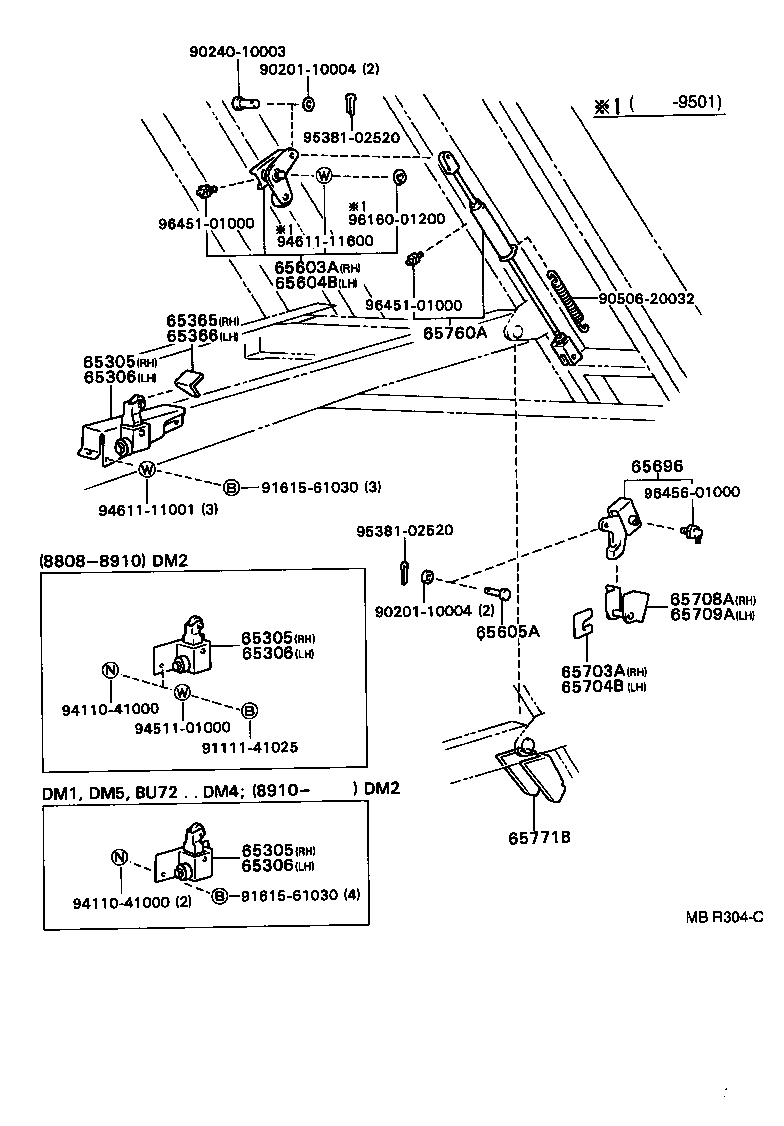

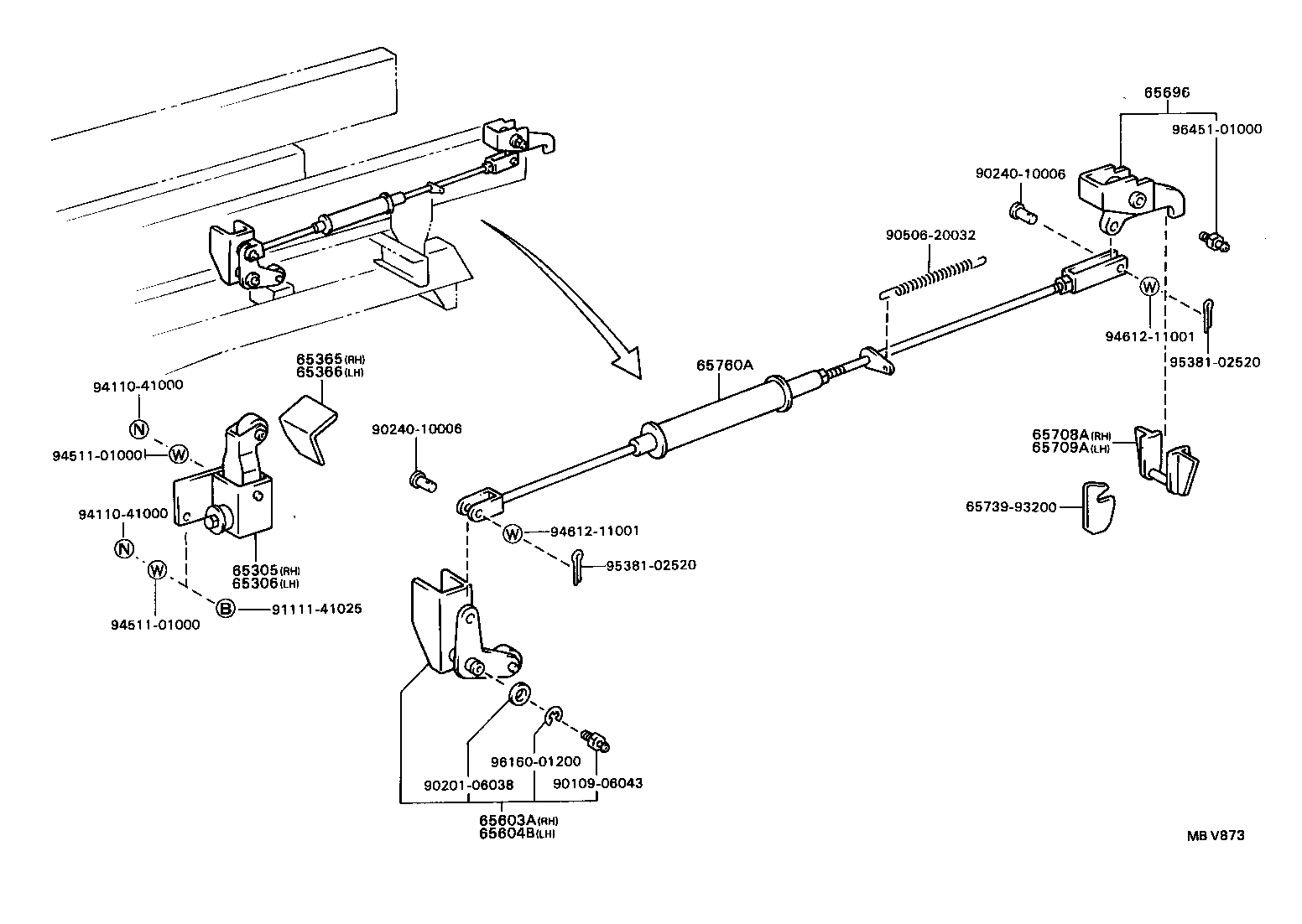

Figure MBR301B MBR301B 1988-08 → 1991-09 Figure MBV873 MBV873 1991-09 → — Figure MBR304C MBR304C 1988-08 → —

Part groups

PNCDescription
65305 Lock Sub-assy, Bezel, RH
65306 Lock Sub-assy, Bezel, LH
65365 Guide, Vessel Lock, RH
65366 Guide, Vessel Lock,
65603A Arm Assy, Tail Gate Lock Roller, RH
65604B Arm Assy, Tail Gate Lock Roller, LH
65605A Pin, Tail Gate Lock Link
65605H Link Sub-assy, Tail Gate Lock W/ Spring
65608 Link Sub-assy, Tail Gate Lock, Rear RH
65609 Link Sub-assy, Tail Gate Lock, Rear LH
65671C Arm, Roller, RH
65672E Roller, Tail Gate Lock
65673A Shaft, Roller
65674A Arm, Roller, LH
65677A Shaft, Roller Arm
65692 Guide, Link
65696 Latch, Tail Gate Lock
65697 Pin, Latch
65698 Bracket, Tail Gate Latch
65703A Guide Sub-assy, Tail Gate Lock Hinge, RH
65704B Guide Sub-assy, Tail Gate Lock Hinge, LH
65708A Bar Sub-assy, Tail Gate Lock, RH
65709A Bar Sub-assy, Tail Gate Lock, LH
65760A Control Sub-assy, Tail Gate
66224 Support, Tail Gate Hinge Pin
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
