Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

12 part groups · 7 illustrations

Illustrations

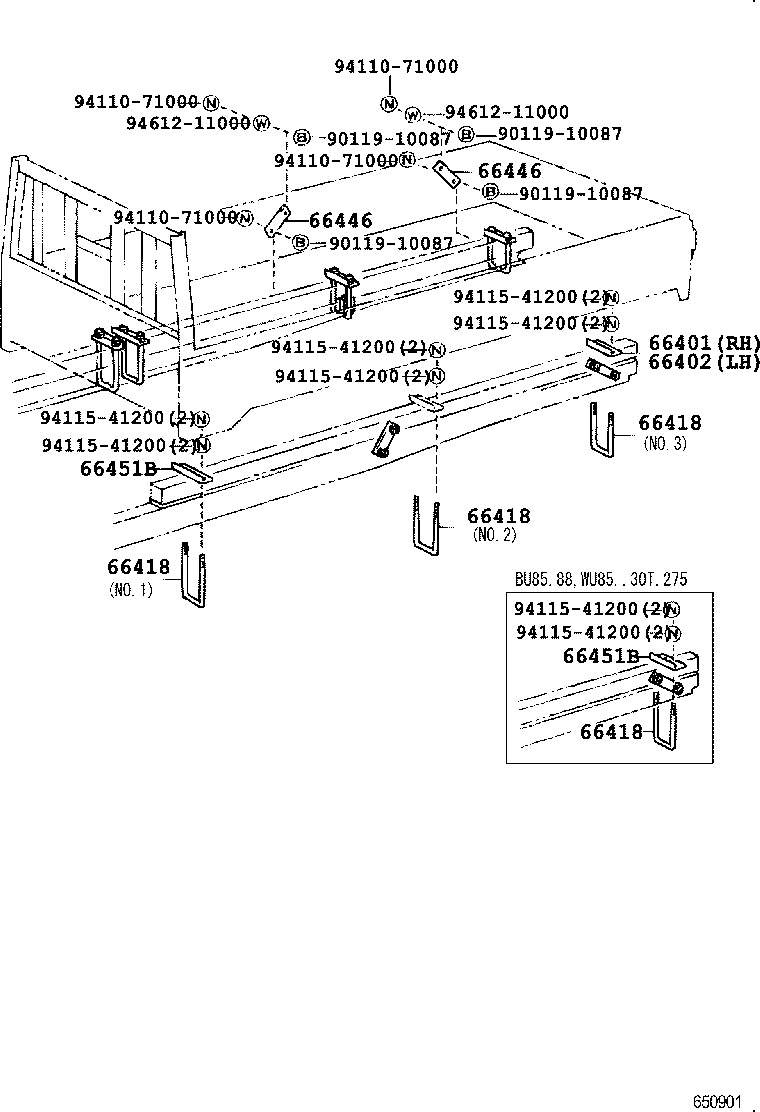

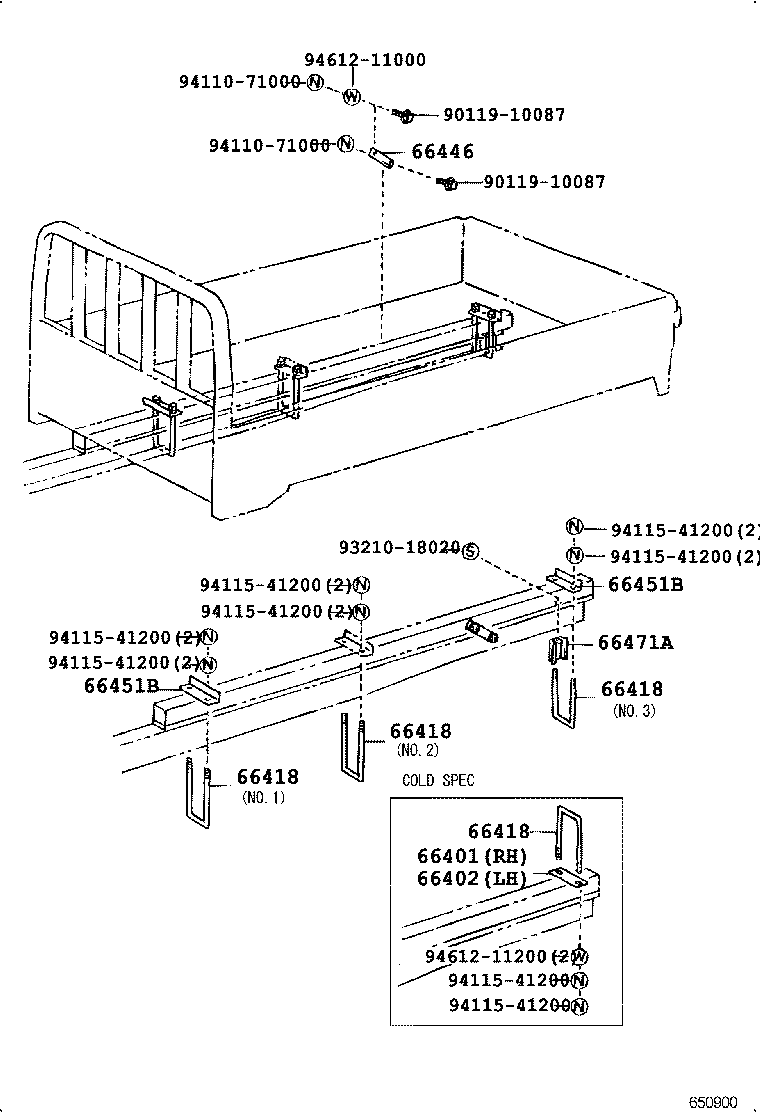

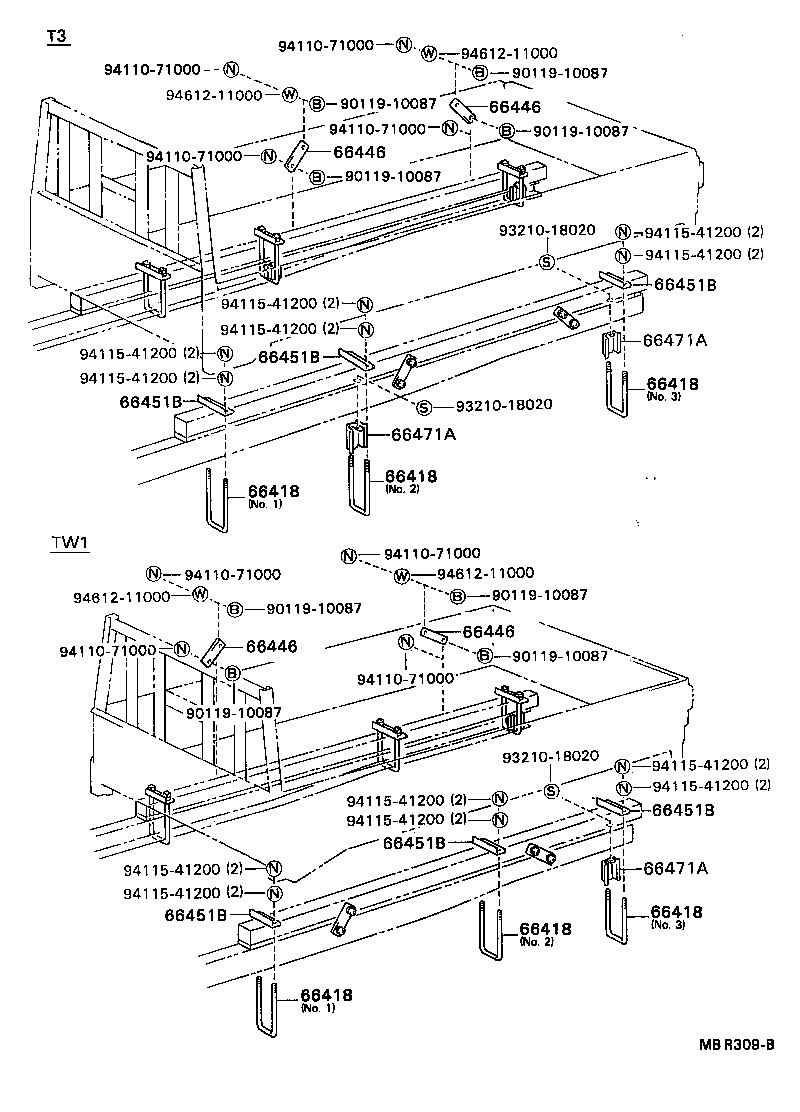

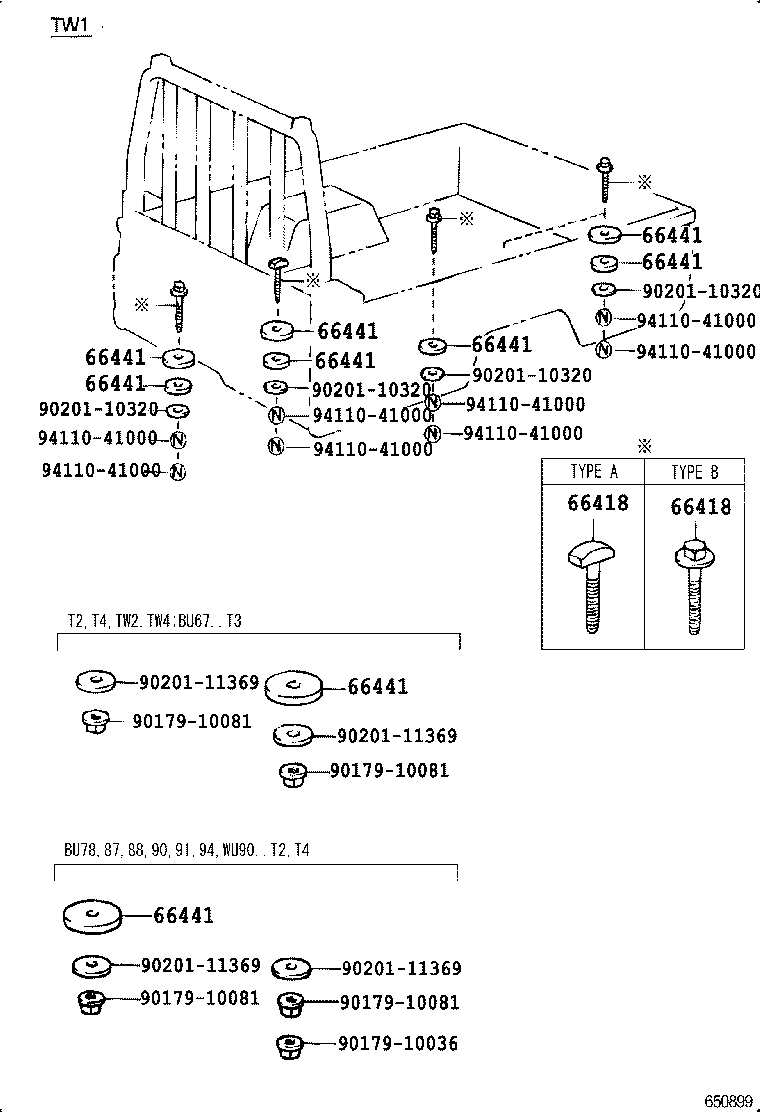

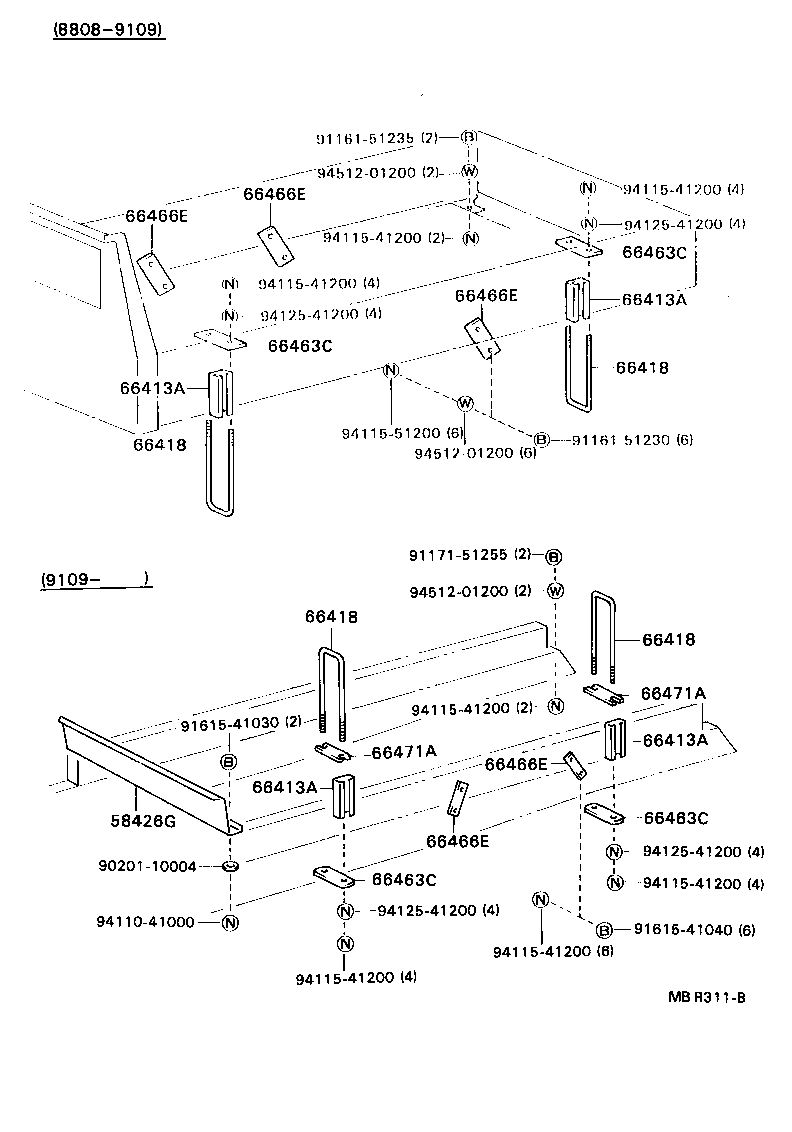

Figure 650898 650898 1988-08 → — Figure 650899 650899 1988-08 → — Figure 650900 650900 1988-08 → — Figure MBR309B MBR309B 1989-10 → — Figure 650901 650901 1988-08 → — Figure 650901 650901 1989-10 → — Figure MBR311B MBR311B 1988-08 → —

Part groups

PNCDescription
58426G Protector, Engine Sub Cover
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66413A Spacer, Side Rail
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66463C Plate, Sub Frame Set
66466E Plate, Sub Frame Anchor
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
