Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

24 part groups · 5 illustrations

Illustrations

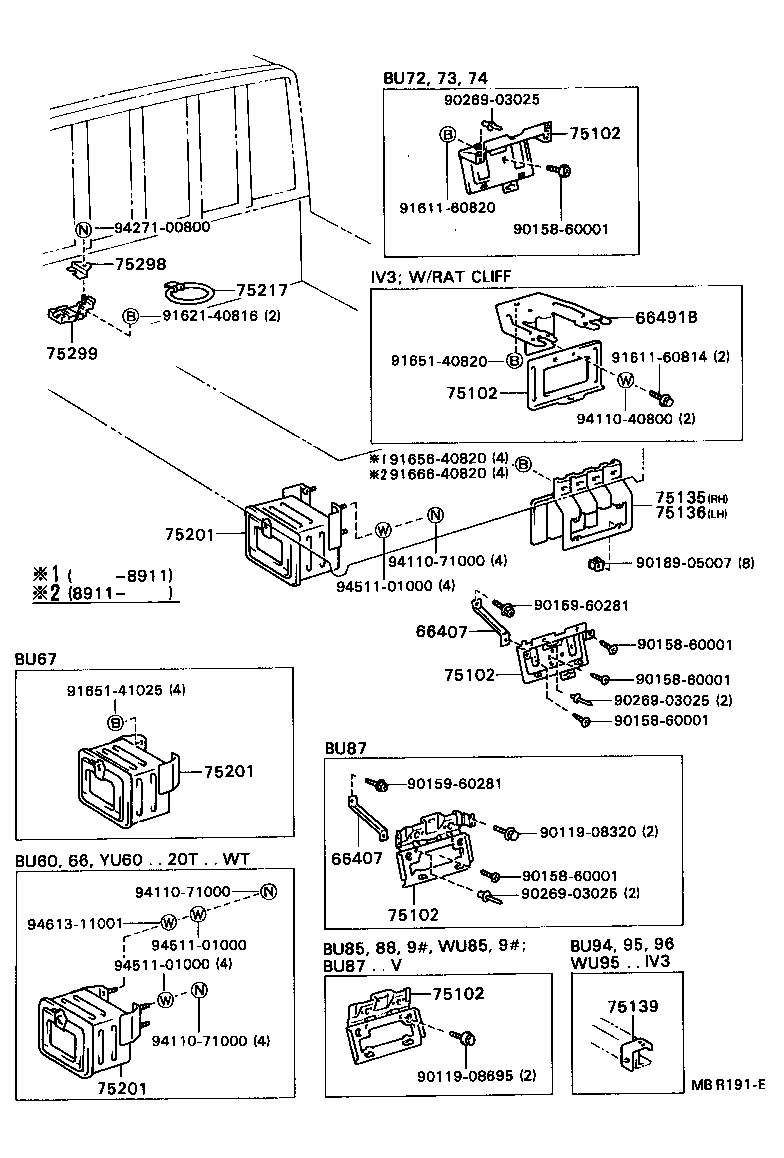

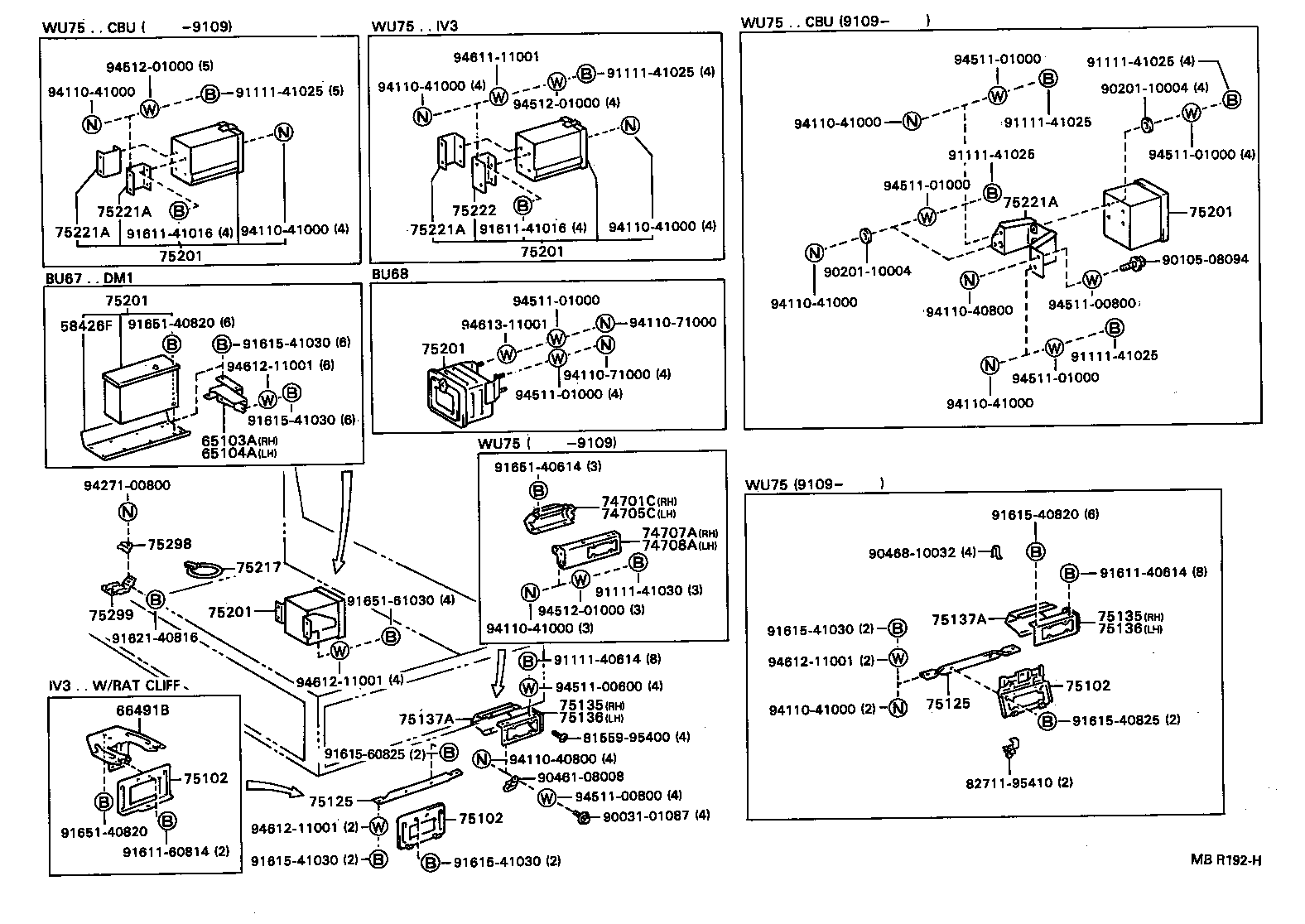

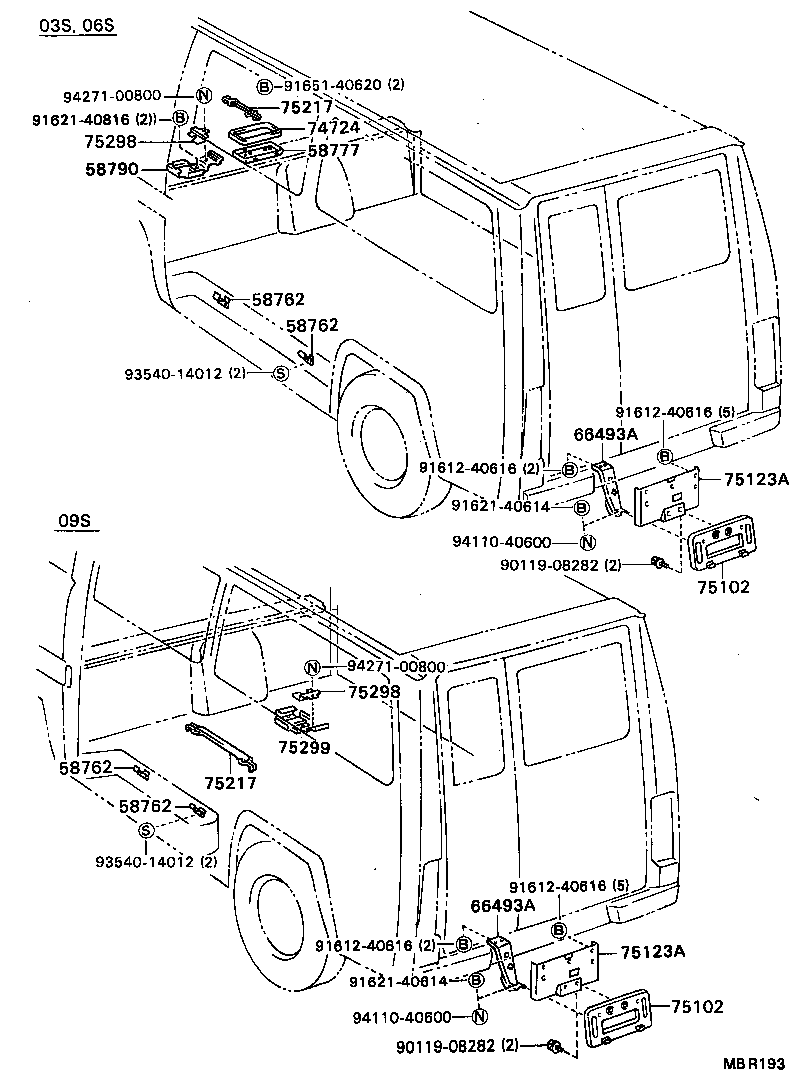

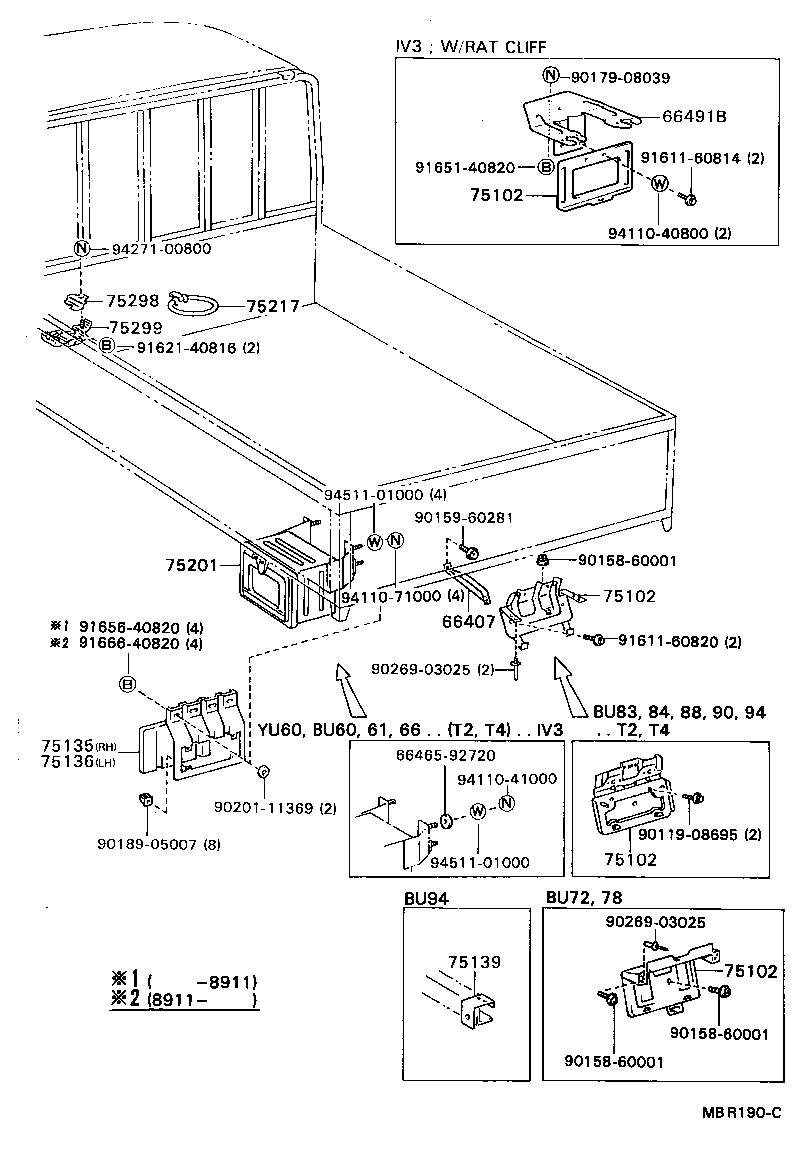

Figure MBR189B MBR189B 1988-08 → — Figure MBR190C MBR190C 1988-08 → — Figure MBR191E MBR191E 1988-08 → — Figure MBR192H MBR192H 1988-08 → — Figure MBR193 MBR193 1988-08 → —

Part groups

PNCDescription
58762 Holder, Starting Handle
58777 Platform, Tool Bag Rest
58790 Carrier Assy, Jack
66407 Stay Sub-assy, License Plate Bracket
66491B Hanger, License Plate Bracket
66493A Stay, License Plate
74701C Cover Sub-assy, Taillamp, RH
74705C Cover Sub-assy, Taillamp, LH
74707A Bracket Sub-assy, Taillamp, RH
74708A Bracket Sub-assy, Taillamp, LH
74724 Trim, Tool Back Platform
75102 Bracket Sub-assy, Rear License Plate
75123A Bracket Rear Licence Plate
75125 Stay, Rear Licence Plate
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75137A Cover Combination
75139 Bracket, Reflex Reflector
75201 Box Sub-assy, Tool W/Stay
75217 Band, Tool Bag
75221A Bracket, Tool Box, RH
75222 Bracket, Tool Box, LH
75298 Plate, Jack Holder
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
