Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 2 illustrations

Illustrations

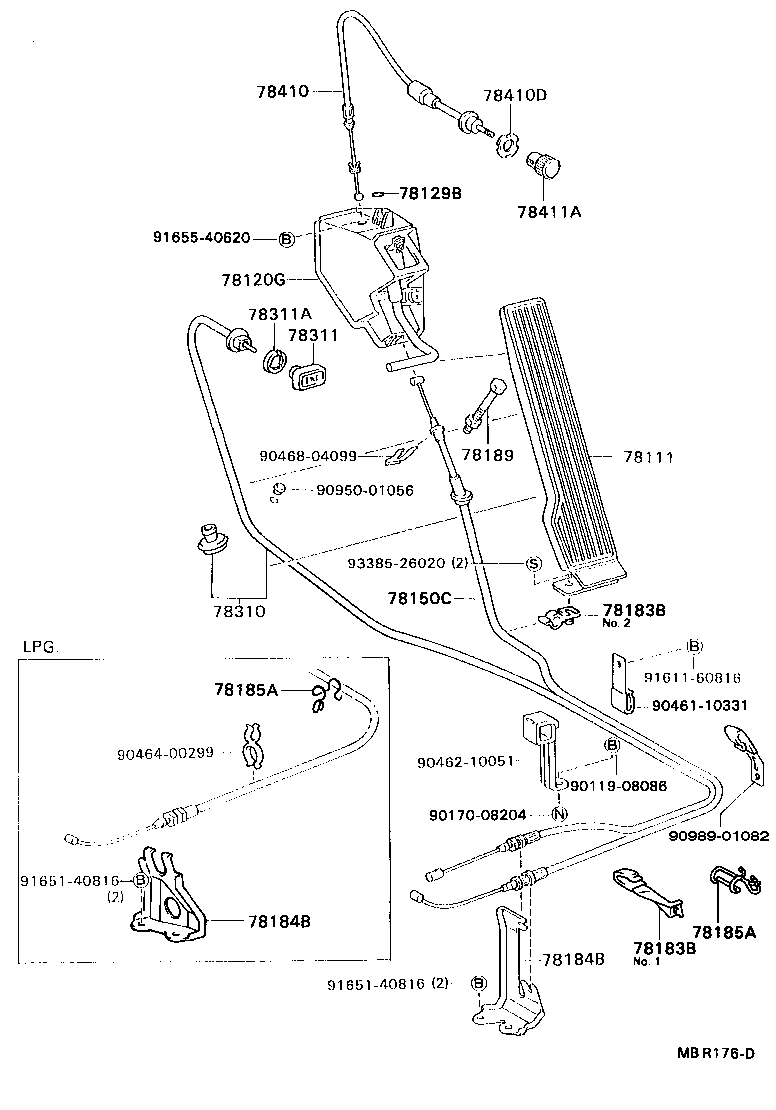

Figure MBR175B MBR175B 1988-08 → — Figure MBR176D MBR176D 1988-08 → —

Part groups

PNCDescription
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78189 Bolt, Accelerator Pedal Stopper
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
