Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis YU6#,70,WU75,85,9# · catalogue 752150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 9 illustrations

Illustrations

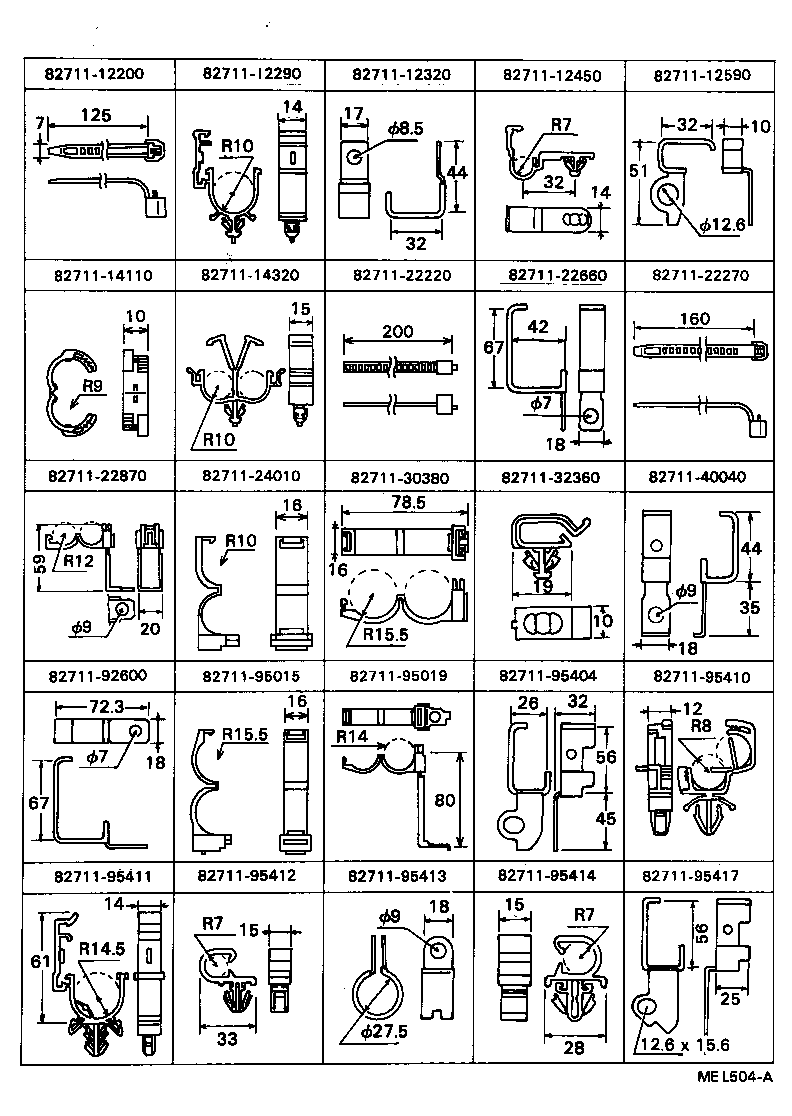

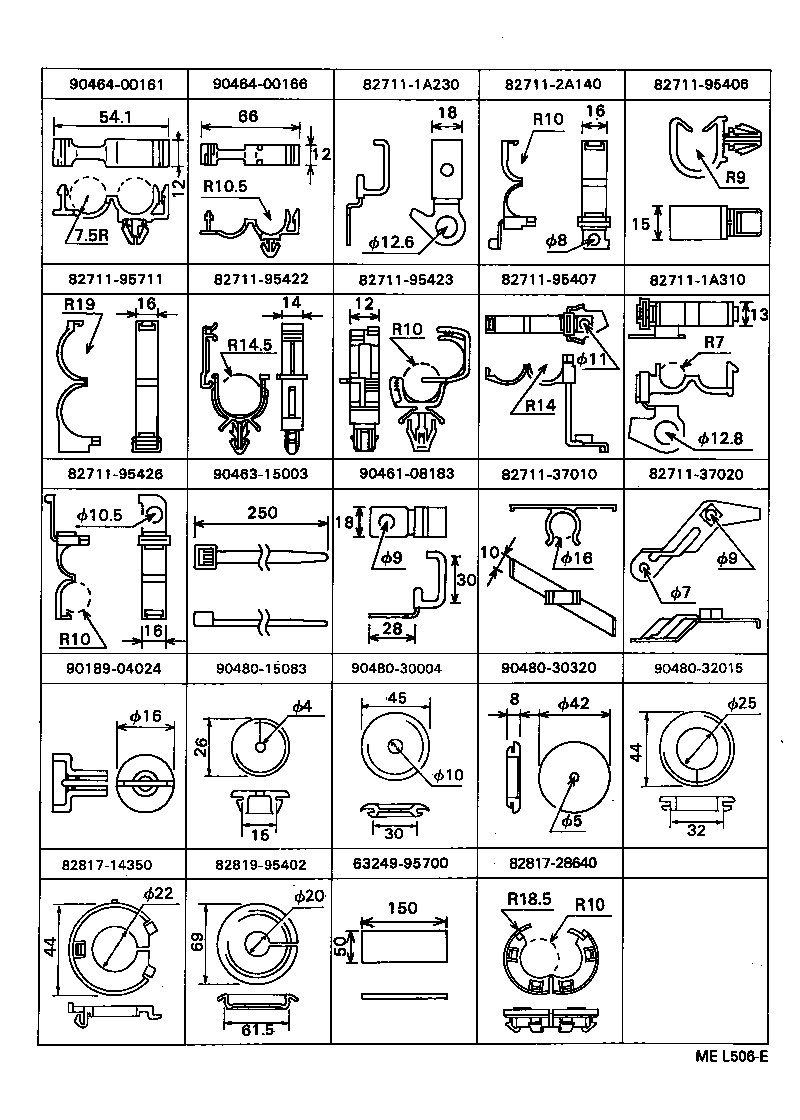

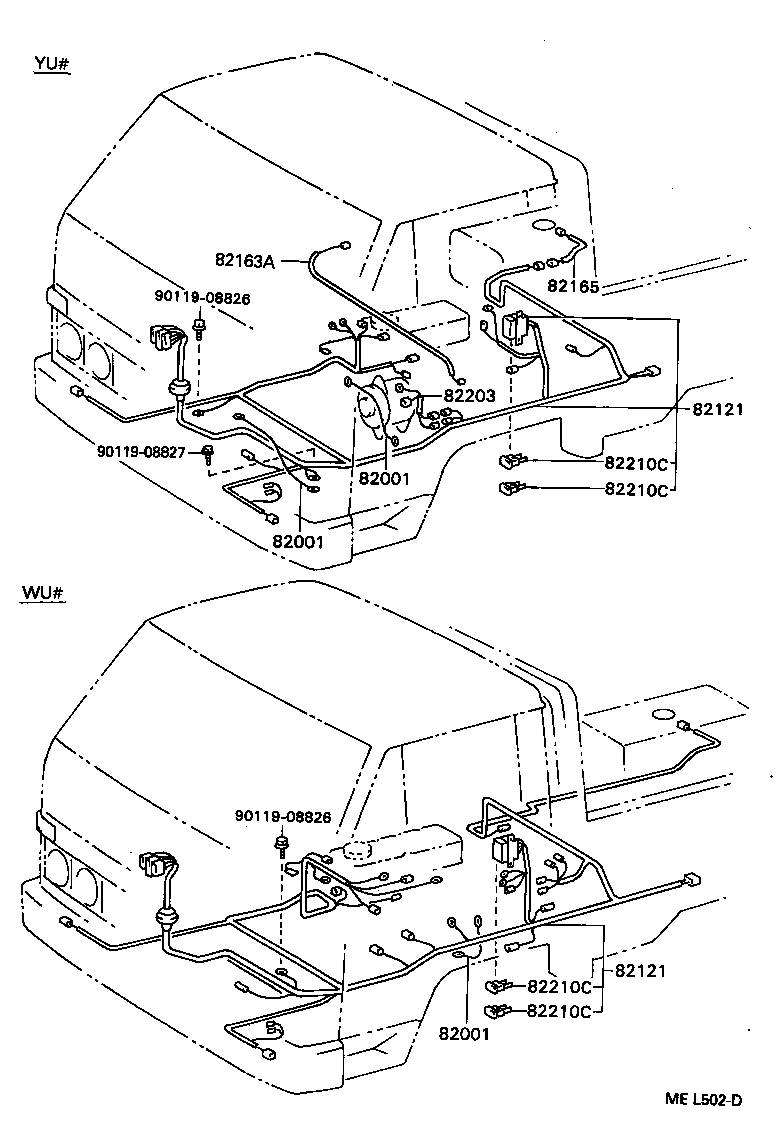

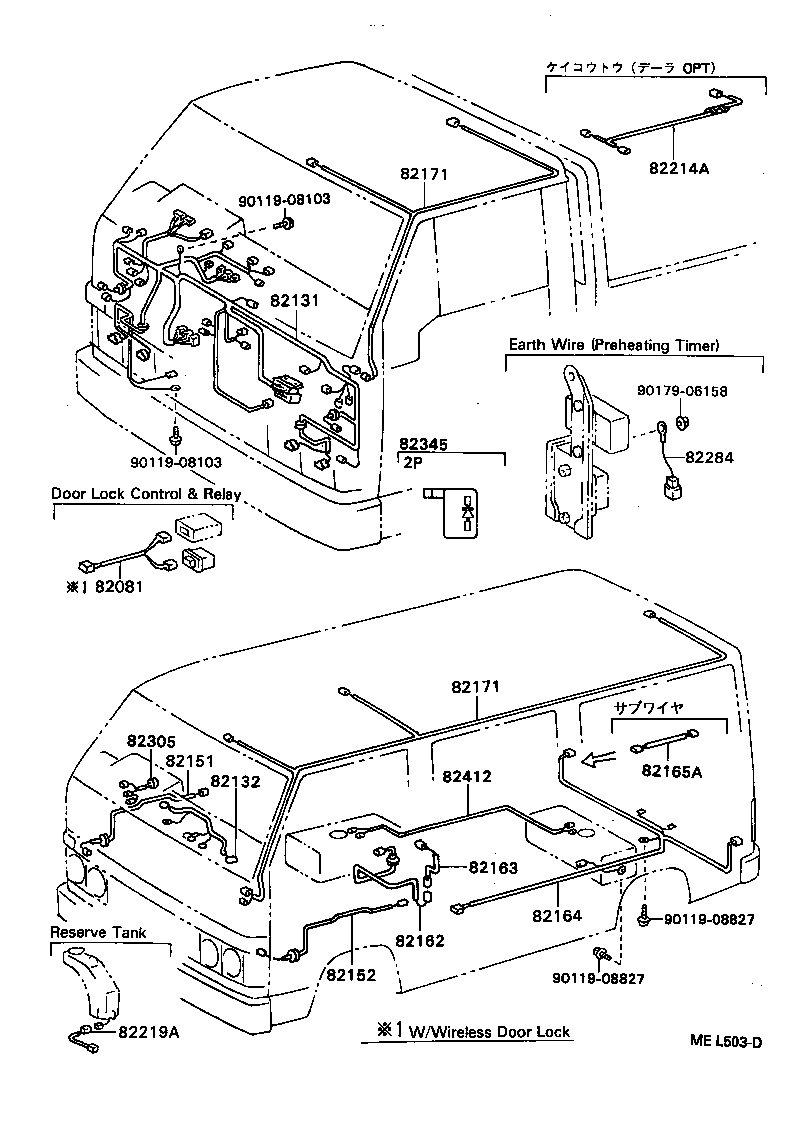

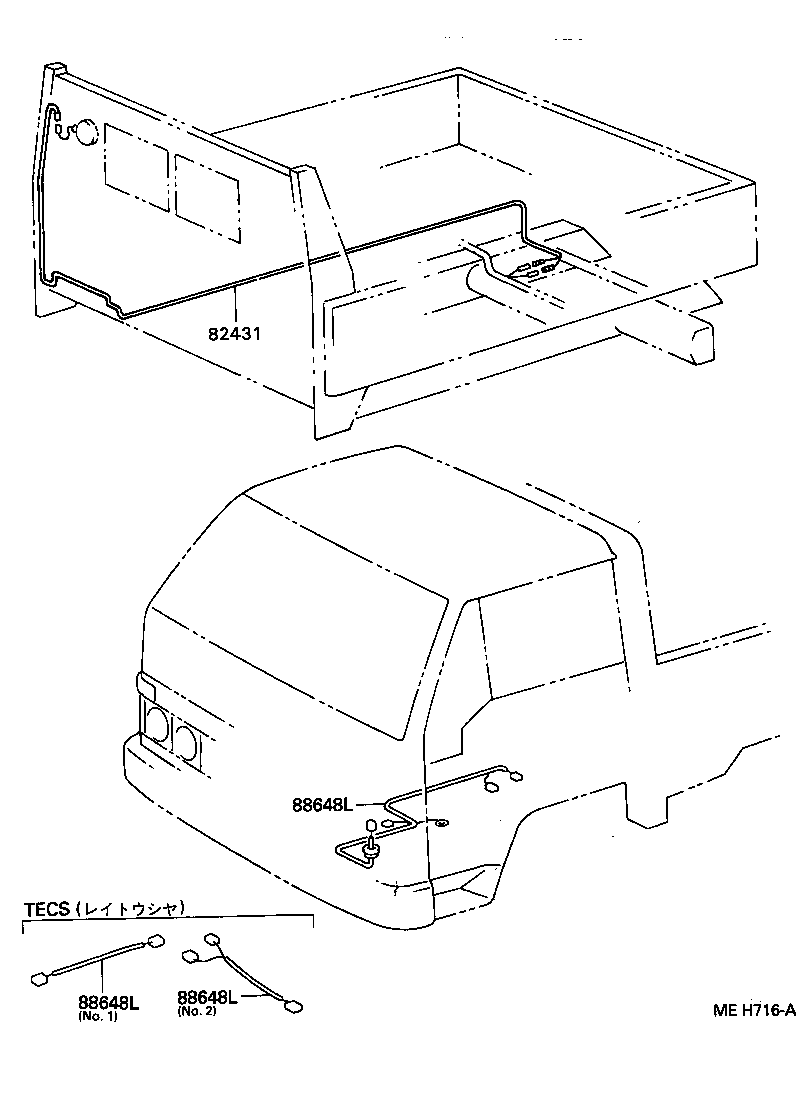

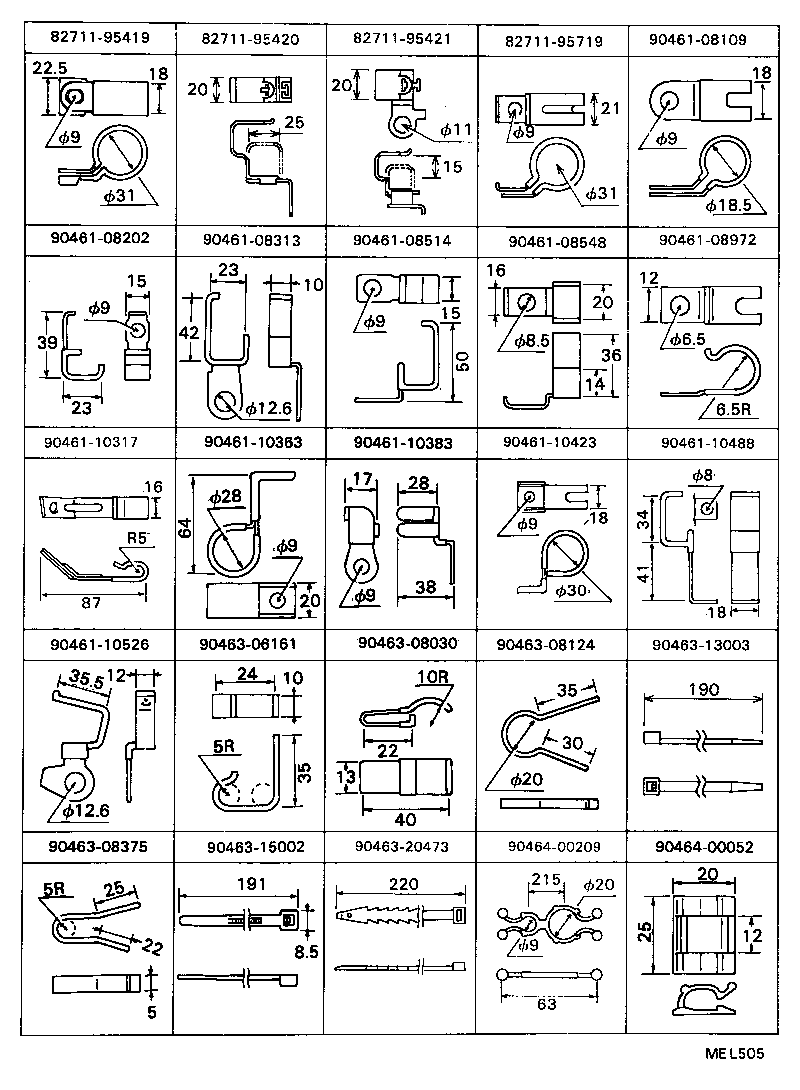

Figure MEL501D MEL501D 1988-08 → — Figure MEL502D MEL502D 1988-08 → — Figure MEL503D MEL503D 1988-08 → — Figure MEH716A MEH716A 1988-08 → — Figure MEJ835 MEJ835 1988-08 → — Figure MEL504A MEL504A 1988-08 → — Figure MEL505 MEL505 1988-08 → — Figure MEL506E MEL506E 1988-08 → — Figure MER601A MER601A 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82081 Wiring Assy, Door Lock
82121 Wire, Engine
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82164 Wire, Frame
82165 Wire, Frame, NO.2
82165A Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82214A Wire, Lamp
82284 Wire, Earth
82305 Wire Sub-assy, TO Tachograph
82345 Diode
82412 Wire, Fuel Gage
82431 Wire, Work Lamp Feed, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
