Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

27 part groups · 3 illustrations

Illustrations

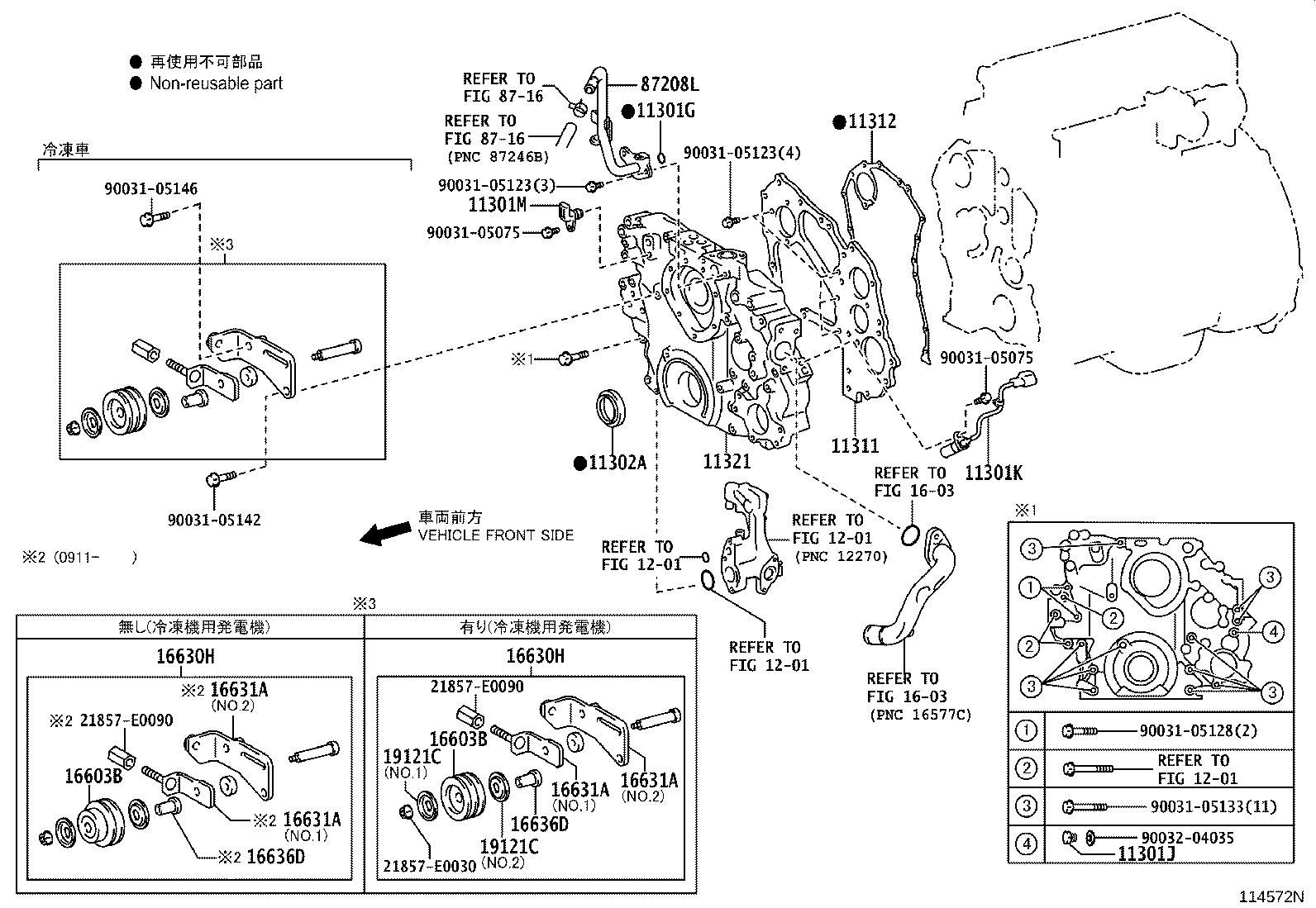

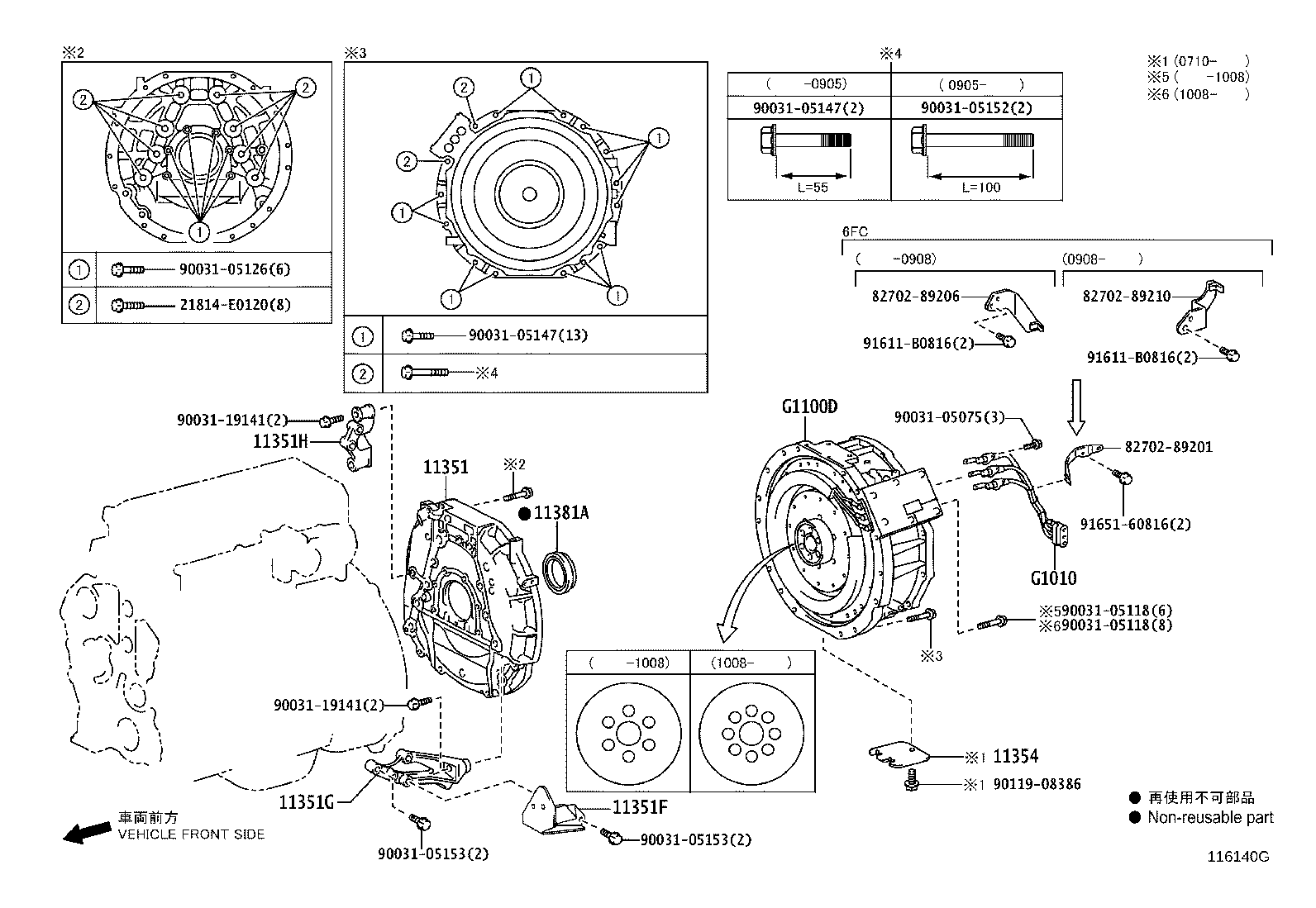

Figure 113623E 113623E 2003-10 → 2006-10 Figure 114572N 114572N 2006-10 → — Figure 116140G 116140G 2006-10 → —

Part groups

PNCDescription
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11321 Case, Timing Gear
11322G Ring, O(FOR TIMING GEAR COVER)
11351 Housing, Flywheel
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351F Plate, Stiffener, LH(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11354A Seal(FOR FLYWHEEL HOUSING)
11354B Spacer(FOR FLYWHEEL HOUSING)
11381A Seal, Engine Rear Oil
12203B Pipe Sub-assy, Ventilation
16603B Pulley Sub-assy, Idler
16630H Pulley Assy, Idler
16631A Bracket, Idler Pulley
16636D Shaft, Idler Pulley
19121C Cover, Dust Proof
87208L Pipe Sub-assy, Water
G1010 Wire Assy, Motor Stator
G1100D Motor Assy, Hybrid Vehicle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
