Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 2 illustrations

Illustrations

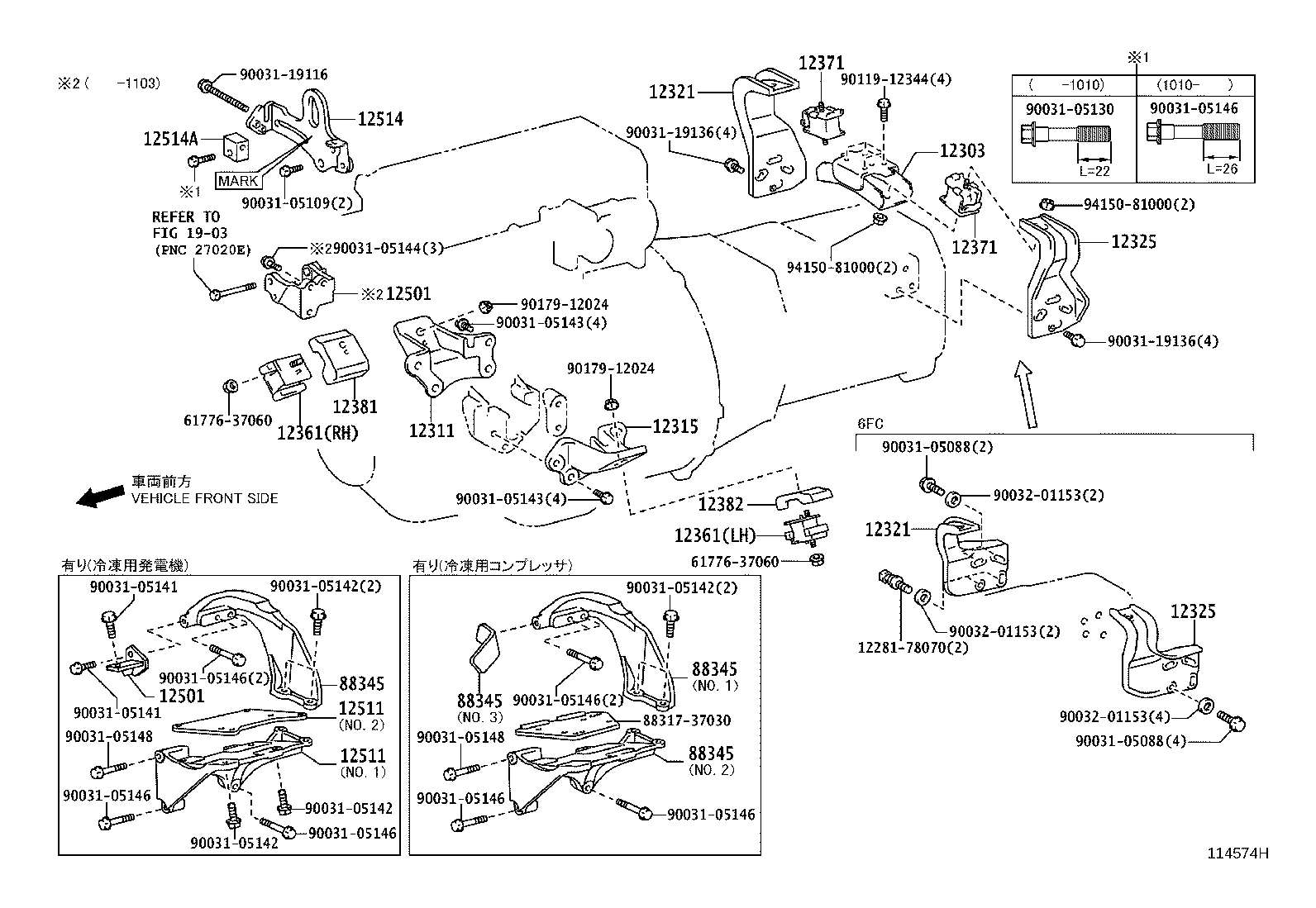

Figure 113625A 113625A 2003-10 → 2006-10 Figure 114574H 114574H 2006-10 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
88345 Bracket, Compressor Mounting
