Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 2 illustrations

Illustrations

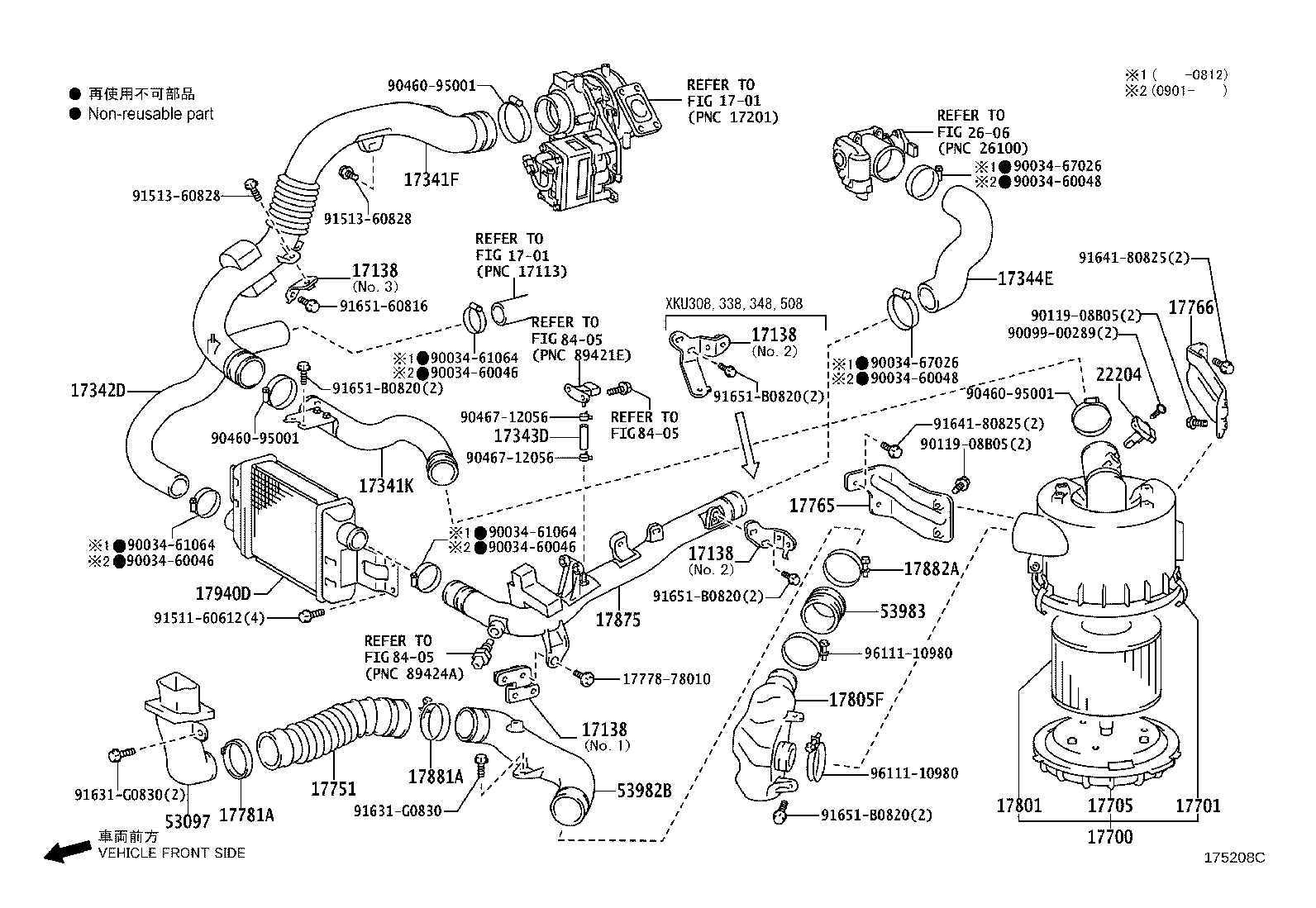

Figure 173904H 173904H 2003-10 → 2006-10 Figure 175208C 175208C 2006-10 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17766 Stay, Air Cleaner, NO.2
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17875 Pipe, Intake Air Connector
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
53097 Inlet Sub-assy
53982B Inlet, Air Cleaner Pipe, NO.2
53983 Inlet, Air Cleaner Pipe, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
