Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan
Discontinued model
Data version 2012-01

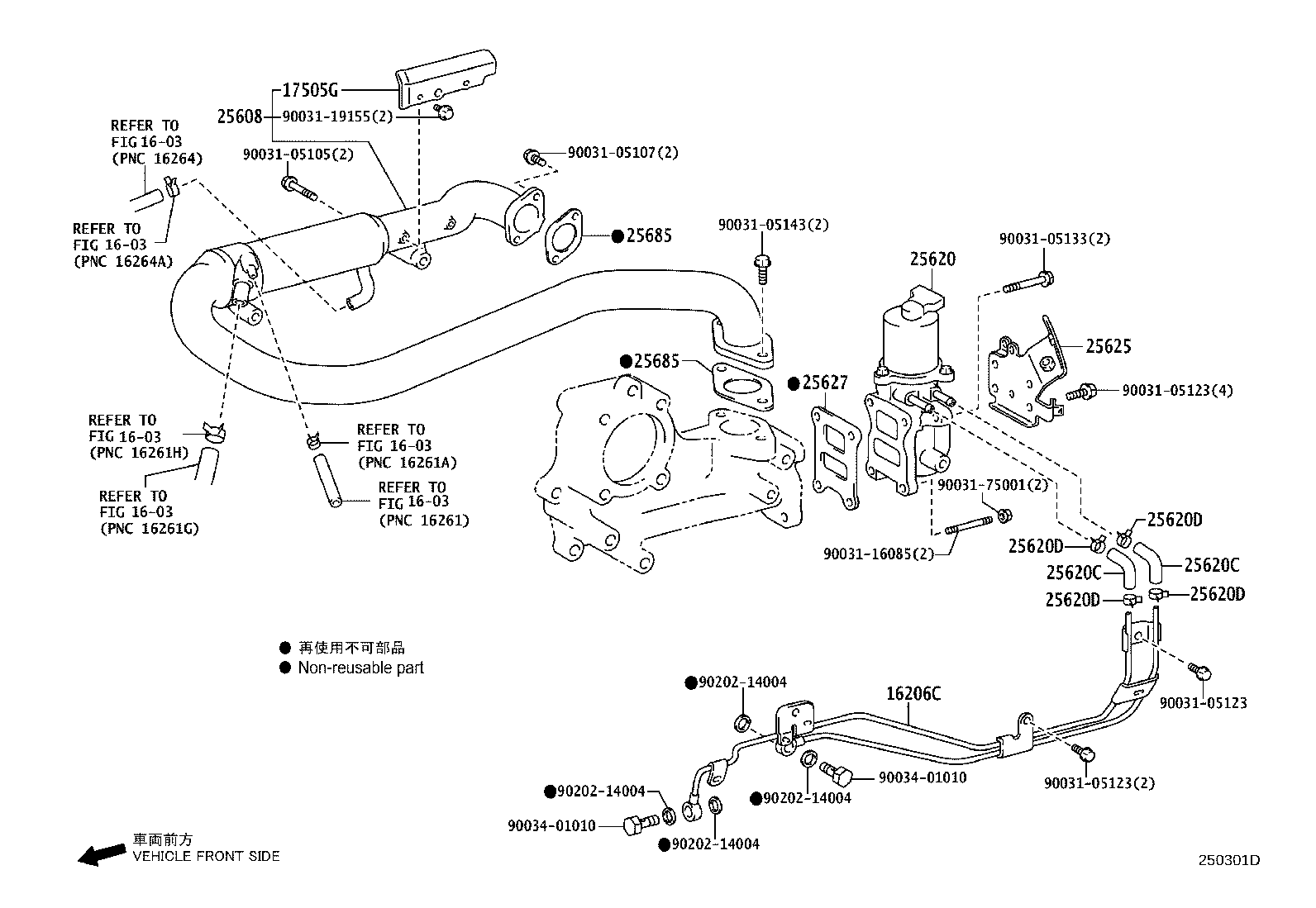

Exhaust Gas Recirculation System
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16206C | Pipe Sub-assy, Water By-pass |
| 17505G | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 25608 | Cooler Sub-assy, Egr |
| 25620 | Valve Assy, Egr |
| 25620C | Hose, Water By-pass, NO.1 |
| 25620D | Clip(FOR WATER BY-PASS HOSE, NO.1) |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
