Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan
Discontinued model
Data version 2012-01
Power Take-off Case & Gear
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 27679C | Bracket, Power Take-off Solenoid |
| 27690J | Solenoid Assy, Power Take-off |
| 32913B | Bracket, Transmission Oil Cooler, NO.2 |
| 33162B | Gasket, Power Take-off Cover |
| 352A0 | Switch Assy, Transmission Oil Pressure |
| 35775B | Sleeve, Output Shaft |
| 36421B | Diaphragm (FOR POWER TAKE-OFF) |
| 36422B | Plate, Diaphragm (FOR POWER TAKE-OFF) |
| 36603 | Tube Sub-assy, Power Take-off Lubrication |
| 36603A | Elbow (FOR POWER TAKE-OFF LUBRICATION TUBE) |
| 36603E | Ring, O (FOR POWER TAKE-OFF LUBRICATION TUBE) |
| 36605C | Power Take-off Set |
| 36608 | Tube Sub-assy, Power Take Off Line Pressure |
| 36610 | Power Take-off Assy |
| 36611A | Bolt, Stud (FOR POWER TAKE-OFF CASE) |
| 36621 | Retainer, Power Take-off Bearing |
| 36621A | Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER) |
| 36631 | Gasket, Power Take-off Bearing Retainer |
| 36633A | Gasket, Power Take-off Cover |
| 36641 | Cap, Power Take-off Shift Shaft |
| 36714 | Gear, Power Take-off Output |
| 36718 | Gear, Power Take-off Idler |
| 36723 | Shaft, Power Take-off Output, NO.1 |
| 36723A | Bearing (FOR OUTPUT SHAFT FRONT) |
| 36723B | Bearing (FOR OUTPUT SHAFT REAR) |
| 36723J | Bearing (FOR POWER TAKE-OFF OUTPUT SHAFT) |
| 36728 | Shaft, Power Take-off Idler |
| 36728F | Ring, Shaft Snap (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36728G | Pin (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36728H | Shim (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36737B | Shim (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) |
| 36811 | Fork, Powr Take-off Shift, NO.1 |
| 36814 | Shaft, Powr Take-off Fork, NO.1 |
| 36851 | Retainer, Power Take-off Joint |
| 36851C | Flange, Power Take-off Output Shaft |

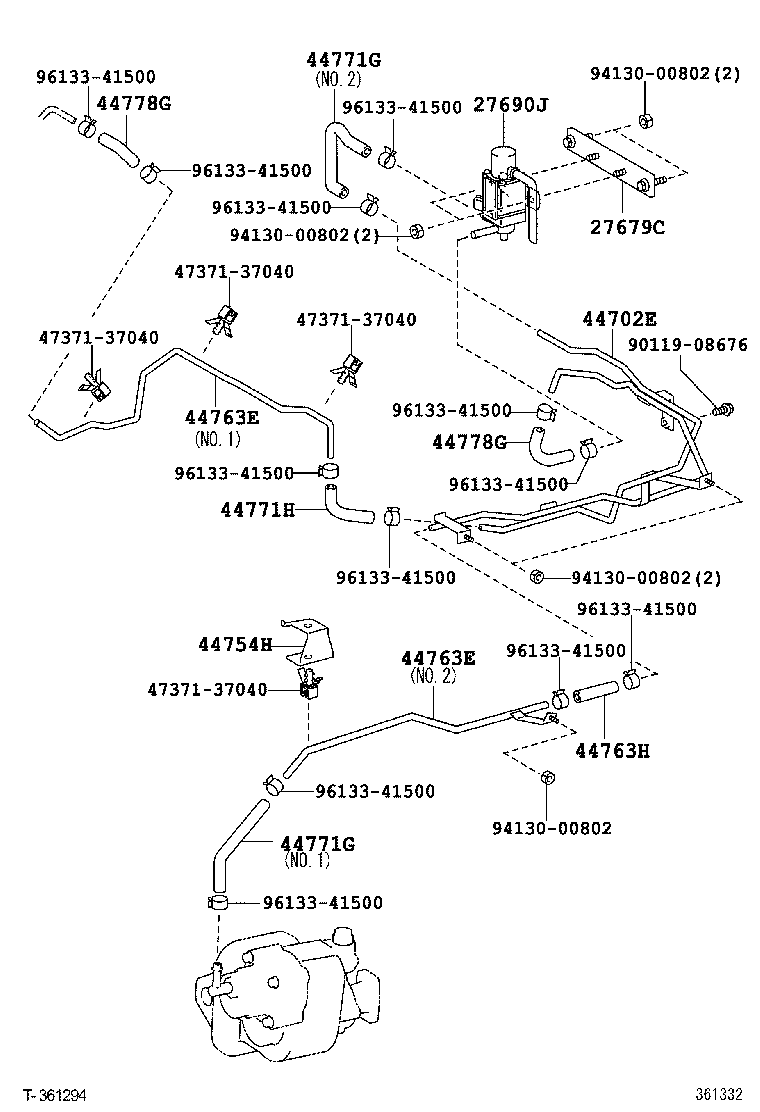

| 44702E | Tube Sub-assy, Vacuum Pump TO Brake Boot |
| 44754H | Bracket, Vacuum Tube |
| 44763E | Tube, Hose TO Hose, NO.1 |
| 44763H | Hose, Vacuum Brake |
| 44771G | Hose, Vacuum Tube Connector, NO.1 |
| 44771H | Hose, Vacuum Tube Connector, NO.2 |
| 44778G | Hose, Connector TO Check Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
