Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan
Discontinued model
Data version 2012-01

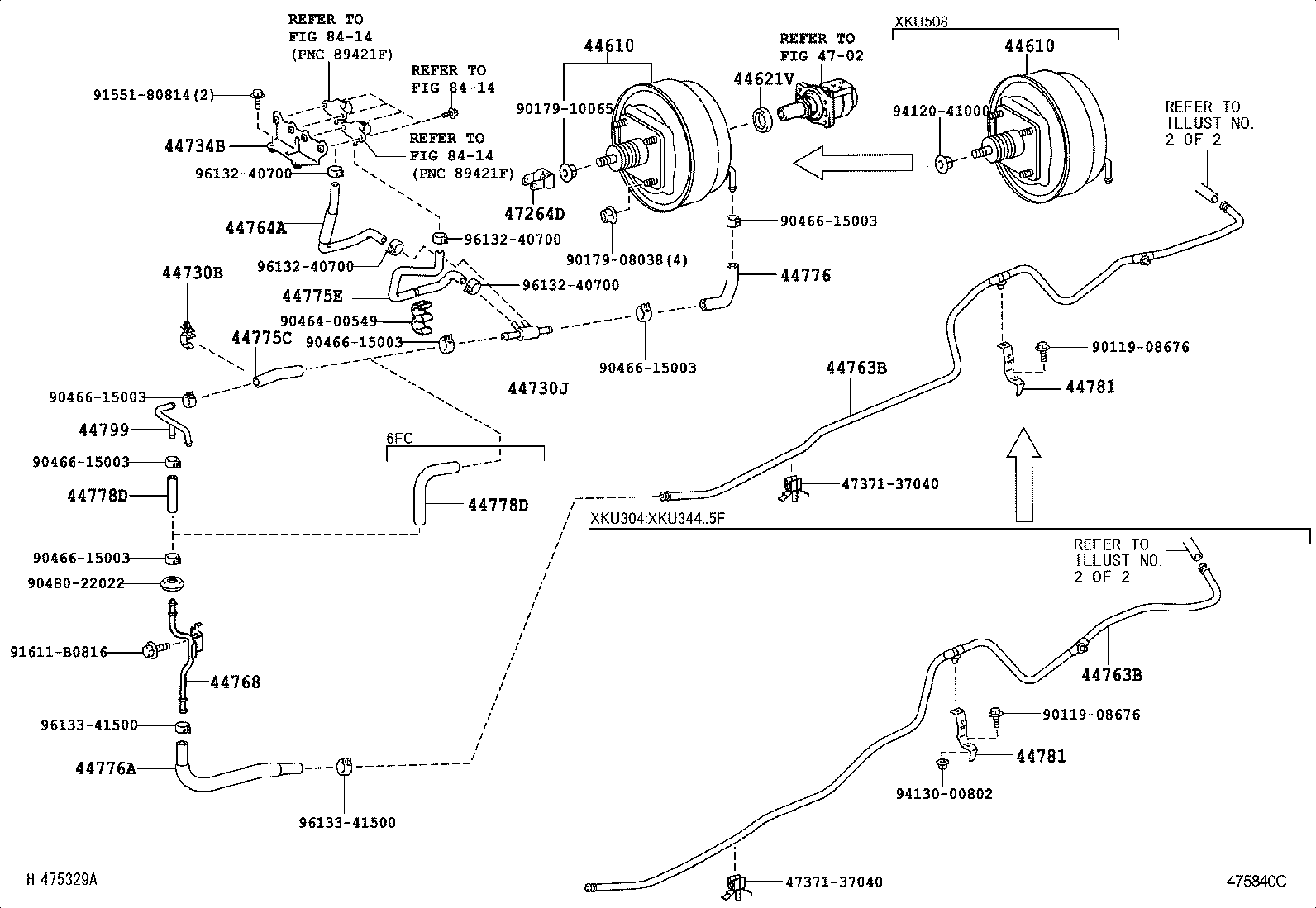

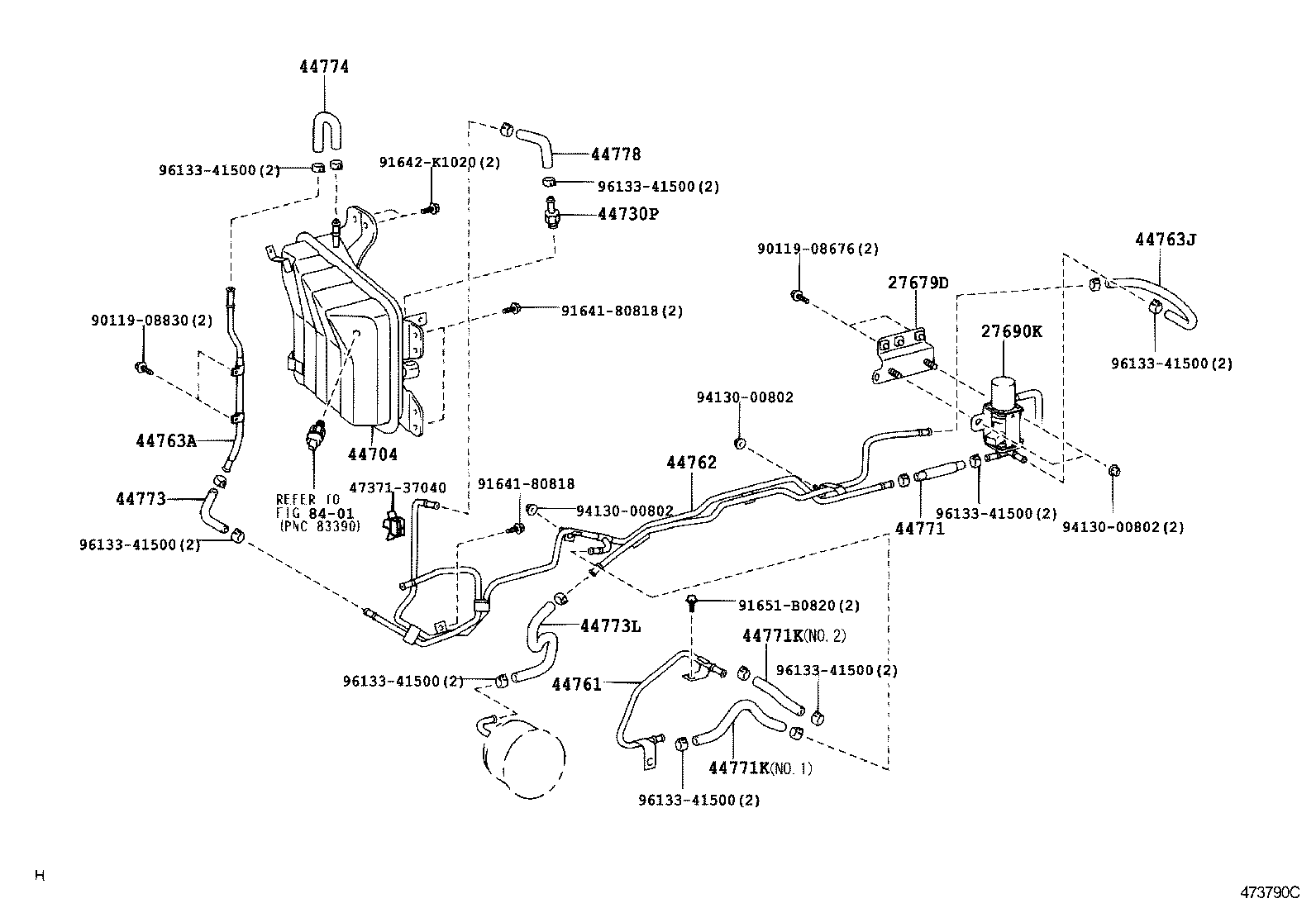

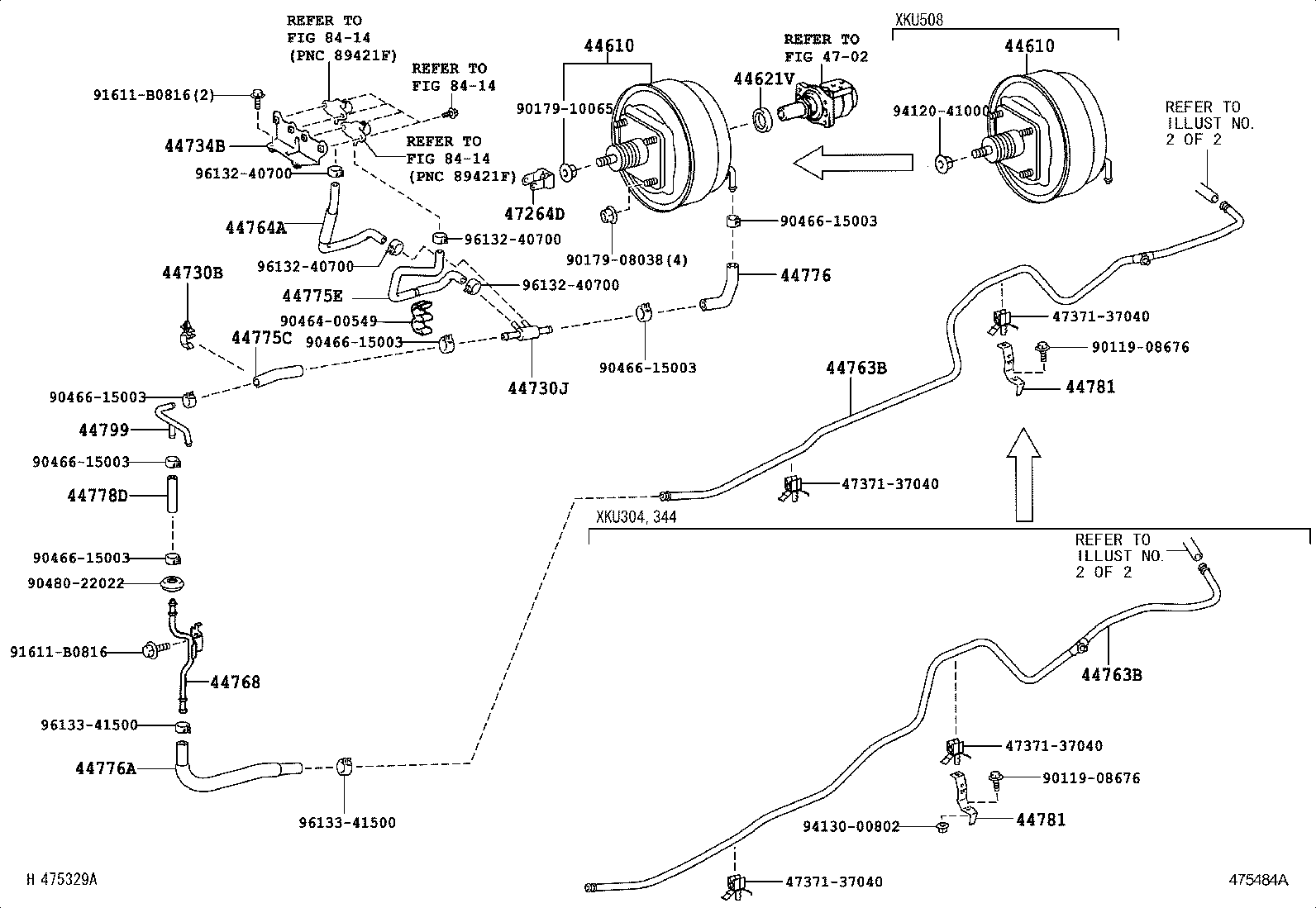

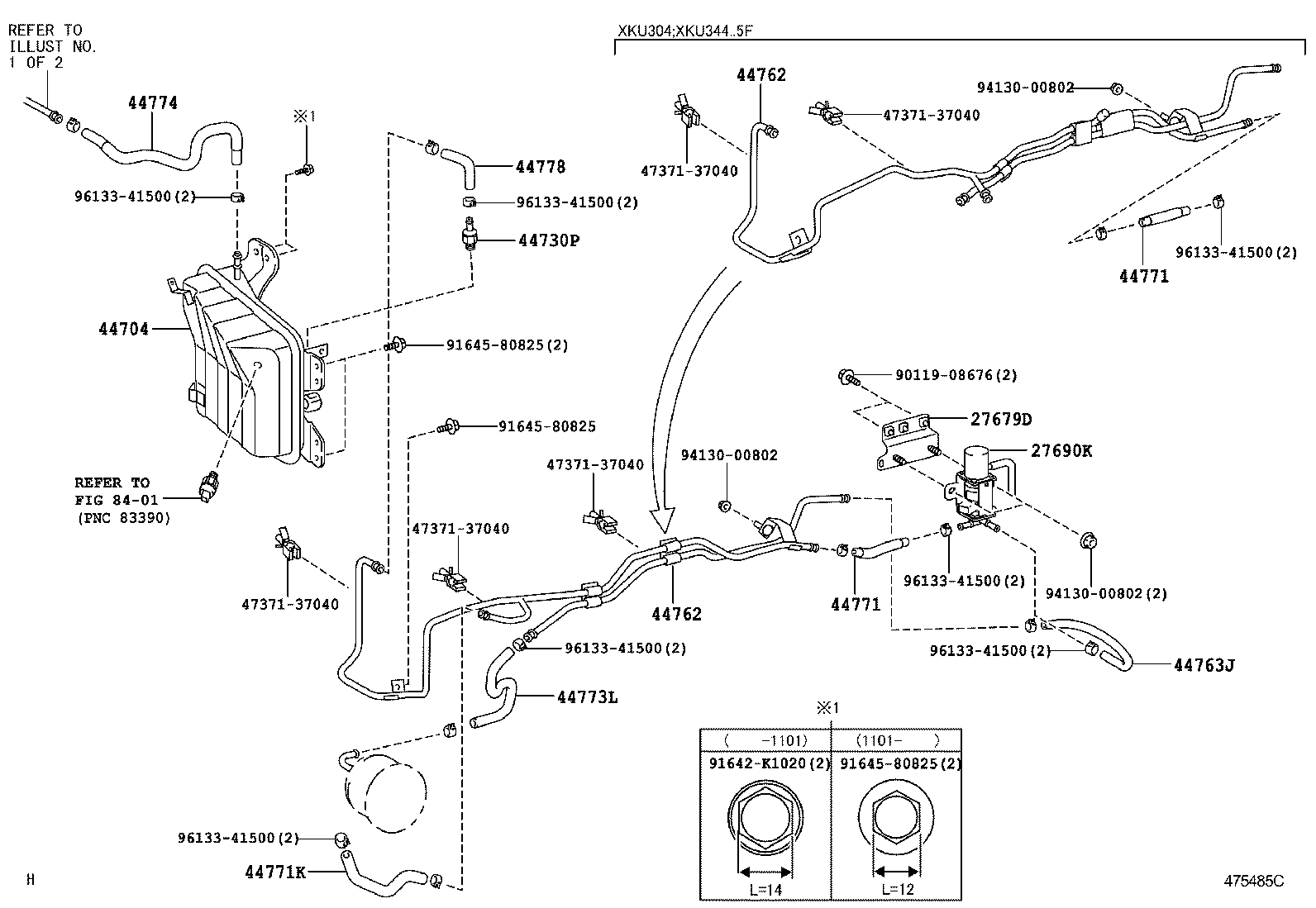

Brake Booster & Vacuum Tube
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 27679D | Bracket, Exhaust Brake Solenoid |
| 27690K | Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE) |
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730B | Clamp, Vacuum Hose |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44734B | Bracket, Booster Support |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44762 | Tube, Booster Vacuum |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44763B | Tube, Tube Connector TO Tube Connector |
| 44763J | Hose, Solenoid TO Vacuum Tube |
| 44764A | Hose, Booster Vacuum |
| 44768 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771D | Hose, Vacuum Tube Connector |
| 44771K | Hose, Vacuum Tube TO Vacuum Pump |
| 44773 | Hose, Vacuum, NO.2 |
| 44773L | Hose, Solenoid TO Exhaust Retarder |
| 44774 | Hose, Union TO Connector Tube |
| 44775C | Hose, Connector TO Way |
| 44775E | Hose, Way TO Connector |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44778 | Hose, Connector TO Check Valve |
| 44778D | Hose, Vacuum Tube TO Connector Tube |
| 44781 | Bracket, Hose |
| 44799 | Way, Brake Vacuum Hose |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
