Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

38 part groups · 6 illustrations

Illustrations

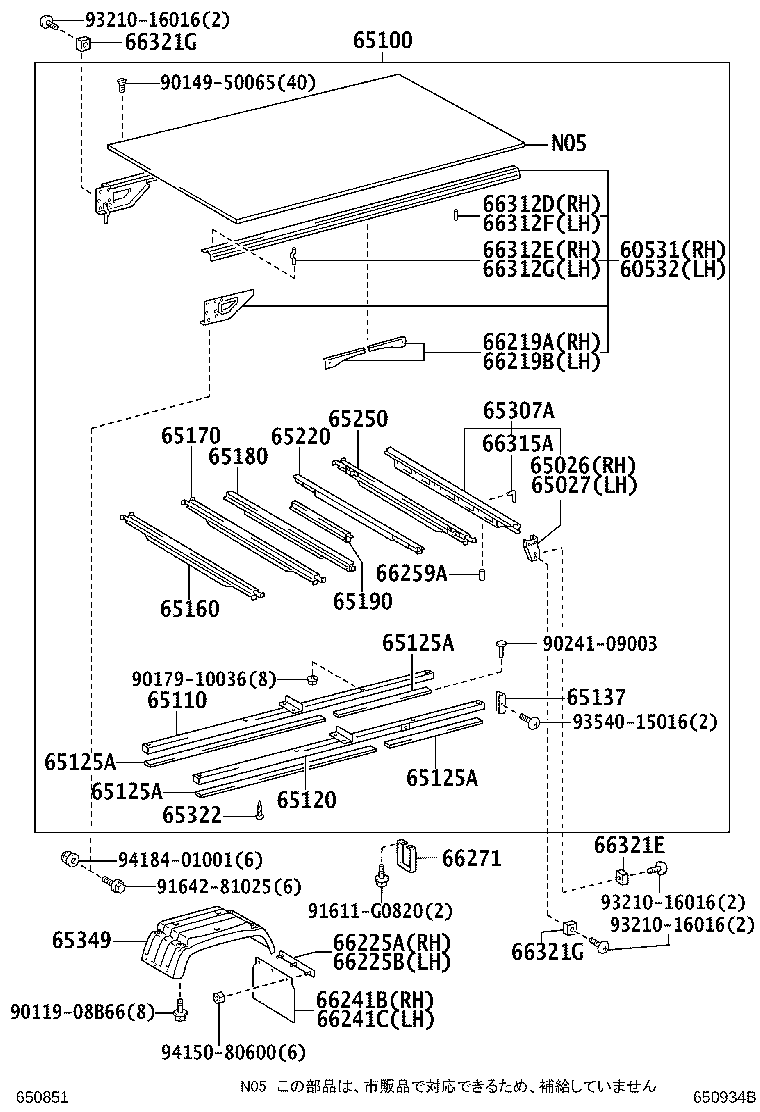

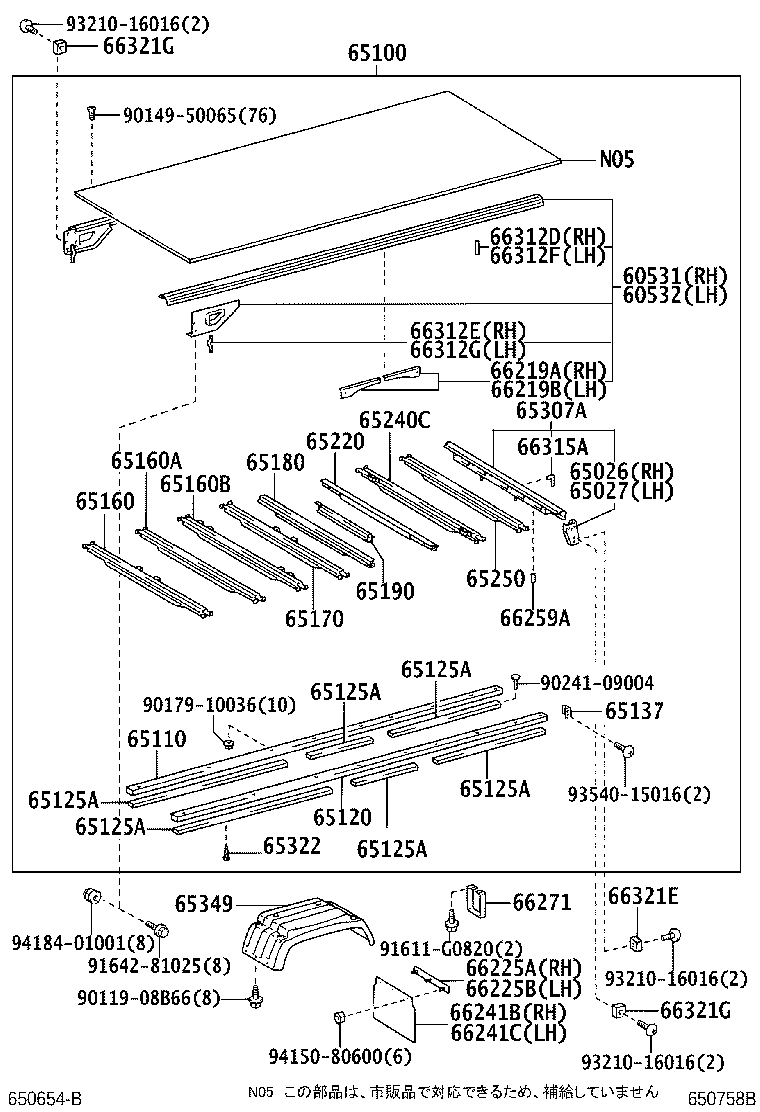

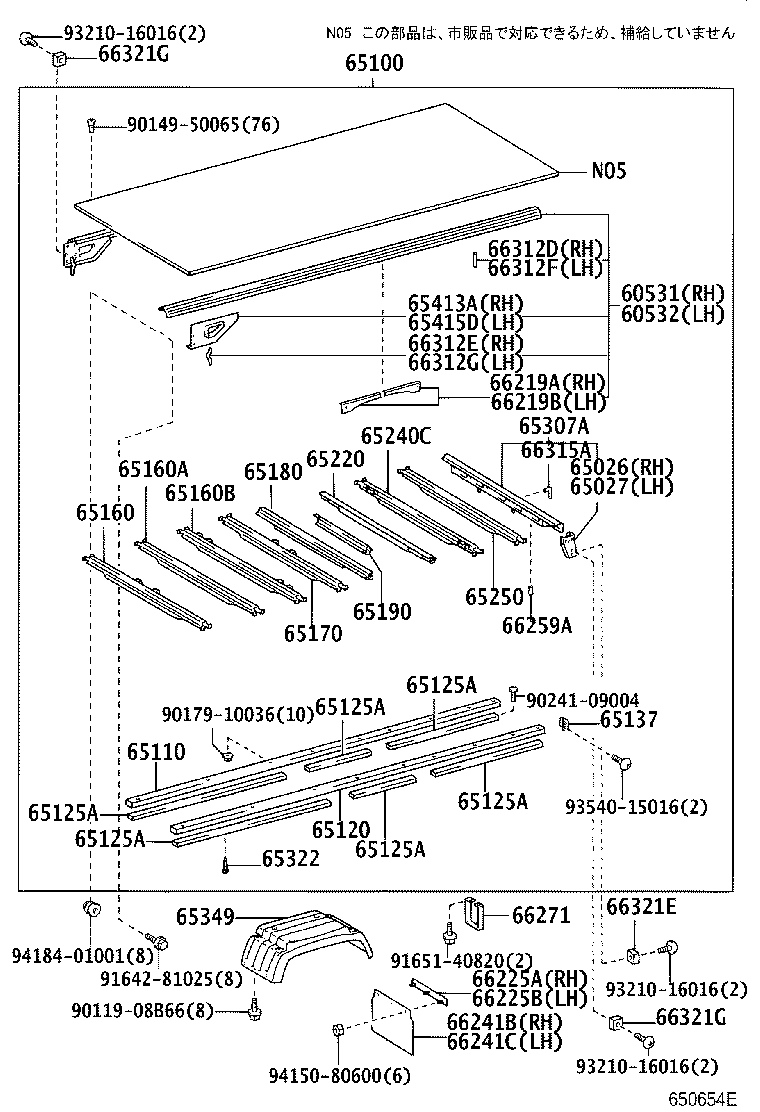

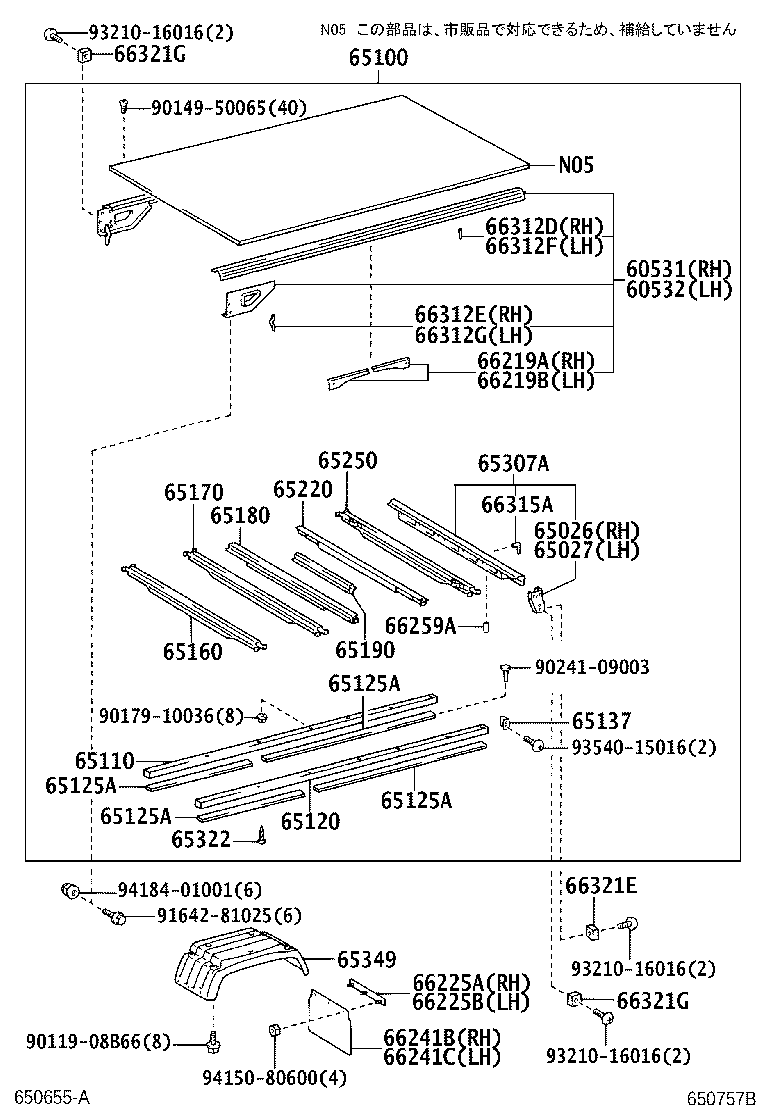

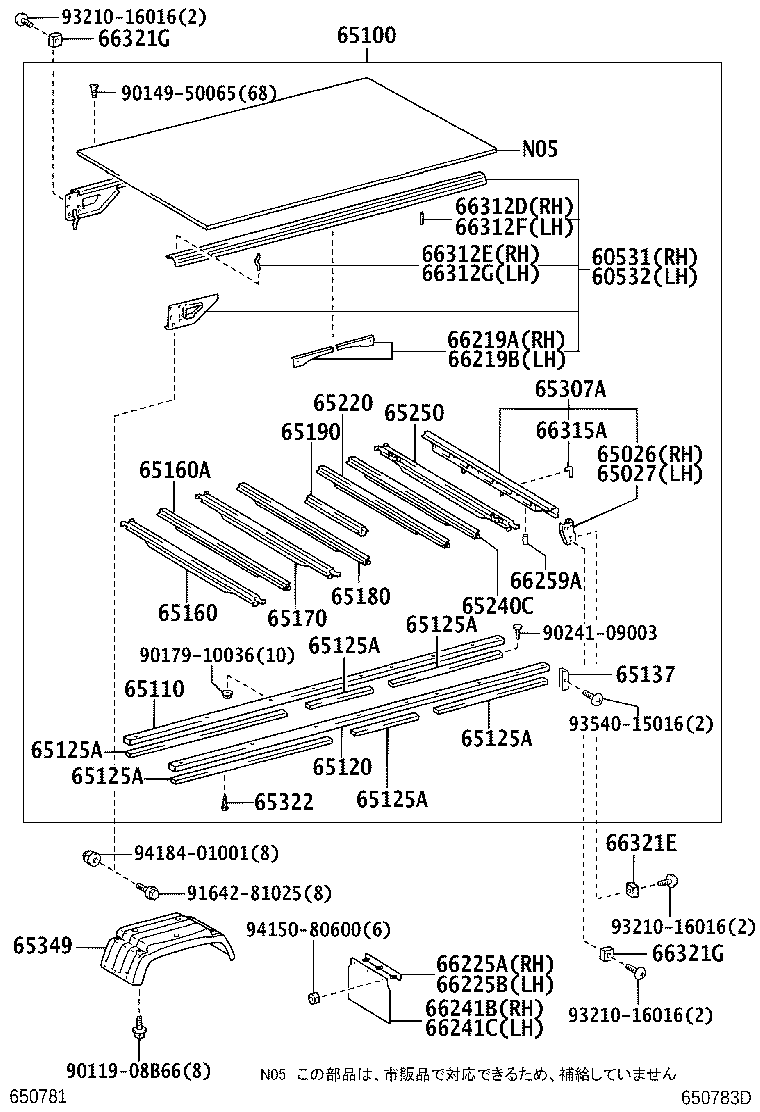

Figure 650655D 650655D 2004-06 → 2006-10 Figure 650654E 650654E 2004-06 → 2006-10 Figure 650757B 650757B 2006-10 → — Figure 650758B 650758B 2006-10 → — Figure 650934B 650934B 2009-08 → — Figure 650783D 650783D 2009-08 → —

Part groups

PNCDescription
60531 Frame Sub-assy, Floor Side, RH
60532 Frame Sub-assy, Floor Side, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65307A Frame Sub-assy, Floor, Rear
65322 Nail
65349 Fender, Floor Side
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66315A Hook, Rope
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
