Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan
Discontinued model
Data version 2012-01

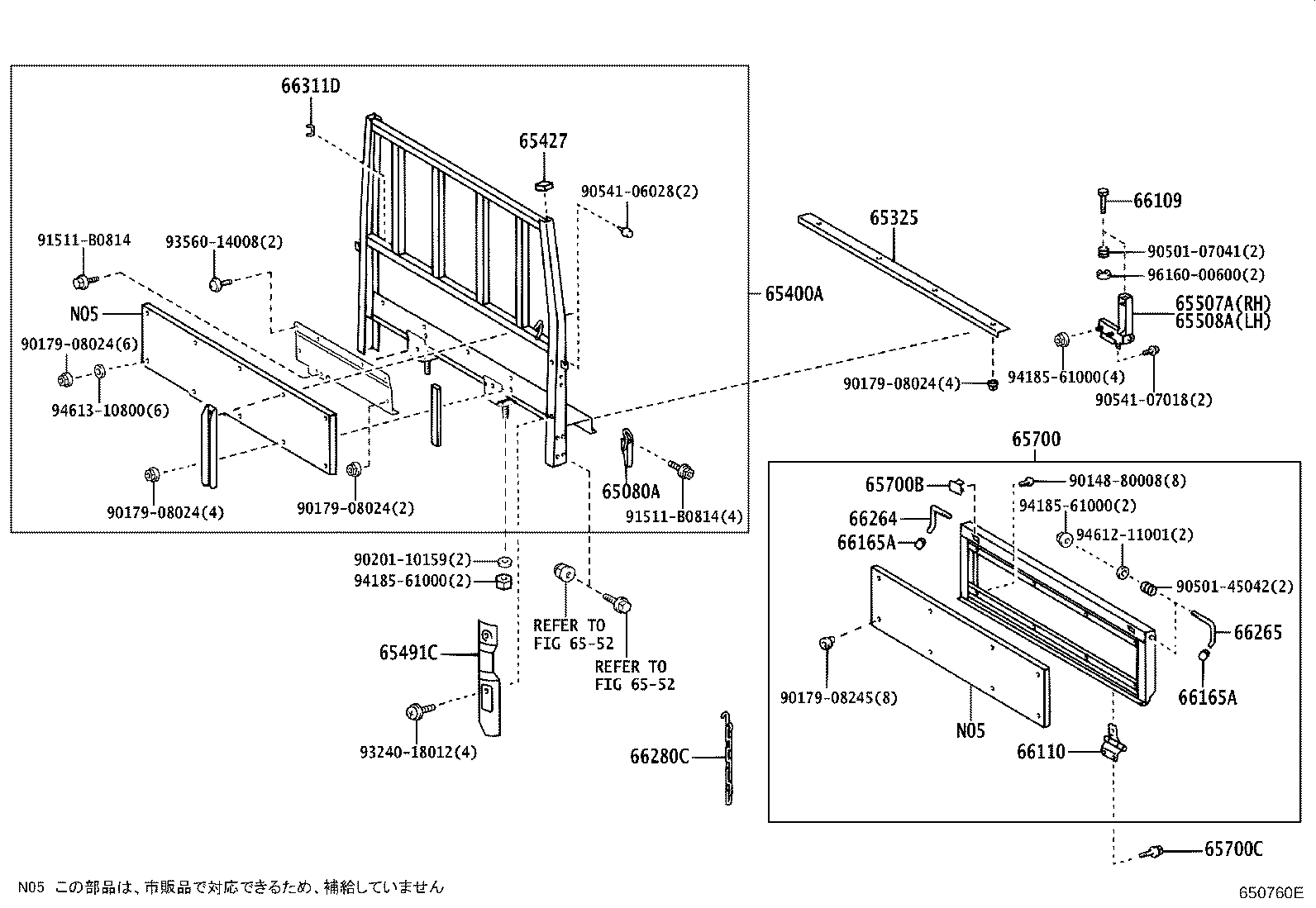

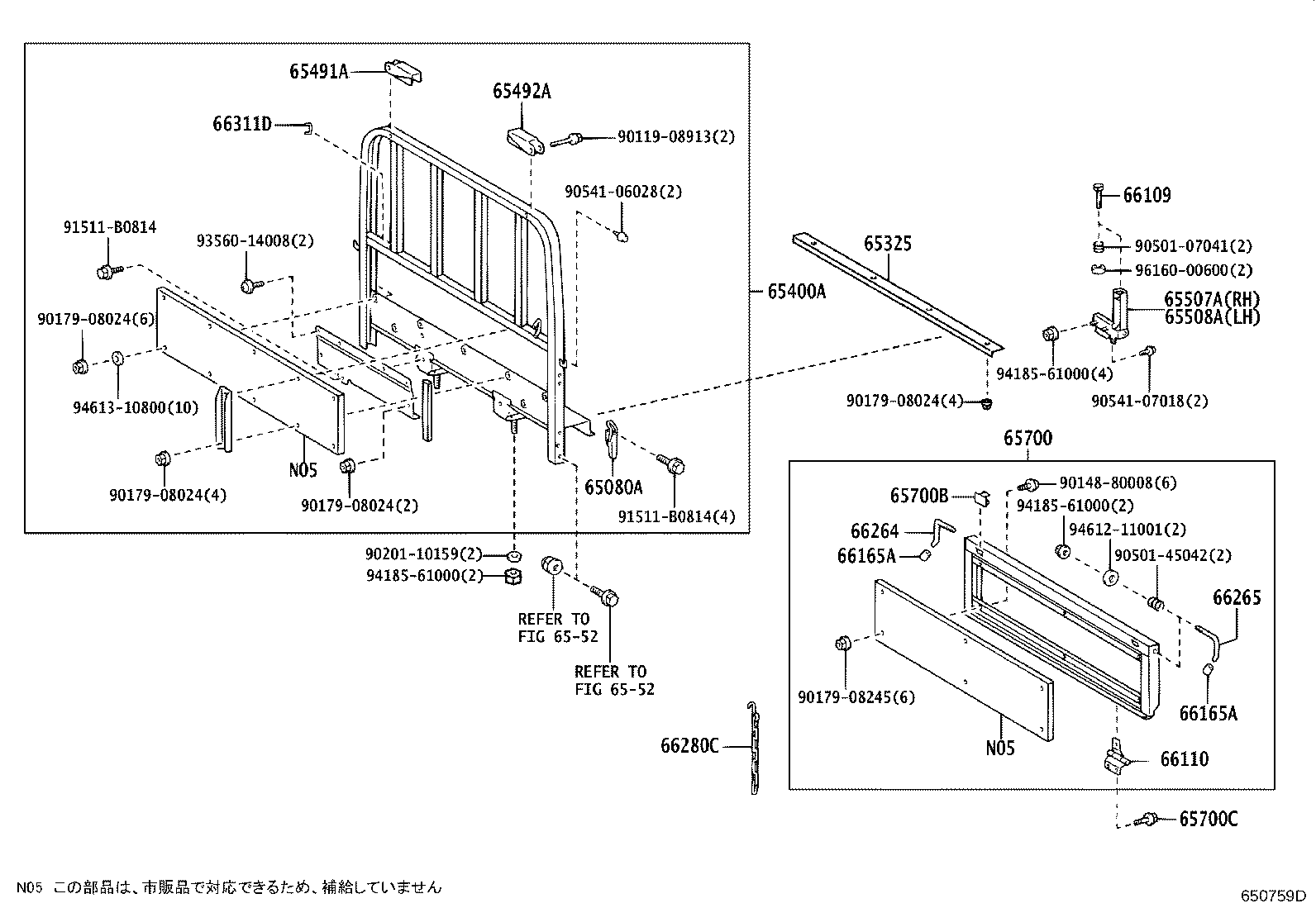

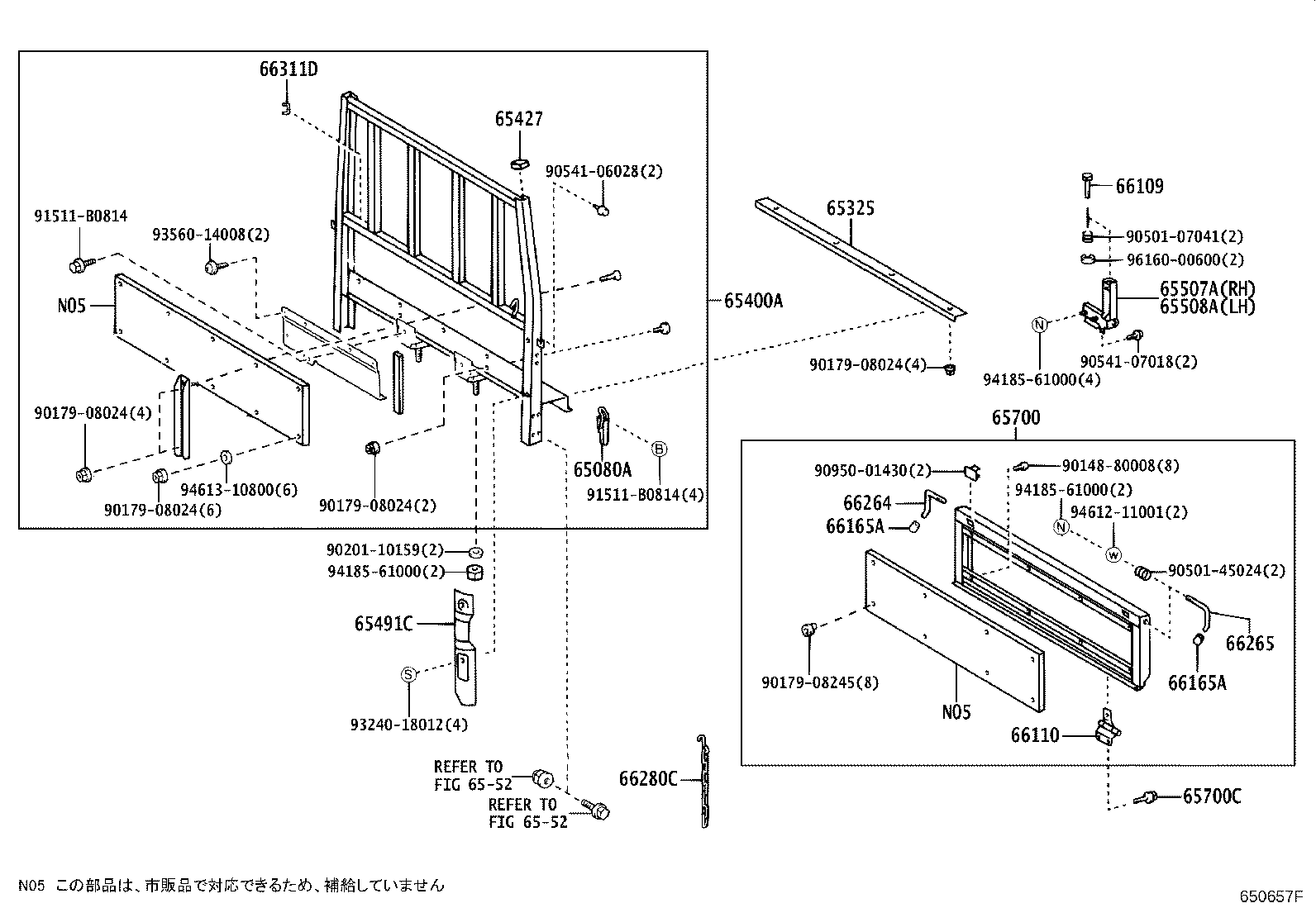

Rear Body Guard Frame & Tail Gate
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 65080A | Handle Assy, Side Gate Latch |
| 65325 | Plate, Floor Board, Front |
| 65400A | Guard Assy, Rear Body |
| 65427 | Cover, Guard Frame |
| 65491A | Stop, Guard Frame Load Slide, RH |
| 65491C | Protector, Guard Flame, Lower |
| 65492A | Stop, Guard Frame Load Slide, LH |
| 65507A | Support Sub-assy, Corner, RH |
| 65508A | Support Sub-assy, Corner, LH |
| 65700 | Gate Assy, Rear Body Tail |
| 65700B | Plug, Hole(FOR TAIL GATE) |
| 65700C | Bolt, W/Washer(FOR TAIL GATE) |
| 66109 | Handle Sub-assy, Side Gate Support Corner |
| 66110 | Hinge Assy, Tail Gate |
| 66165A | Cap, Gate Latch Handle |
| 66264 | Handle, Tail Gate Latch, RH |
| 66265 | Handle, Tail Gate Latch, LH |
| 66280C | Chain Assy, Tail Gate |
| 66311D | Hook, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
