Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

35 part groups · 9 illustrations

Illustrations

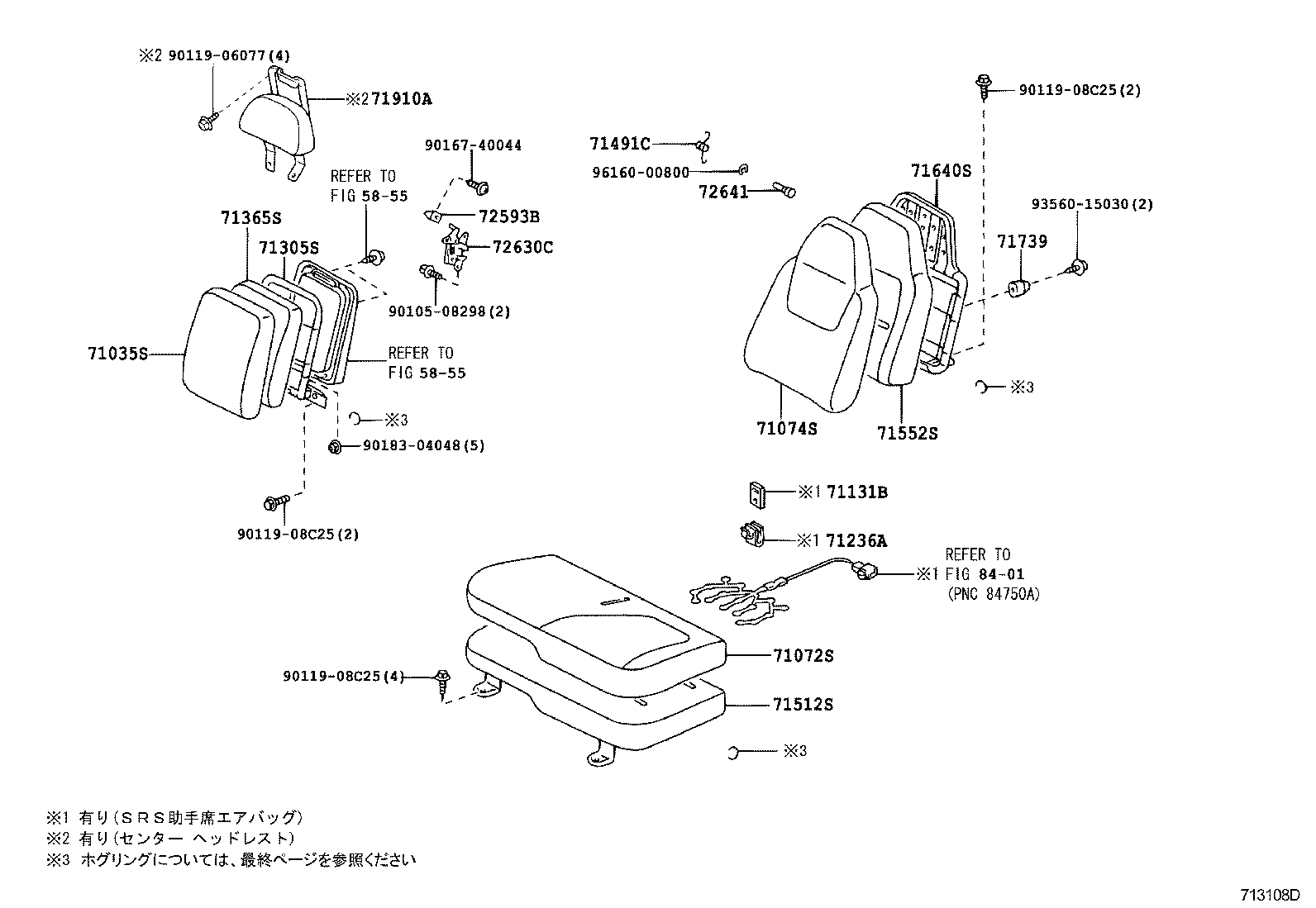

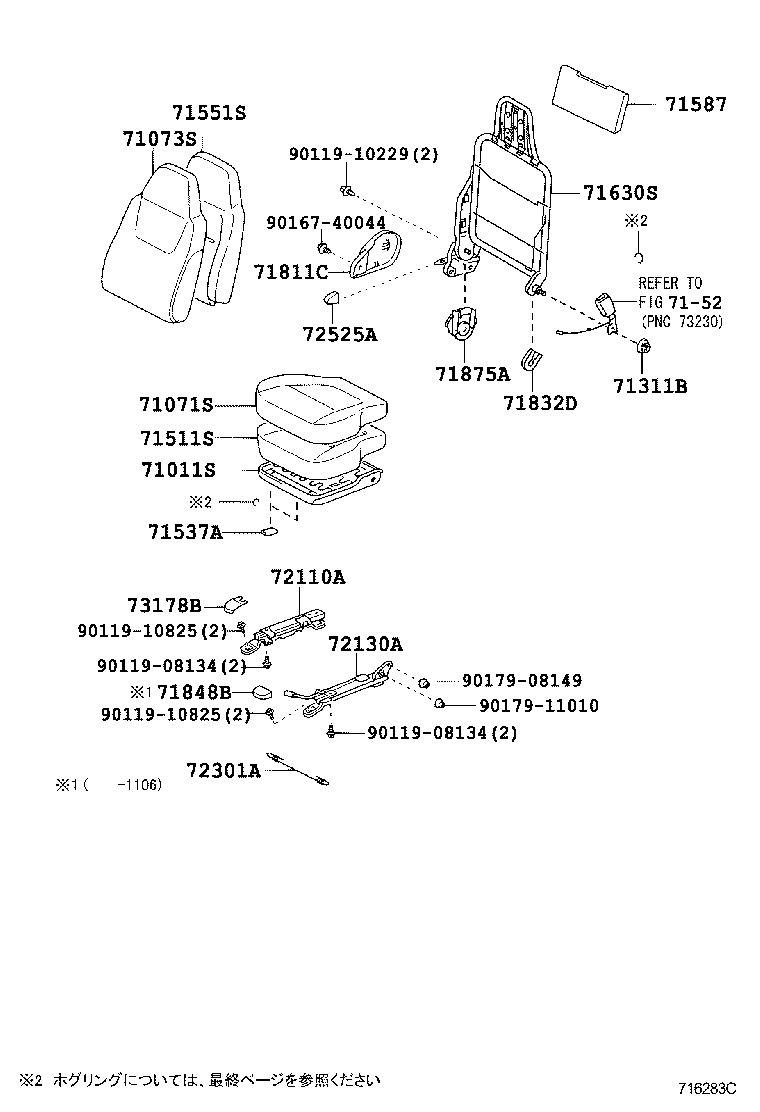

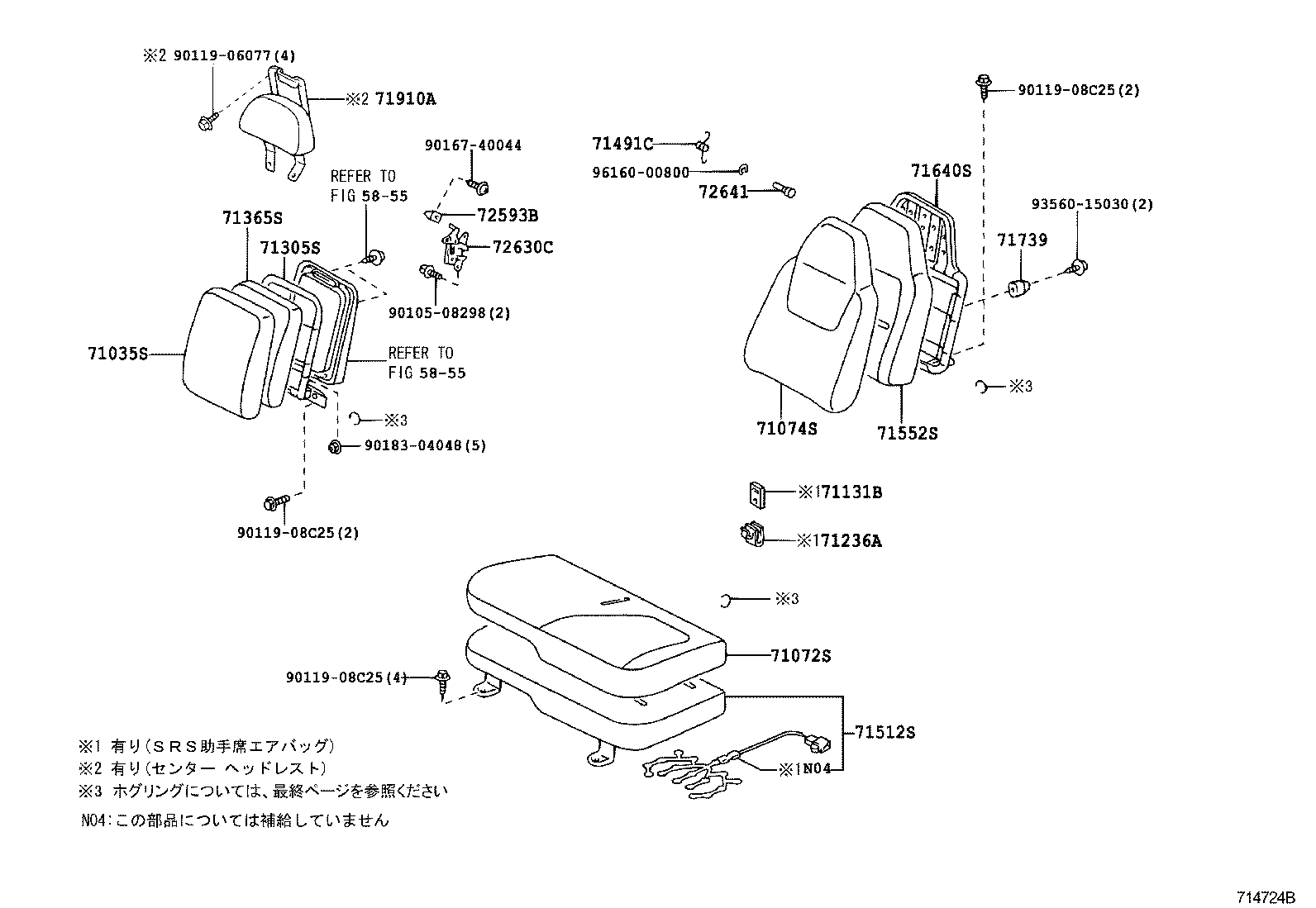

Figure 713110D 713110D 2003-10 → 2006-10 Figure 716283C 716283C 2006-10 → — Figure 713107C 713107C 2003-10 → 2004-05 Figure 713108D 713108D 2003-10 → 2004-05 Figure 713109C 713109C 2003-10 → 2004-05 Figure 714723B 714723B 2004-05 → — Figure 714724B 714724B 2004-05 → — Figure 714725B 714725B 2004-05 → — Figure 718165A 718165A 2003-10 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71131B Plate, Front Seat Cushion, NO.1
71236A Clamp, Rear Seat Cushion Spring
71305S Frame Sub-assy, Center Seatback
71311B Bush (FOR FRONT SEAT HINGE PIN)
71365S Pad, Center Seatback
71491C Spring, Rear Seat Set
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71739 Cushion, Seat Support
71811C Cover, Reclining Adjuster, RH
71832D Cover, Front Seat Hinge, LH
71848B Cap, Seat Adjuster Cover, RH
71875A Cover, Reclining Adjuster Inside, RH
71910A Headrest Assy, Front Seat
72110A Track Assy, Front Seat, Outer RH
72130A Track Assy, Front Seat, Inner RH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72510 Adjuster Assy, Reclining Seatback, RH
72525A Handle, Reclining Adjuster Release, RH
72593B Knob, Reclining Remote Control Lever, RH
72630C Lock Assy, Rear Seatback, RH
72641 Pin, Rear Seatback Lock
73178B Cap, Seat Belt Anchor Cover
