Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 3 illustrations

Illustrations

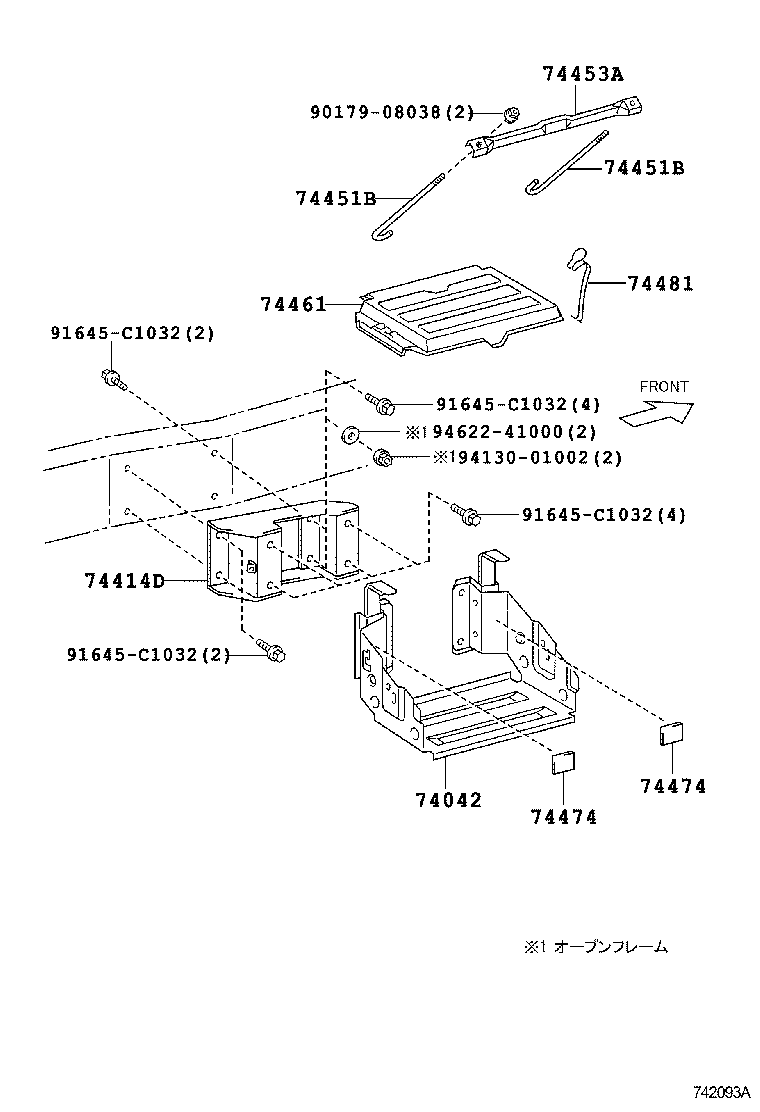

Figure 741288A 741288A 2003-10 → 2006-10 Figure 742093A 742093A 2006-10 → — Figure 742094A 742094A 2006-10 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74411B Bracket, Battery, Front
74412 Bracket, Battery, Rear
74414D Support, Battery Carrier
74451B Bolt, Battery Clamp
74453A Bar, Battery Set Plate
74461 Cover, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
