Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

10 part groups · 2 illustrations

Illustrations

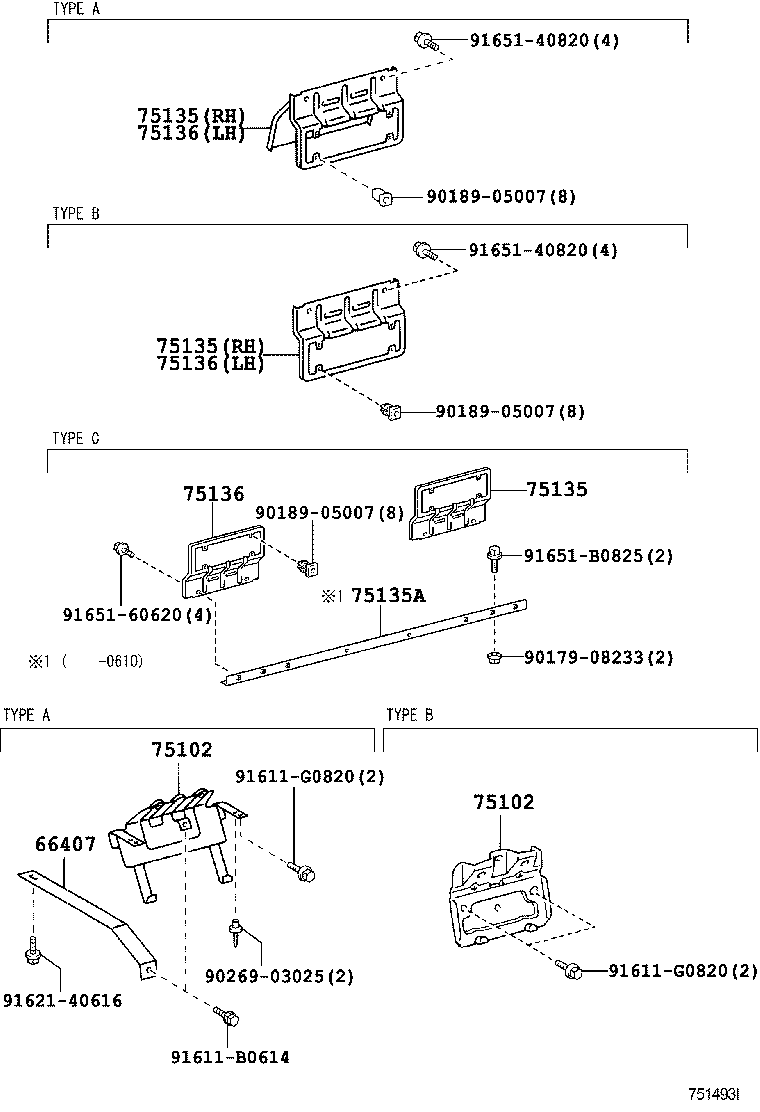

Figure 751801A 751801A 2003-10 → — Figure 751493I 751493I 2003-10 → —

Part groups

PNCDescription
58794B Support, Jack Handle
58797B Band, Jack Clamp
66407 Stay Sub-assy, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75135A Stay, Combination Rear Lamp Bracket
75136 Bracket, Combination Rear Lamp, LH
75209A Base Sub Assy, Jack Holder
75298 Plate, Jack Holder
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
