Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

28 part groups · 7 illustrations

Illustrations

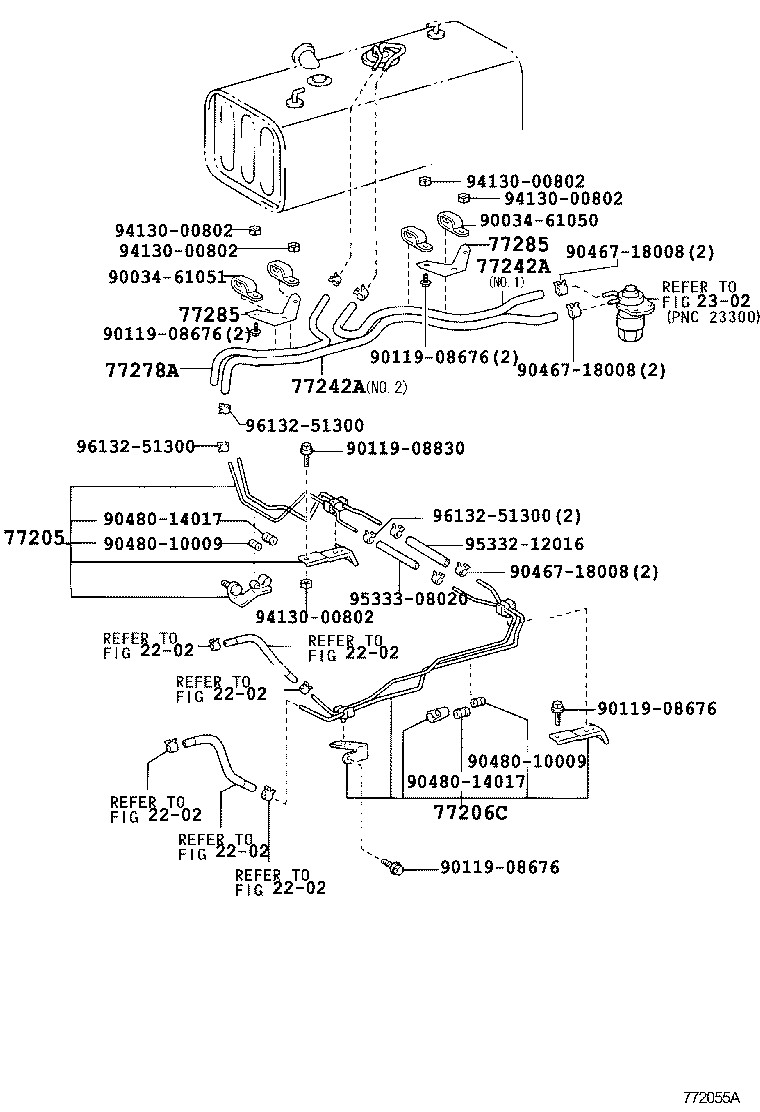

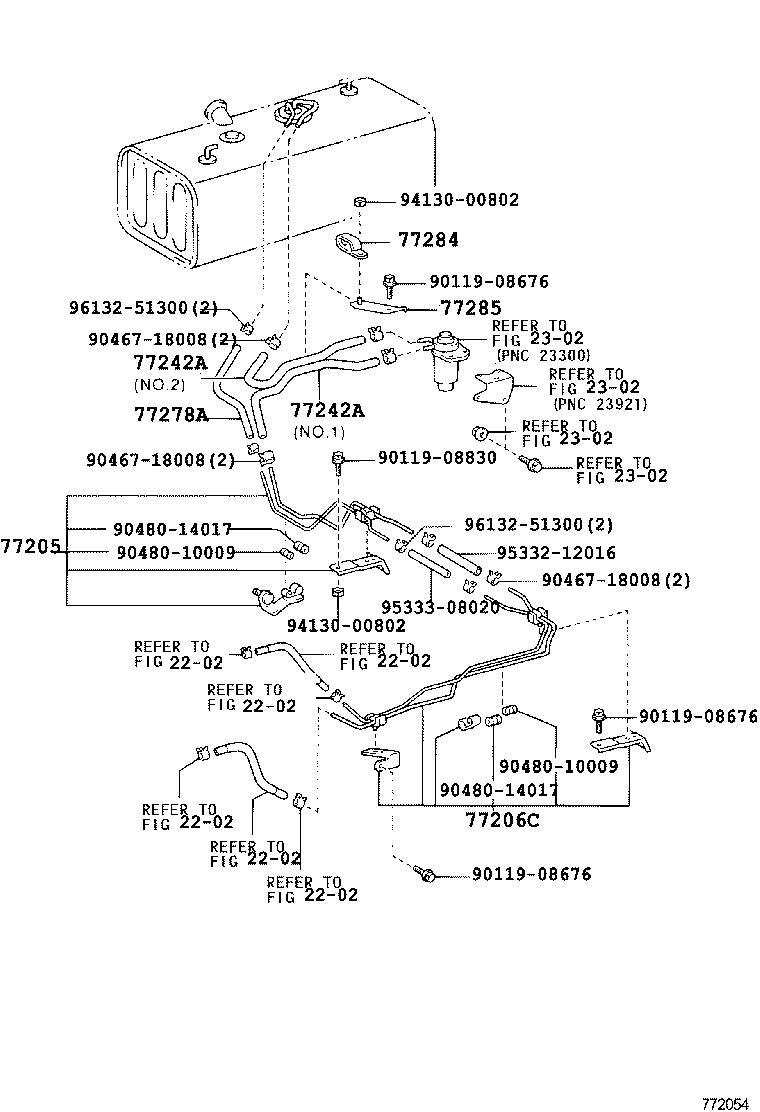

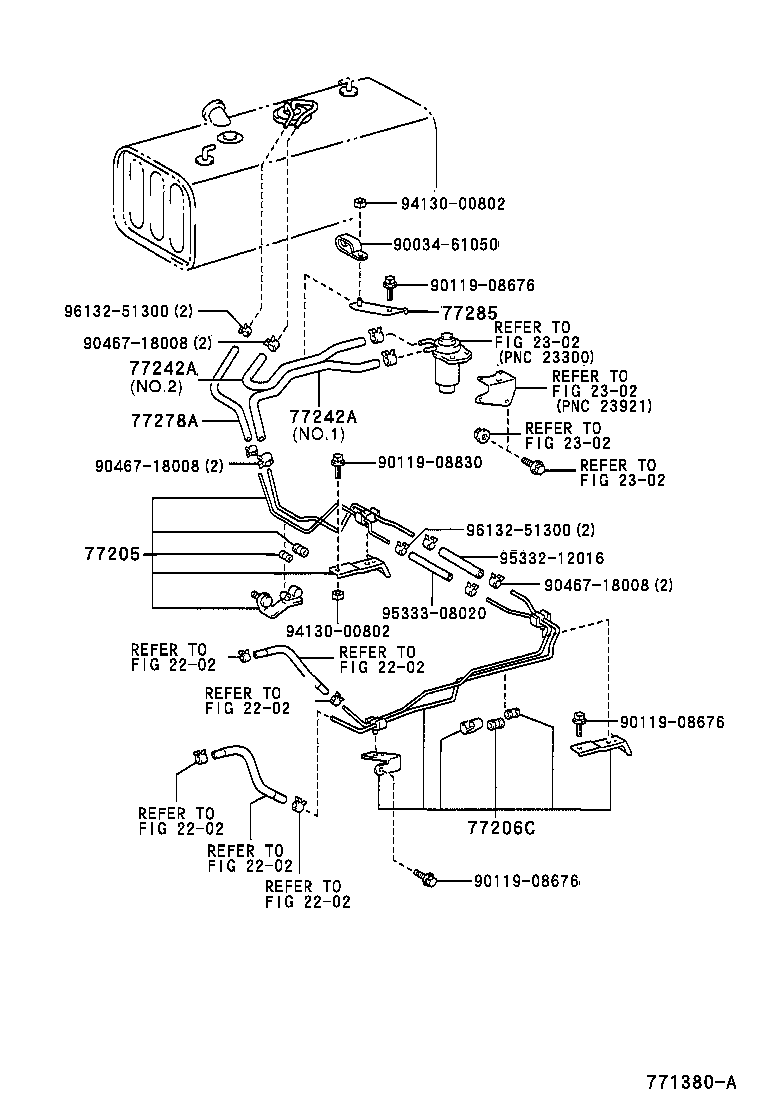

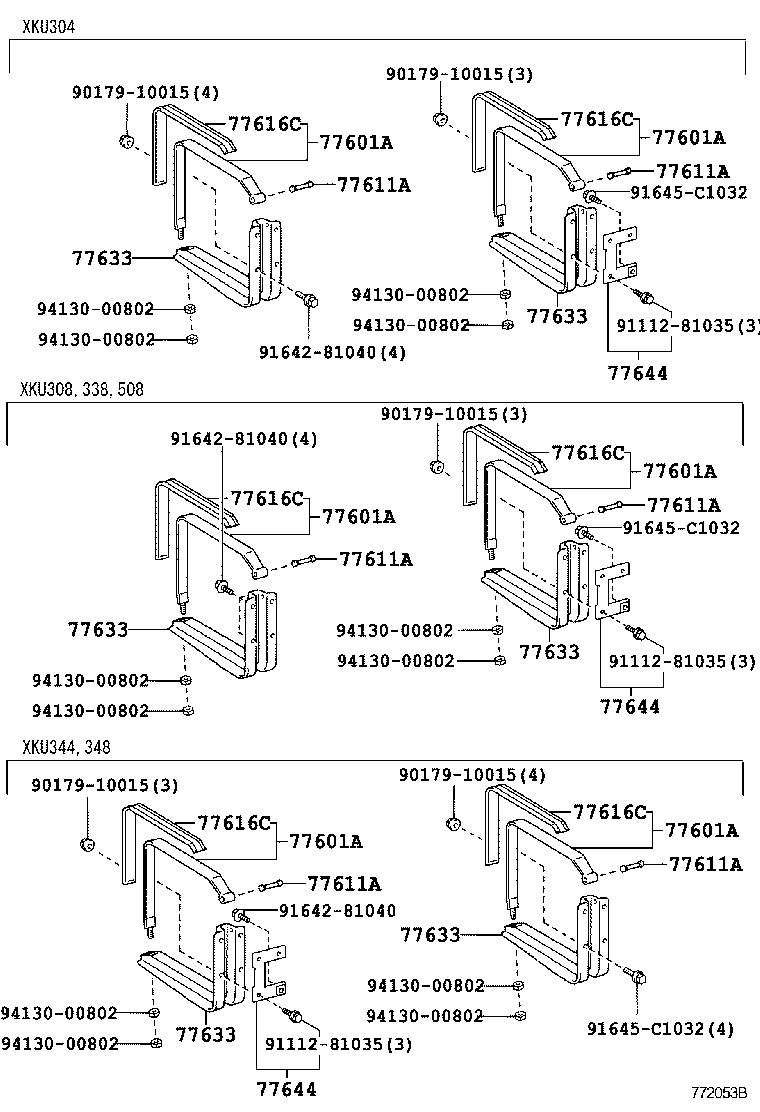

Figure 771379G 771379G 2003-10 → 2006-10 Figure 772051D 772051D 2006-10 → — Figure 772052D 772052D 2006-10 → — Figure 772053B 772053B 2006-10 → — Figure 771380A 771380A 2003-10 → 2006-10 Figure 772054 772054 2006-10 → — Figure 772055A 772055A 2006-10 → —

Part groups

PNCDescription
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100U Tank Sub-assy, Fuel
77154 Plate, Fuel Tank Evap/Vent Tube Support
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77197 Orifice, Fuel Vapor
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77244C Joint, Fuel Tube, NO.2
77249 Hose, Fuel Emission
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77284 Clamp, Fuel Tube
77285 Bracket, Fuel Tube
77380 Valve Assy, Fuel Cut Off
77601A Band Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77644 Bolt, Fuel Tank
77701U Hose, Fuel (FOR CHECK VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
