Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan
Discontinued model
Data version 2012-01

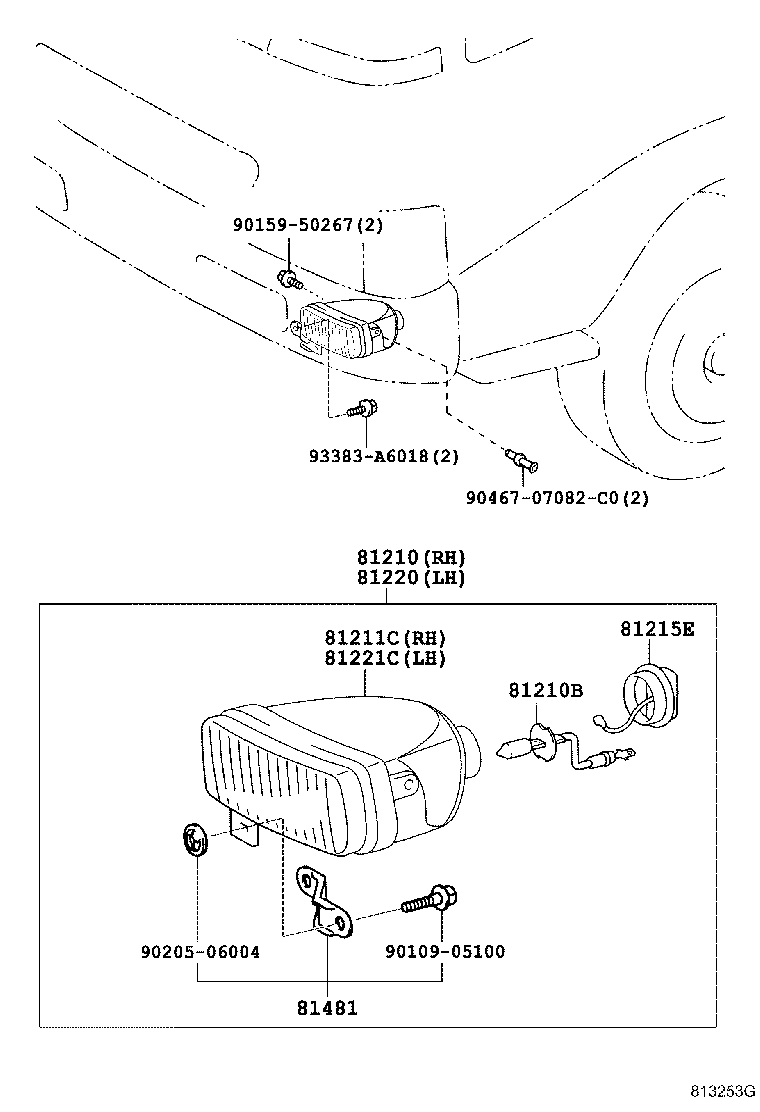

Fog Lamp
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210 | Lamp Assy, Fog |
| 81210B | Bulb, Fog Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81215D | Fog Lamp Socket Plug Assy |
| 81215E | Cord, Fog Lamp |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81481 | Bracket, Fog Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
