Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 9 illustrations

Illustrations

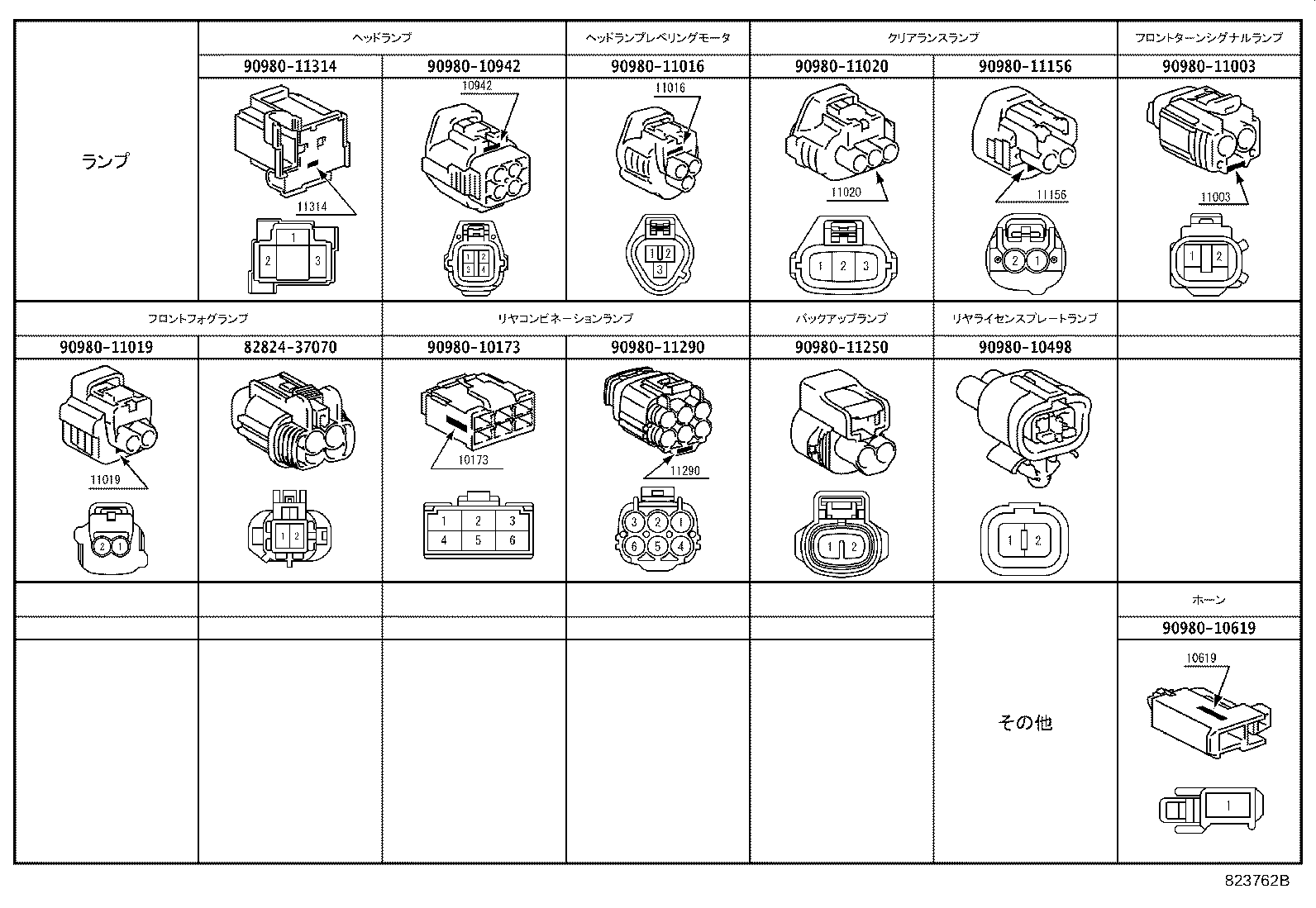

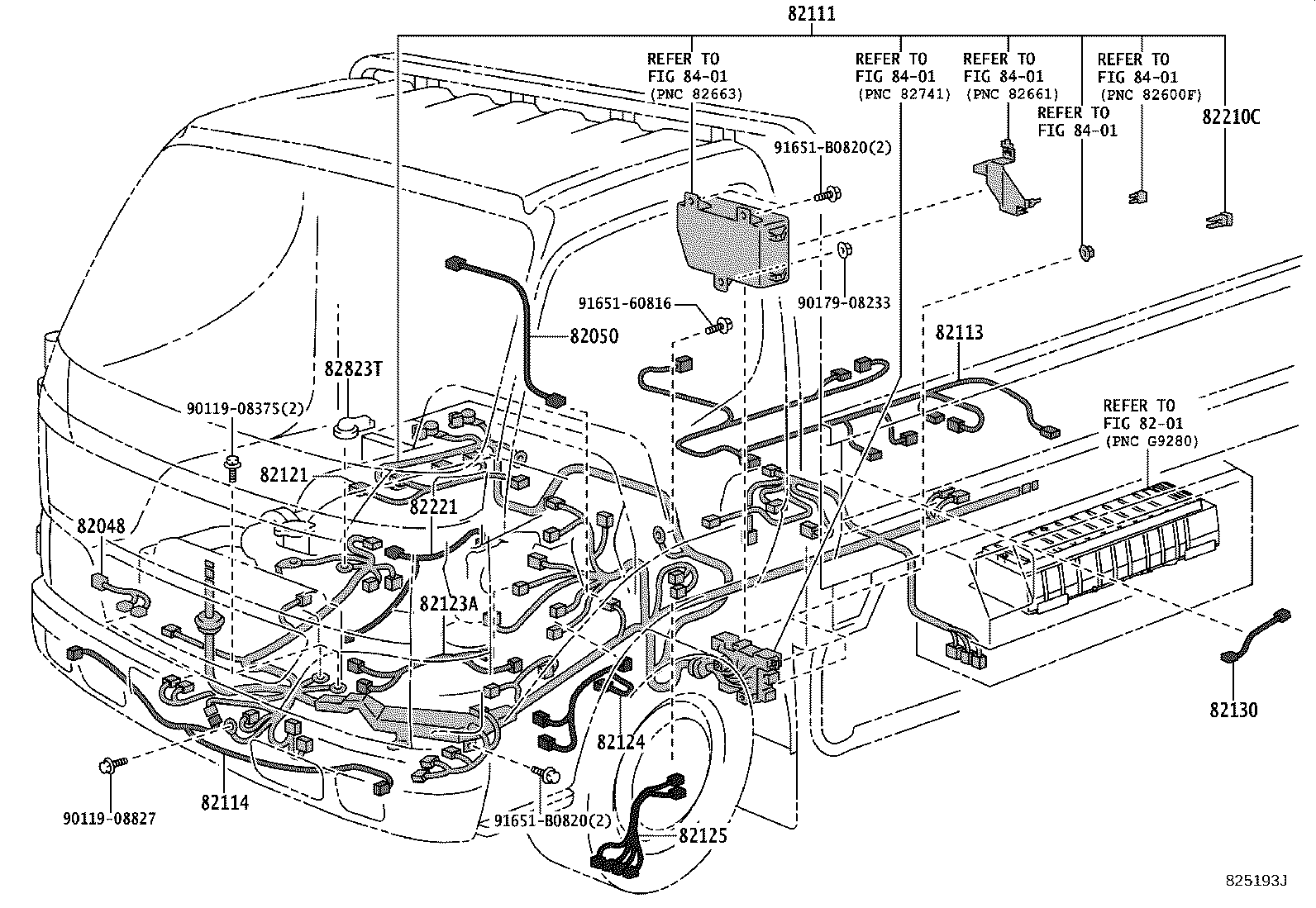

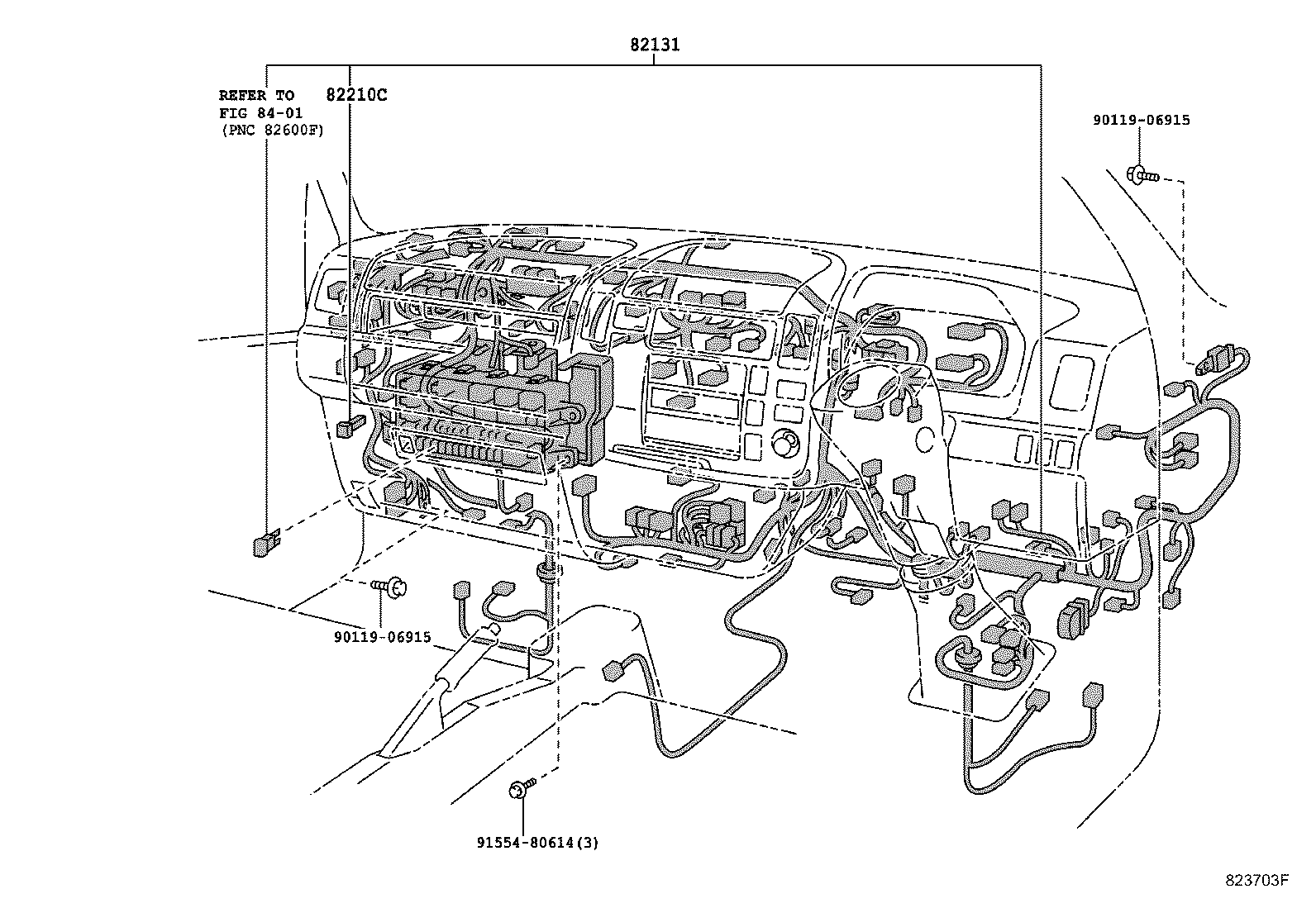

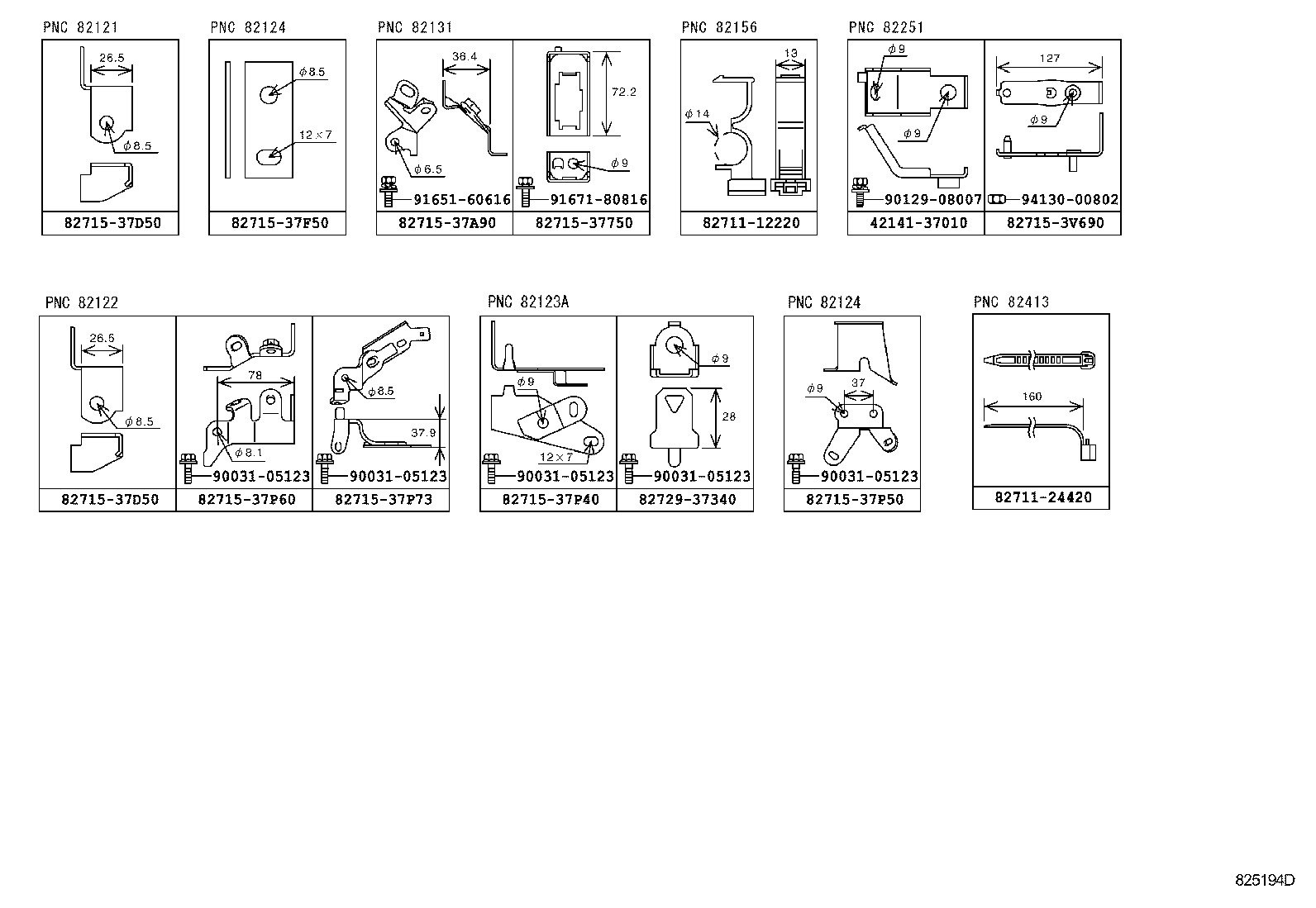

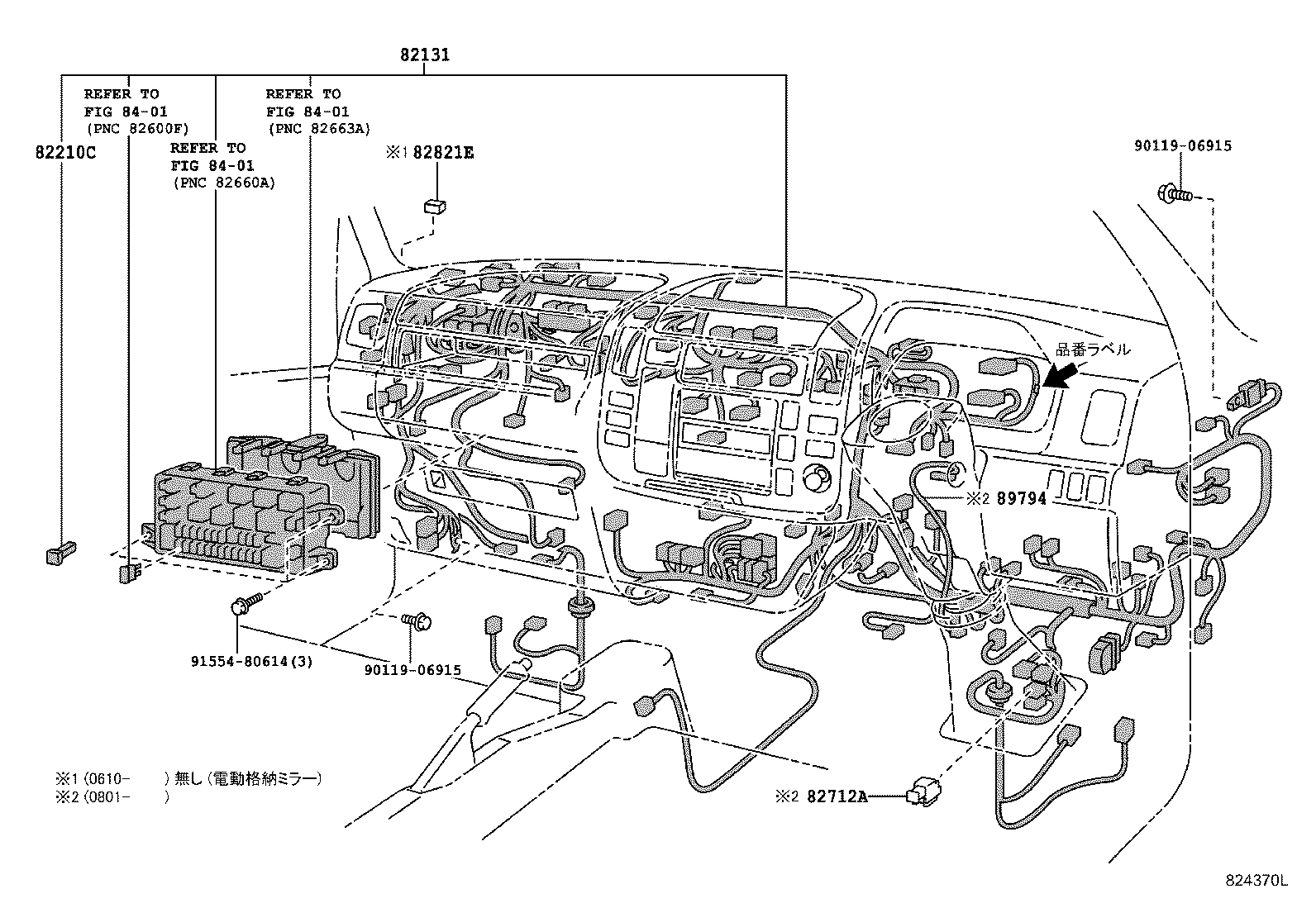

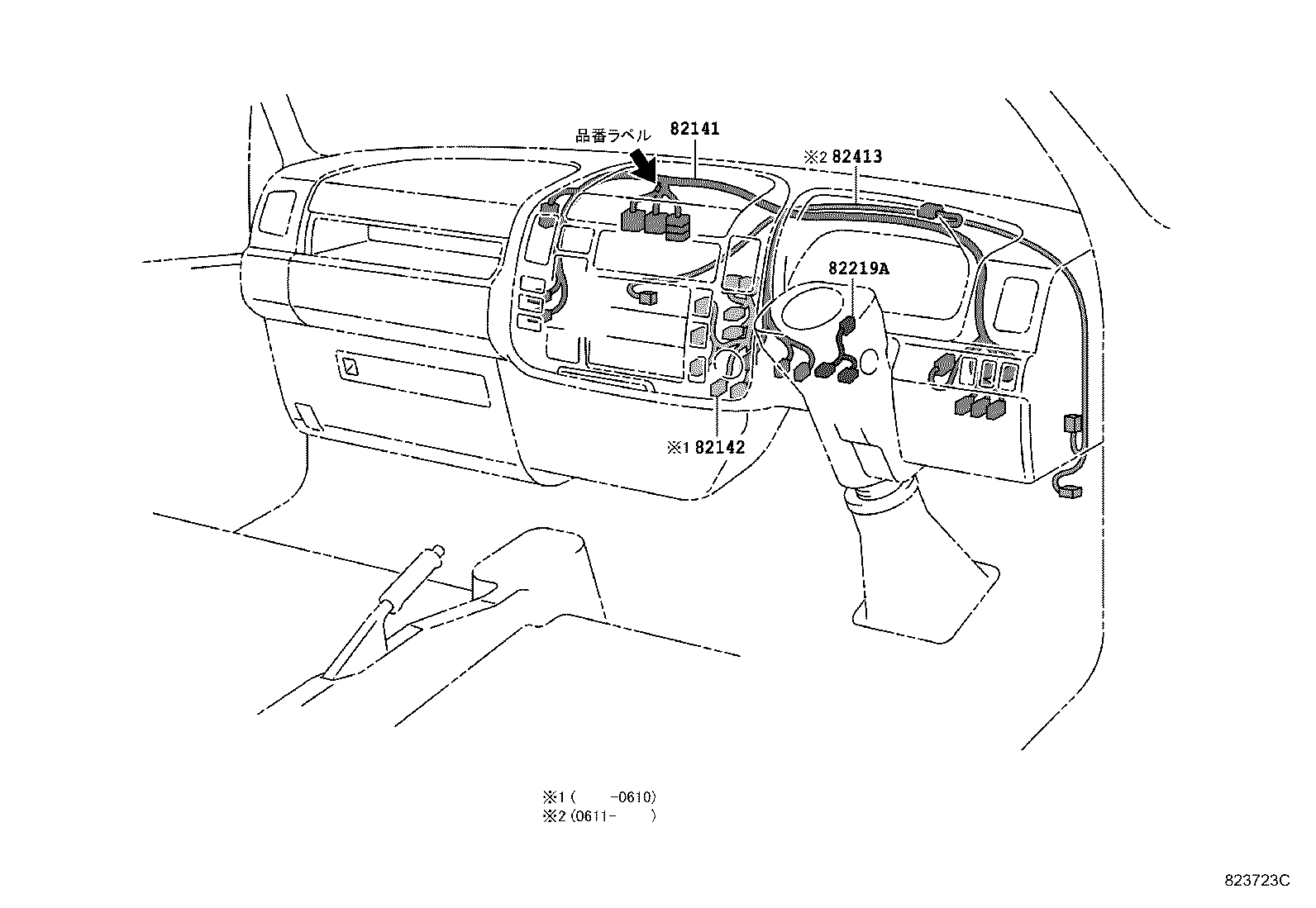

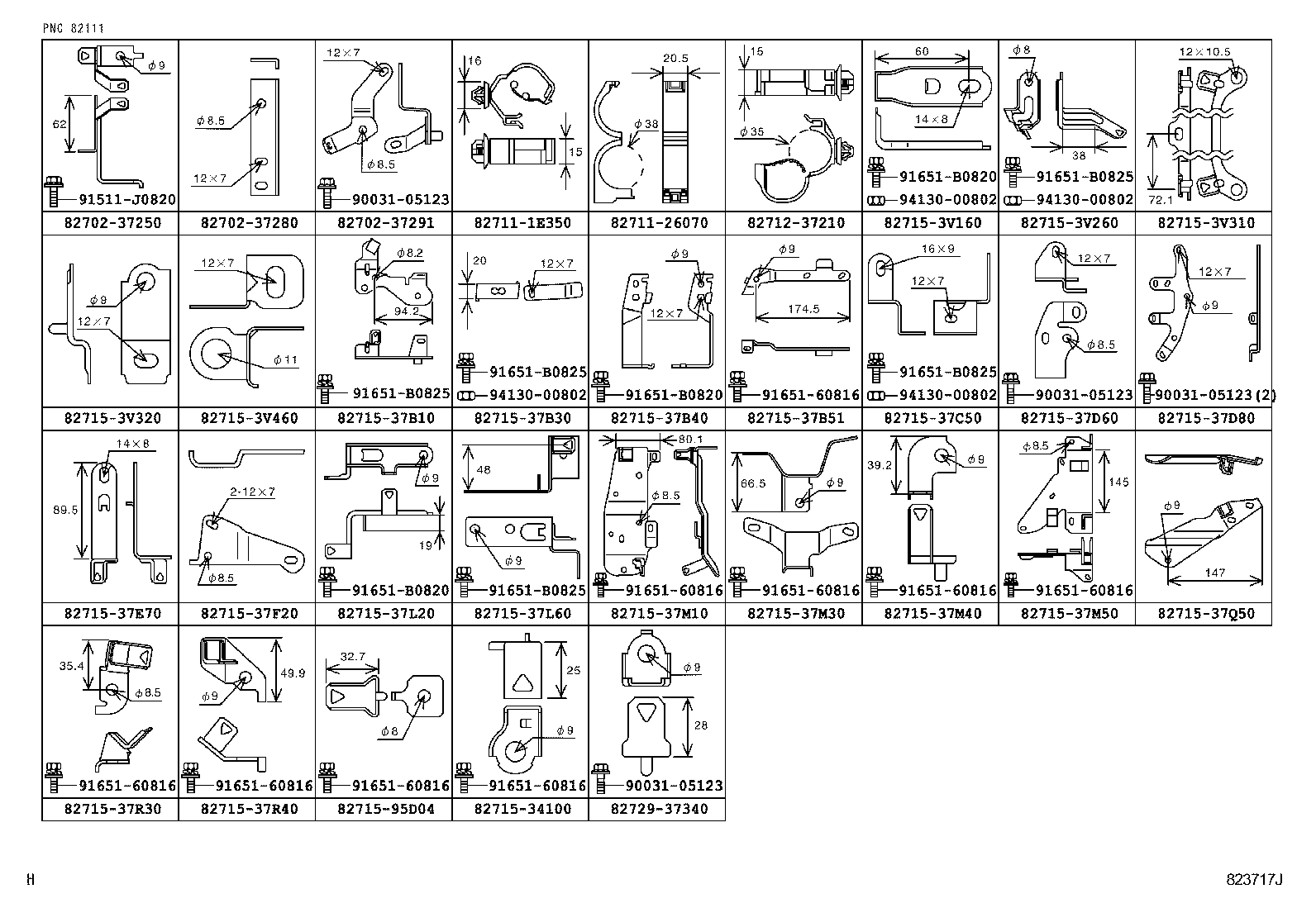

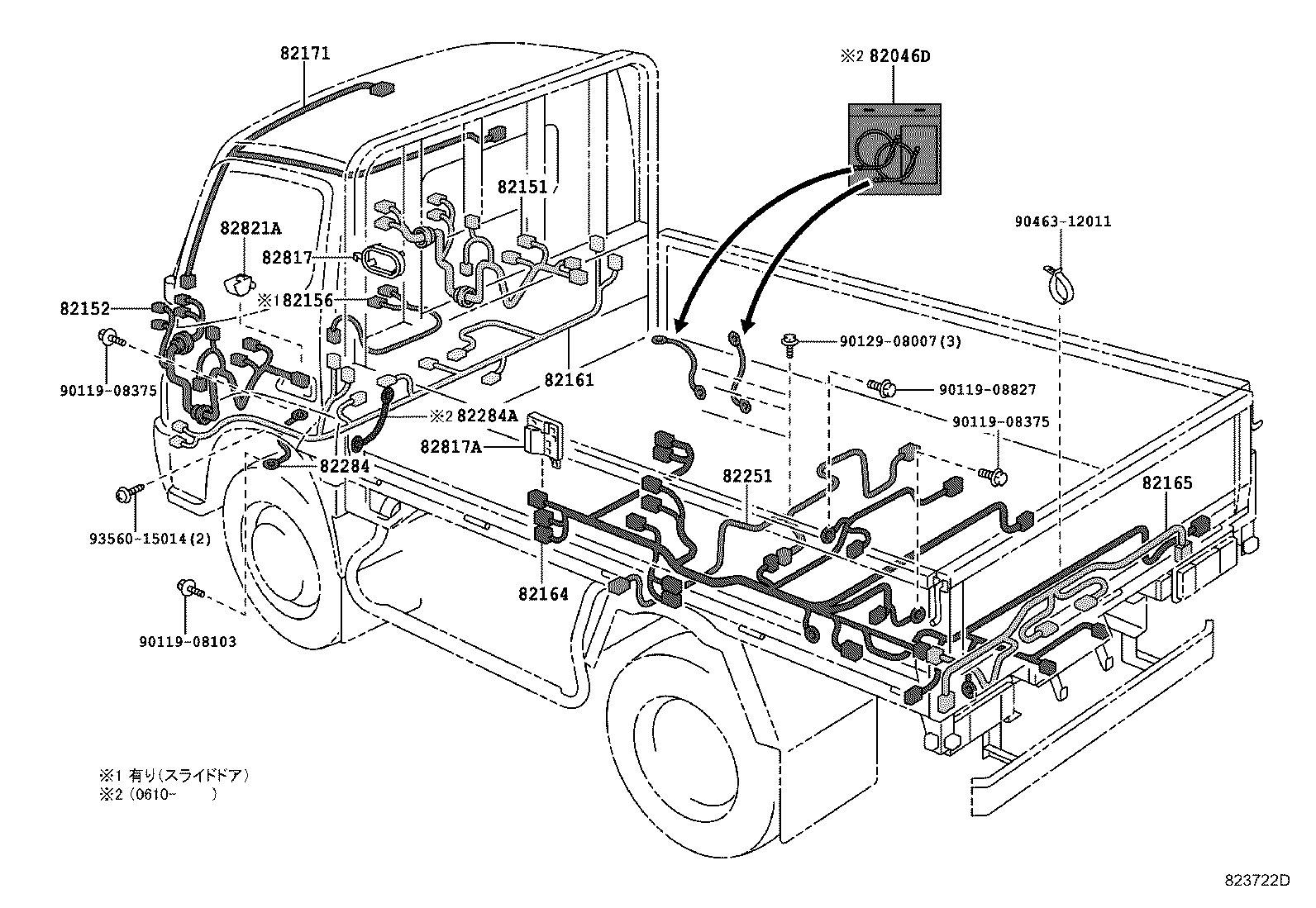

Figure 823716G 823716G 2003-10 → 2006-10 Figure 825193J 825193J 2006-10 → — Figure 823723C 823723C 2003-10 → — Figure 823703F 823703F 2003-10 → 2005-05 Figure 824370L 824370L 2005-05 → — Figure 823722D 823722D 2003-10 → — Figure 823717J 823717J 2003-10 → — Figure 825194D 825194D 2003-10 → — Figure 823762B 823762B 2003-10 → —

Part groups

PNCDescription
82046D Wire, Body Ground
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82130 Harness Assy, Chassis Wire
82131 Wire, Cowl
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82156 Wire, Slide Door
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82284 Wire, Earth
82284A Wire, Earth NO.2
82413 Wire, Buzzer
82672 Cover, Junktion Block
82672G Cover, Junction Block
82673 Bracket, Junction Block
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82821E Cover, Connector
82823T Cap, Alternator Terminal
89794 Wire, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
