Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

107 part groups · 14 illustrations

Illustrations

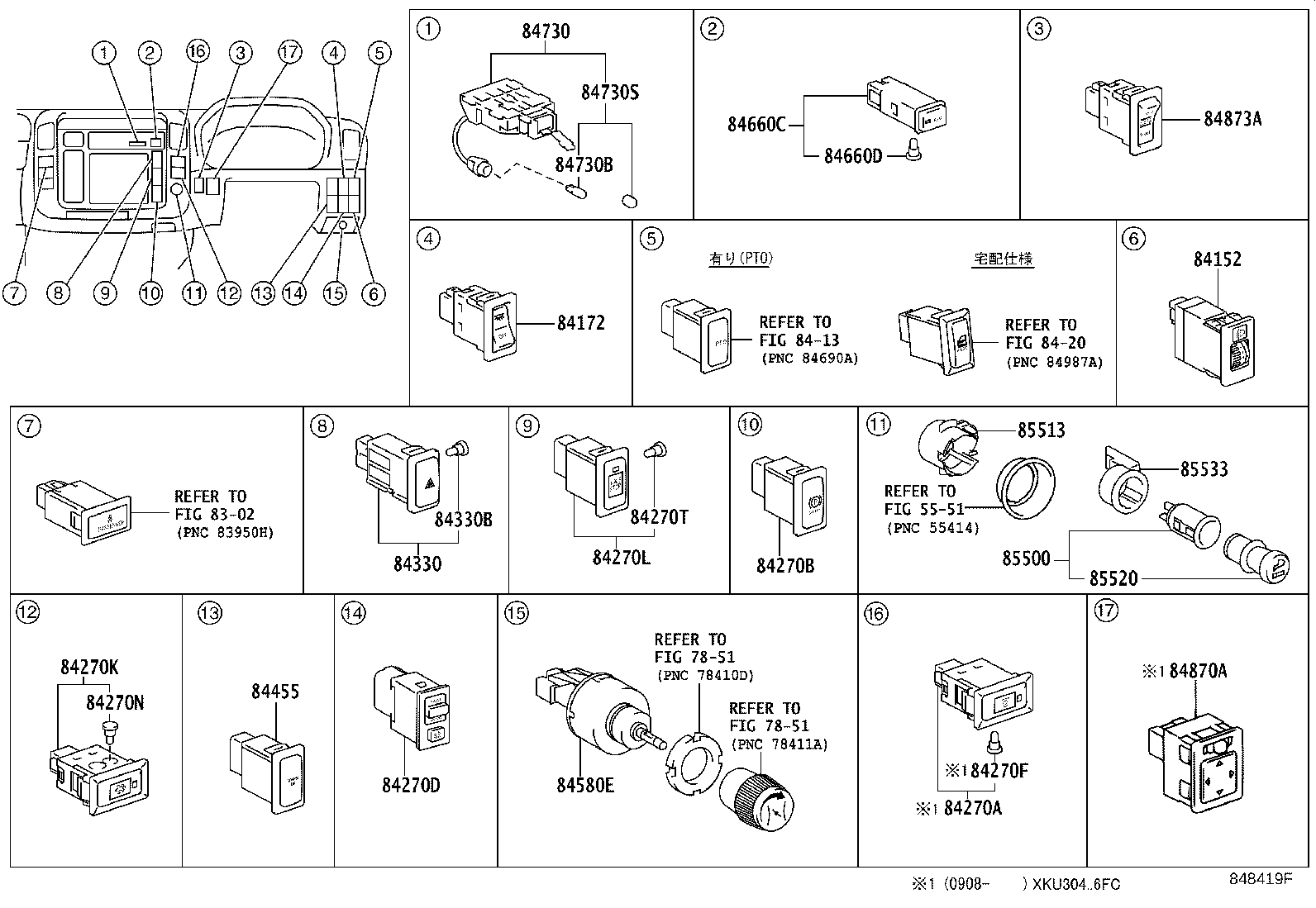

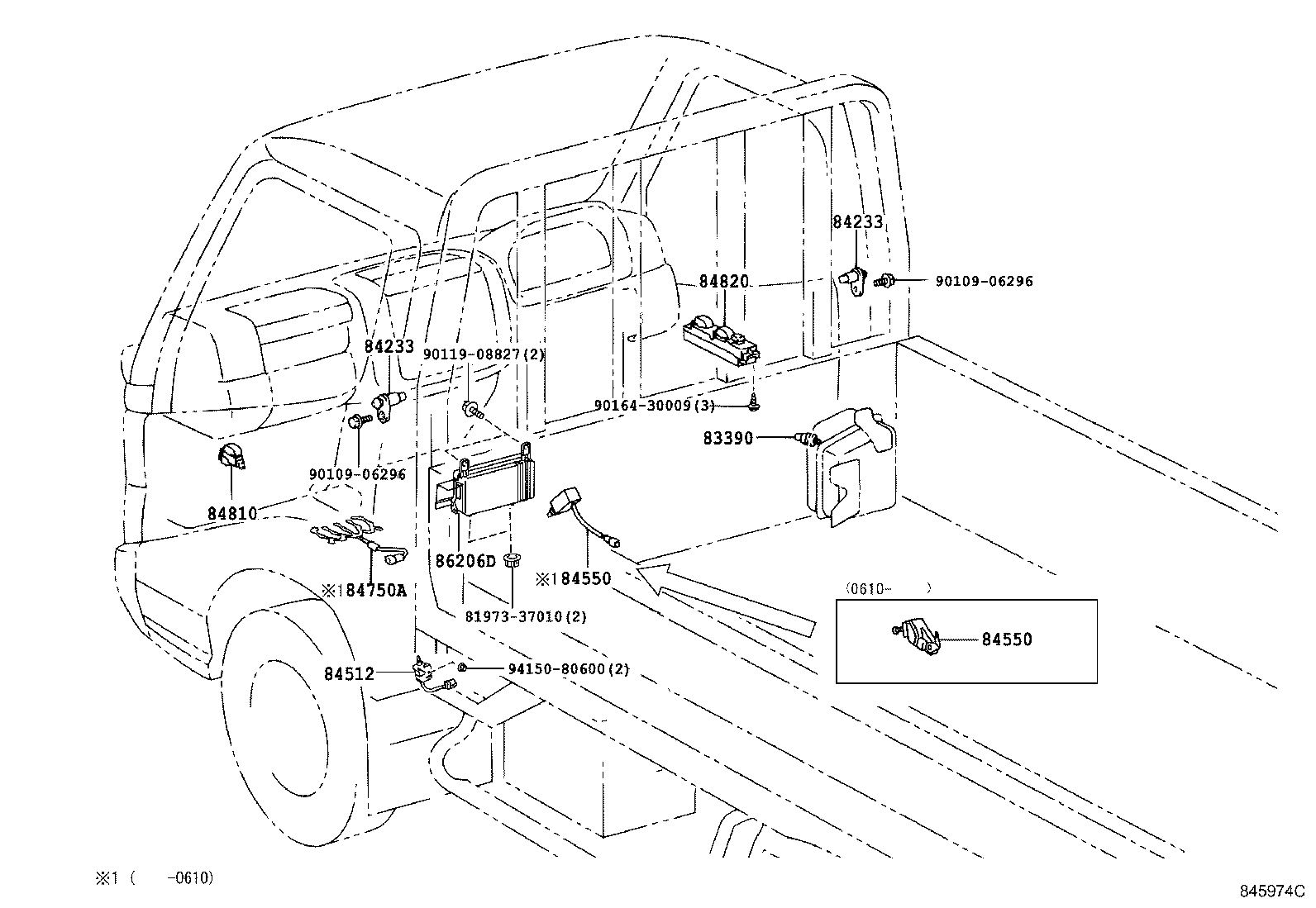

Figure 845968E 845968E 2003-10 → — Figure 845969A 845969A 2003-10 → 2006-10 Figure 848416B 848416B 2006-10 → — Figure 84H759 84H759 2008-01 → — Figure 845970E 845970E 2003-10 → 2006-10 Figure 848417G 848417G 2006-10 → — Figure 845971E 845971E 2003-10 → 2006-10 Figure 848418K 848418K 2006-10 → — Figure 845972E 845972E 2003-10 → 2006-10 Figure 848419F 848419F 2006-10 → — Figure 84C914C 84C914C 2003-10 → — Figure 845974C 845974C 2003-10 → — Figure 845975D 845975D 2003-10 → 2006-10 Figure 848421C 848421C 2006-10 → —

Part groups

PNCDescription
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28371D Relay, Ignition, NO.3
28371F Relay, Ignition, NO.5
28610 Relay Assy, Intake Heater OR Glow Plug
55173A Bracket
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)

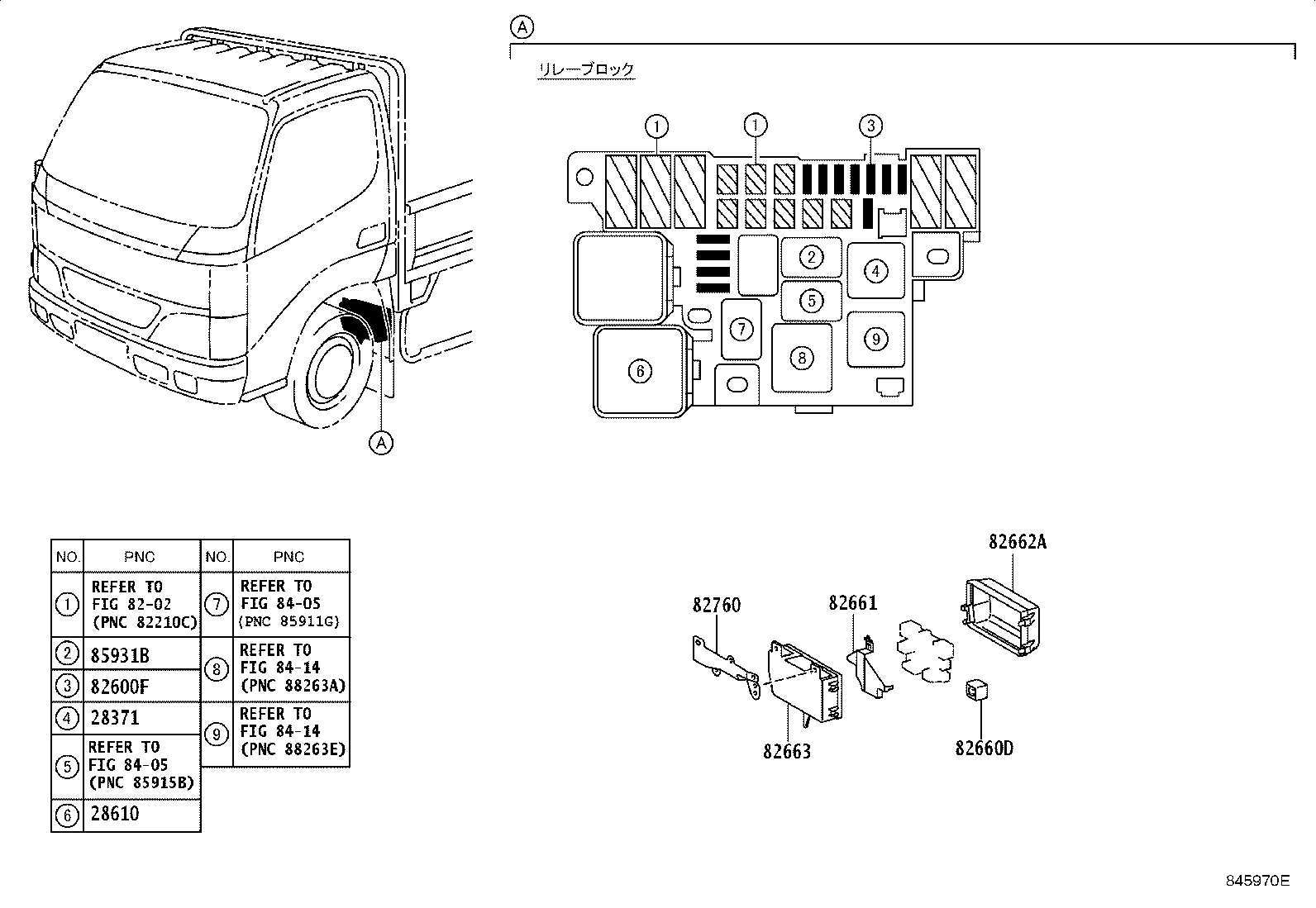

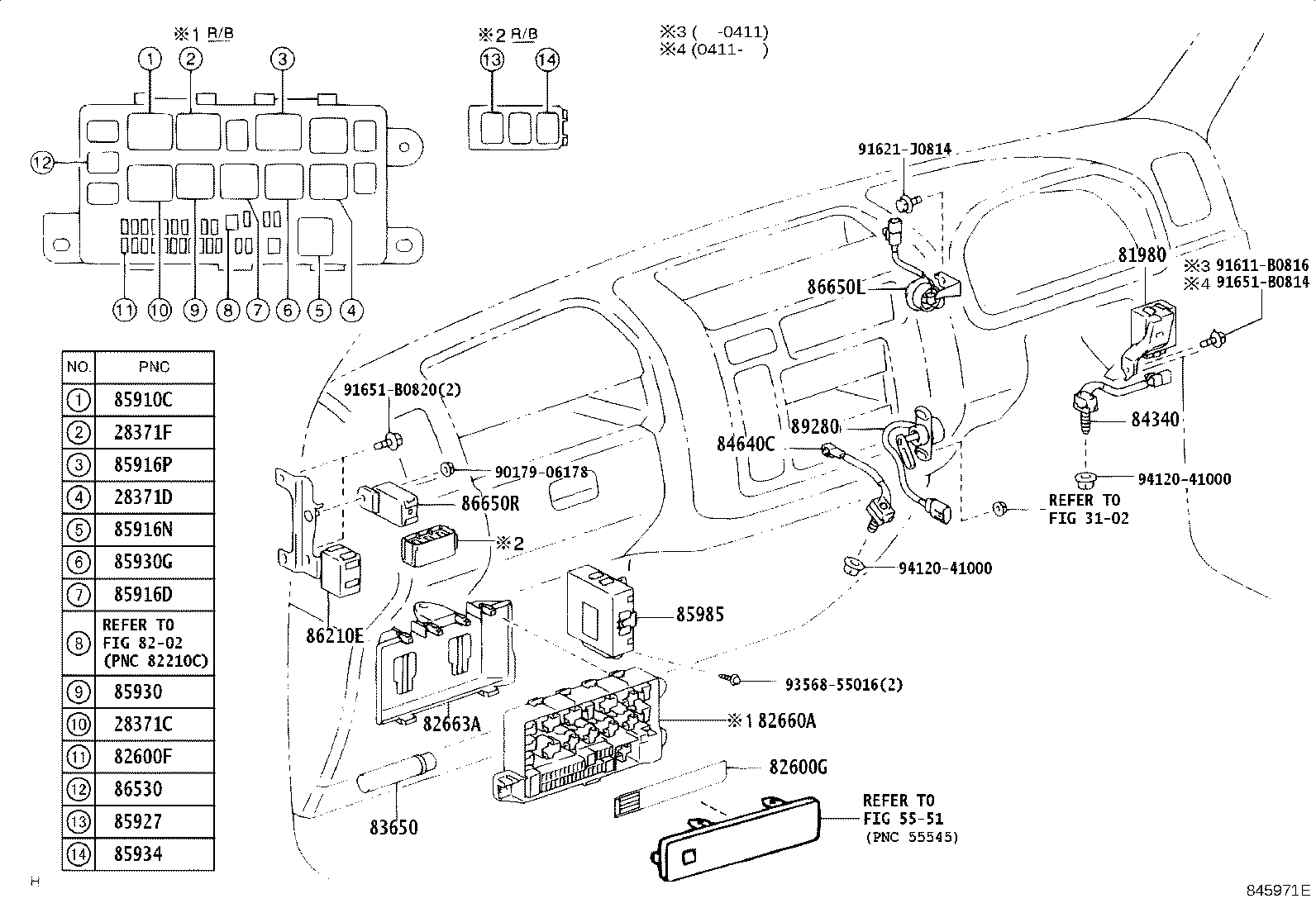

82660A Block Assy, Relay, Cowl Side
82660D Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2

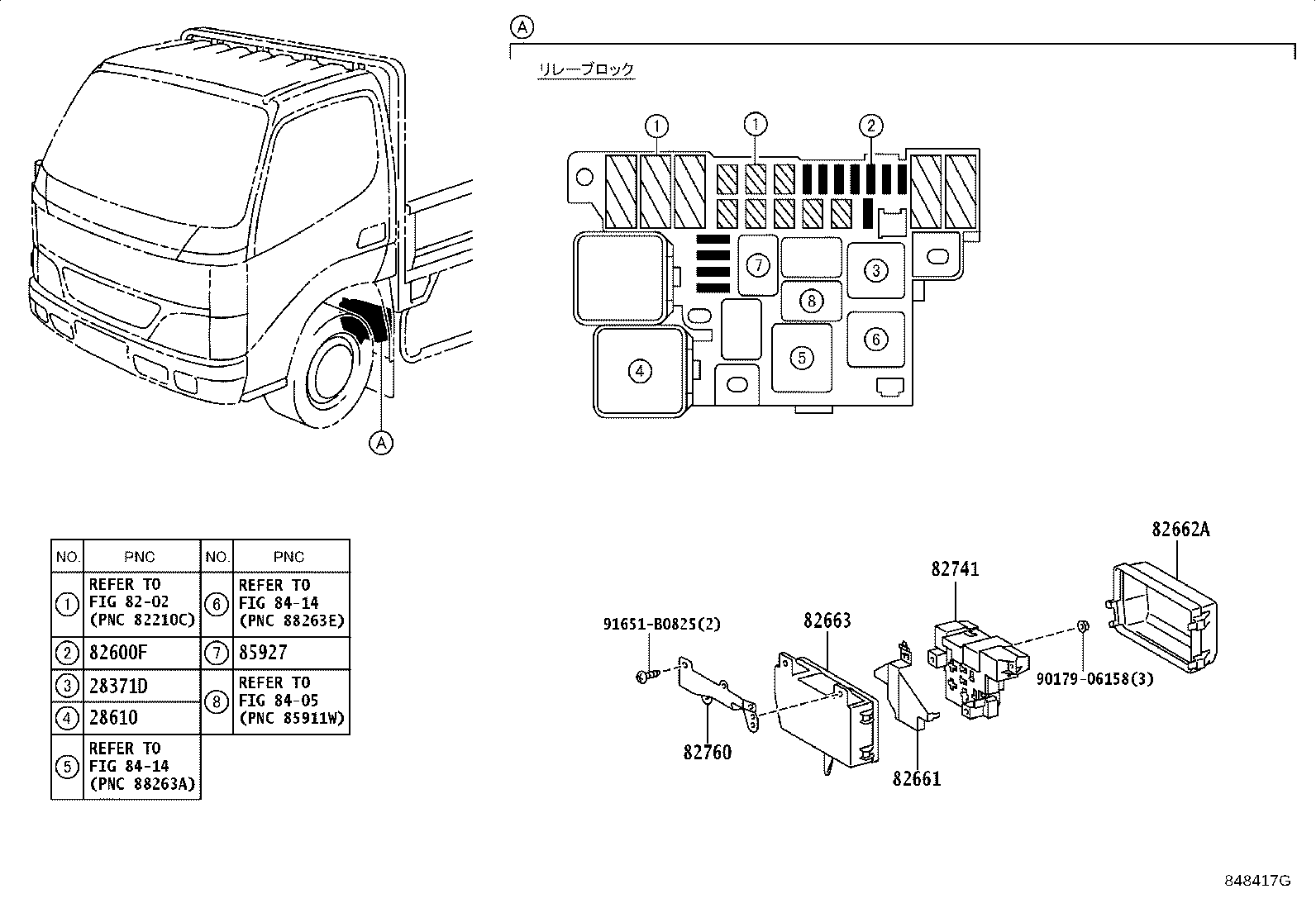

82741 Block, Engine Room Relay
82760 Bracket Assy, Relay Block

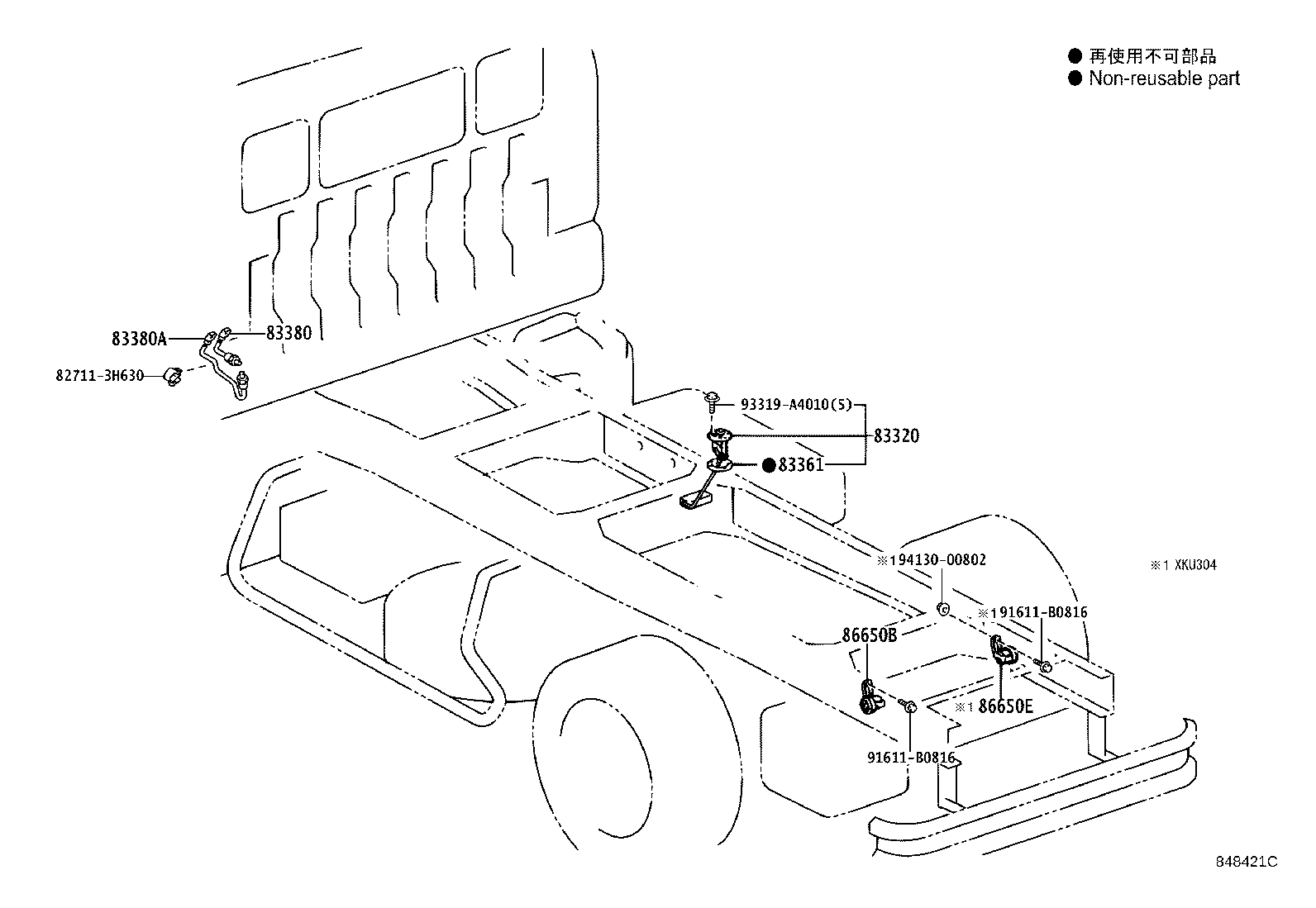

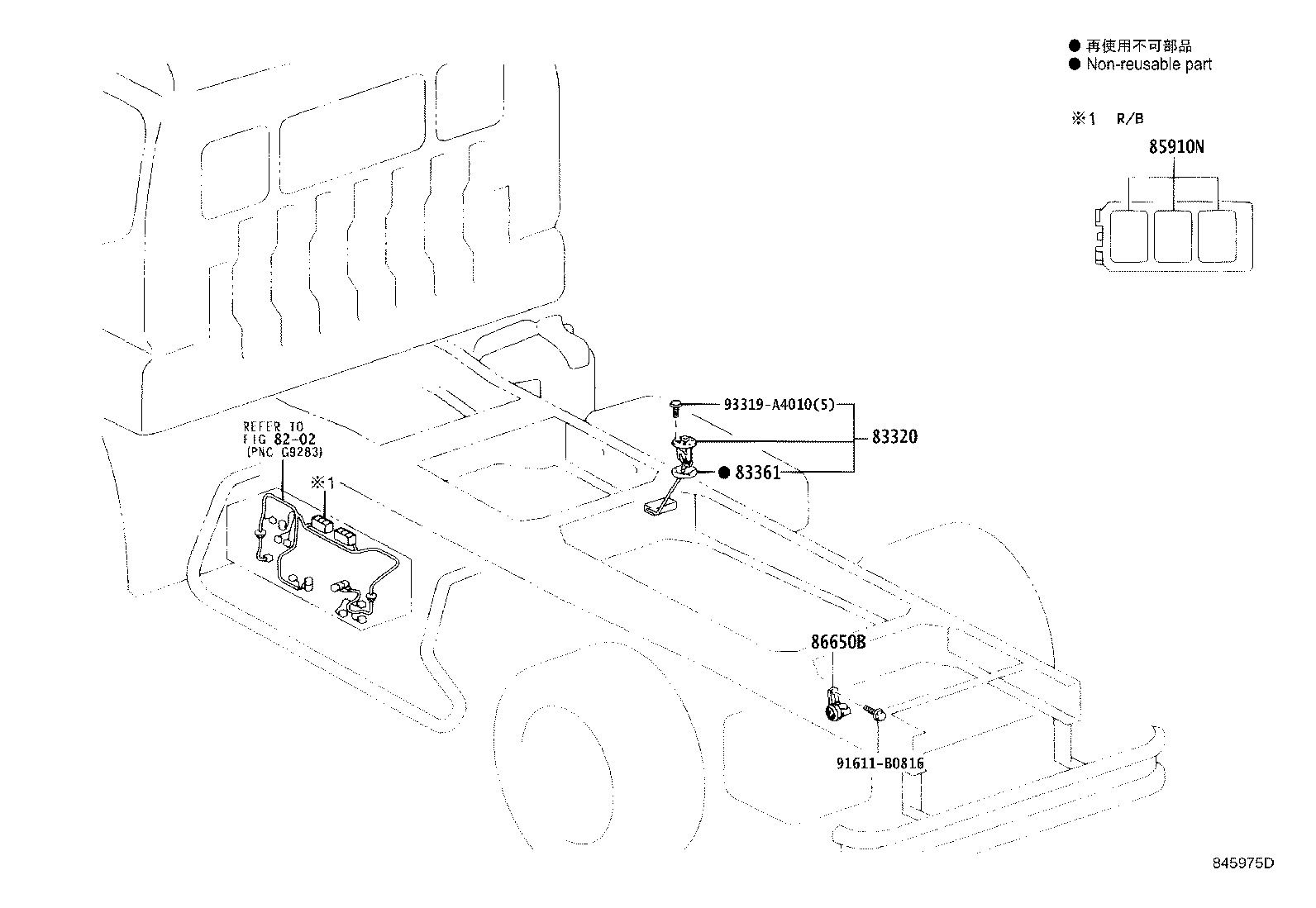

83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83380 Switch Assy, Presure
83380A Switch Assy, Pressure
83380B Switch Assy, Pressure, NO.1
83380C Switch Assy, Pressure, NO.2
83380D Switch Assy, Pressure, NO.3
83380E Switch Assy, Pressure, NO.6
83380F Switch Assy, Pressure, NO.7
83380G Switch Assy, Pressure, NO.8
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83970B Buzzer Assy, Reverse Warning
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84172 Switch, Room Lamp
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84270A Switch Assy, Mirror Heater
84270B Switch Assy, Brake Lock
84270D Switch Assy, ES Start Timing
84270F Bulb, Mirror Heater Switch Assy
84270K Switch Assy, Dpr
84270L Switch Assy, Idle Stop
84270N Bulb, Dpr Swich Assy
84270T Bulb, Idle Stop Switch Assy
84306 Cable Sub-assy, Spiral

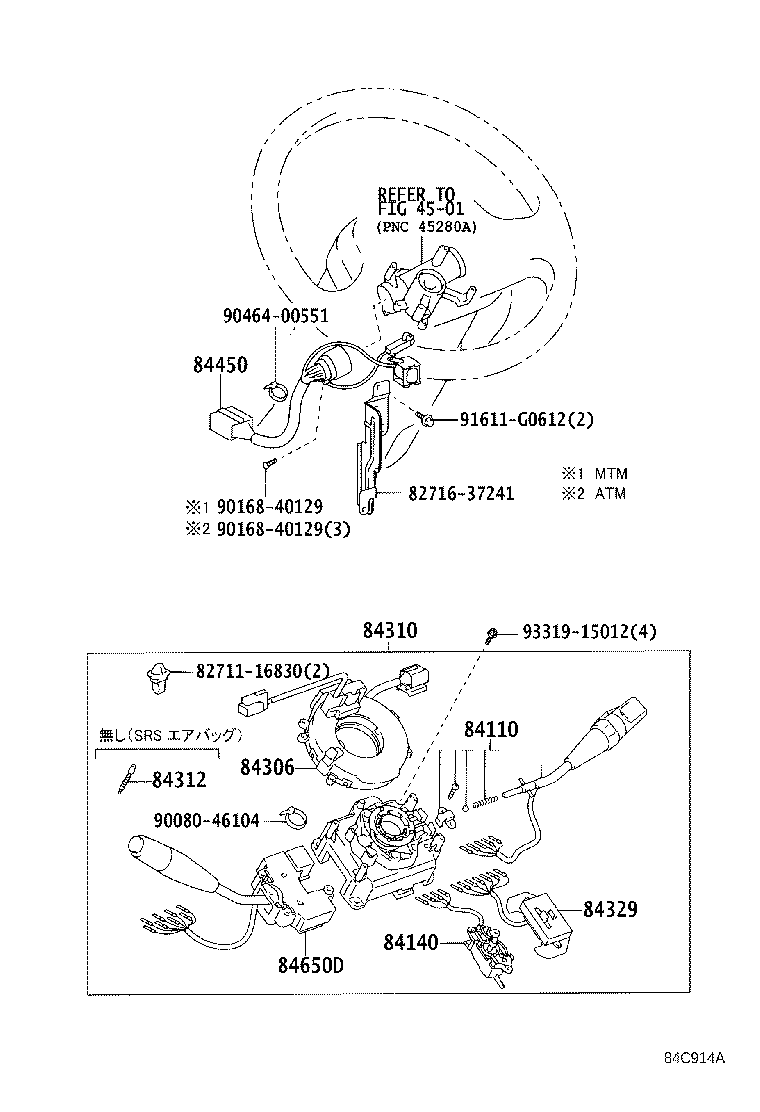

84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84512 Switch, Tilt Cab Control
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84580E Switch Assy, Throttle Position
84640C Switch Assy, Exhaust Retarder
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730S Bulb, Heater Blower Switch
84750A Switch Assy, Seat
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84873A Switch, Retractable Outer Mirror

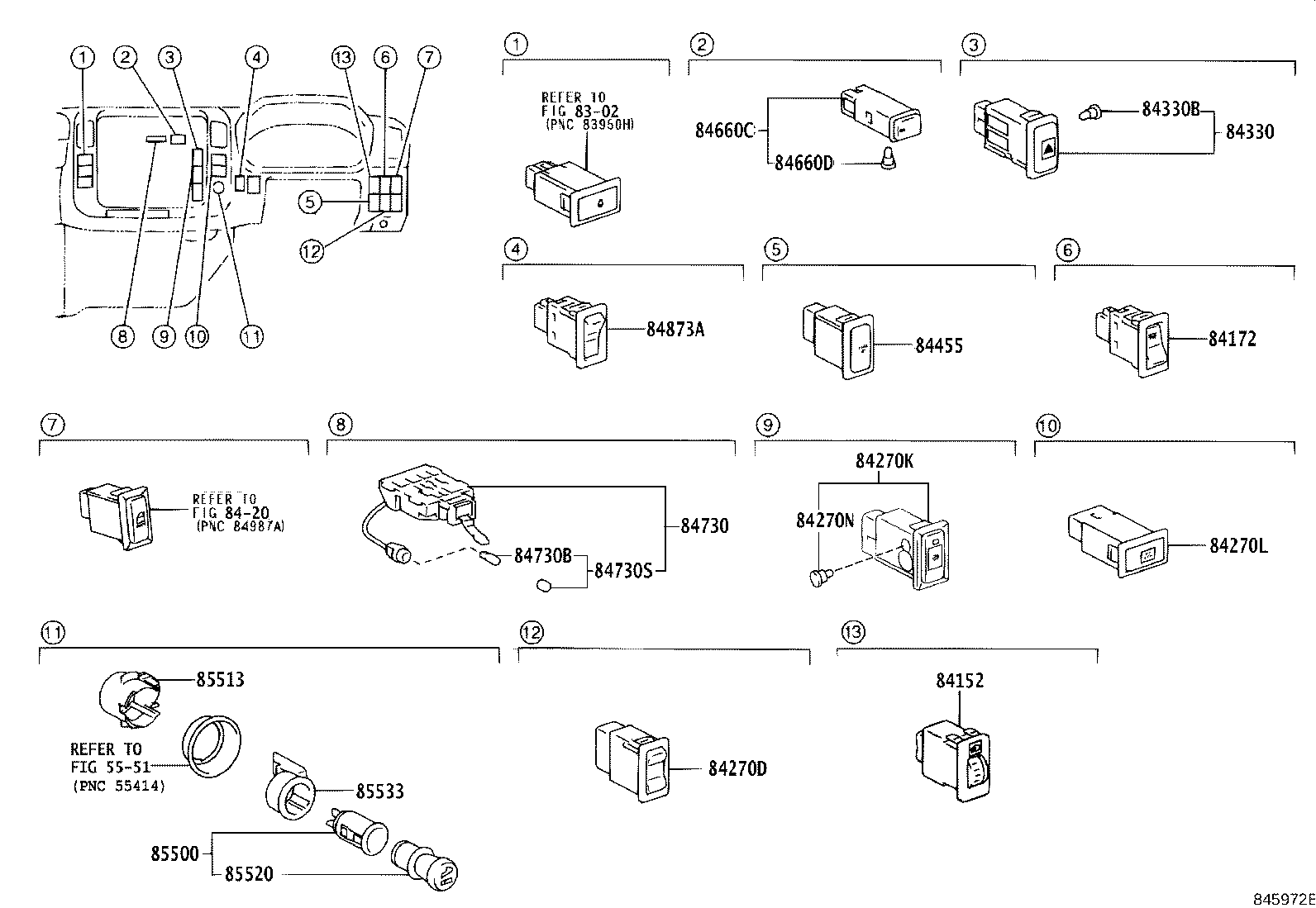

85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator

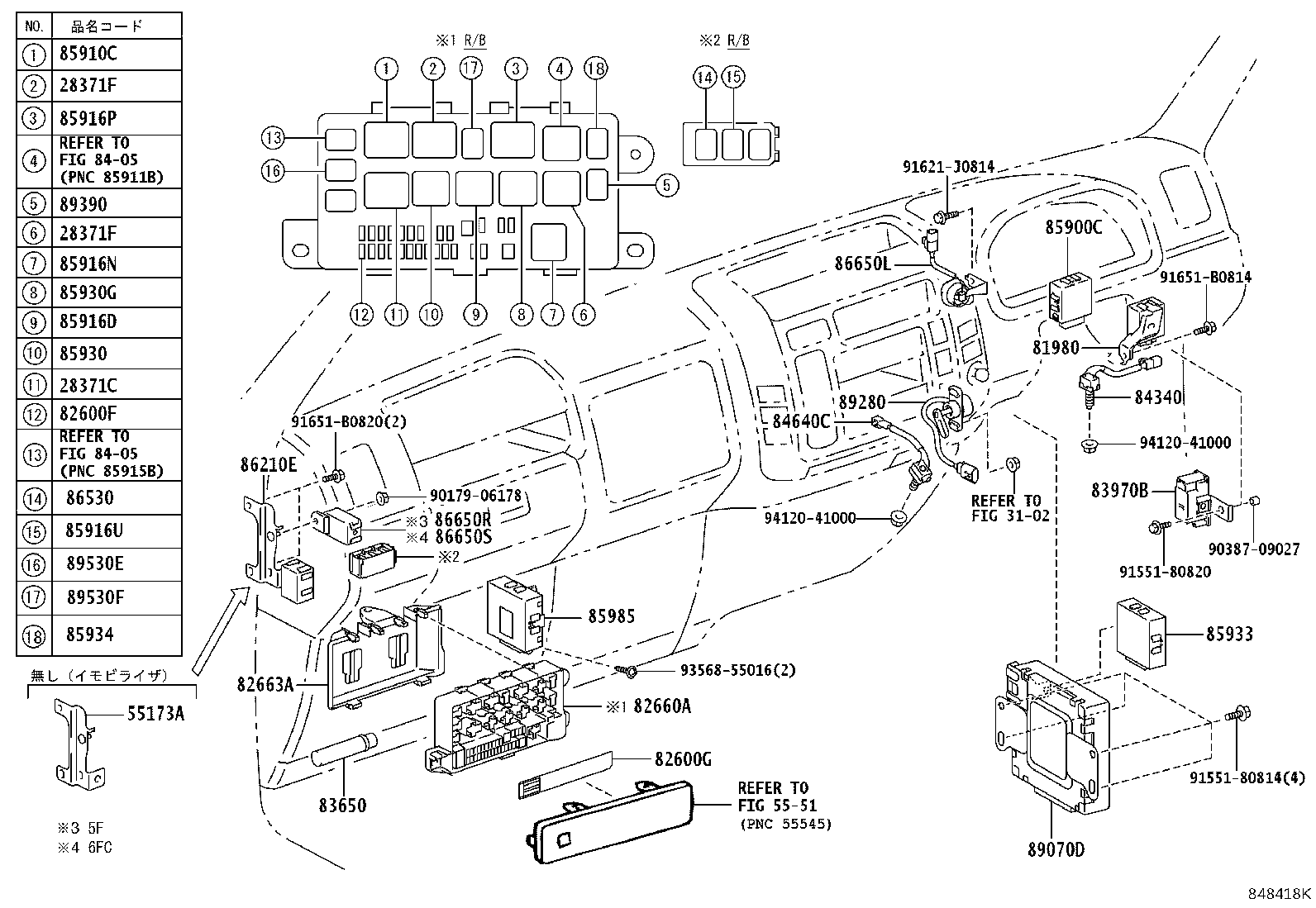

85900C Relay Assy, Control Unit (FOR BRAKE LOCK)
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910N Relay, EV Control Computer
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85927 Relay, Cooling Fan
85930 Relay Assy, Power Window
85930G Relay, Acc
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85985 Relay, Key Reminder
86206D Converter Sub-assy, Voltage
86210E Converter Assy, Voltage
86530 Relay Assy, Horn
86650B Buzzer Assy, Reverse Warning
86650E Buzzer Assy
86650L Buzzer Assy, Vacuum Warning
86650R Buzzer Assy, ES Start
86650S Buzzer Assy, Idle Stop
89070D Computer Assy, Transmission Control
89280 Sensor Assy, Clutch Pedal Stroke
89390 Relay, Brake Warning
89425 Sensor, Exhaust Gas Temperature
89429 Sensor, Oil Temperature
89458D Sensor, Fuel Pressure
89480A Sensor Assy, Differential Pressure
89530E Relay, Atm Back Lamp
89530F Relay, Atm P Range
