Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

13 part groups · 2 illustrations

Illustrations

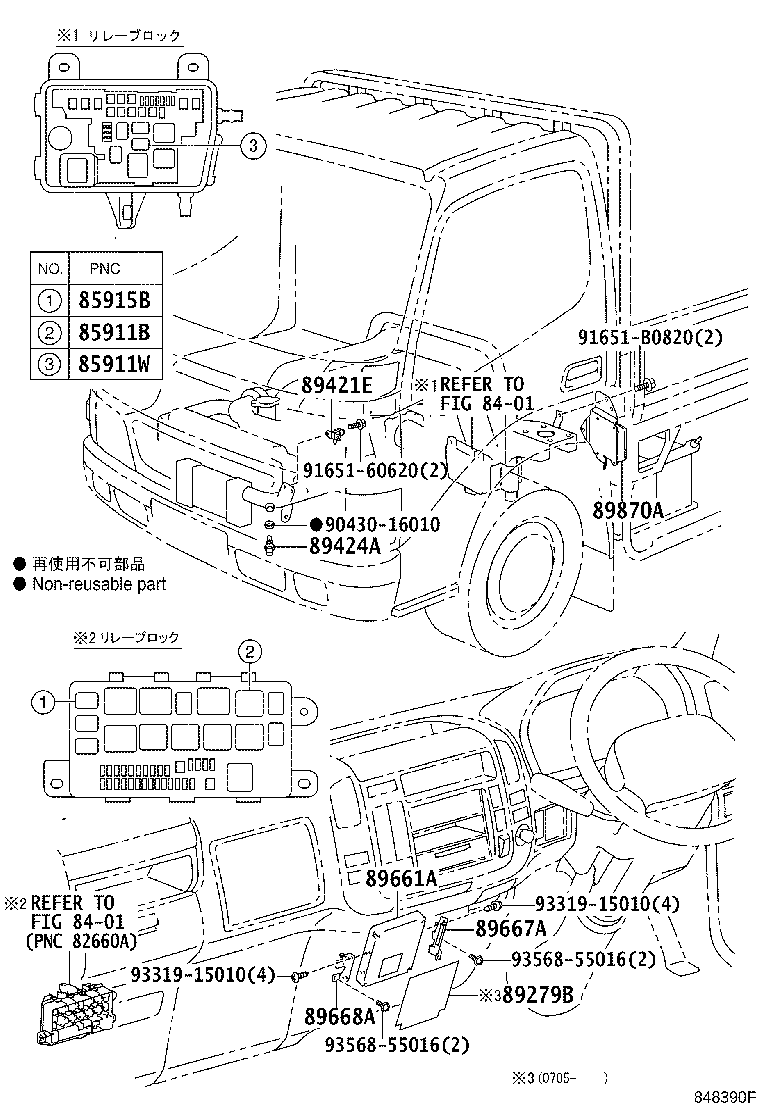

Figure 845977I 845977I 2003-10 → 2006-10 Figure 848390F 848390F 2006-10 → —

Part groups

PNCDescription
85911B Relay, Computer (FOR DIESEL TURBO)
85911G Relay, Injector Driver
85911W Relay, Electronic Driver Unit
85915B Relay, Main (FOR DIESEL TURBO)
89279B Cover, Diesel Engine Control Computor
89284 Sensor, Diesel Engine Revolution
89421E Sensor, Vacuum
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89439G Bracket, Sensor
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870A Driver Assy, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
