Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

26 part groups · 2 illustrations

Illustrations

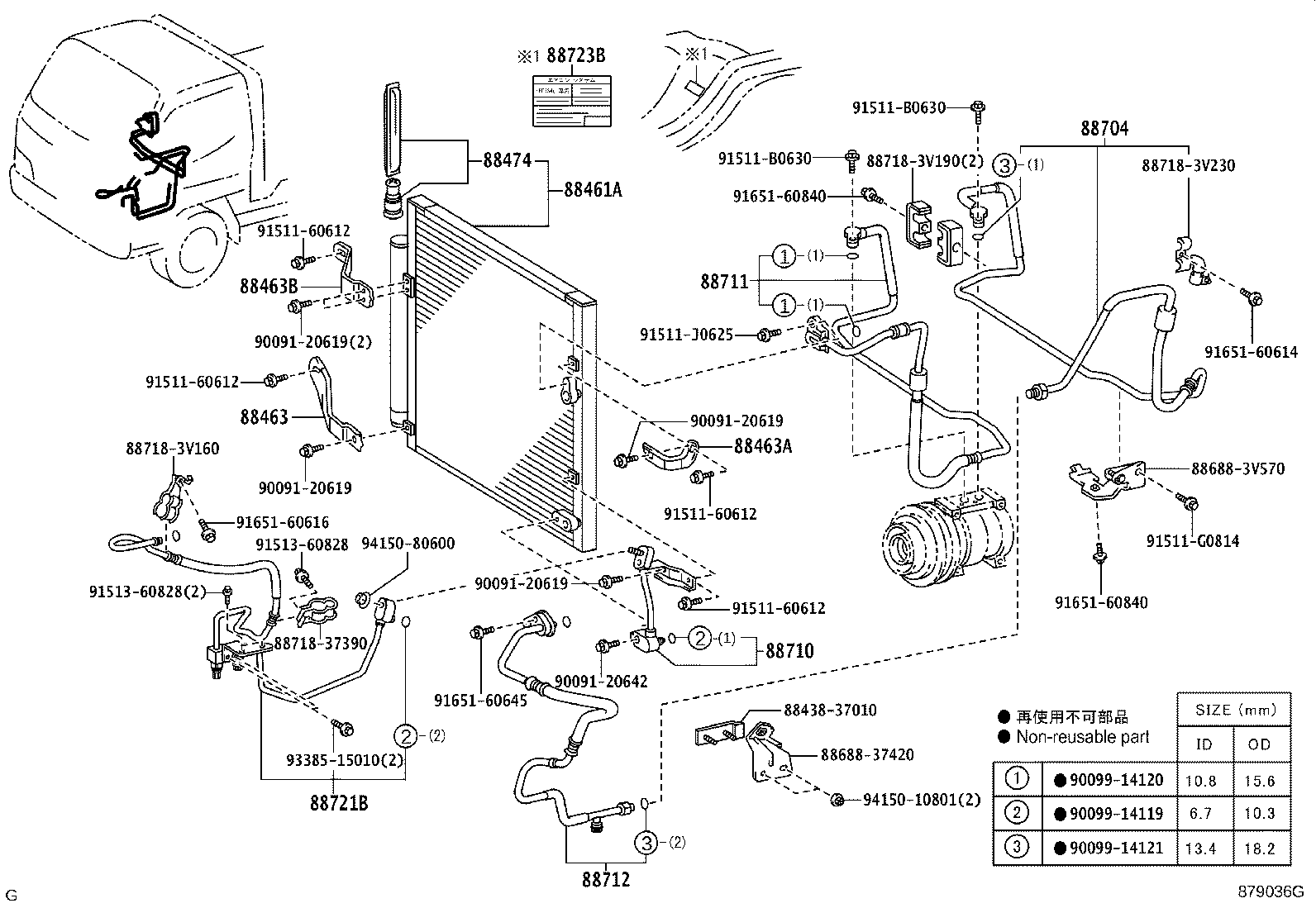

Figure 876591J 876591J 2003-10 → 2006-10 Figure 879036G 879036G 2006-10 → —

Part groups

PNCDescription
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460P Condenser Assy, Cooler NO.2
88461A Core, Cooler Condenser
88461B Cover, Cooler Condenser
88462A Holder, Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88471A Tank, Receiver
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88648E Wiring, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
88721B Hose, Liquid, B
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
