Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan

Supported model Data version 2019-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 2 illustrations

Illustrations

Figure 164712G

164712G 2011-07 → —

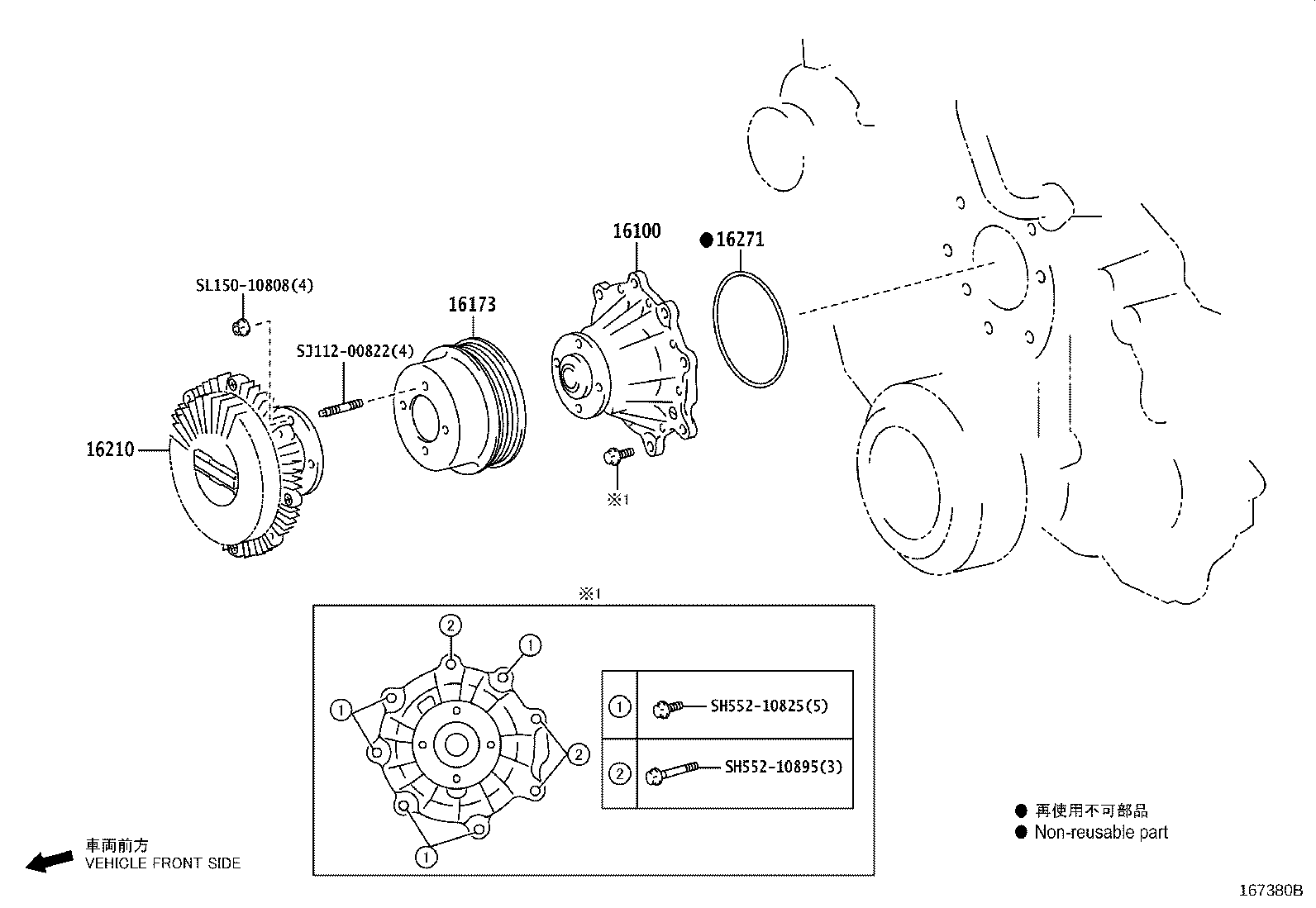

Figure 167380B

167380B 2019-05 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16210	Coupling Assy, Fluid
16271	Gasket, Water Pump
16365A	Spacer, Fan

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
