Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan
Supported model
Data version 2019-05
Air Cleaner

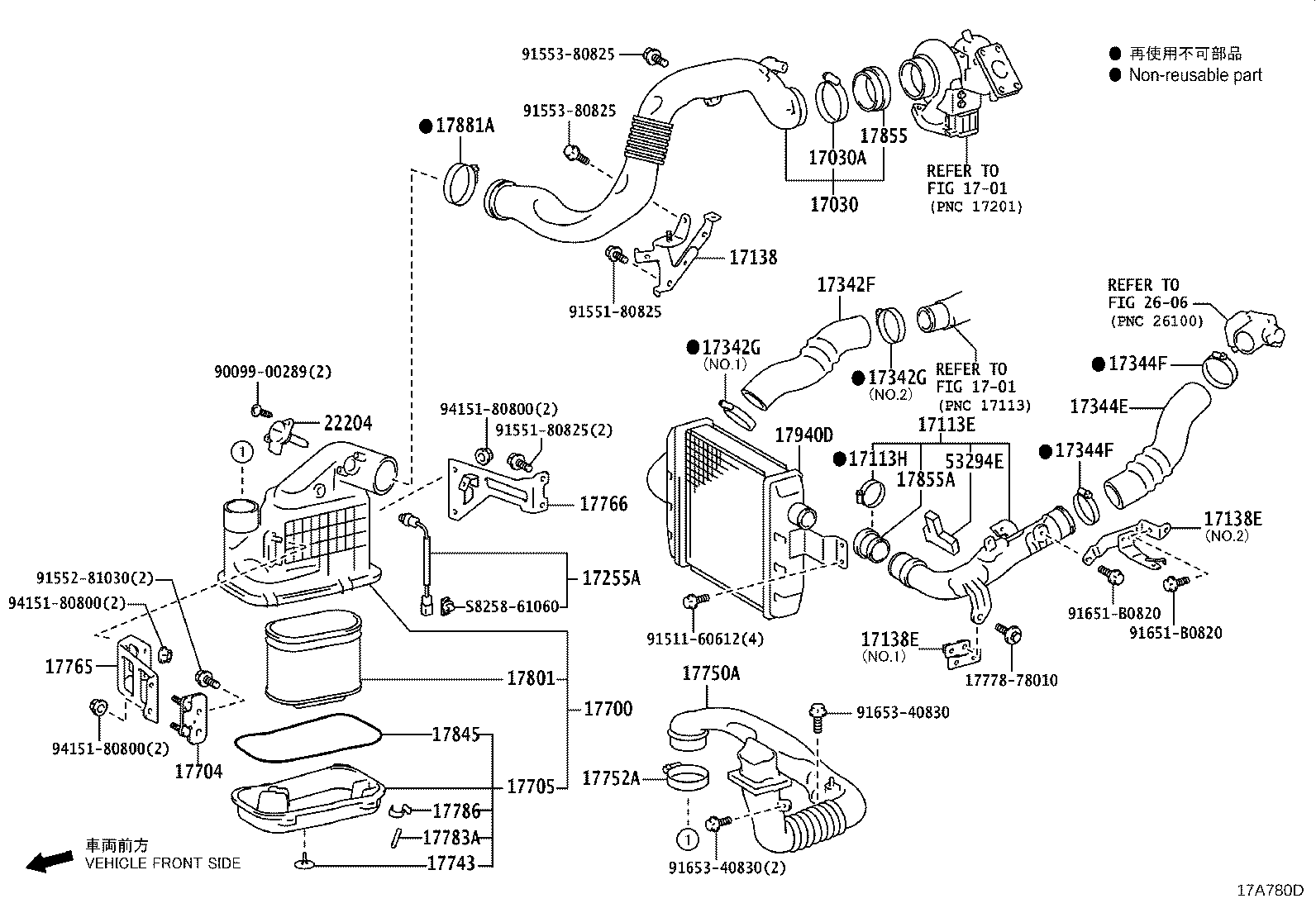

32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17030 | Hose Assy, Air |
| 17030A | Clamp, Hose |
| 17080 | Cleaner Assy, Air W/Air Flow Meter |
| 17113E | Pipe, Intake, NO.1 |
| 17113H | Clamp, Intake Pipe |
| 17138 | Stay, Intake Pipe OR Hose |
| 17138E | Stay, Intake Pipe |
| 17255A | Valve, Intake Relief |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342F | Hose, Air, NO.2(FOR INTERCOOLER) |
| 17342G | Clamp, Hose, NO.2(FOR INTERCOOLER) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17700 | Cleaner Assy, Air |
| 17704 | Plate Sub-assy, Air Cleaner Support |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17743 | Valve, Dust Relief |
| 17750A | Inlet Assy, Air Cleaner |
| 17752A | Clamp, Hose(FOR AIR CLEANER) |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17766 | Stay, Air Cleaner, NO.2 |
| 17783A | Retainer, Air Cleaner Inlet |
| 17786 | Clamp, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17845 | Gasket, Air Cleaner Cap |
| 17855 | Gasket, Air Inlet Duct, NO.1 |
| 17855A | Gasket, Air Inlet Duct, NO.2 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 53294E | Seal, Cool Air Intake Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
