Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan
Supported model
Data version 2019-05

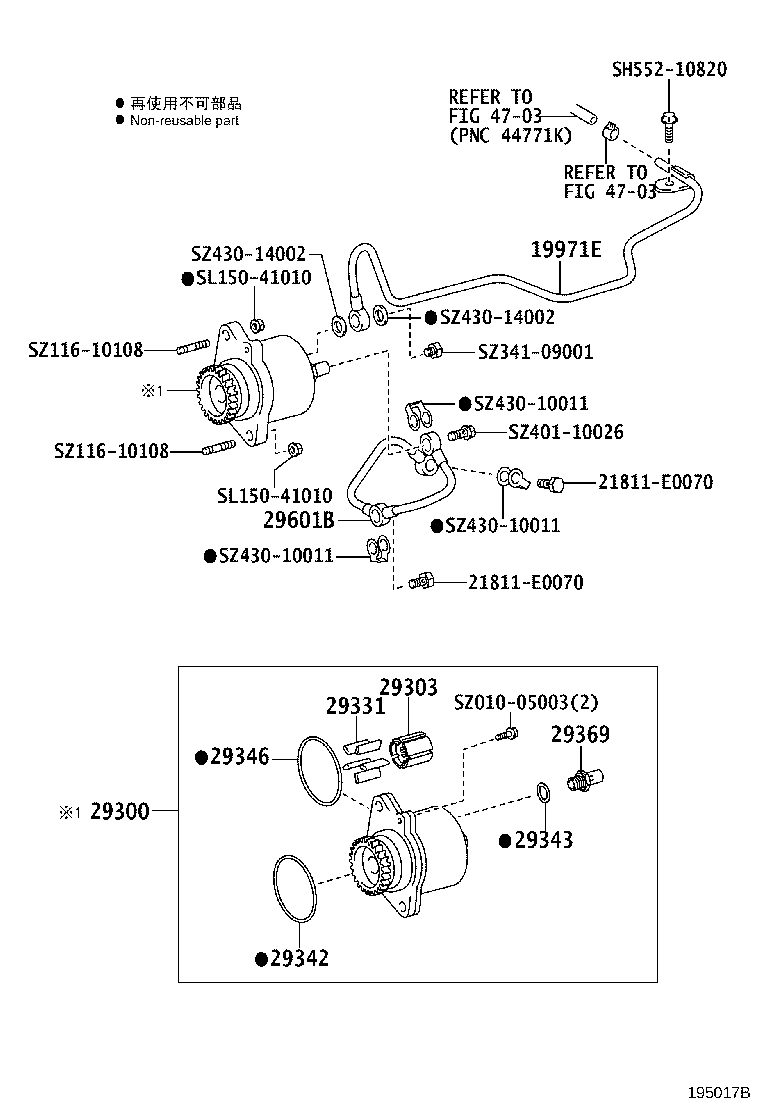

Vacuum Pump
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 19971E | Pipe, Vacuum |
| 29300 | Pump Assy, Vacuum |
| 29303 | Rotor Sub-assy, Vacuum Pump |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29322B | Bearing, Vacuum Pump |
| 29331 | Blade, Vacuum Pump, A |
| 29336 | Shaft, Vacuum Pump |
| 29342 | Packing, Vacuum Pump |
| 29342B | Ring, O |
| 29343 | Ring, O Vacuum Pump, NO.1 |
| 29346 | Ring, O Vacuum Pump Cover |
| 29351 | Gear, Vacuum Pump |
| 29364 | Washer, Vacuum Pump |
| 29366A | Key, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
| 29601B | Pipe Sub-assy, Oil(FOR VACUUM PUMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
