Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan
Supported model
Data version 2019-05

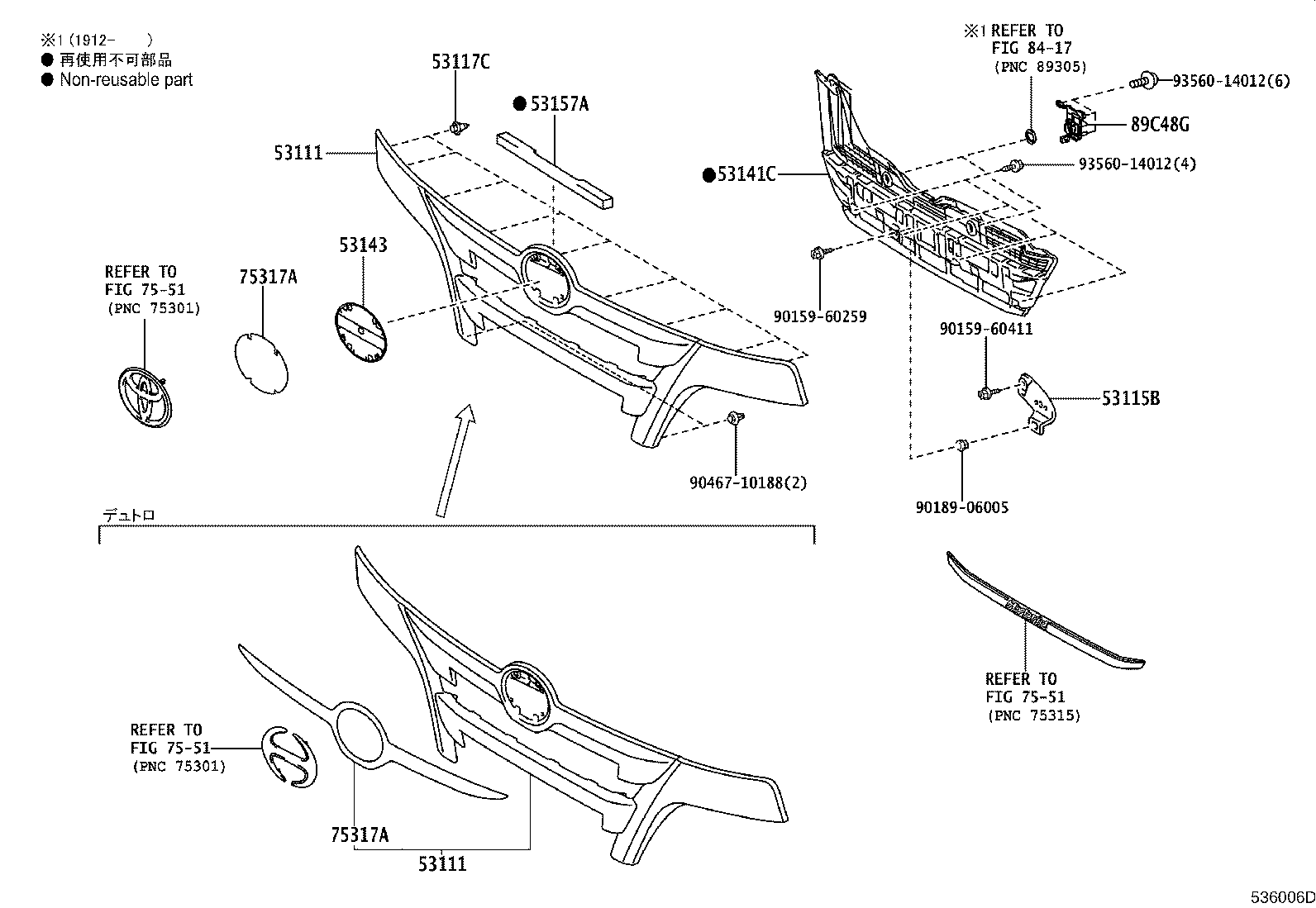

Radiator Grille
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53115B | Bracket, Radiator Grille |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53141C | Garnish, Radiator Grille |
| 53143 | Garnish, Radiator Grille, NO.3 |
| 53157A | Seal, Radiator Grille, NO.3 |
| 75317A | Plate, Radiator Grille Ornament |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
