Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan
Supported model
Data version 2019-05
Battery & Battery Cable
47 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|

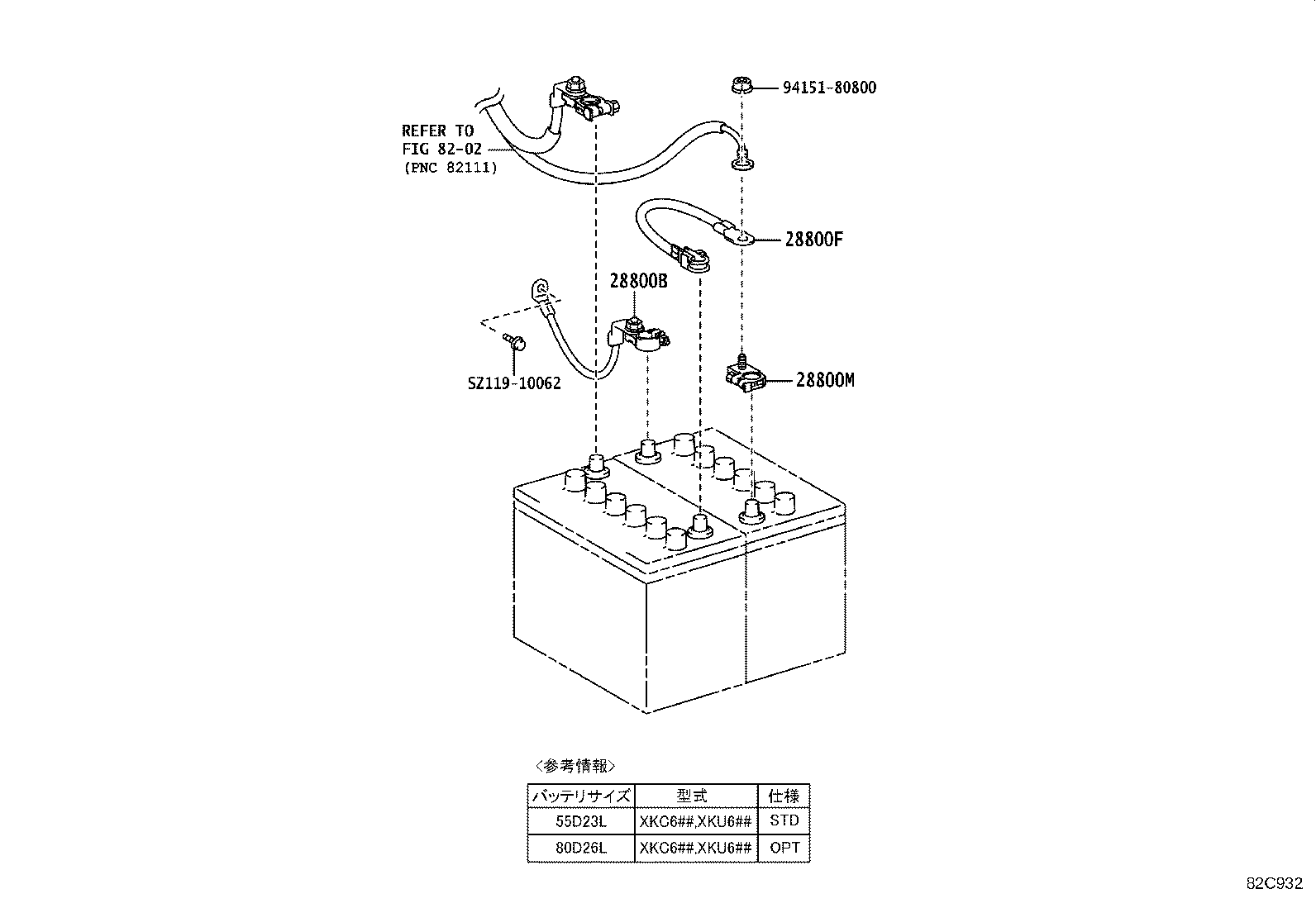

| 28800A | Terminal, Battery Positive |
| 28800B | Cable, Battery TO Ground |
| 28800C | Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH) |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800F | Cable, Battery TO Battery |
| 28800J | Terminal, Battery Negative |
| 28800M | Terminal, Battery Positive |
| 55871J | Seal, Air Duct |
| 74403B | Carrier Sub-assy, Battery |
| 74405B | Cover Sub-assy, Battery |
| 74413C | Panel, Battery Carrier, Front |
| 74414G | Panel, Battery Carrier, RR |
| 74451C | Plate, Battery Set |
| 82672H | Cover, Junction Block |
| 82685F | Main Battery Caution Plate, NO.1 |
| 82815C | Cover, Wiring Harness Protector, NO.1 |
| 89890A | Computer Assy, Battery |
| 89892A | Sensor, Battery Voltage |
| C5481 | Ventilator, Side |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3841C | Relay, System Main, NO.1 |
| G3842 | Resistor, System Main |
| G3843 | Relay, System Main, NO.2 |
| G9121A | Gasket, Electric Vehicle Unit Controller Cover |

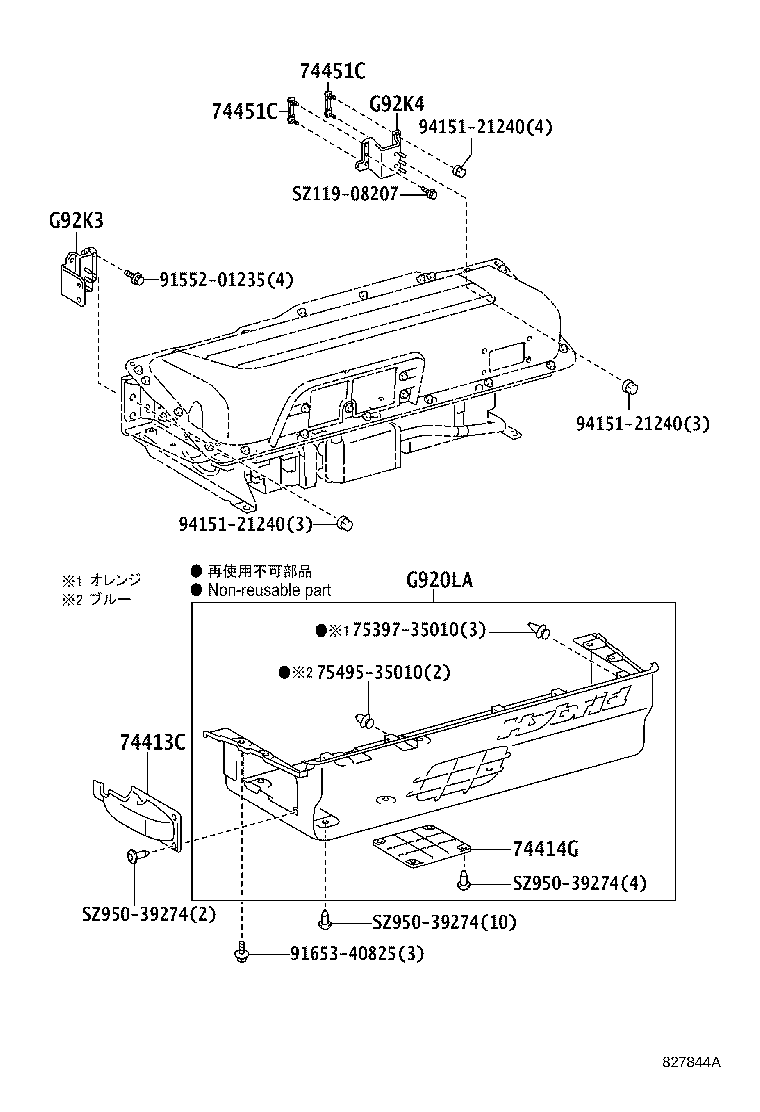

| G920BA | Tray Sub-assy, HV Battery, NO.1 |

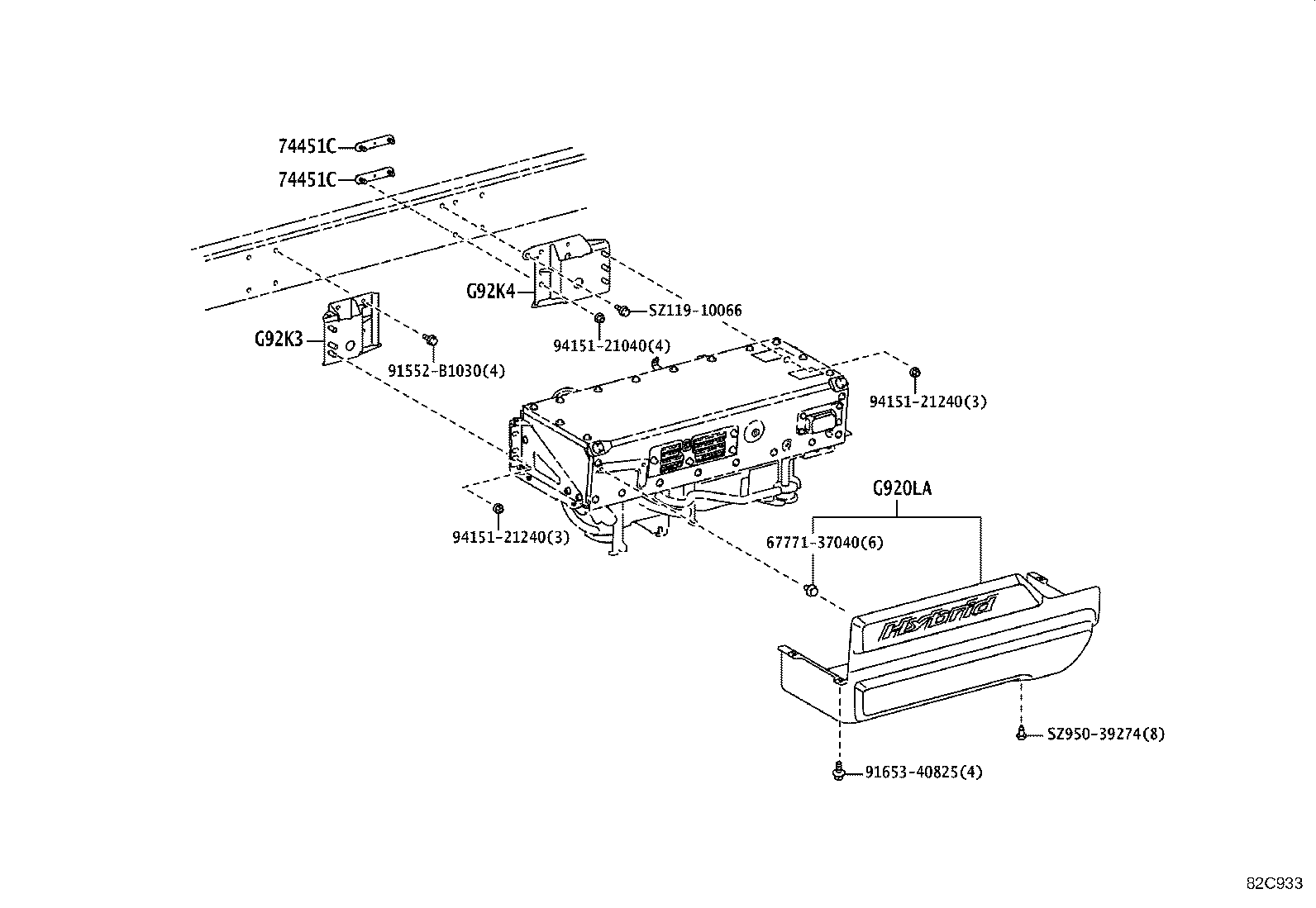

| G920LA | Cover Sub-assy, Hybrid Battery, Lower |
| G9230 | Blower Assy, Battery Cooling |
| G9242 | Cable, Main Battery |

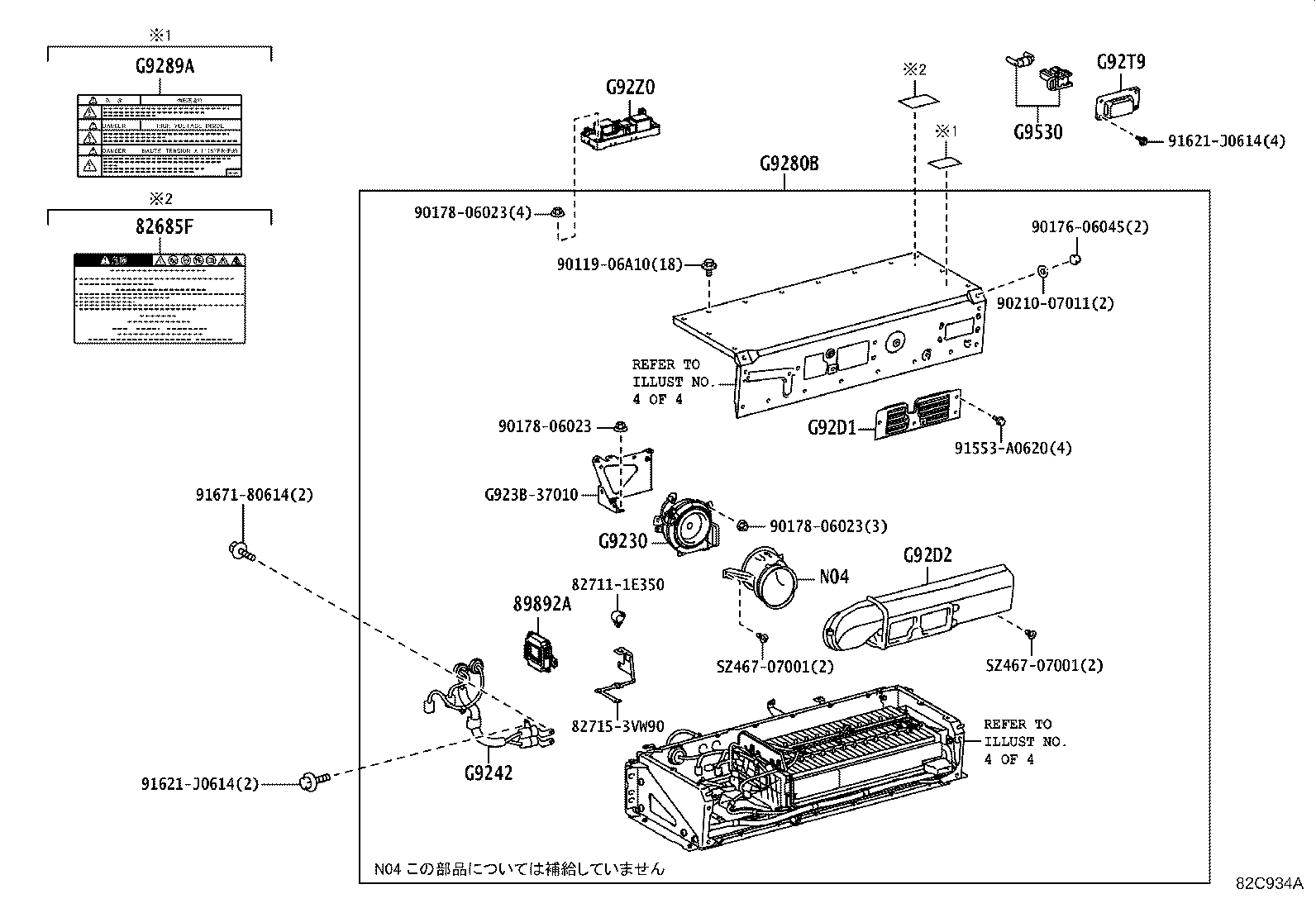

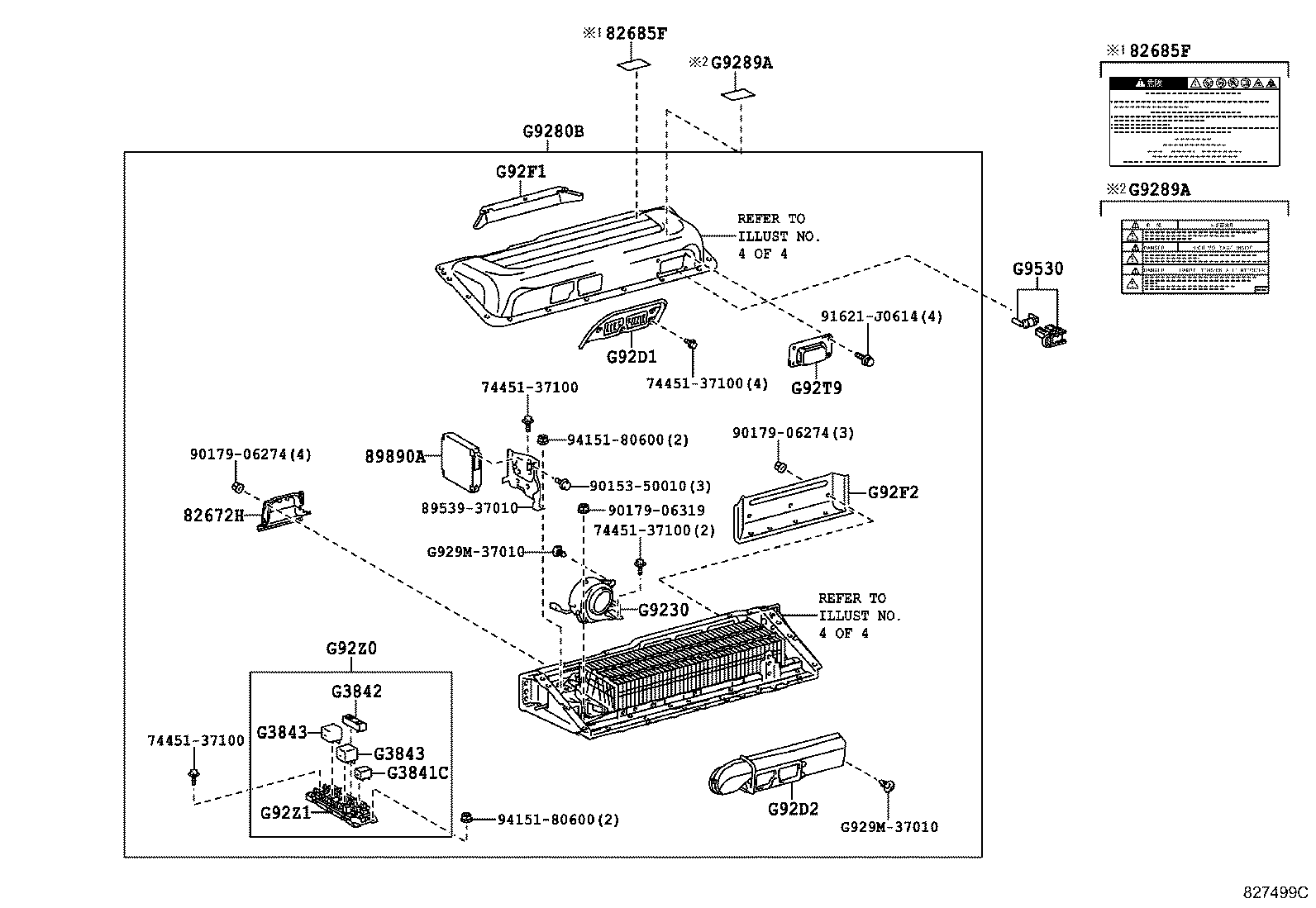

| G9280B | Battery Assy, HV |
| G9282 | Thermistor, Hybrid Battery |
| G9289A | Label, Battery Caution |
| G9289F | Label, Battery Caution, NO.3 |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D2 | Duct, Hybrid Battery Intake, NO.2 |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92F2 | Duct, Hybrid Battery Exhaust, NO.2 |
| G92JA | Plate, HV Battery End, NO.1 |
| G92JB | Plate, HV Battery End, NO.2 |
| G92K3 | Bracket, Hybrid Battery Carrier, NO.1 |
| G92K4 | Bracket, Hybrid Battery Carrier, NO.2 |
| G92N1 | Panel, HV Battery Upper Cover |
| G92T9 | Cover, Hybrid Battery Service Plug |
| G92X1 | Wire, Hybrid Battery Pack, NO.1 |
| G92Z0 | Block Assy, HV Battery Junction |
| G92Z1 | Block, Hybrid Battery Junction |

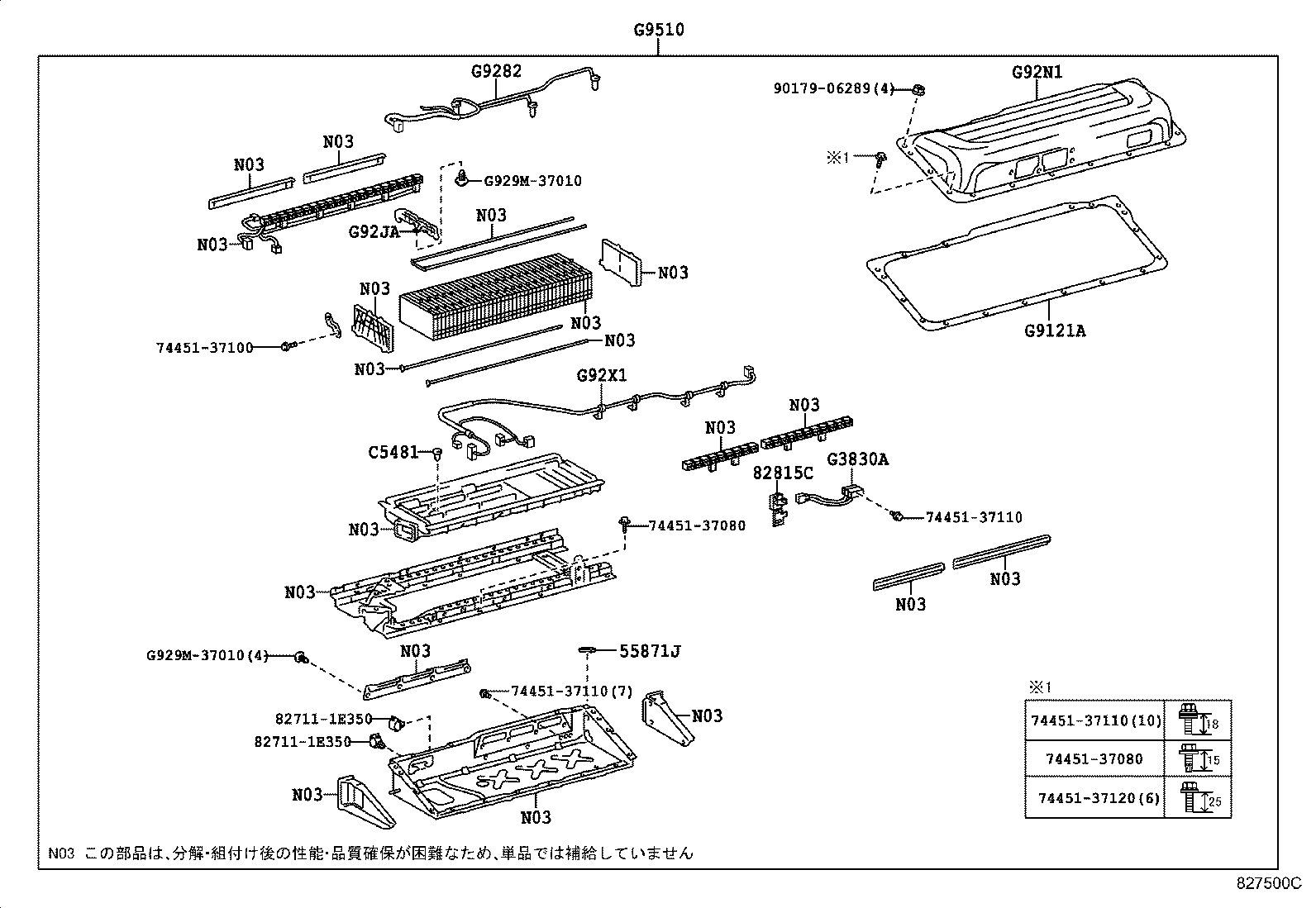

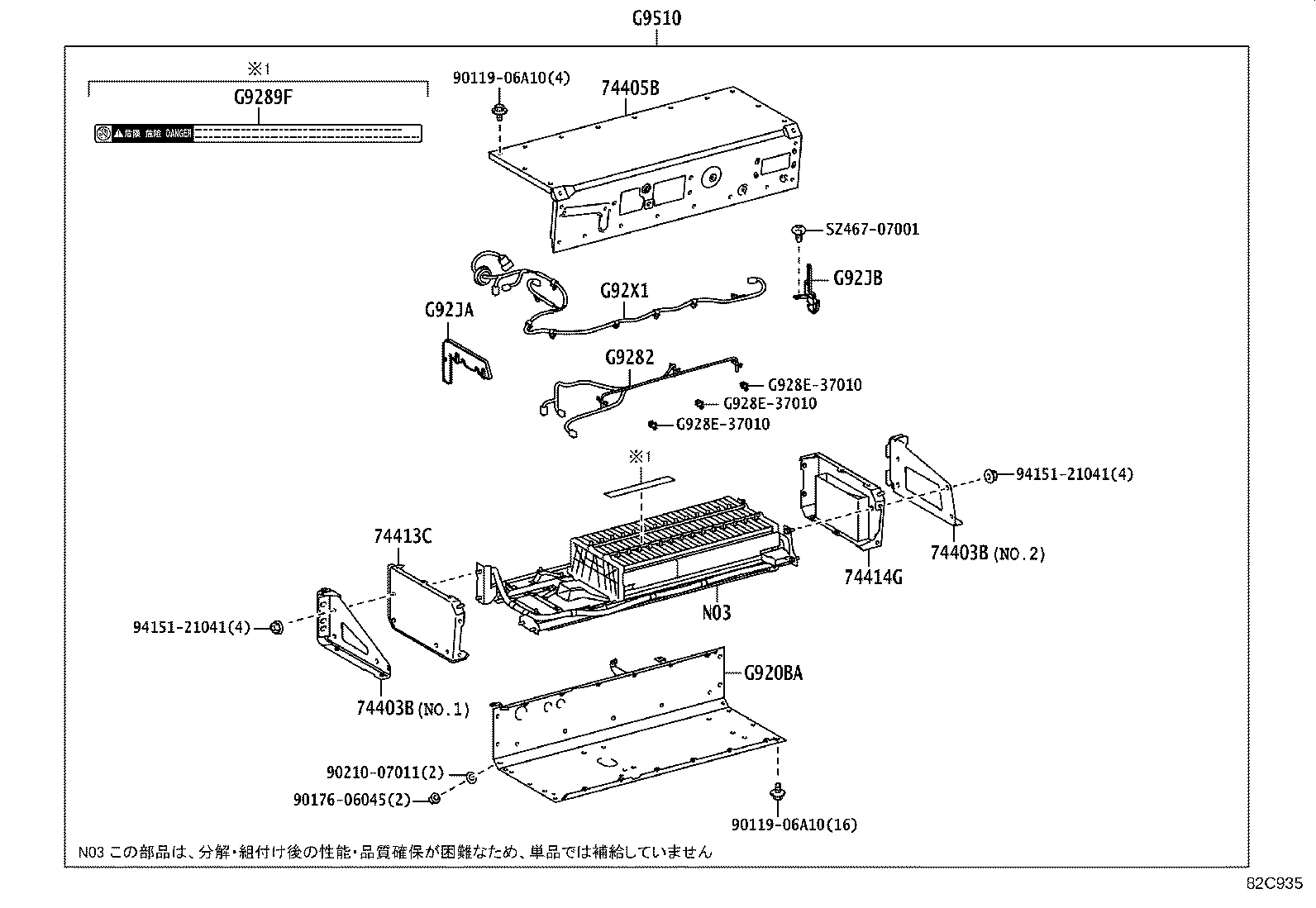

| G9510 | Battery Assy, HV Supply |
| G9530 | Plug Assy, Hybrid Battery Supply |
