Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan
Supported model
Data version 2019-05

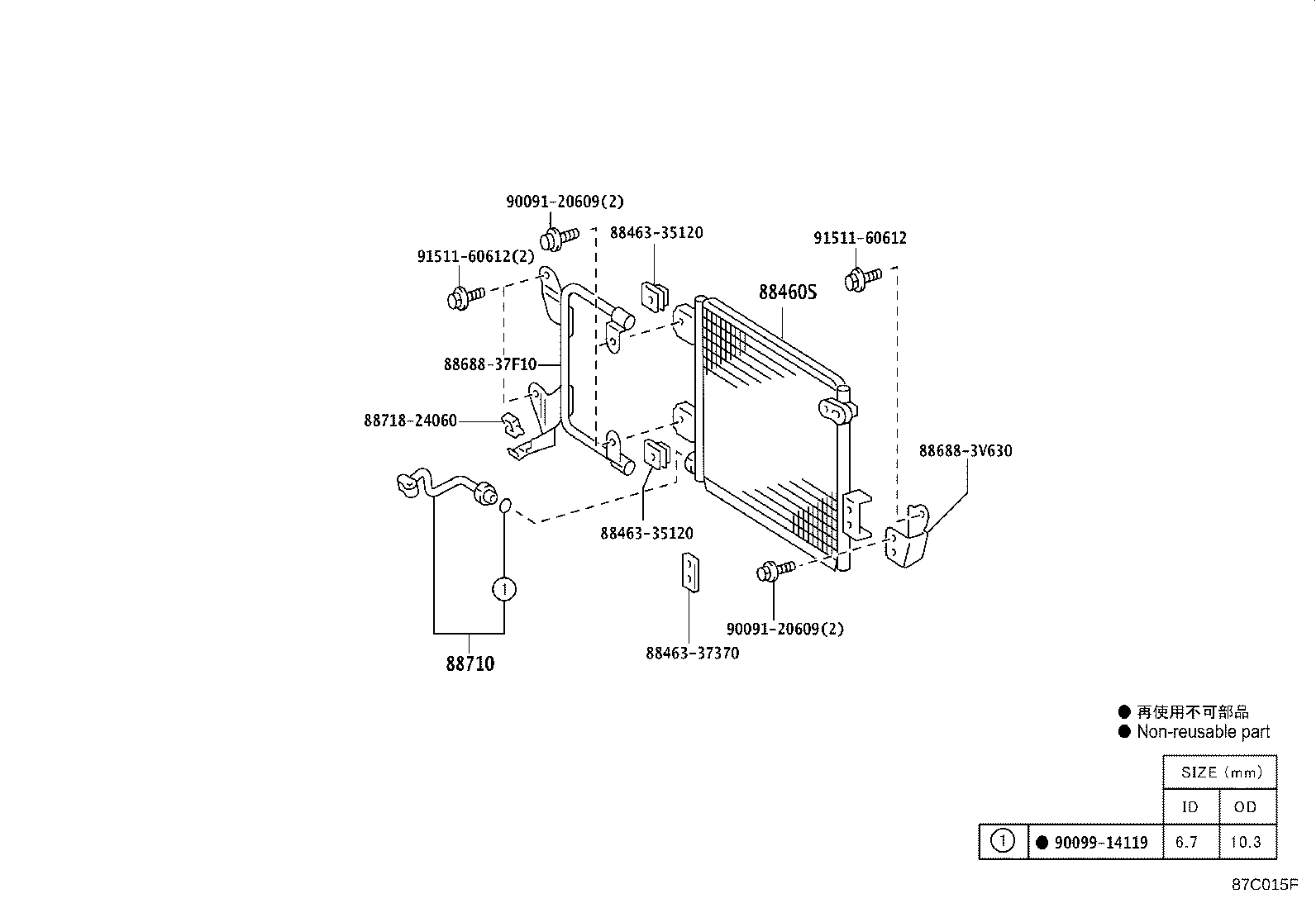

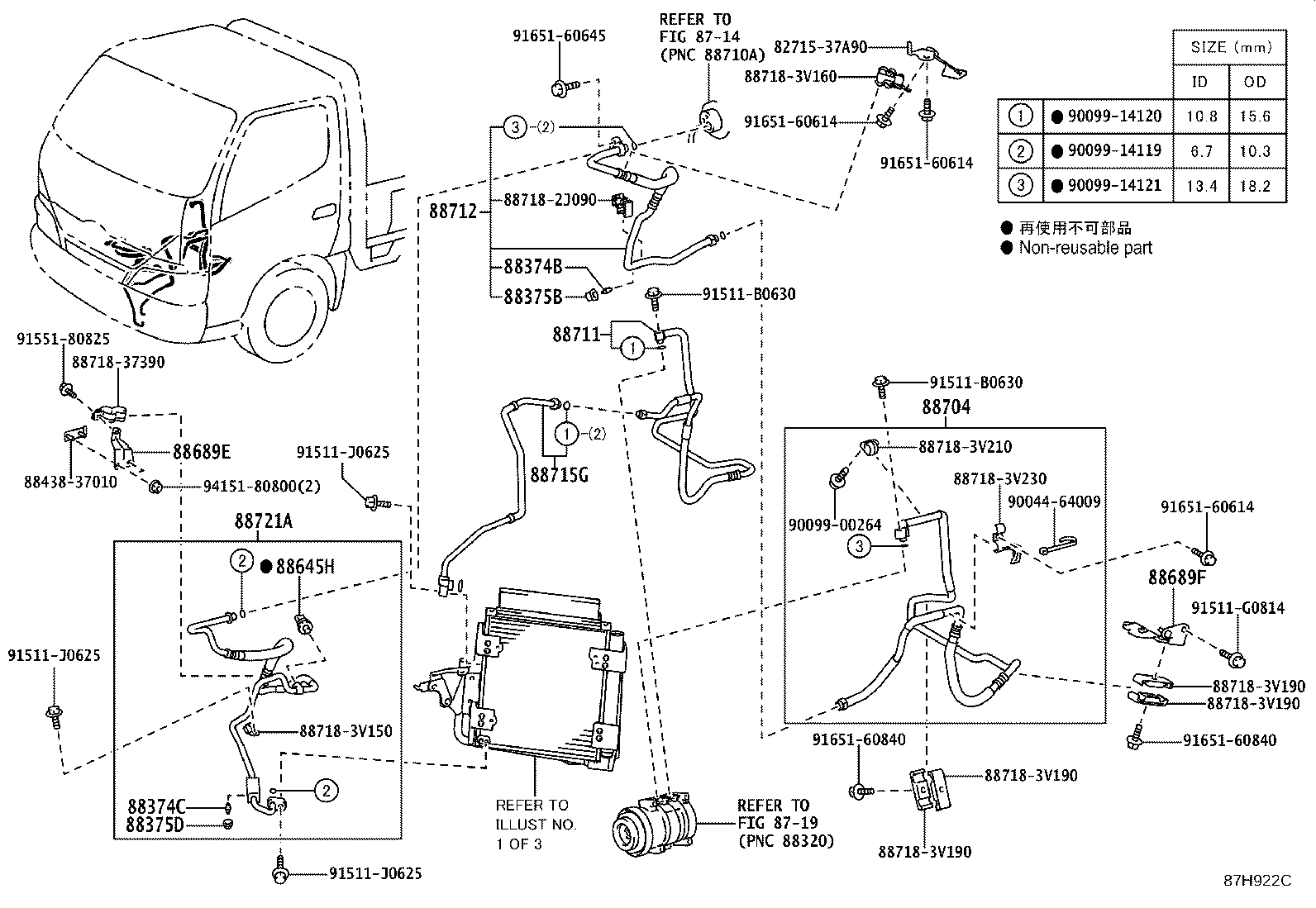

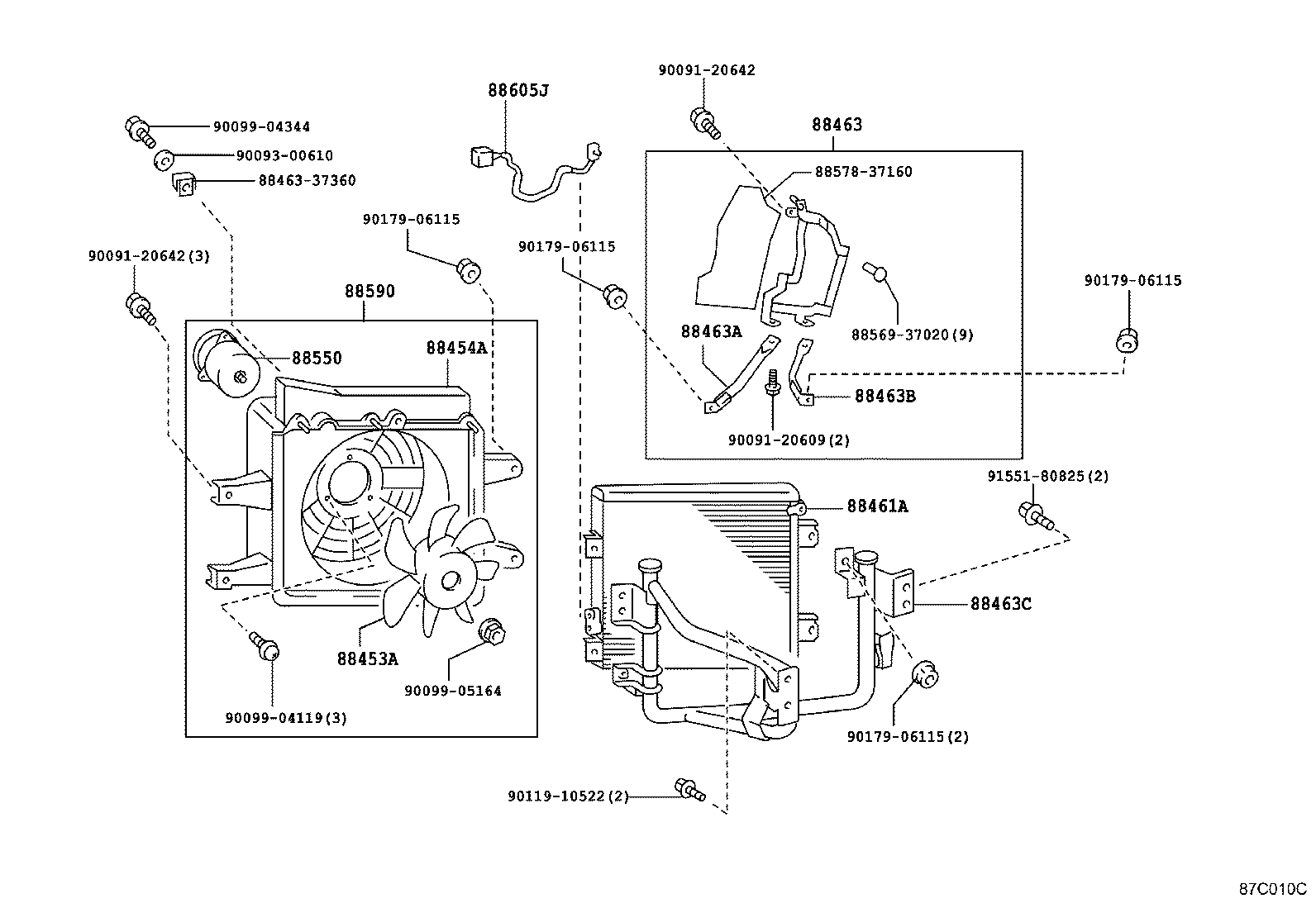

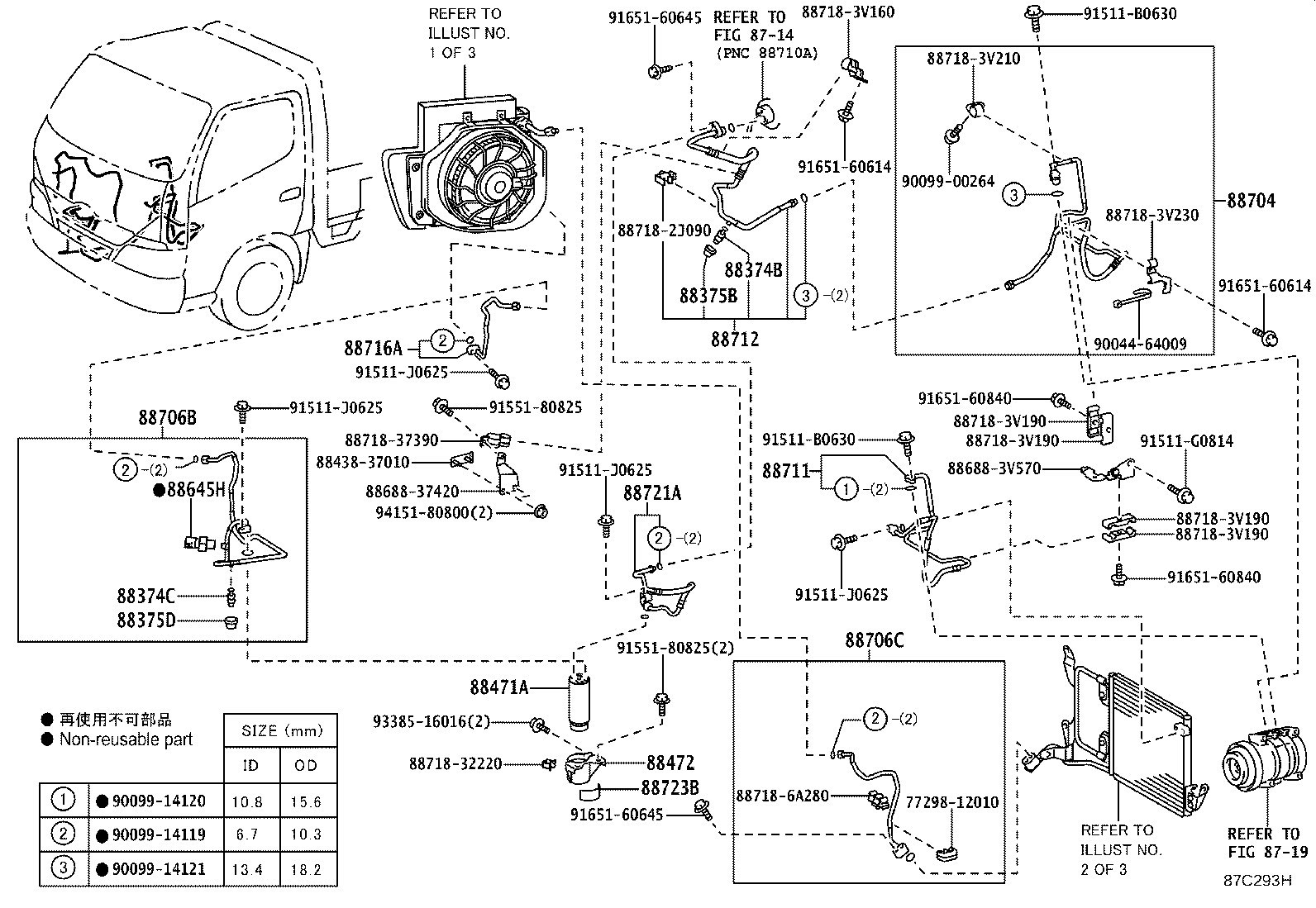

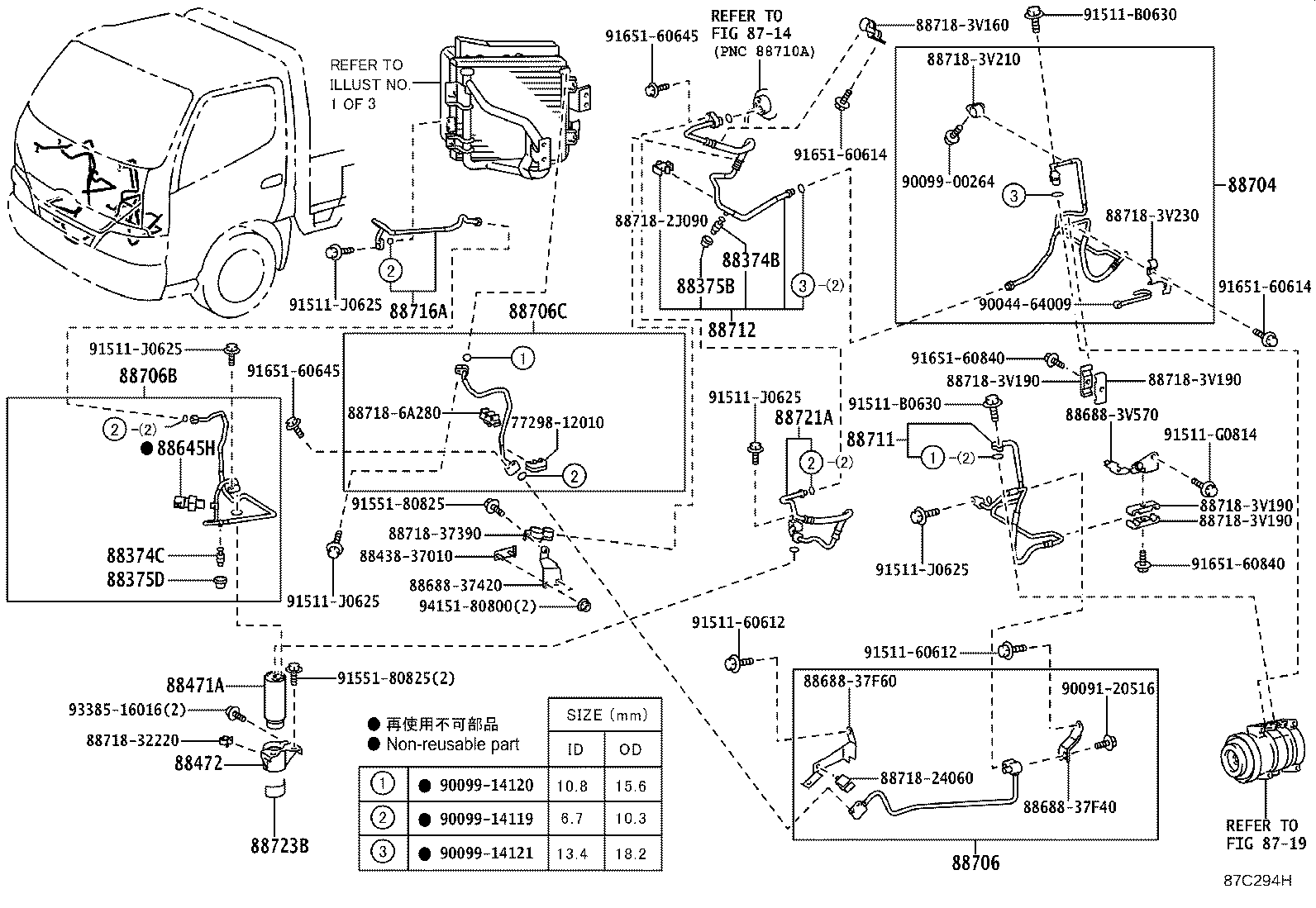

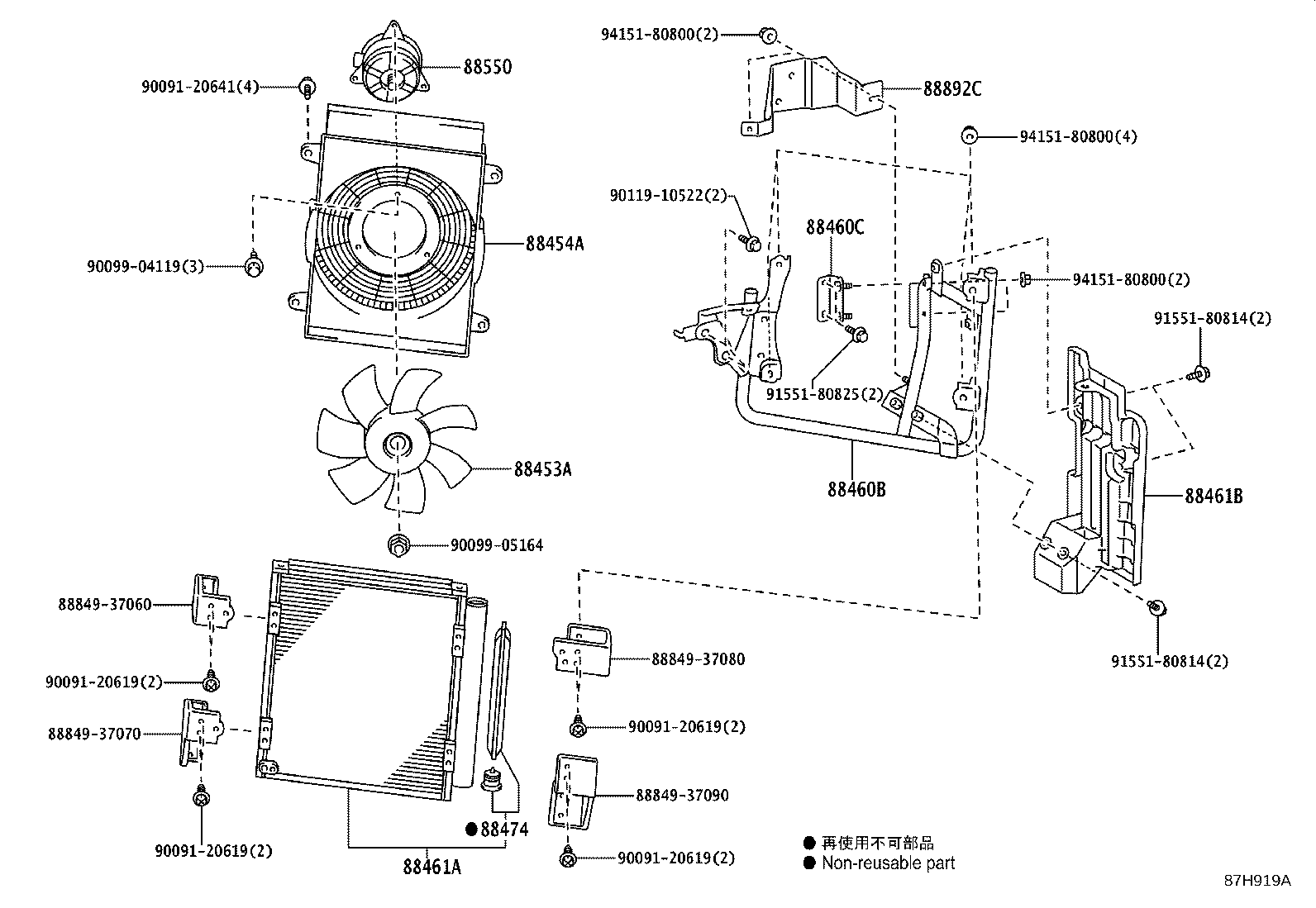

Heating & Air Conditioning - Cooler Piping
39 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88453A | Fan, Cooling |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88460S | Condenser Assy NO.2 |
| 88461A | Core, Cooler Condenser |
| 88461B | Cover, Cooler Condenser |
| 88462A | Holder, Condenser |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88463B | Bracket, Cooler Condenser, NO.3 |
| 88463C | Bracket, Cooler Condenser, NO.4 |
| 88471A | Tank, Receiver |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88474 | Dryer, Cooler |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88605J | Harness Sub-assy, Air Conditioner Wiring |
| 88645H | Switch, Pressure NO.1 |
| 88648E | Wiring, Cooler |
| 88689E | Bracket, Cooler, NO.1 |
| 88689F | Bracket, Cooler, NO.2 |
| 88704 | Hose Sub-assy, Suction |
| 88706 | Pipe Sub-assy, Liquid |
| 88706B | Tube Sub-assy, Liquid, B |
| 88706C | Tube Sub-assy, Liquid, C |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715G | Tube, Discharge, G |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88721A | Hose, Liquid, A |
| 88723B | Label, Cooler Service Caution |
| 88892C | Plate, Condenser, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
