Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03
Injection Pump Assembly

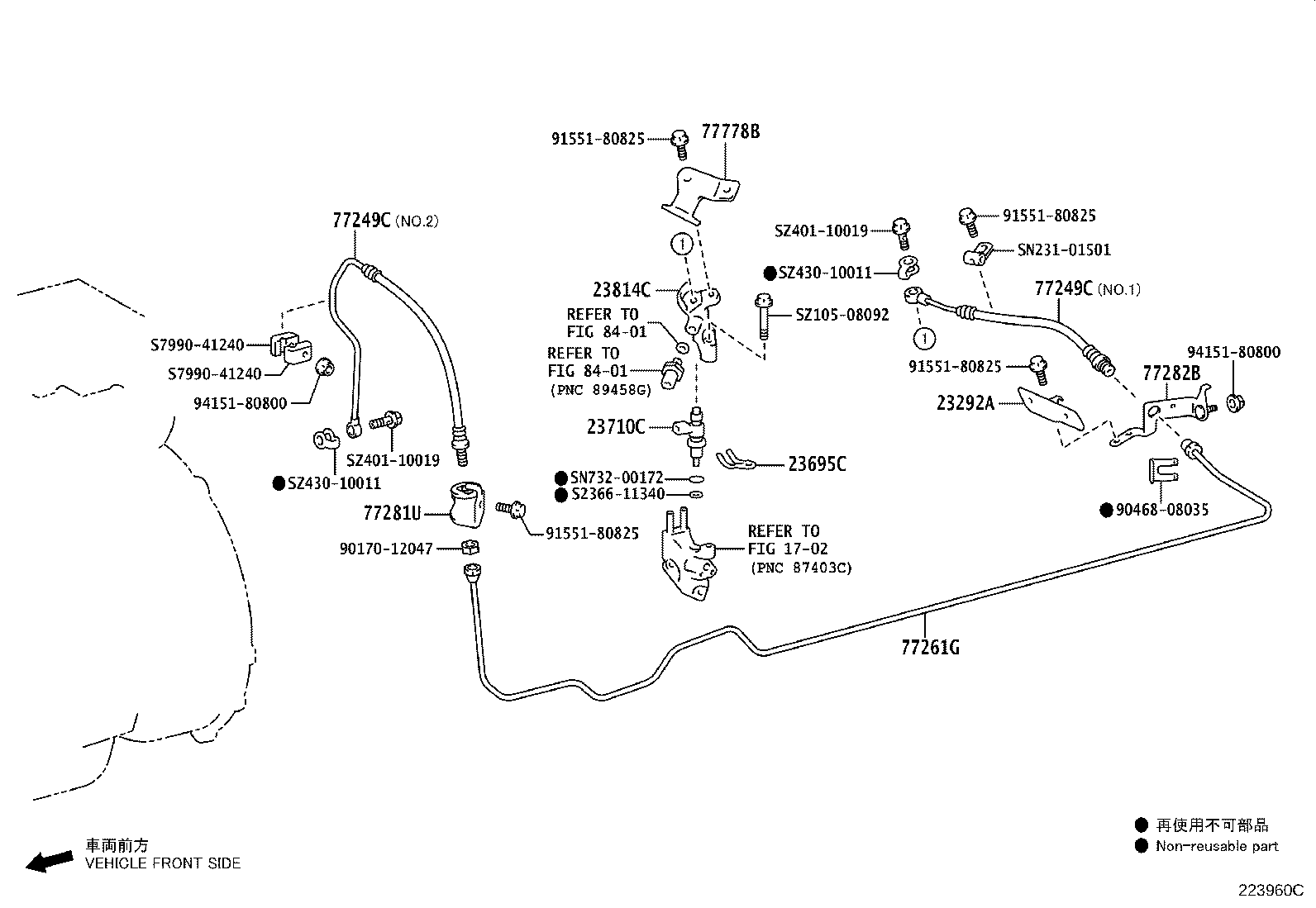

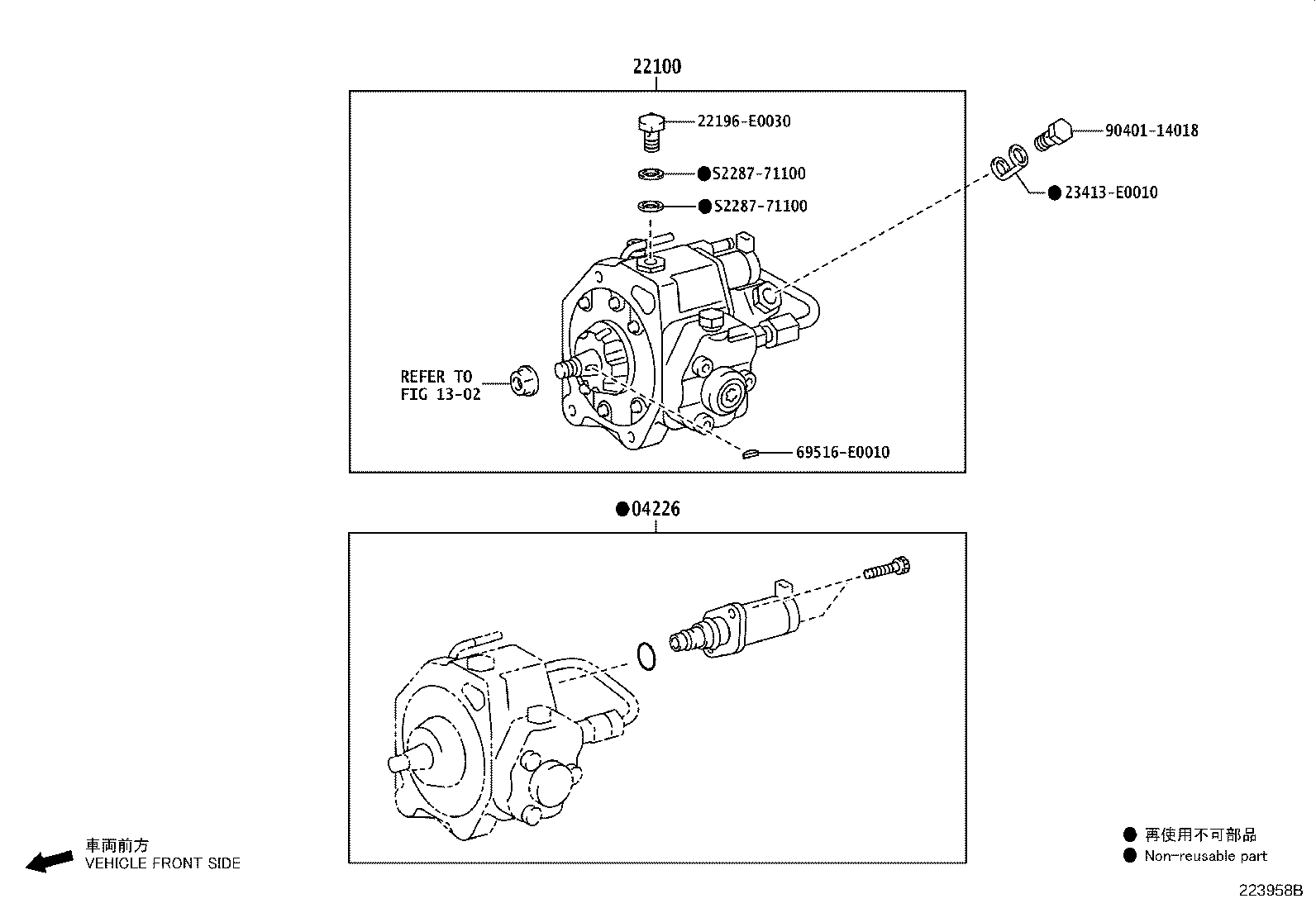

54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04226 | Valve Kit, Suction Control |
| 22100 | Pump Assy, Injection OR Supply |
| 22100S | Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE) |
| 22100U | Clip, Hose Fuel(FOR INJECTION PUMP) |
| 22100V | Ring, O(FOR INJECTION PUMP) |
| 22214B | Valve Assy, Fuel Addition Cut |
| 22811 | Stay, Injection Pump, NO.1 |
| 22811D | Stay, Injection Pump, NO.2 |
| 22812A | Ring, O |
| 23083 | Pipe Sub-assy, Nozzle Leakage, NO.3 |
| 23083A | Clamp, Nozzle Leakage |
| 23083C | Gasket(NOZZLE LEKAGE PIPE NO.3) |
| 23083D | Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3) |
| 23271H | Hose, Fuel, NO.1 |
| 23271M | Hose, Fuel |
| 23271N | Clip, Hose |
| 23271W | Clip(FOR FUEL HOSE NO.1) |
| 23273H | Hose, Fuel, NO.2 |
| 23273V | Clip(FOR FUEL HOSE NO.2) |
| 23292A | Protector, Fuel Hose |
| 23681A | Seal, Nozzle Holder |
| 23695C | Clamp, Nozzle Holder |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23703 | Pipe Sub-assy, Injection, NO.3 |
| 23704 | Pipe Sub-assy, Injection, NO.4 |
| 23710C | Injector Assy, Exhaust Fuel Addition NO.2 |
| 23741 | Clamp, Injection Pipe, NO.1 |
| 23741B | Clamp, Injection Pipe |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23743 | Clamp, Injection Pipe, NO.3 |
| 23744 | Clamp, Injection Pipe, NO.4 |
| 23801L | Pipe Sub-assy, Fuel(FOR FUEL FILTER TO INJECTION PUMP) |
| 23801M | Bolt, Union |
| 23801N | Gasket |
| 23802E | Pipe Sub-assy, Fuel |
| 23803H | Pipe Sub-assy, Fuel Return |
| 23803J | Bolt, Union(FOR FUEL RETURN PIPE) |
| 23804D | Pipe Sub-assy, Fuel, NO.4 |
| 23804F | Gasket(FOR FUEL PIPE NO.4) |
| 23809L | Support Sub-assy, Fuel Pipe |
| 23810A | Rail Assy, Common |
| 23811G | Pipe, Fuel, NO.1 |
| 23811J | Bolt, Union |
| 23814C | Pipe, Fuel Delivery |
| 23845E | Insulator, Fuel Pipe |
| 23849G | Support, Fuel Pipe |
| 23849H | Support, Fuel Pipe |
| 77249C | Hose, Fuel Emission |
| 77261G | Tube, Fuel Emission, NO.1 |
| 77281U | Bracket, Fuel Main Tube, NO.1 |
| 77282B | Bracket, Fuel Main Tube, NO.2 |
| 77297A | Connector, Fuel Tube |
| 77778B | Bracket, Fuel Hose Clamp |
