Toyota Dyna HV

2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

14 part groups · 2 illustrations

Illustrations

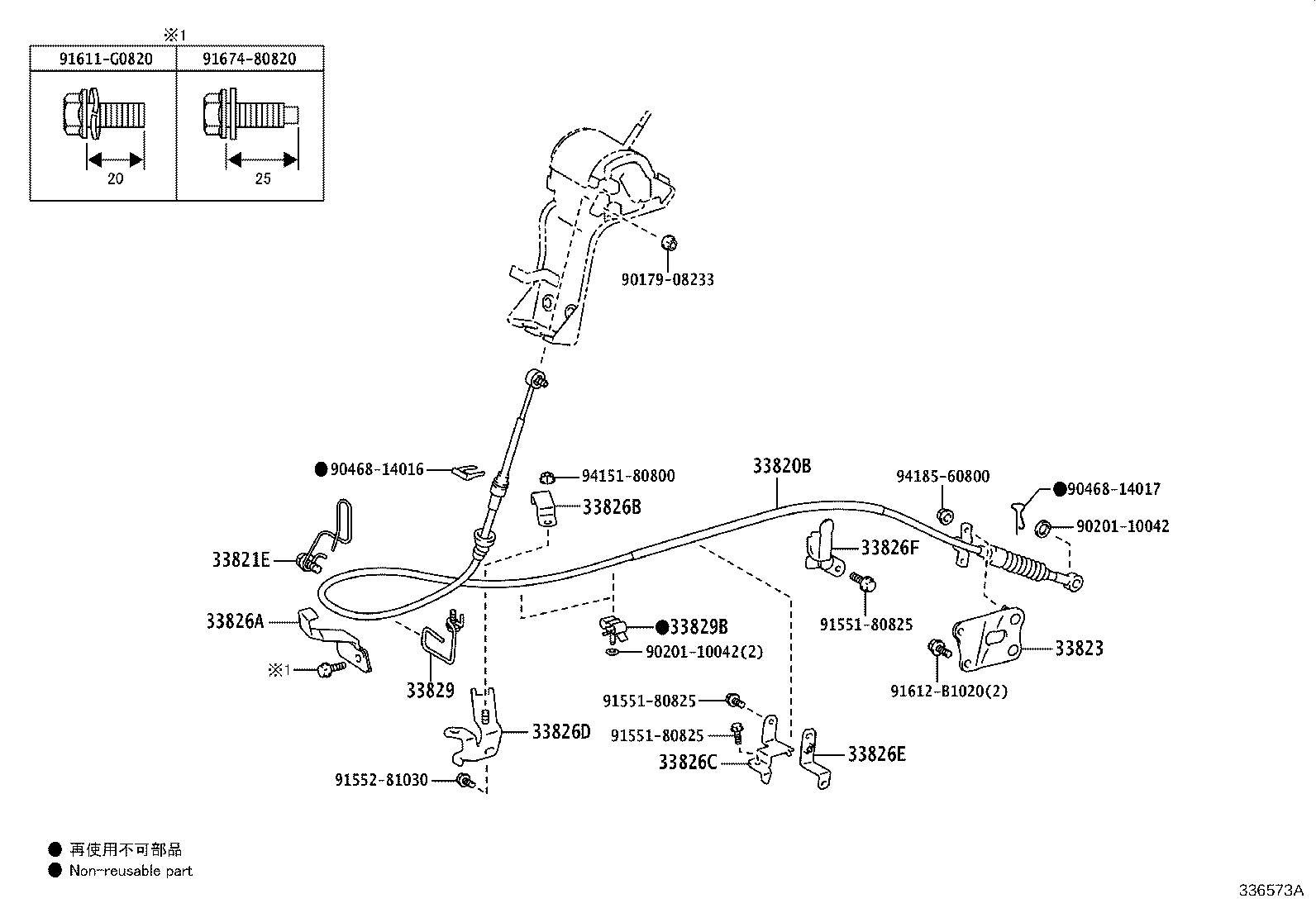

Figure 336572 336572 2021-03 → — Figure 336573A 336573A 2021-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33680 Cover Sub-assy, Shift Lever
33820B Cable Assy, Transmission Control
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33826B Bracket, Transmission Control Cable, NO.3
33826C Bracket, Transmission Control Cable, NO.4
33826D Bracket, Transmission Control Cable, NO.5
33826E Bracket, Transmission Control Cable, NO.6
33826F Bracket, Transmission Control Cable, NO.7
33829 Support, Transmission Control Cable
33829B Clamp, Transmission Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
