Toyota Dyna HV

2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

17 part groups · 2 illustrations

Illustrations

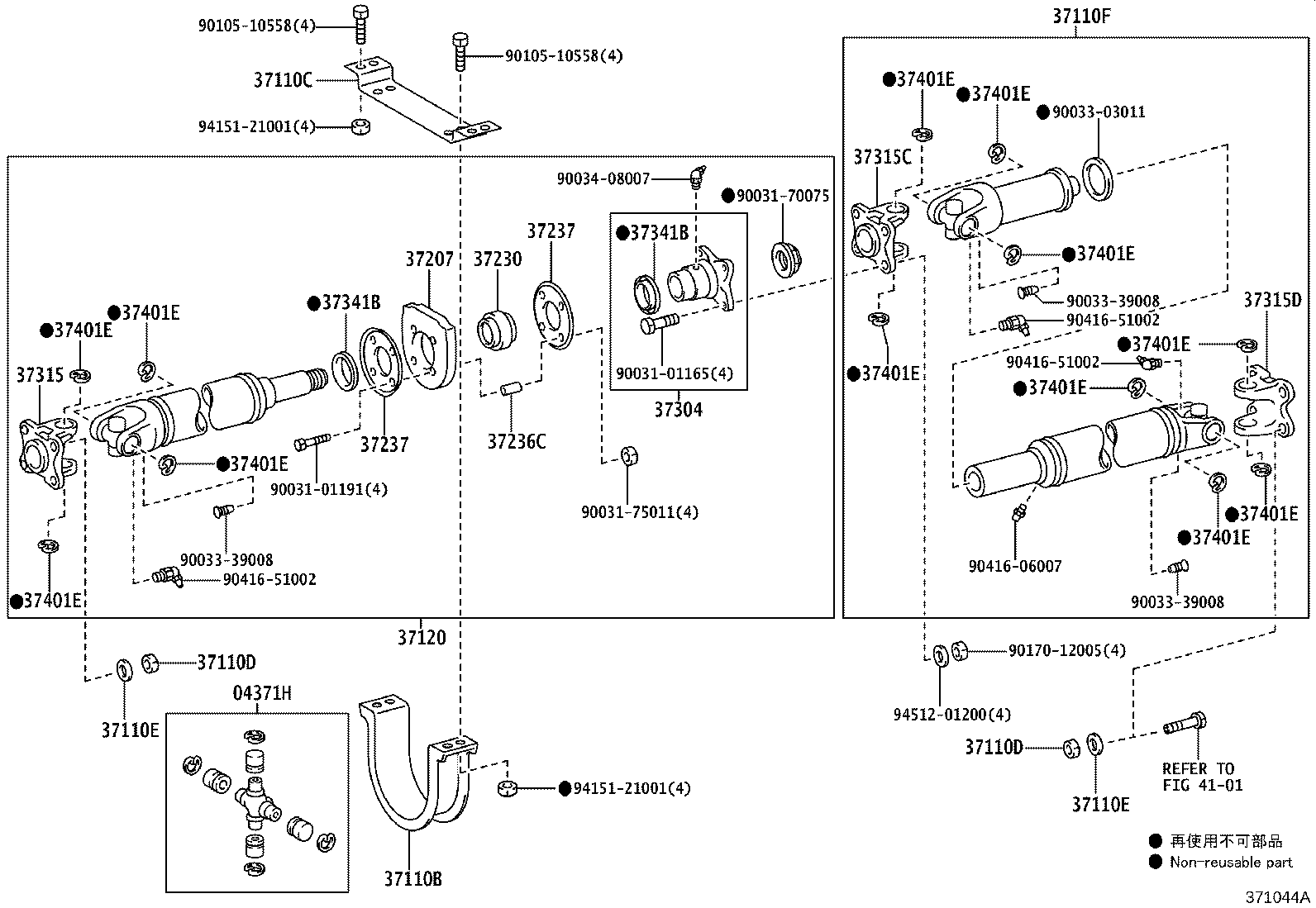

Figure 371043A 371043A 2021-03 → — Figure 371044A 371044A 2021-03 → —

Part groups

PNCDescription
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37110B Guard, Propeller Shaft
37110C Bracket, Propeller Shaft Guard
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37110F Shaft Assy, Propeller, Rear
37120 Shaft Assy, Propeller Intermediate
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37236C Spacer (FOR CENTER SUPPORT BEARING HOUSING)
37237 Plate, Center Support Bearing, NO.1
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37315D Yoke, NO.2, Rear Propeller Shaft Universal Joint Flange
37341B Deflector, Propeller Shaft Dust, NO.5
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
