Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03

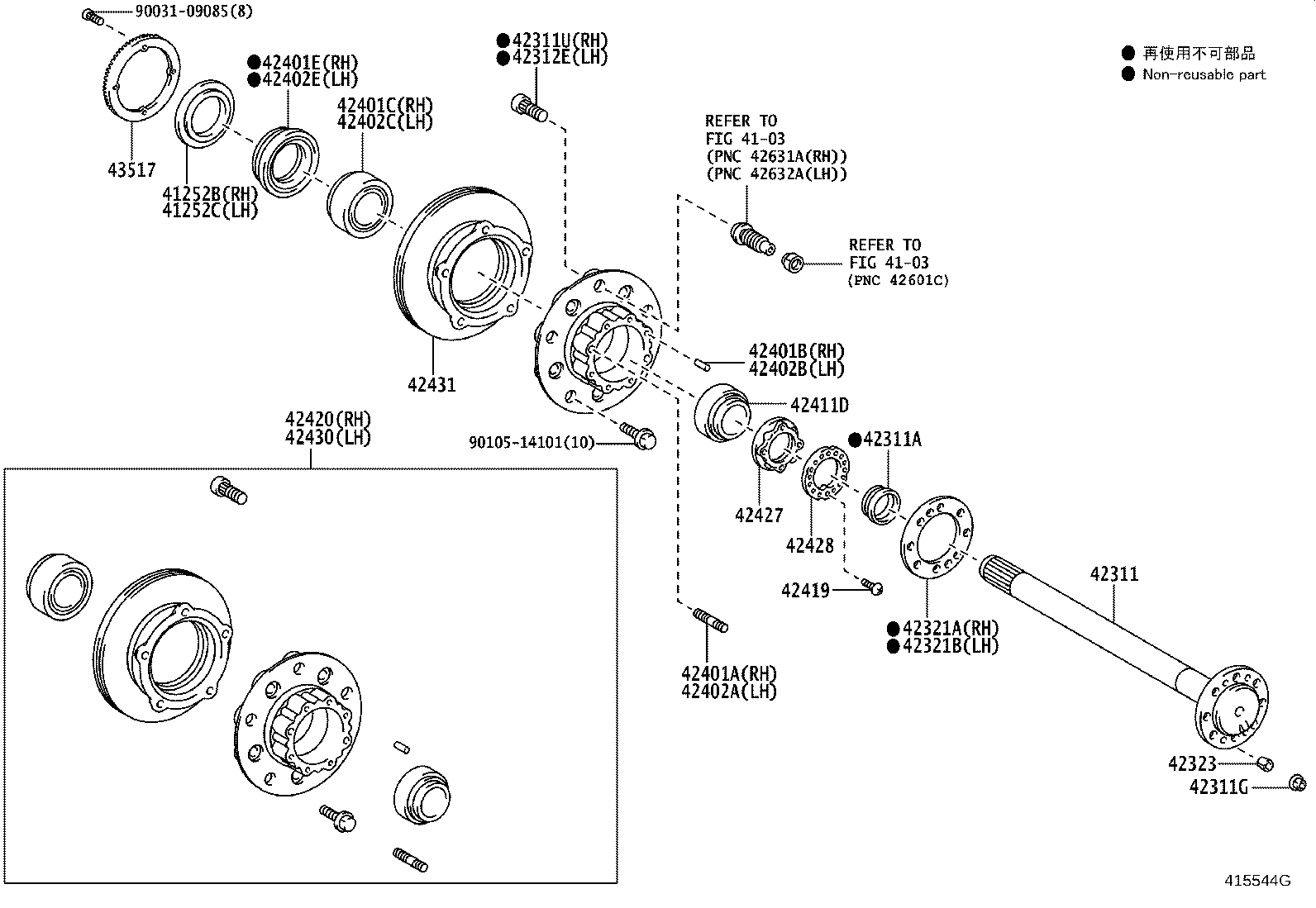

Rear Axle Shaft & Hub
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41252B | Deflector, Dust, RH |
| 41252C | Deflector, Dust, LH |
| 42311 | Shaft, Rear Axle |
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311G | Nut(FOR REAR AXLE SHAFT) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42321A | Gasket, Rear Axle Shaft, RH |
| 42321B | Gasket, Rear Axle Shaft, LH |
| 42323 | Washer, Cone (FOR REAR AXLE SHAFT) |
| 42401A | Bolt, Stud (FOR REAR AXLE HUB RH) |
| 42401B | Pin, Straight (FOR REAR AXLE HUB RH) |
| 42401C | Bearing (FOR REAR AXLE HUB INNER RH) |
| 42401E | Seal, Oil (FOR REAR AXLE HUB RH) |
| 42402A | Bolt, Stud (FOR REAR AXLE HUB LH) |
| 42402B | Pin, Straight (FOR REAR AXLE HUB LH) |
| 42402C | Bearing (FOR REAR AXLE HUB INNER LH) |
| 42402E | Seal, Oil (FOR REAR AXLE HUB LH) |
| 42411D | Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING) |
| 42419 | Screw, Rear Axle Bearing Lock Nut |
| 42420 | Hub (OR SHAFT) & Brake Drum Rear Axle, RH |
| 42427 | Nut, Rear Axle Bearing Lock |
| 42428 | Plate, Rear Axle Lock Nut |
| 42430 | Hub (OR SHAFT) & Brake Drum Rear Axle, LH |
| 42431 | Disc, Rear |
| 43517 | Rotor, Skid Control, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
